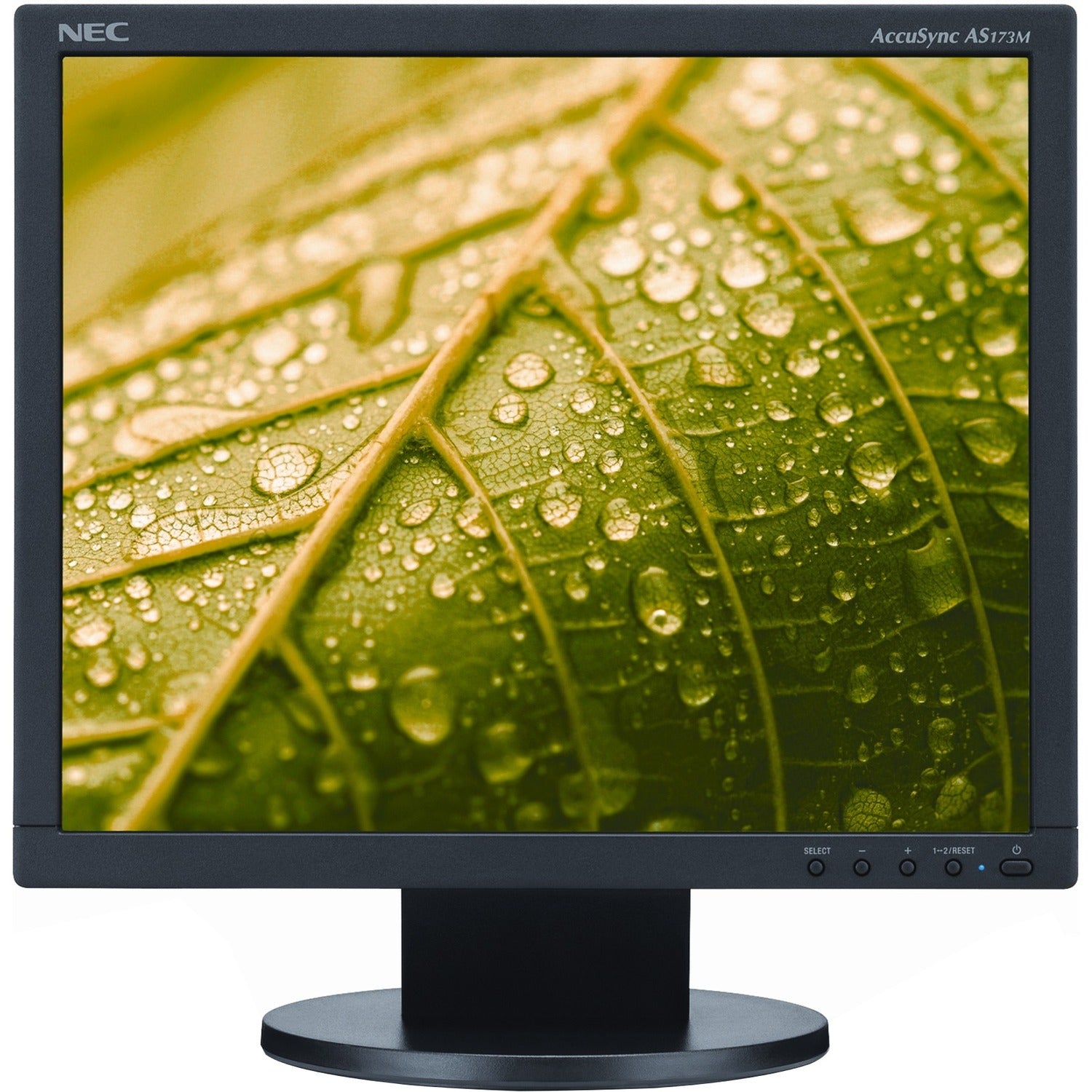

NEC Display AccuSync AS173M-BK 17" Class SXGA LCD Monitor - 5:4

General Information

Manufacturer: Sharp
Manufacturer Part Number: AS173M-BK
Manufacturer Website Address: http://www.sharp-nec-displays.com/
Brand Name: NEC Display
Product Line: AccuSync
Product Series: Value
Product Model: AS173M-BK
Product Name: 17" Value Desktop Monitor with LED Backlighting
Marketing Information:

Enhance your desktop without breaking your budget with the 17" NEC AccuSync AS173M, an LED backlit LCD desktop monitor featuring robust environmental features such as the Carbon Footprint Meter for tracking the conservation of green gas emissions and ECO Mode for significant power consumption savings. These advantages, combined with an ergonomic design and a high-contrast screen, make this model ideal for small-to-medium-sized business environments.

• LED backlight technology provides for industry-leading low power consumption and less hazardous materials
• Ambix® dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
• Rapid Response™ technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
• ECO Mode™ function helps save power, reduce heat and extend the life of the display, Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use
• Carbon footprint meter helps track and calculate the reduction of green gas emissions
• ENERGY STAR 8.0 and TCO 8.0
• NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

Product Type: LCD Monitor

Technical Information

Number of Screens: 1
Screen Size Class: 17"
Viewable Screen Size: 17"
Screen Mode: SXGA
Panel Technology: Twisted nematic (TN)
Response Time: 5 ms
Aspect Ratio: 5:4
Pixel Pitch: 0.26000 mm x 0.26000 mm
Backlight Technology: LED
Mount Type: Desk Mountable
HDCP Supported: Yes
Features: Ergonomic Design,Eco Mode,Carbon Footprint Meter,Ambix Dual Input Technology,XtraView,Cable Lock Slot
Horizontal Frequency: 31.50 kHz to 81.10 kHz - Analog/Digital
Vertical Frequency: 50 Hz to 75 Hz
Curved Screen: No
Stand Adjustments: Tilt

Video

Maximum Resolution: 1280 x 1024
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Color Gamut: 74.1% Adobe RGB,70.6% NTSC,95.7% sRGB

Audio

Speakers: No

Interfaces/Ports

HDMI: Yes
VGA: Yes
DisplayPort: Yes

Built-in Devices

Webcam: No

Power Description

Operating Power Consumption: 12 W
Standby Power Consumption: 300 mW

Physical Characteristics

VESA Mount Compatible: Yes
Height: 12.20" (309.88 mm)
Width: 14.70" (373.38 mm)
Depth: 2.70" (68.58 mm)
Height with Stand: 14.70" (373.38 mm)
Width with Stand: 14.70" (373.38 mm)
Depth with Stand: 8.10" (205.74 mm)
Weight (Approximate): 6.61 lb (3000 g)
Weight with Stand (Approximate): 7.28 lb (3300 g)

Miscellaneous

Package Contents:

• 17" Value Desktop Monitor with LED Backlighting
• Setup Manual
• Energy Star 8.0 Sheet
• 1.5m Power cord
• 1.5m DisplayPort cable

Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
