Description
Manufacturer-Brochure
General Information
Manufacturer: StarTech.comManufacturer Part Number: 4P6G-PCIE-SATA-CARD
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

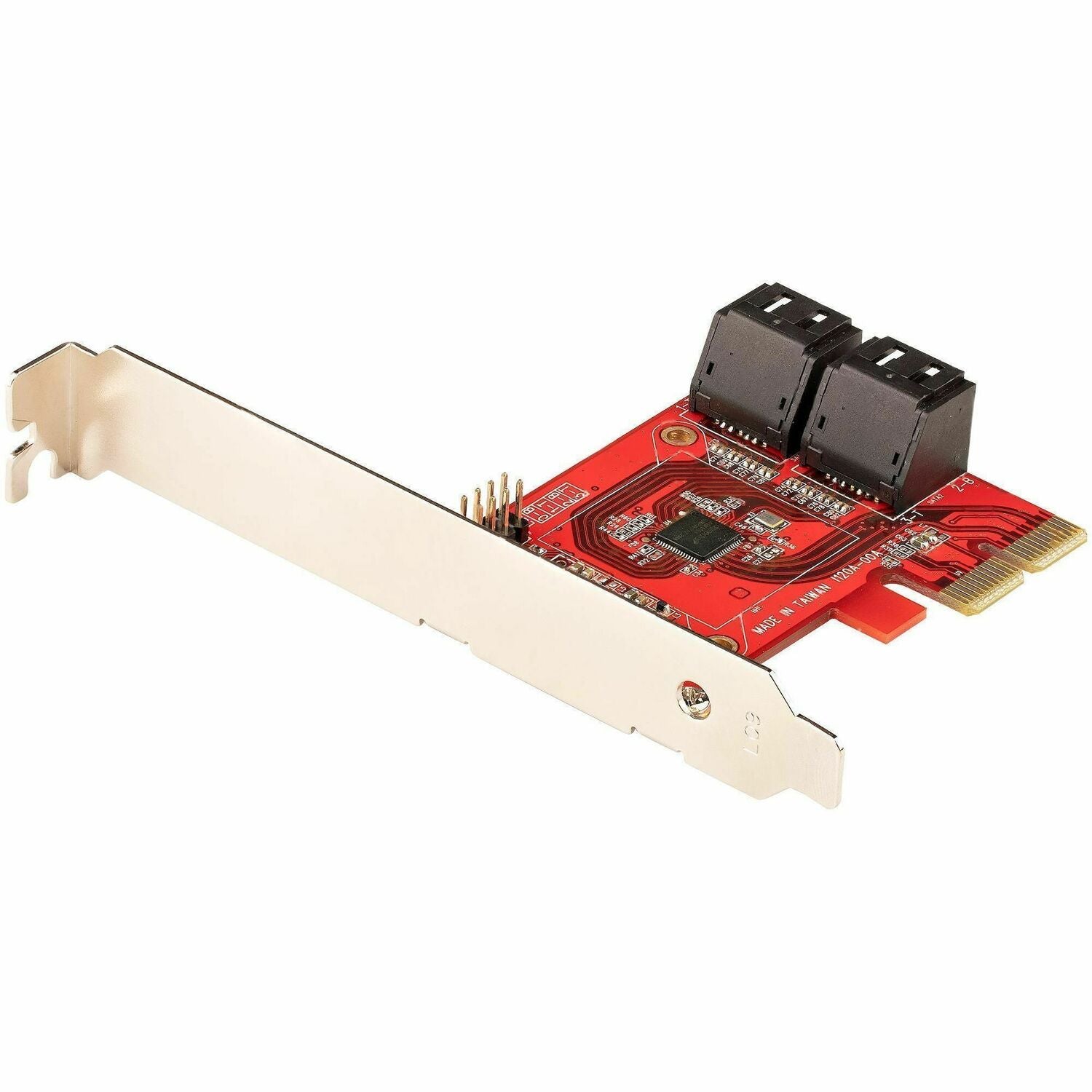

Product Name: PCIe SATA Card
Marketing Information:
This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.

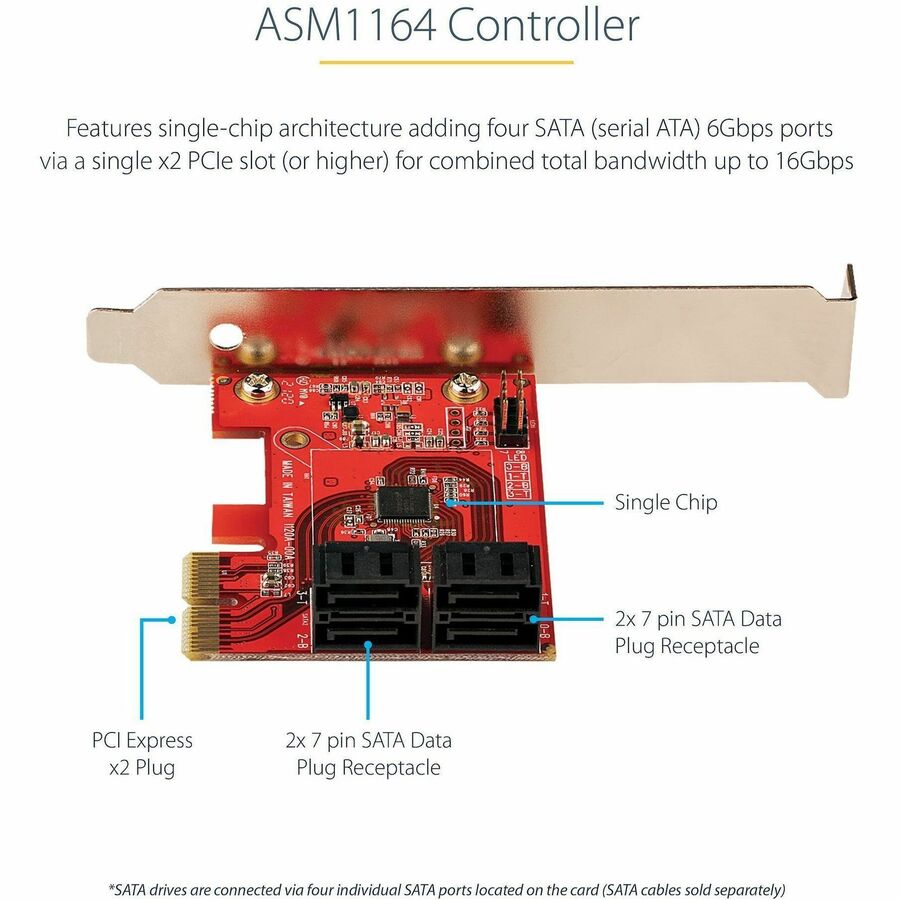

ASM1164 to Deliver 4-Port SATA 6Gbps Performance
Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).

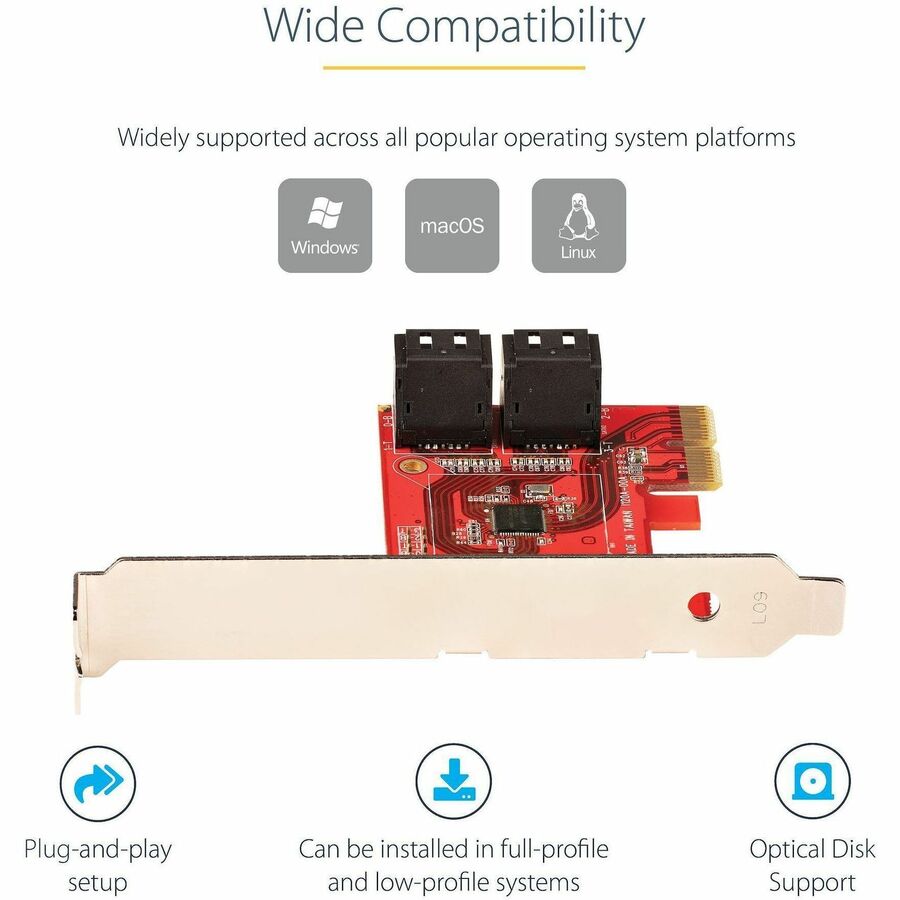

Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibi
Product Type: SATA Controller
Technical Information
Host Interface: PCI Express 3.0 x4Controller Type: Serial ATA/600
RAID Supported: No
Device Supported: Server
Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 2.6.32
Interfaces/Ports
Total Number of SATA Ports: 4Number of SATA Ports (Internal): 4

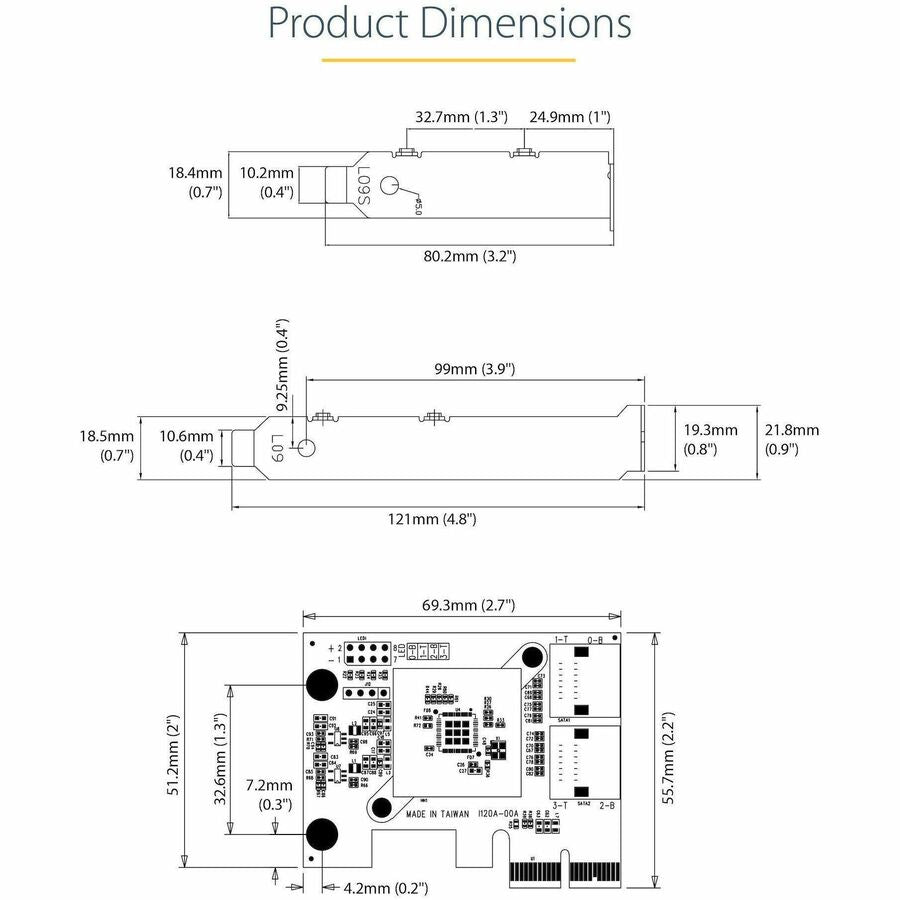

Physical Characteristics
Form Factor: Plug-in CardHeight: 0.60" (15.24 mm)
Width: 2.20" (55.88 mm)
Length: 2.80" (71.12 mm)
Weight (Approximate): 2.65 oz (75 g)
Miscellaneous

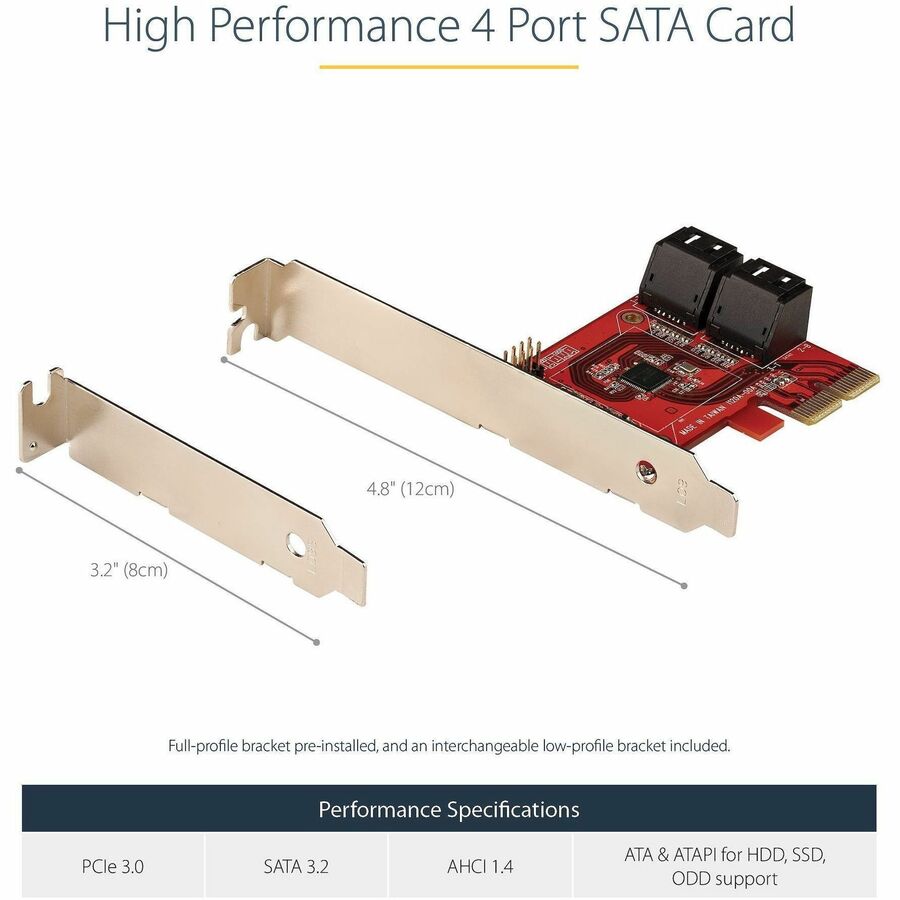

Package Contents:- PCIe SATA Card
- Full-Profile Bracket (Installed)
- Low-Profile Bracket
- Quick-Start Guide
Platform Supported: PC,Mac,Linux
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Warranty
Limited Warranty: 2 Year
