Description
Manufacturer-Brochure
General Information
Manufacturer: StarTech.comManufacturer Part Number: DPBOOST
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: DisplayPort Signal Booster - DP Extender - 4K 60Hz
Marketing Information:
This DisplayPort signal booster lets you increase the signal strength of your DP video source using standard DisplayPort cables. You can achieve resolutions up to 4K at 60Hz, and depending on your desired resolution, the booster supports varying distances up to 65 ft. (20 m) away at 1080p 60Hz resolution. For inline installations, you can place the booster between two DisplayPort cables, up to 50 ft. in length at the video input, and up to 15 ft. in length at the video output.
Maintains Ultra HD 4K video signals

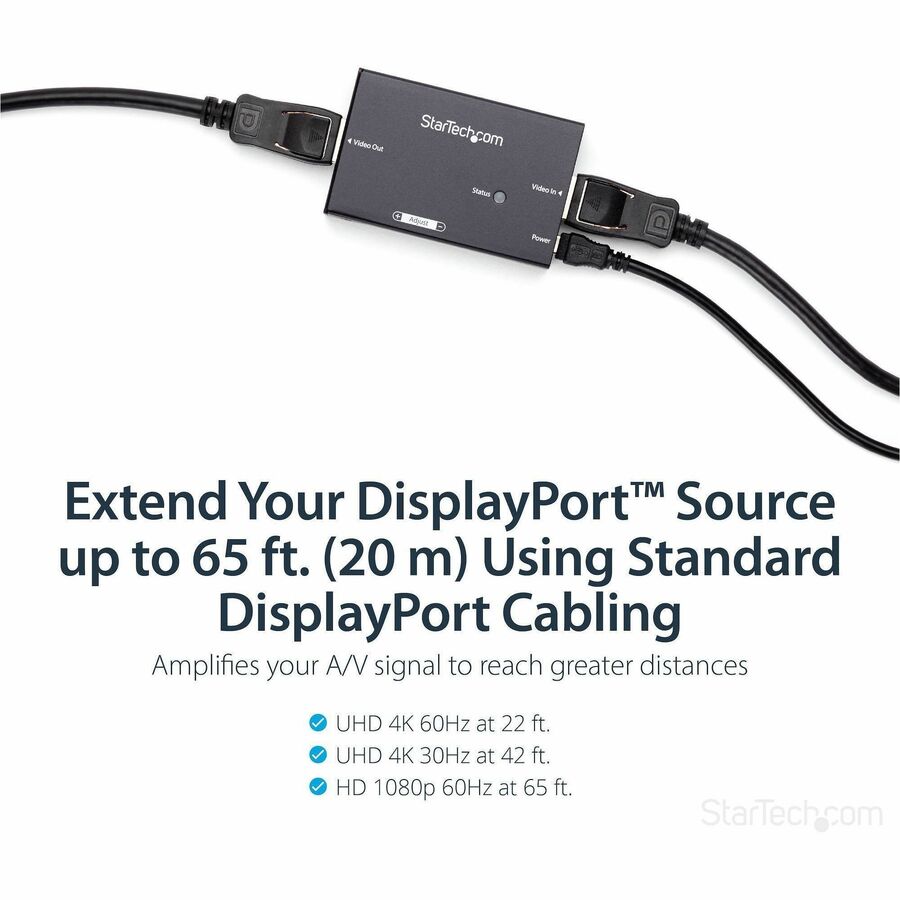

When extending DisplayPort over long distances using standard video cabling, higher resolutions can become unavailable. Using the DP signal booster ensures that you can depend on UHD resolutions up to 4K at 60Hz at up to 22 ft. (7 m). You can achieve even greater distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).
Easy and discreet installation
With its small form factor, the Display
Packaged Quantity: 1 Each
Product Type: Signal Amplifier
Technical Information
Minimum Frequency: 30 HzMaximum Frequency: 60 Hz
Video
Maximum Video Resolution: 3840 � 2160Interfaces/Ports
DisplayPort: YesUSB: Yes
Number of DisplayPort Inputs: 1
Number of DisplayPort Outputs: 1
Media & Performance
Maximum Operating Distance: 42 ft (12801.60 mm)Power Description
Input Voltage: 120 V AC,230 V ACPhysical Characteristics
Height: 0.80" (20.32 mm)Width: 2" (50.80 mm)
Length: 3.10" (78.74 mm)
Weight (Approximate): 5.40 oz (153.09 g)
Miscellaneous
Package Contents:- DisplayPort Signal Booster - DP Extender - 4K 60Hz
- 1 x Power Adapter
- 1 x Usb Power Cable
- 4 x Rubber Feet
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty: 2 Year
