MCMGBSCSM10 StarTech.com Single Mode SC Fiber Ethernet Media Converter - 1000BASE-LX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network 10km

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: MCMGBSCSM10
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
Marketing Information: This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two
Packaged Quantity: 1 Each
Product Type: Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex

Media & Performance

Media Type Supported: Twisted Pair,Optical Fiber
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 10 km (6.21 Mile)

Network & Communication

Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T,1000Base-LX,10Base-T,100Base-LX

Power Description

Power Source: AC Adapter
Power Consumption: 10 W
Plug/Connector Type: Type N

Physical Characteristics

Form Factor: Wall Mountable
Height: 1" (25.40 mm)
Width: 4.10" (104.14 mm)
Depth: 2.80" (71.12 mm)
Weight (Approximate): 6.90 oz (195.61 g)

Miscellaneous

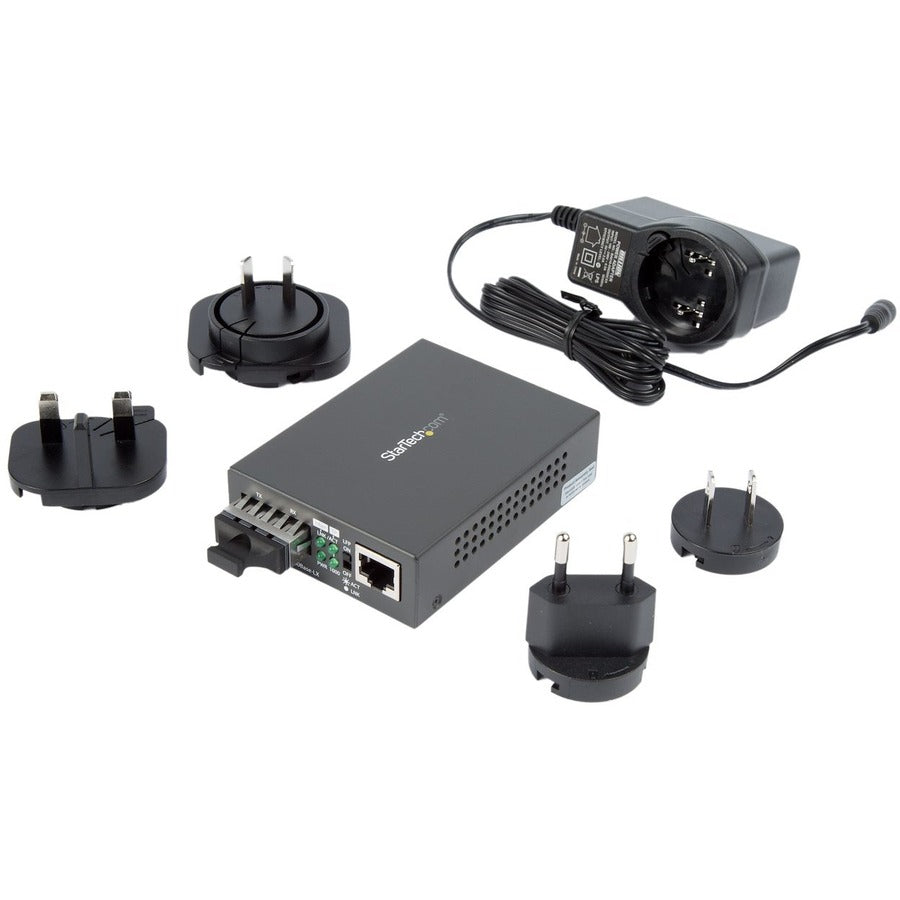

Package Contents:

• Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
• 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
• 1 x Quick-start Guide

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
