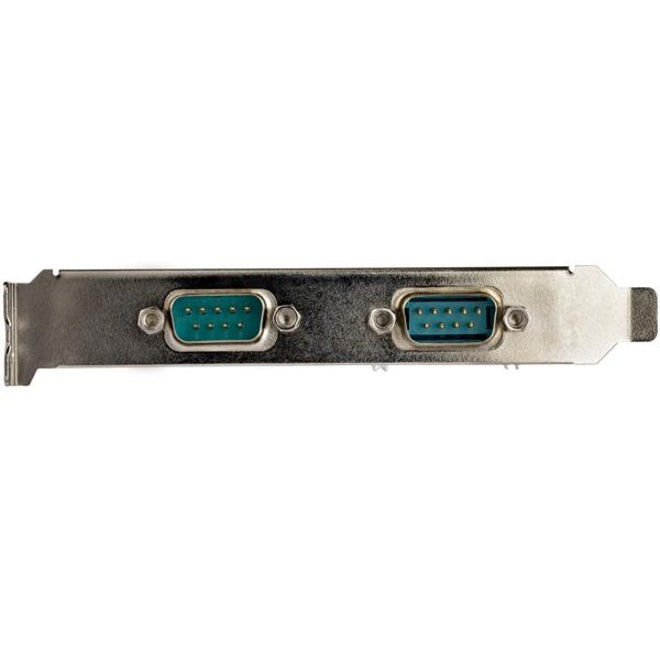

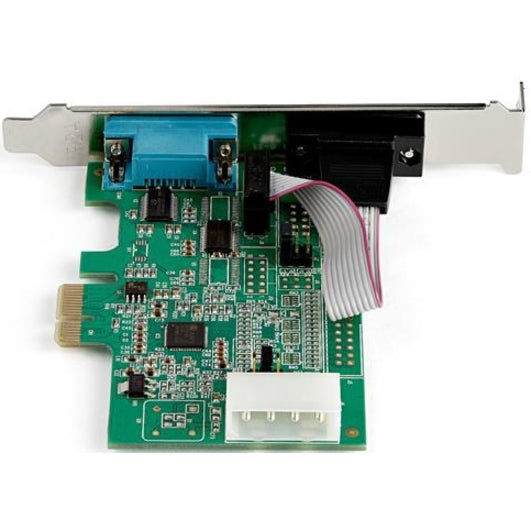

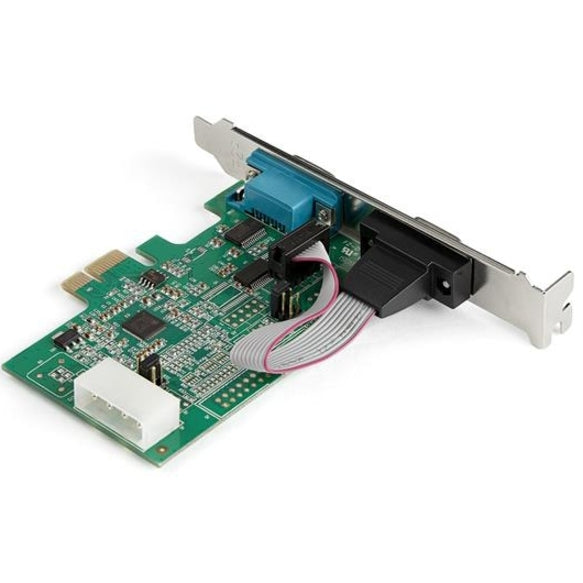

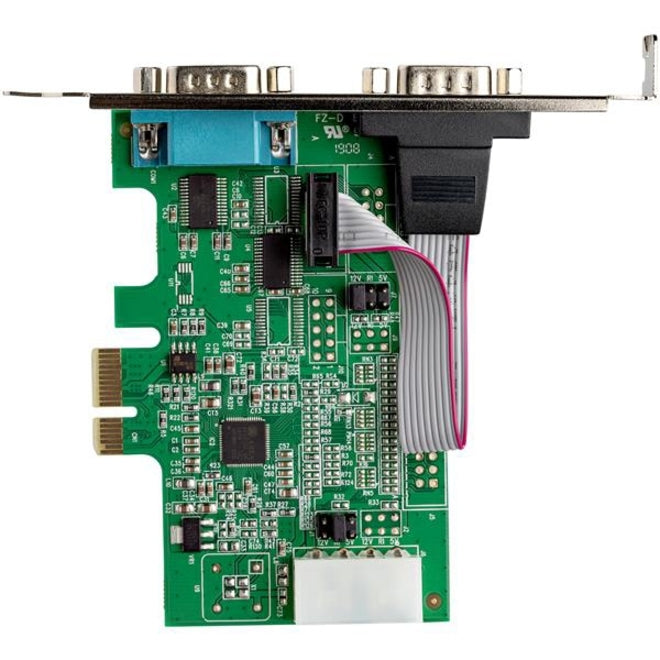

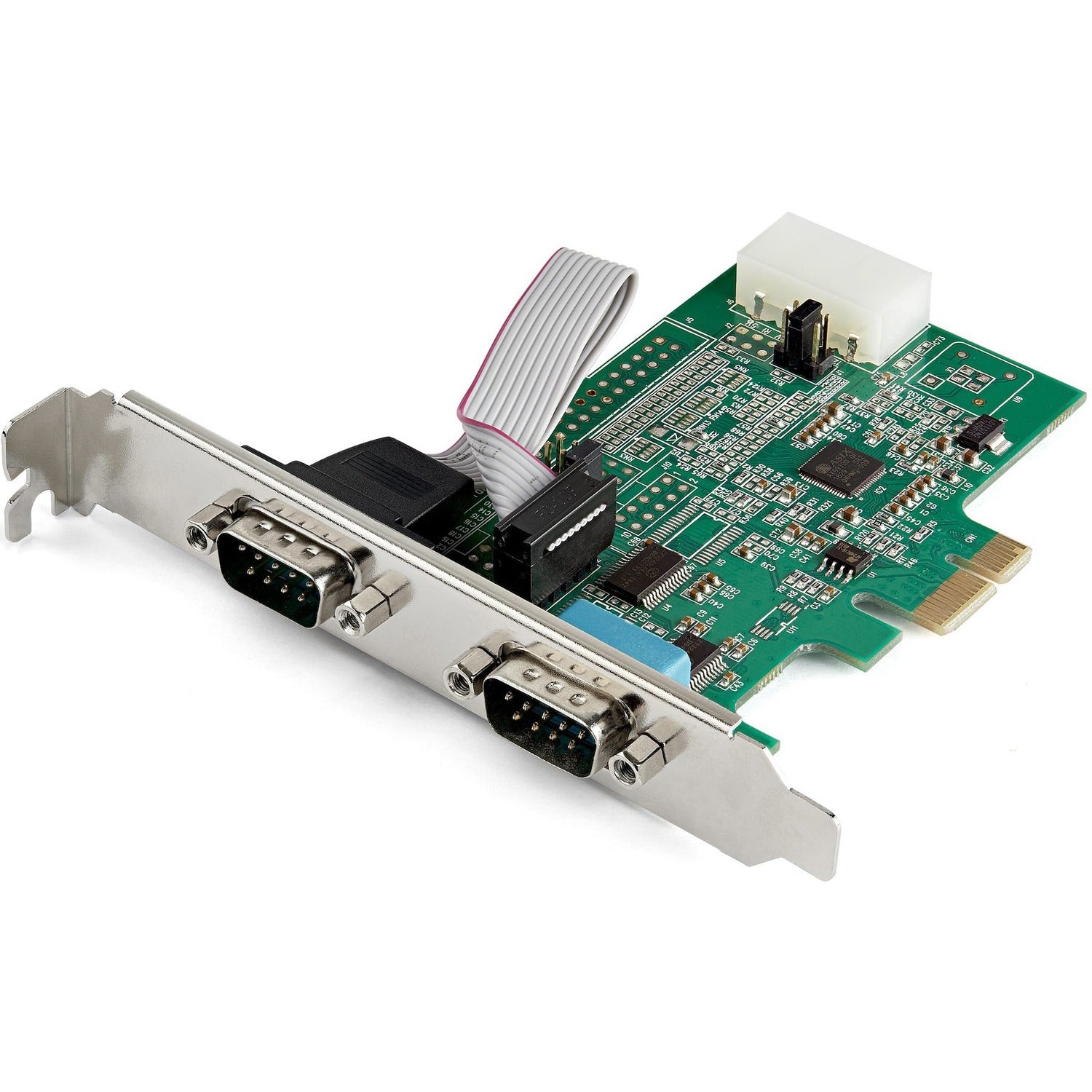

PEX2S953 StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe to Dual Serial DB9 RS-232 Controller - 16950 UART - Windows and Linux

General Information

This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952 .

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Industry standard 16950 UART compatible
• Supports max baud rate of up-to 921.6Kbps
• Provides 5/12V power output on Pin 9 when external power is conne
  Packaged Quantity: 1
  Product Type: Serial Adapter


  Technical Information

  Host Interface: PCI Express 1.1 x1
  Platform Supported: PC,Linux
  UART Type: 16950


  Interfaces/Ports

  Number of Serial Ports (External): 2


  Physical Characteristics

  Form Factor: Plug-in Card
  Card Height: Low-profile
  Height: 0.60" (15.24 mm)
  Width: 2.50" (63.50 mm)


  Miscellaneous

  Package Contents:
  • 2-Port PCI Express RS232 Serial Adapter Card - 16950 UART
  • 1 x Low Profile Bracket
  • 1 x Quick Start Guide

  Environmentally Friendly: Yes
  Environmental Certification: EU RoHS
  Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
  Country of Origin: Taiwan


  Warranty

  Limited Warranty: Lifetime
