Description
Manufacturer-Brochure
General Information
Manufacturer: StarTech.comManufacturer Part Number: PEXUSB3S24
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

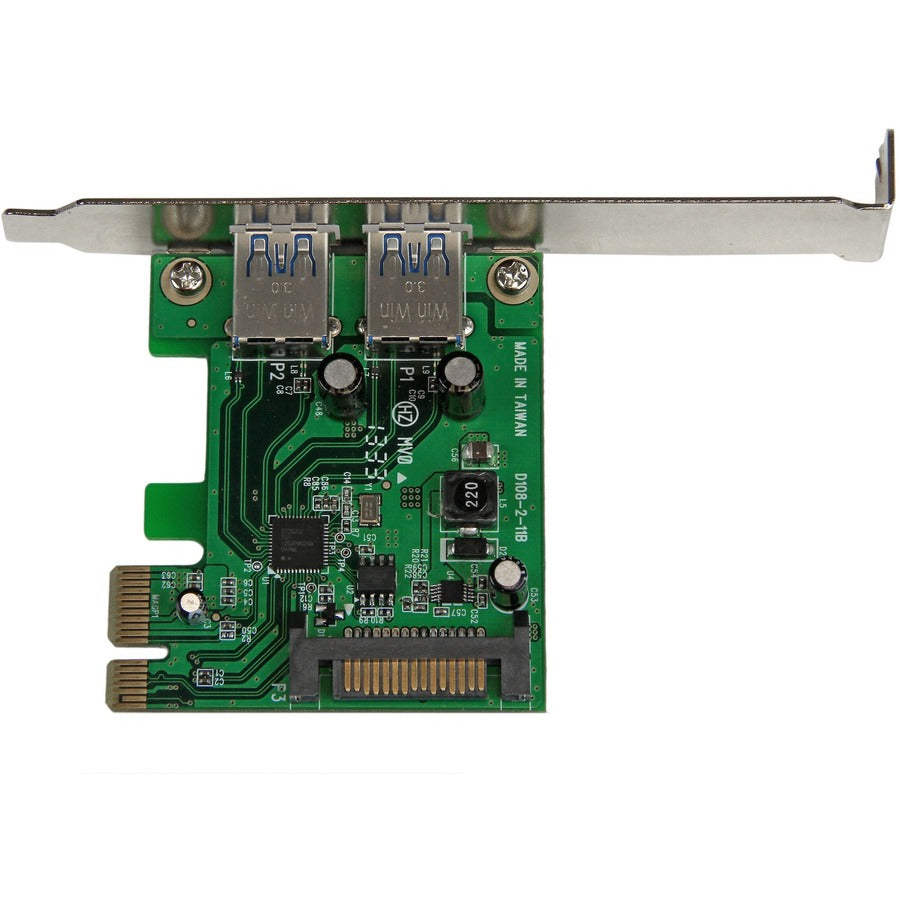

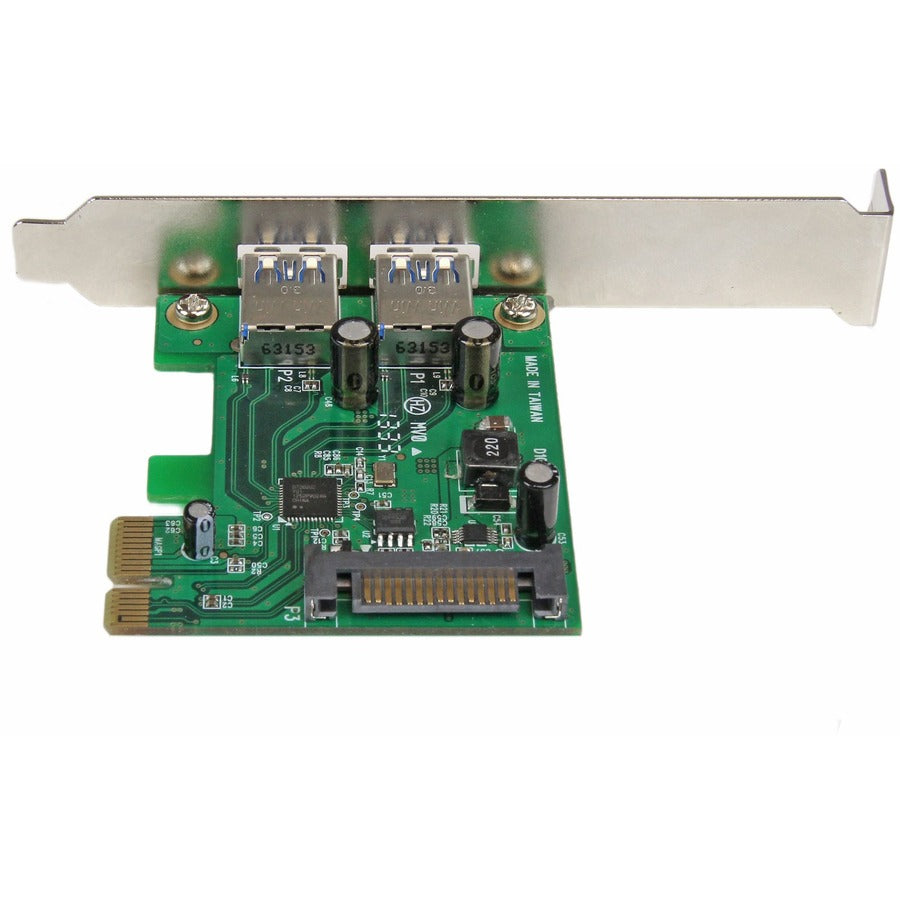

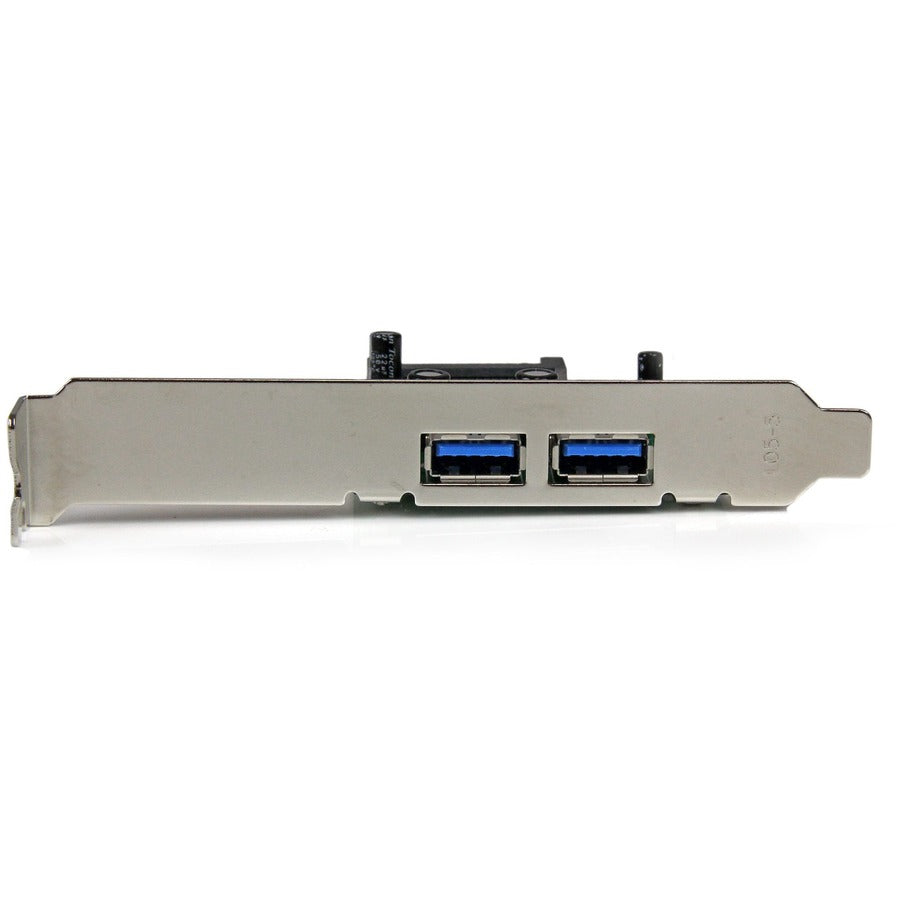

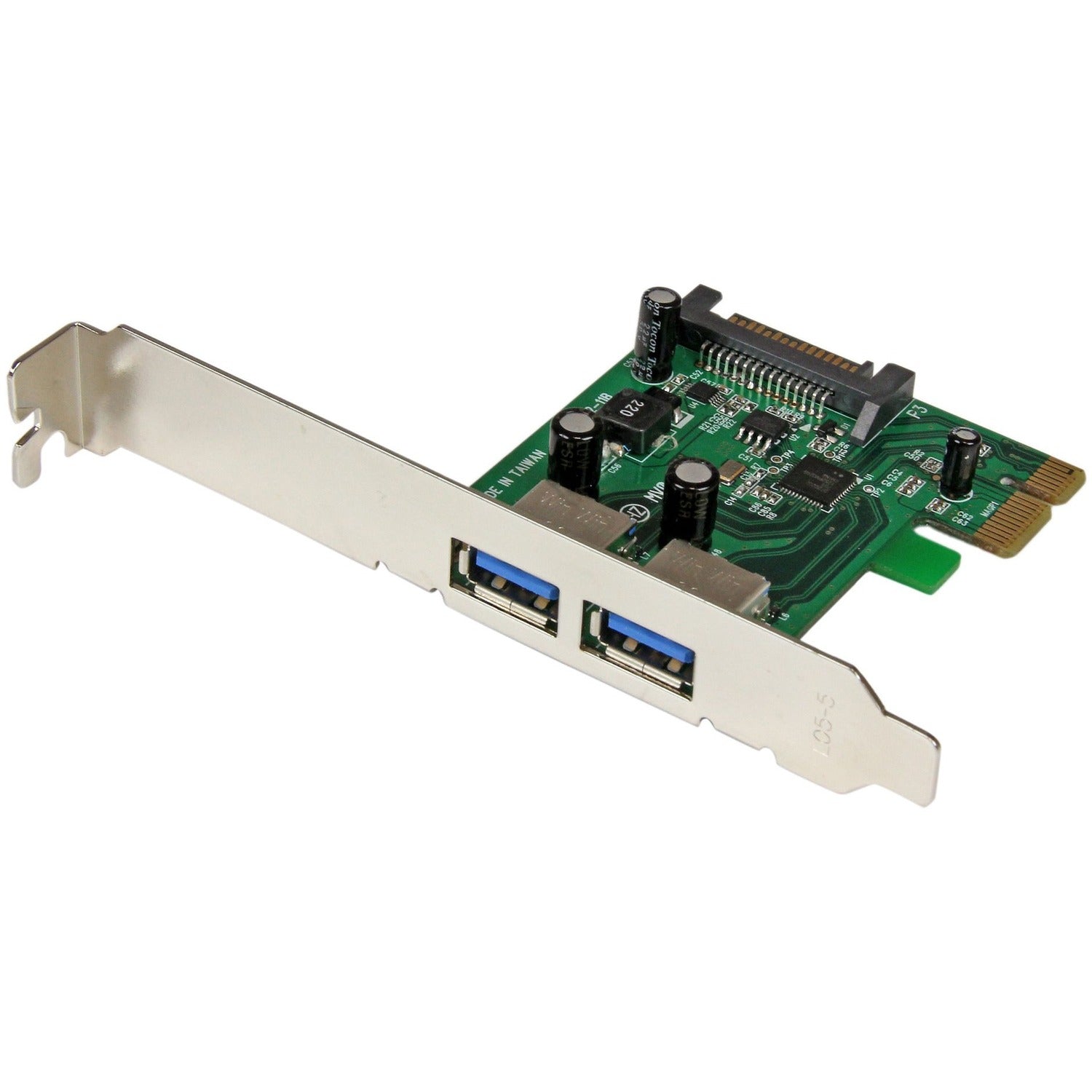

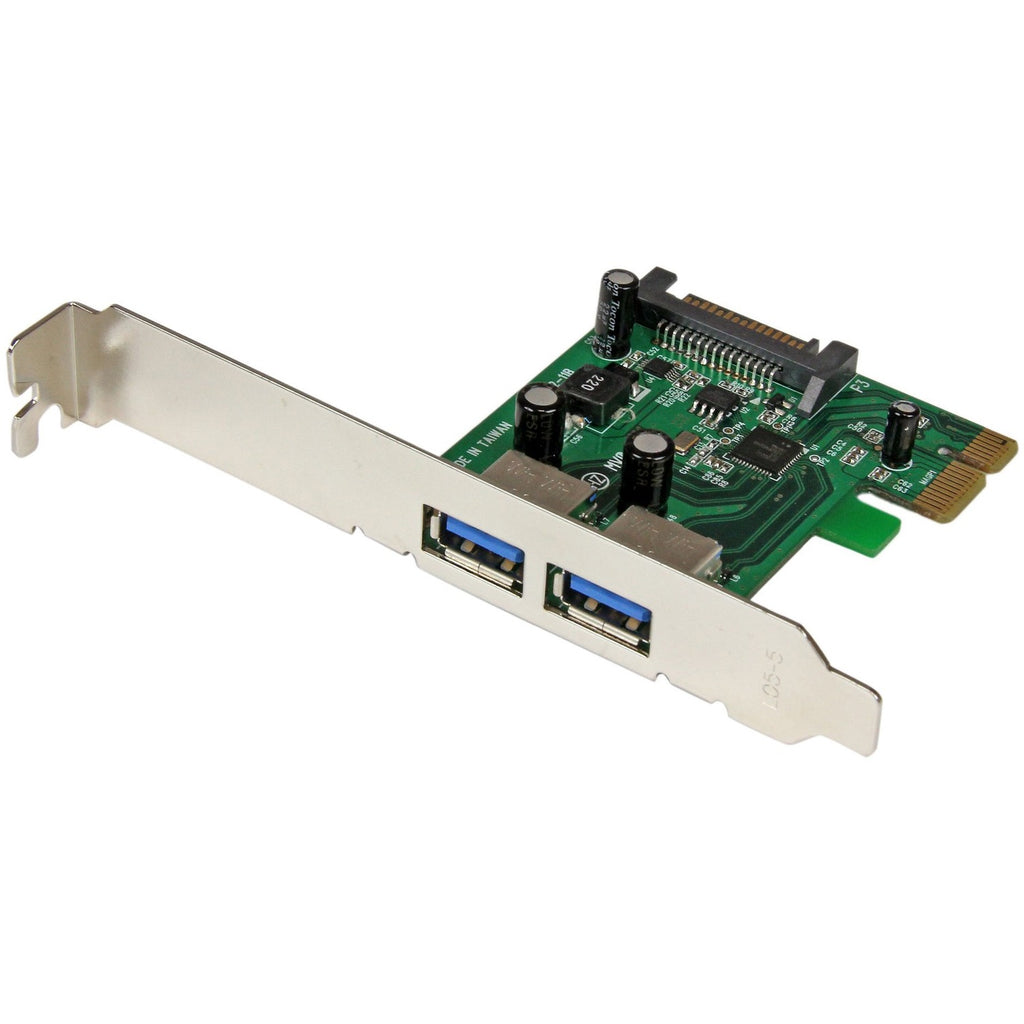

Product Name: 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power
Marketing Information:
The PEXUSB3S24 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0).
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with ex
Packaged Quantity: 1 Each
Product Type: USB Adapter
Technical Information
Host Interface: PCI Express x1Media & Performance
UASP Support: YesInterfaces/Ports
Total Number of USB Ports: 2Number of USB 3.2 Ports: 2
Number of SATA Ports: 1
Software
Operating System Supported: Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019,LinuxPhysical Characteristics
Color Family: GreenProduct Color: Green
Form Factor: Plug-in Card
Height: 4.70" (119.38 mm)
Width: 0.70" (17.78 mm)
Length: 2.60" (66.04 mm)
Weight (Approximate): 1.41 oz (40 g)
Miscellaneous
Package Contents:- 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Platform Supported: PC,Linux
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
