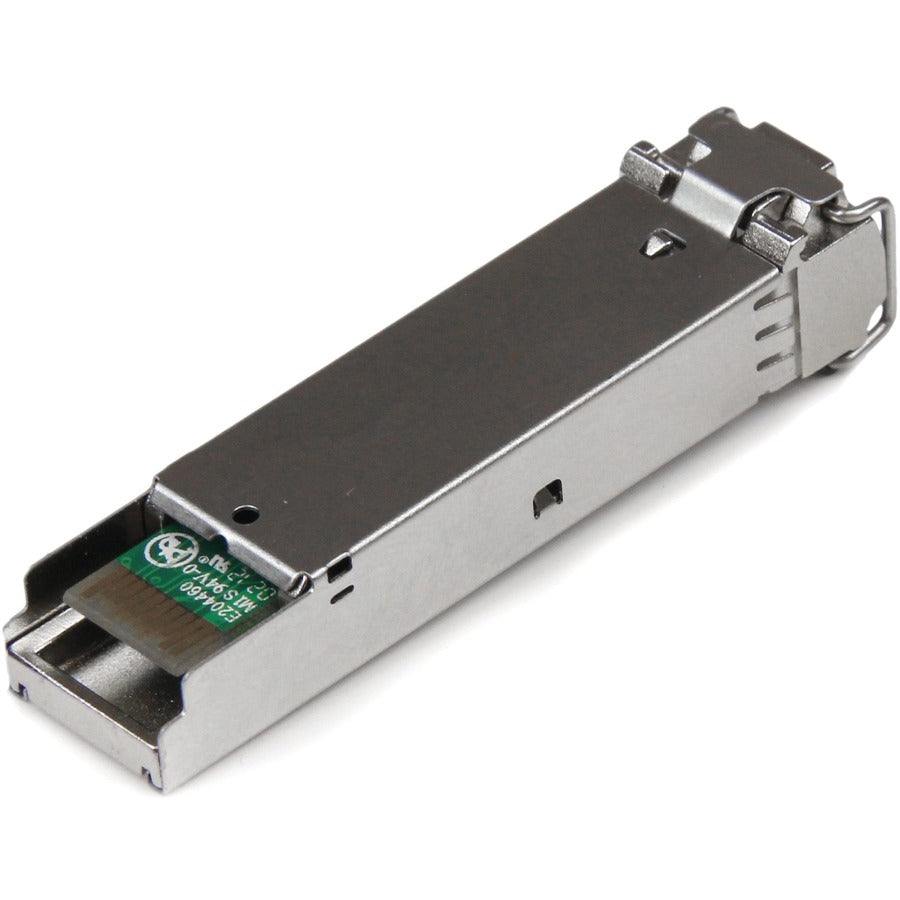

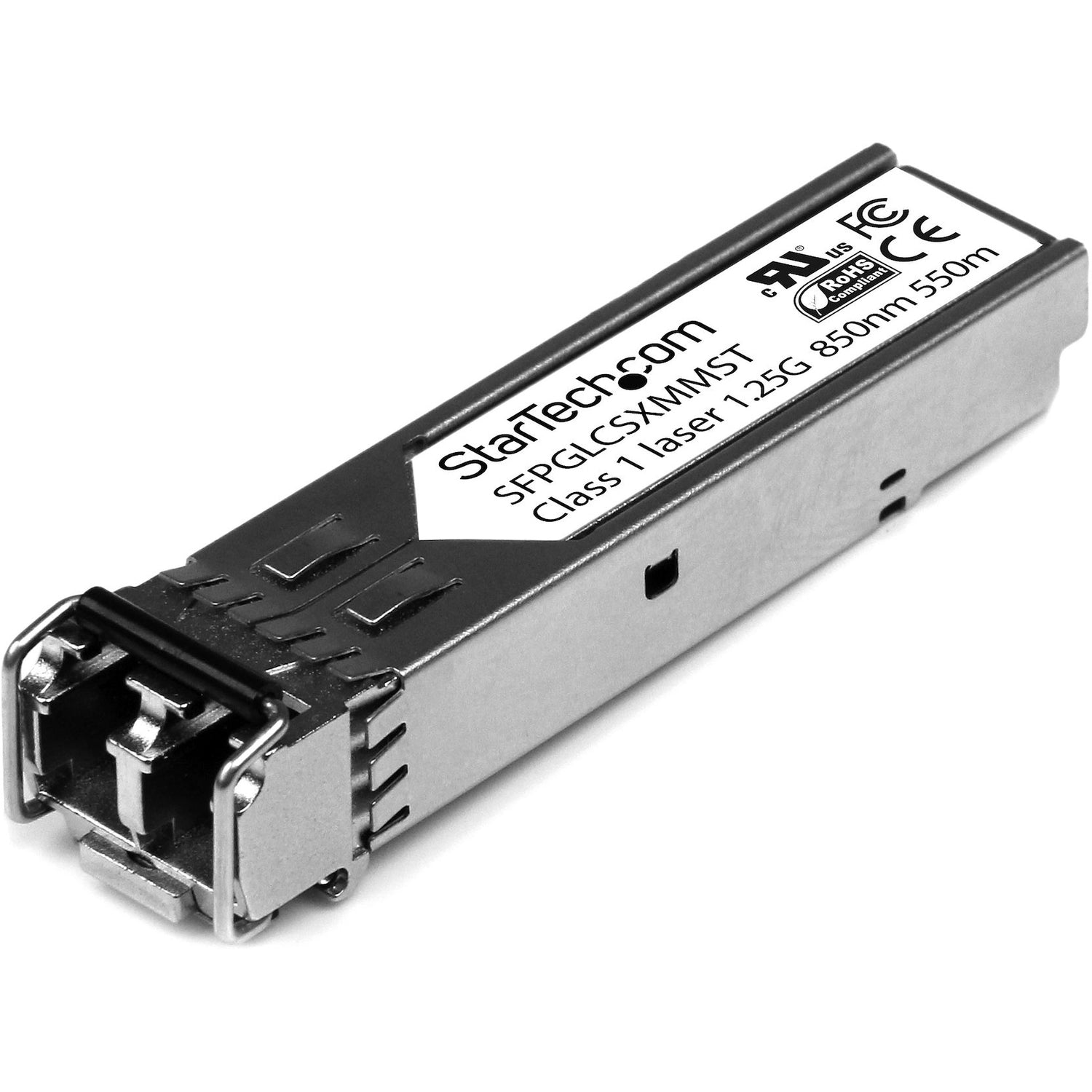

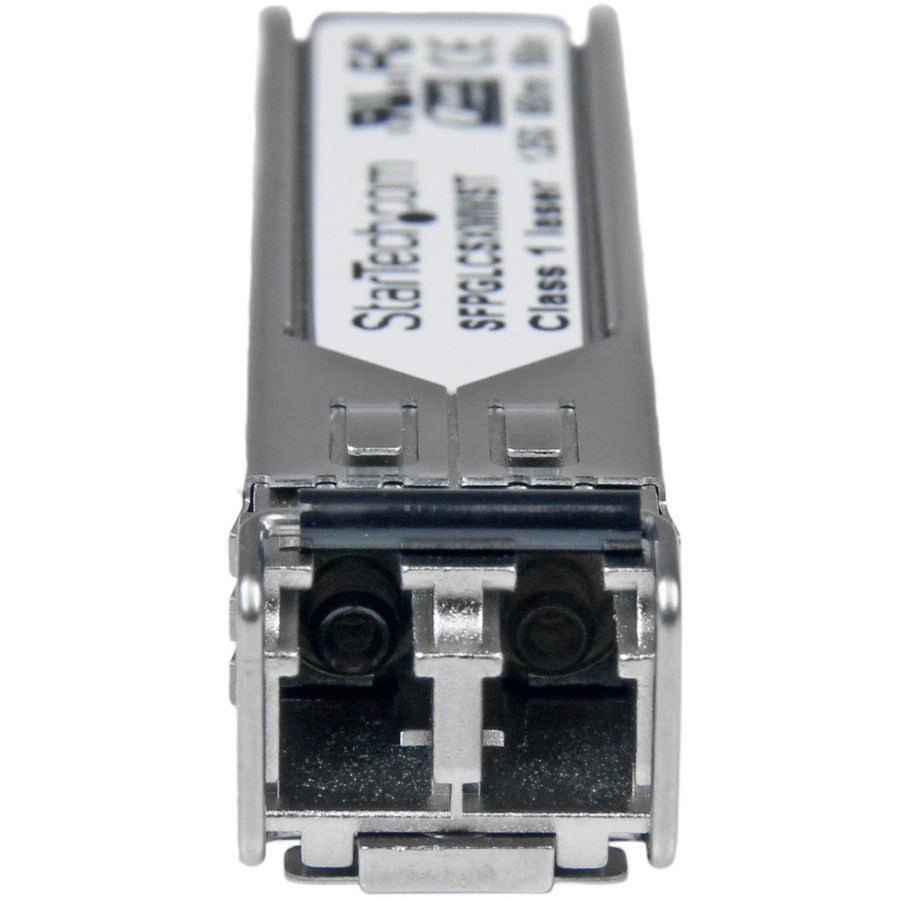

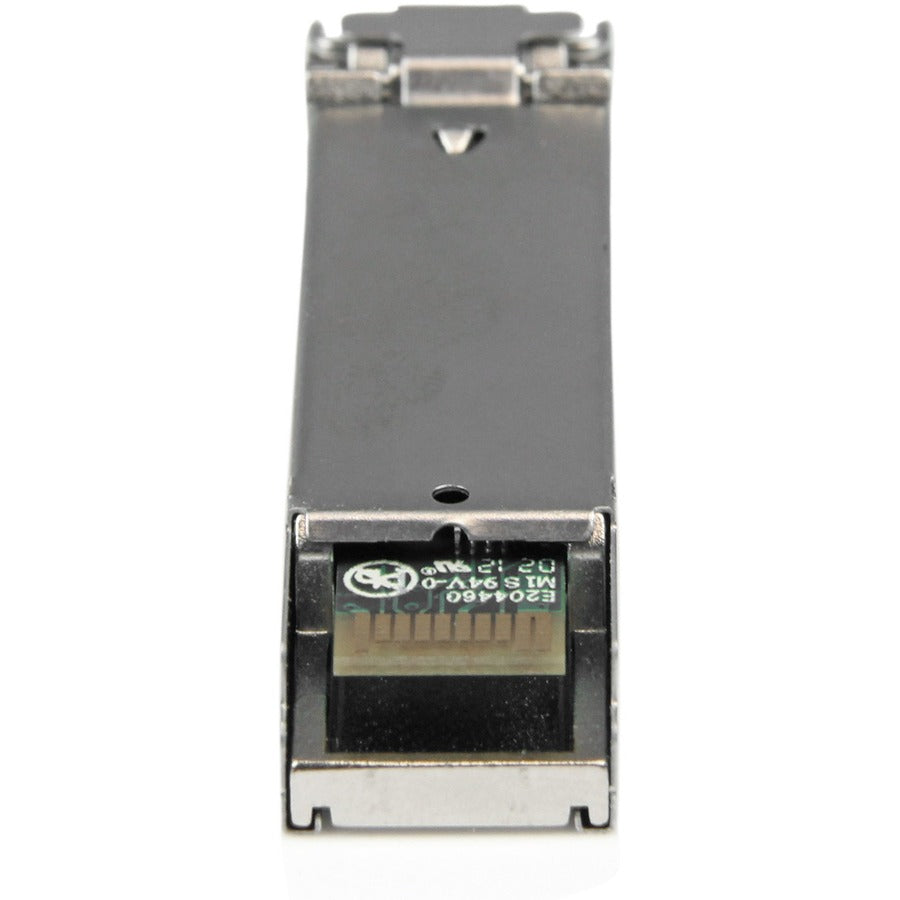

SFPGLCSXMMST StarTech.com Cisco GLC-SX-MM Compatible SFP Module - 1000BASE-SX - 1GE Gigabit Ethernet SFP 1GbE Multimode Fiber MMF Optic Transceiver

StarTech.comSKU: SFPGLCSXMMST
No reviews
Price:
$74.99

Description

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: SFPGLCSXMMST
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (Mini-GBIC)
Marketing Information:

The SFPGLCSXMMST is a Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

  • Wavelength: 850 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 550 m (1804 ft)
  • MTBF: 3,092,408 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): No

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free li
Product Type: SFP (mini-GBIC)
Packaged Quantity: 1 Each

Technical Information

Application/Usage: Data Networking,Optical Network

Interfaces/Ports

Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX Network

Media & Performance

Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Ethernet Technology: 1.25 Gigabit Ethernet
Network Technology: 1000Base-SX

Physical Characteristics

Form Factor: Hot-pluggable,Hot-swappable
Height: 0.40" (10.16 mm)
Width: 0.50" (12.70 mm)
Depth: 2.40" (60.96 mm)
Weight (Approximate): 0.60 oz (17.01 g)

Miscellaneous

Compatibility:
  • MSA Compliant

Cisco Switches:

  • IE3400
  • IE3300
  • IE3200
  • ME1200
  • ME2400

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: Lifetime
