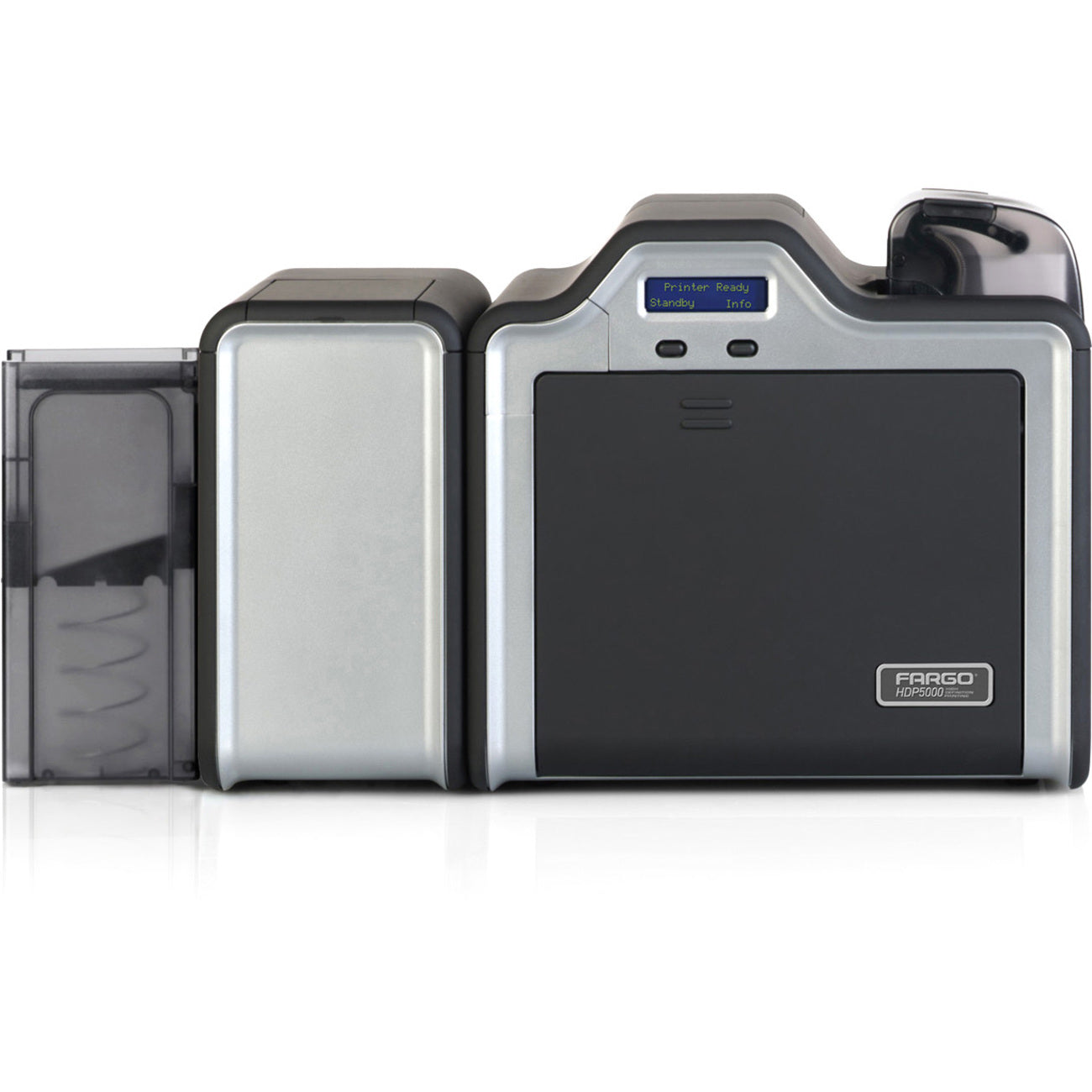

089668 Fargo HDP5000 Desktop Dye Sublimation/Thermal Transfer Printer - Color - Card Print - Fast Ethernet - USB

General Information

Manufacturer: ASSA ABLOY
Manufacturer Part Number: 089668
Manufacturer Website Address: http://www.hidglobal.com
Brand Name: Fargo
Product Model: HDP5000
Product Name: HDP5000 Card Printer Dual-Sided
Marketing Information:

Superior print quality, higher reliability and durability, greater security--your photo ID cards will have all these qualities when you print and encode them with the affordable and versatile HDP5000.

• High Definition Printing™ gives you superior print quality, even on cards with embedded electronics, for a more impressive public image.
• High reliability and durability lowers your total cost of ownership, and affordable pricing makes High Definition Printing available to practically any business.
• We back the HDP5000 with a lifetime printhead warranty and two-year warranty on everything else.
• Versatile modular design permits change as your needs change. Dual-sided printing, single- or dual-sided lamination, and card encoding technologies are all field-upgradeable features.
• Minimal training is required because of its simple design and intuitive operation. Cards, ribbons, and overlaminates come in cartridges that load quickly and easily.

Product Type: Dye Sublimation/Thermal Transfer Printer

Technical Information

Recommended Use: Card Print
Print Color Capability: Color
Maximum Color Print Speed: 26 Second
Maximum Print Resolution (dpi): 300
Application/Usage: Desktop
Features: Laminator

Memory

Standard Memory: 16 MB

Interfaces/Ports

USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Display & Graphics

Display Screen: Yes
Display Screen Type: LCD

Media Types & Handling

Media Type: ABS Card,Laminated PVC,PET Card,PETG Card,Proximity Card,Magnetic Stripe Card,Optical Media Card
Media Size: 3.37" (85.60 mm) x 2.12" (53.85 mm) - CR-80 Card
Media Load Type: Auto Feed
Media Thickness: 50 mil (1.27 mm)

Power Description

Power Source: AC Supply
Input Voltage: 110 V AC,220 V AC

Physical Characteristics

Height: 11.50" (292.10 mm)
Width: 12.25" (311.15 mm)
Depth: 9.25" (234.95 mm)
Weight (Approximate): 16 lb (7257.48 g)

Miscellaneous

Platform Supported: PC,Mac
Certifications & Standards:

• UL 60950
• CSA C2.2 No 60950
• CB report (EN 60950)
• CE mark
• FCC Part15 Class A
• EN 55022: 1998 Class A
• CRC c1374
• EN 61000-3-2: 2000
• EN 61000-3-2: 1995
• EN 55024: 1998
• CE mark
• CCC mark

Warranty

Limited Warranty: 2 Year
