Description
General Information
Manufacturer: Legrand GroupManufacturer Part Number: 15215
Manufacturer Website Address: http://www.legrand.com
Brand Name: C2G

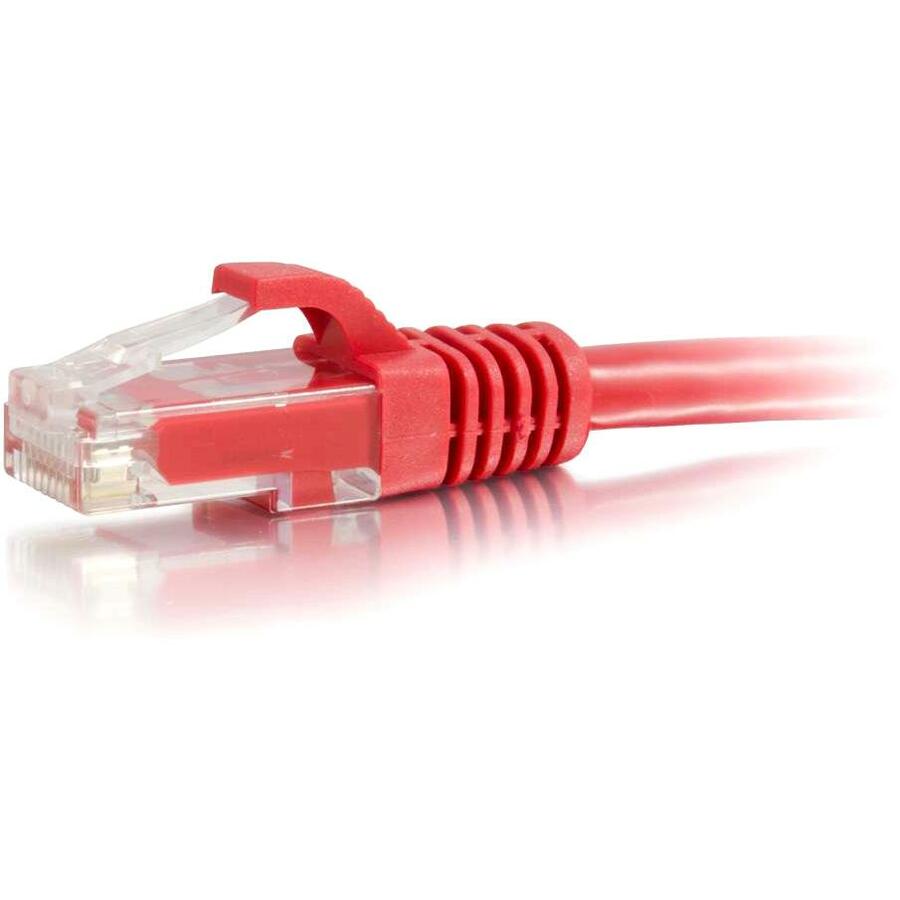

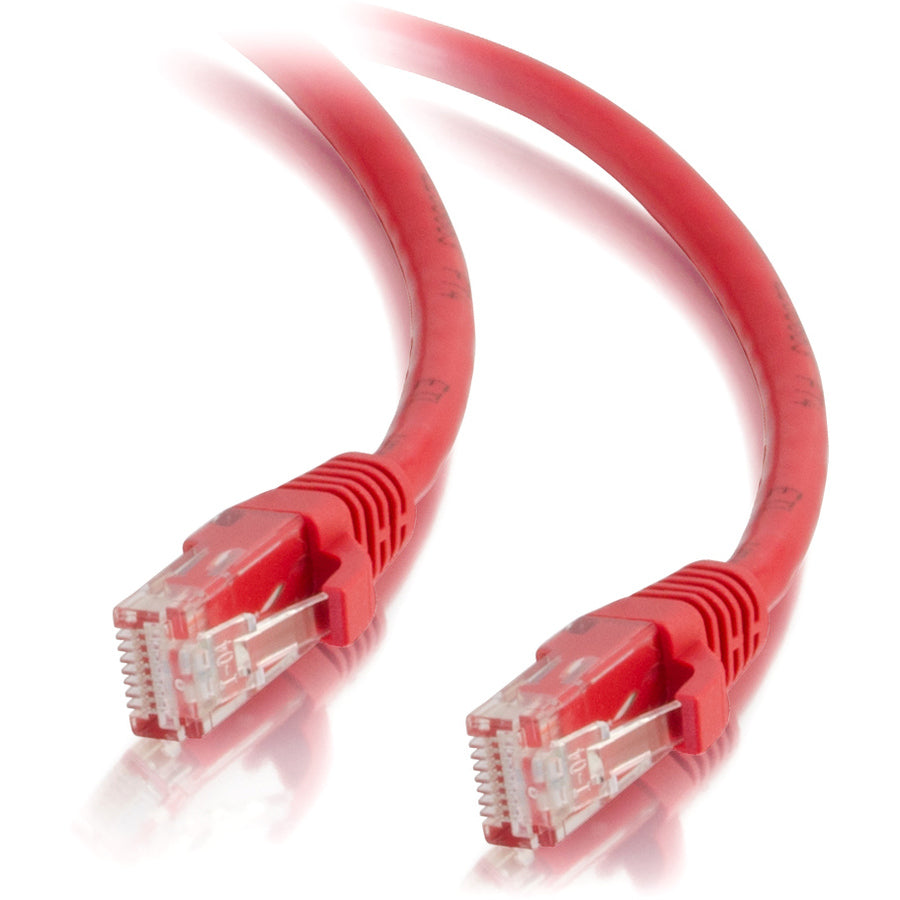

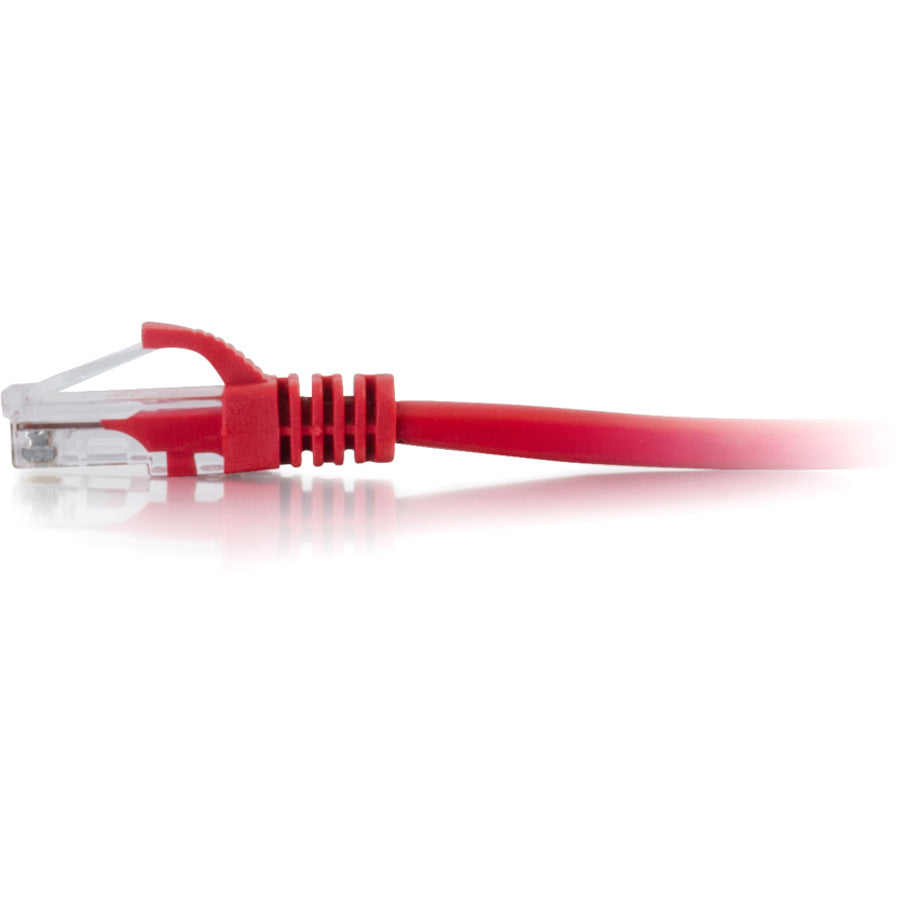

Product Name: 25 ft Cat5e Snagless UTP Unshielded Network Patch Cable - Red
Marketing Information:
For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
Packaged Quantity: 1
Package Type: Retail
Product Type: Network Cable
Technical Information
Cable Type: Category 5eCable Characteristic: Patch Cable
Cable Length: 25 ft
Connector Type on First End: RJ-45 Network - Male
Connector on First End Details: 1 x RJ-45 Network - Male
Connector Type on Second End: RJ-45 Network - Male
Connector on Second End Details: 1 x RJ-45 Network - Male
Conductor: Copper
Physical Characteristics
Color Family: RedProduct Color: Red
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 272.2 g
Miscellaneous
Additional Information: Applications:- 1000 BASE-T, 100 BASE-T, 10 BASE-T (IEEE 802.3)
- 4/16 Mbps Token Ring (IEEE 802.5)
- 100 VG-AnyLAN
- 100 Mbps TP-PMD (ANSI X3T9.5)
- 55/155 Mbps ATM
- Voice
Compatibility:
- Hub
- Switch
- Router
- Network Adapter
- Modem DSL/Cable
- Patch Panel And other twisted pair applications
Certifications & Standards:
- TIA/EIA 568A
- TIA/EIA 568B
- UL Listed
Country of Origin: China
Warranty
Limited Warranty: Lifetime
