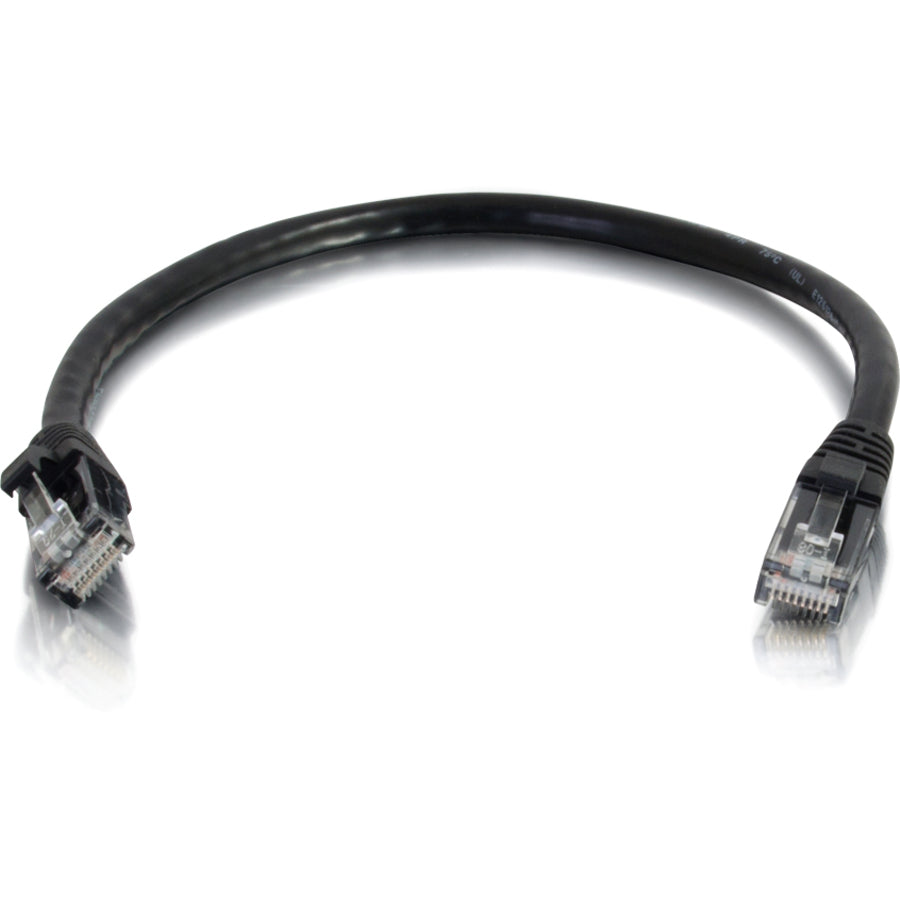

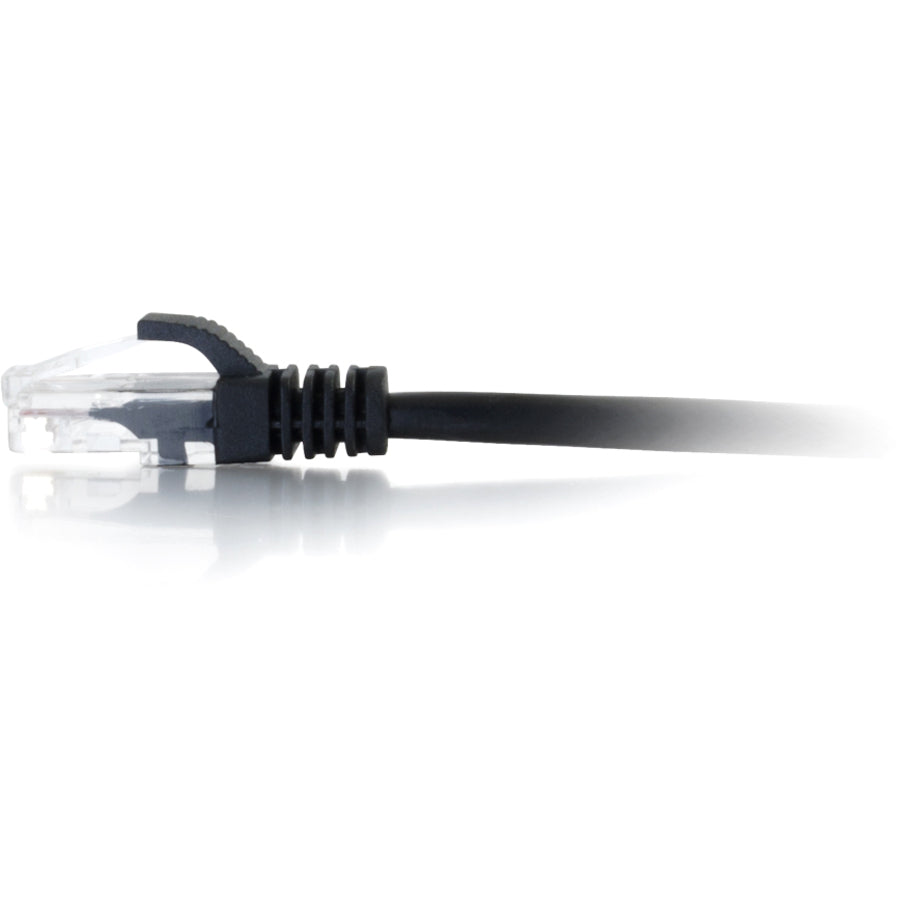

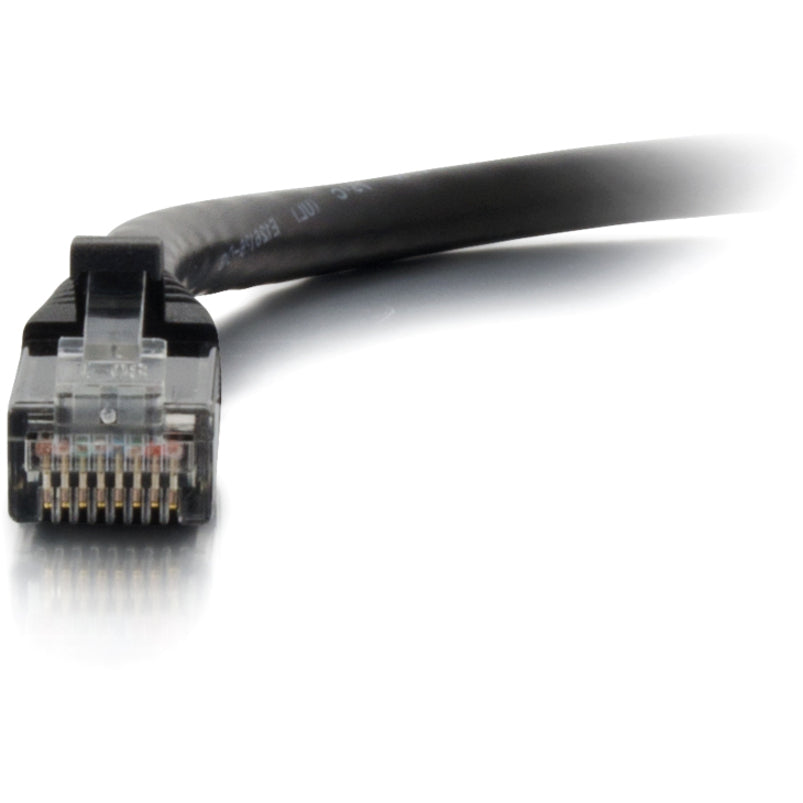

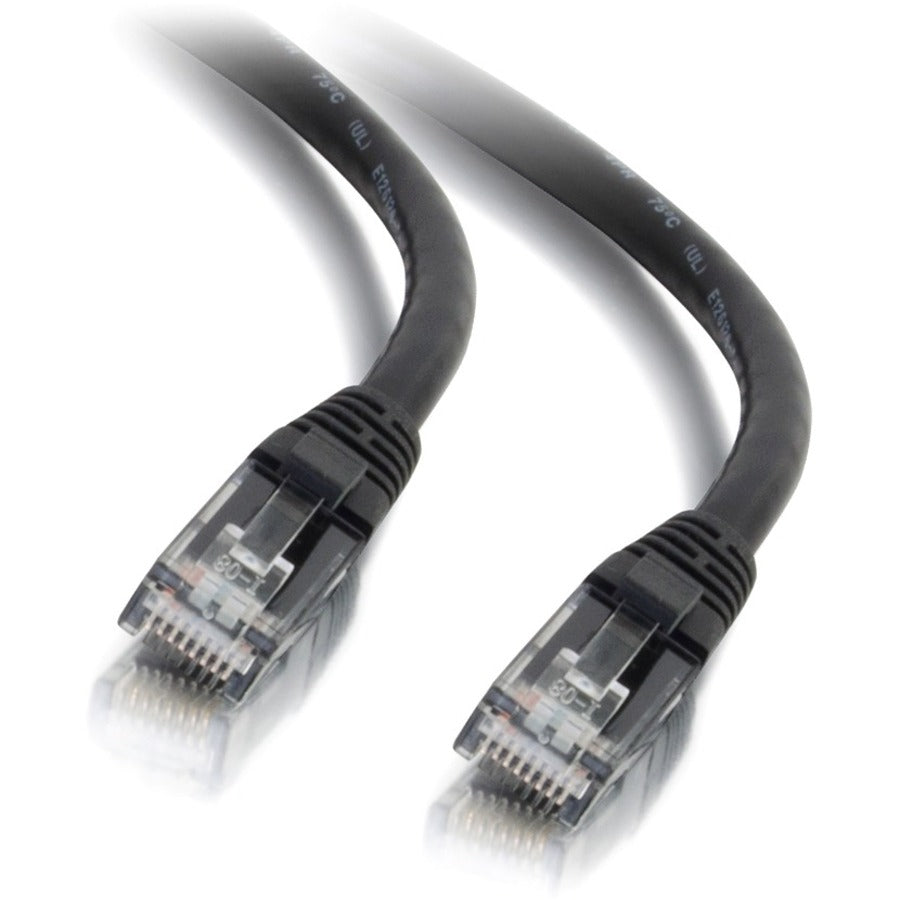

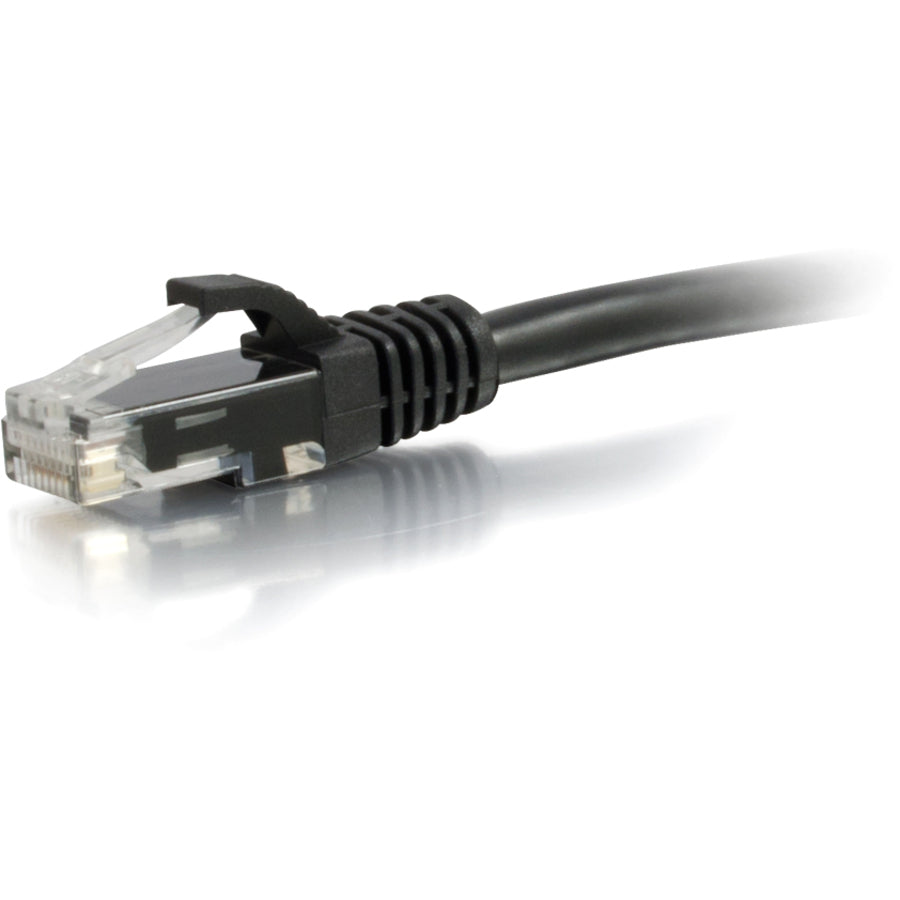

27150 C2G Cat6 Patch Cable

General Information

Manufacturer: Legrand Group
Manufacturer Part Number: 27150
Manufacturer Website Address: http://www.legrand.com
Brand Name: C2G
Product Name: 1ft Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable - Black
Marketing Information:

Electrical Characteristics

Conductor DC Resistance - 9.38

100m (maximum)

Impedance - 100

Capacitance - 5600pf/100m

Propagation Delay - 545ns/100m (maximum)

Delay Skew - 45ns/100m (maximum)

Physical Characteristics

Wiring Scheme - T568B

Standard: Category 6 TIA/EIA-568-B-2.1, draft 9

Connector: 50 micron gold-plated RJ45

Temperature Rating - 60°C

Voltage Rating - 30V

Approvals - RoHS Compliant

Warranty - Lifetime

Package Type - Polybag

Conductor (Qty. 4 twisted pair)

Conductor Type - 24AWG (7/0.20), Stranded Bare Copper

Insulation - H-D PE

Diameter - 0.98 ± 0.05mm

Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

Connector Type (Qty. 2)

Connector Type - 8P8C (RJ45)

Gender - Male

Connector Material - Polycarbonate

Contact Material - Copper
Product Type: Network Cable

Technical Information

Cable Type: Category 6
Cable Characteristic: Patch Cable
Cable Length: 1 ft (0.30 m)
Cable Shielding Type: Unshielded Twisted Pair (UTP)
Connector Type on First End: RJ-45 Network - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x RJ-45 Network - Male
Connector Type on Second End: RJ-45 Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x RJ-45 Network - Male
Connector Plating: Gold
Contact Plating: Gold
Shielding: No
Device Supported: Network Device,Network Adapter,Hub,Switch,Router,DSL Modem,Patch Panel
American Wire Gauge: 24 AWG
Number of Pairs: 4
Number of Conductors: 8
Features: Molded,Stranded

Physical Characteristics

Color Family: Black
Product Color: Black
Connector Material: Polycarbonate
Contact Material: Copper Alloy
Insulation Material: High-density Polyethylene (HDPE)
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 0.48 oz (13.61 g)

Miscellaneous

Compatibility:

• Network Adapters
• Hubs
• Switches
• Routers
• DSL/Cable Modems
• Patch Panels and other twisted-pair applications

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China

Warranty

Limited Warranty: Lifetime
