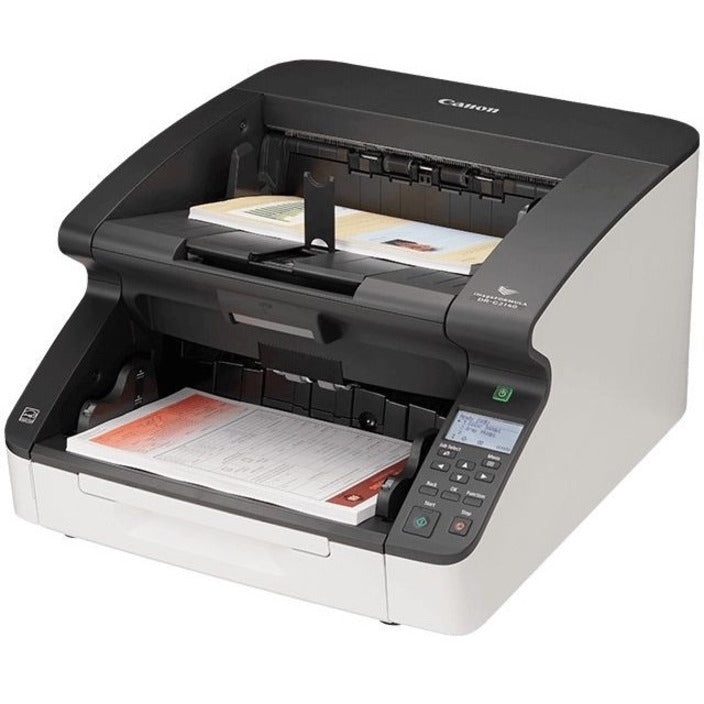

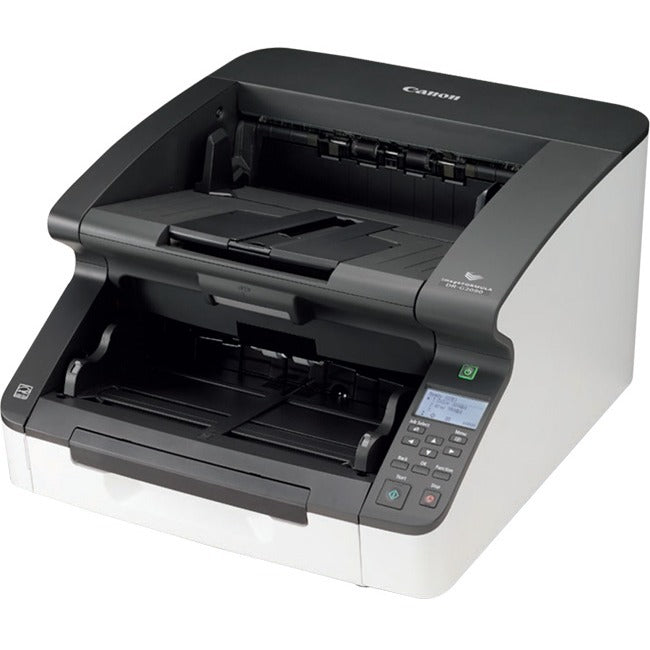

Canon imageFORMULA DR-G2090 Sheetfed Scanner - 600 dpi Optical

General Information

Manufacturer: Canon, Inc
Manufacturer Part Number: 3151C002
Manufacturer Website Address: http://www.canon.ca
Brand Name: Canon
Product Line: imageFORMULA
Product Series: DR-G2
Product Model: DR-G2090
Product Name: imageFORMULA DR-G2090 USB Production Document Scanner
Marketing Information:

The Canon imageFORMULA DR-G2090 production document scanner with USB-only connectivity provides a high-performance, reliable, and flexible scanning solution, recommended for non-networked environments where Ethernet connectivity is not required.

Wide Variety of Applications

• Mission-critical scanning
• Centralized production scanning
• Process high volume of documents
• Ideal for back-file conversion

High Performance

• Scans up to 90 pages per minute
• Single-pass duplex scanning
  • Scans both sides of a document at the same time
• 300 sheet Automatic Document Feeder
• Dedicated, onboard image processing chip
  • Helps to maintain rated speeds
• USB 3.1

Reliable and Flexible

• Can handle a variety of document types
  • Business card to ledger sized
  • Long documents
  • Thick or thin documents
• Double-Feed detection / prevention
  • Ultrasonic detection
  • By length detection
  • Rapid recovery system
• Staple detection
• Durable, solid-body design
• Heavy-duty feed and eject trays

Efficient, Smooth Operation

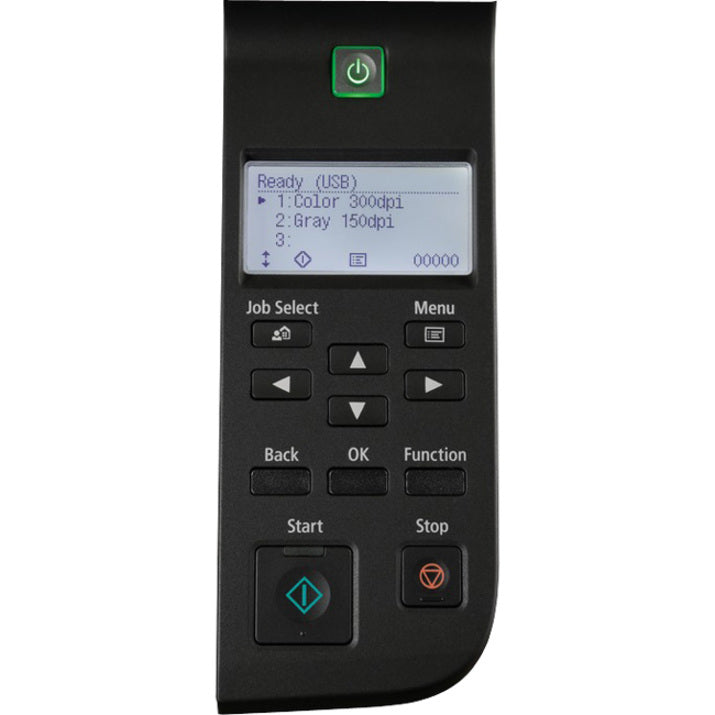

• Control panel
  • User-programmable job buttons
  • Select scanner settings
• Motorized paper-feed tray
  • Adjusts to the height of the batch
• Flexible paper feed and output guides

Environment In Mind

• Meets ENERGY STAR guidelines
• EU RoHS Compliant
• EU WEEE Compliant
• EPEAT Gold rated

Customer Care

• 90-day warranty included - On-Site Service
• Optional eCarePAK extended warranty available

Product Type: Sheetfed Scanner

Technical Information

Optical Resolution (dpi): 600
Scan Color: Color,Grayscale,Monochrome
Color Depth: 24-bit
Grayscale Depth: 8-bit
Maximum Mono Scan Speed (ppm): 90
Maximum Color Scan Speed (ppm): 90
Maximum Mono Scan Speed (ipm): 180
Maximum Color Scan Speed (ipm): 180
Media Type: Business Card,Thick Paper,Thin Paper,Plain Paper
Media Size: Custom Size - 12" (304.80 mm) x 17" (431.80 mm),A3 - 11.69" (297 mm) x 16.54" (420 mm)
ADF Capacity: 300 Sheets
Duplex Scanning: Yes
Scanning Modes: Duplex

Interfaces/Ports

USB: Yes

Software

Operating System Supported: Windows

Physical Characteristics

Height: 12.40" (314.96 mm)
Width: 18.90" (480.06 mm)
Depth: 22.40" (568.96 mm)
Weight (Approximate): 55.10 lb (24992.94 g)

Miscellaneous

Package Contents:

• imageFORMULA DR-G2090 USB Production Document Scanner
• USB Cable
• Power Cable
• Setup DVD
• Warranty Card
• Cleaning Cloth
• Reference Guide
• Packing Materials

Energy Star: Yes
Country of Origin: Japan
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 90 Day
