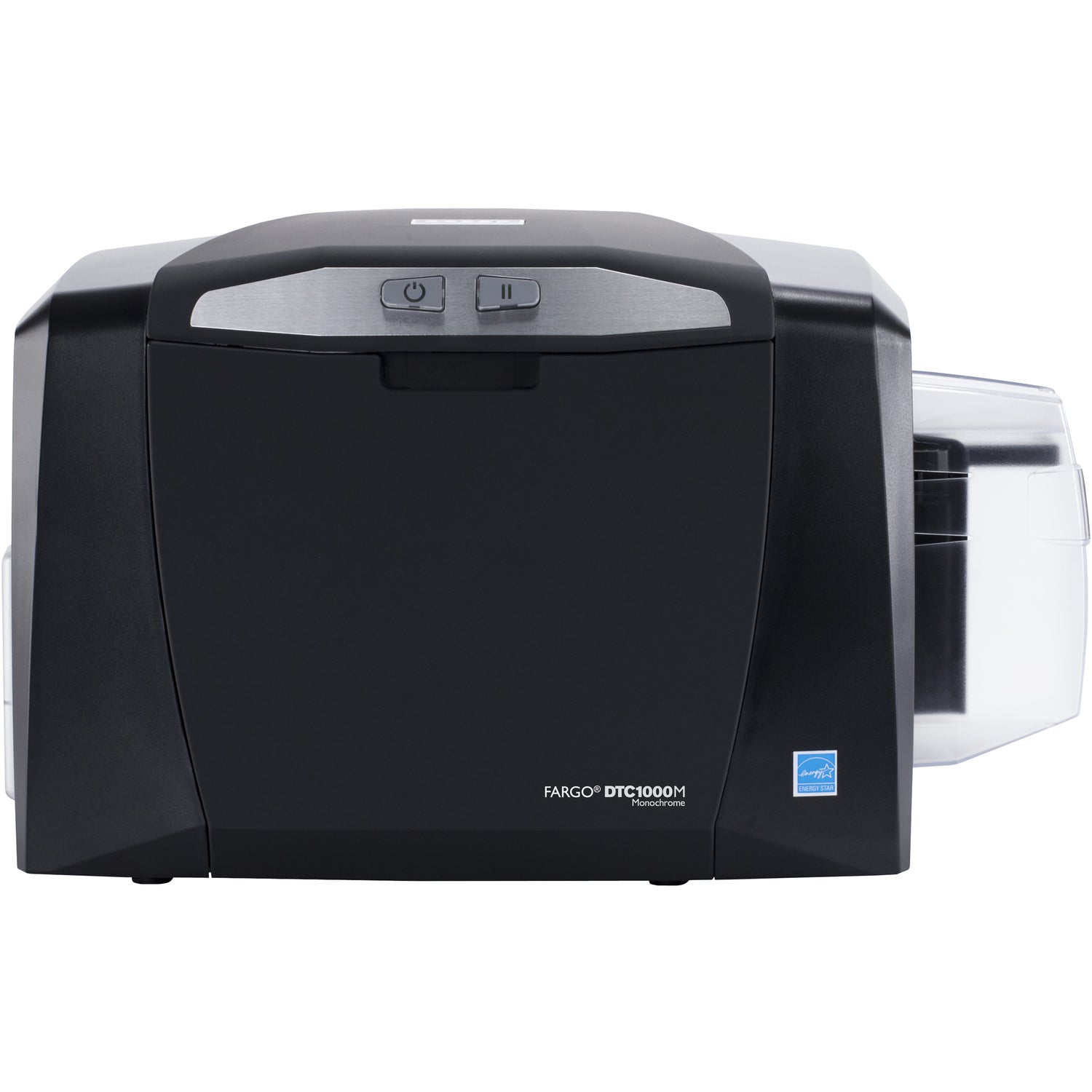

47220 Fargo DTC1000M Desktop Dye Sublimation/Thermal Transfer Printer - Monochrome - Card Print - Fast Ethernet - USB

General Information

Manufacturer: ASSA ABLOY
Manufacturer Part Number: 47220
Manufacturer Website Address: http://www.hidglobal.com
Brand Name: Fargo
Product Model: DTC1000M
Product Name: DTC1000M Monochrome Card Printer/Encoder Single-Sided
Marketing Information:

The FARGO DTC1000M Monochrome Card Printer/Encoder is easy to use, virtually maintenance-free and affordable.

Its single-color, resin thermal transfer printing process renders clear photo images, bar codes and alphanumeric data on one side of a standard CR-80 or CR-79 identification card.

The DTC1000M is a cost-effective ID card issuance solution for organizations such as casinos, financial services firms, small businesses and retailers, as well as for temporary ID badge applications. For low-, medium- or high-volume issuance, it delivers the ultimate simplicity in card personalization.

Product Type: Dye Sublimation/Thermal Transfer Printer

Technical Information

Recommended Use: Card Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 7 Second
Maximum Print Resolution (dpi): 300
Maximum Print Width: 2.11" (53.70 mm)
Application/Usage: Desktop

Memory

Standard Memory: 32 MB

Interfaces/Ports

USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Media Types & Handling

Media Type: Adhesive Backed Card,PVC Card,Polyester Card,Optical Media Card
Media Size: 2.13" (53.97 mm) x 3.38" (85.73 mm) - CR-80 Card,2.06" (52.40 mm) x 3.31" (84.15 mm) - CR79 Card
Media Thickness: 40 mil (1.016 mm)
Maximum Label Width: 2.13" (54 mm)

Power Description

Power Source: AC Supply
Input Voltage: 110 V AC,220 V AC

Physical Characteristics

Height: 8.80" (223.52 mm)
Width: 13.70" (347.98 mm)
Depth: 7.90" (200.66 mm)
Weight (Approximate): 7.50 lb (3401.94 g)

Miscellaneous

Package Contents:

• DTC1000M Monochrome Card Printer/Encoder Single-Sided
• Standard Resin Black Refillable Ribbon Cartridge

Platform Supported: PC,Mac
Certifications & Standards:

• UL 60950-1
• CSA C22.2 (60950-1)
• CE
• FCC Class A
• CRC c1374
• CE (EN 55022 Class A, EN 55024)
• CCC
• BSMI
• KCC

Energy Star: Yes
Environmentally Friendly: Yes

Warranty

Limited Warranty: 2 Year
