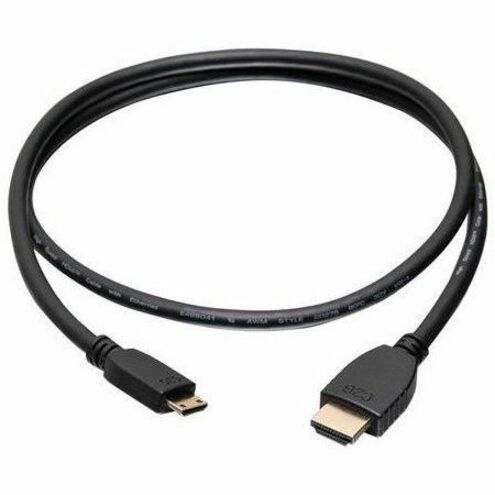

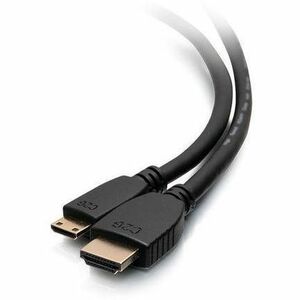

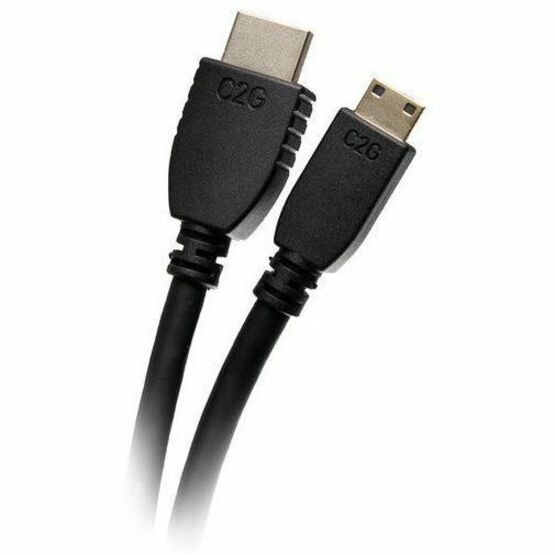

C2G 6ft High Speed HDMI® to Mini HDMI Cable with Ethernet - Black

General Information

Manufacturer: Legrand Group
Manufacturer Part Number: 50619
Manufacturer Website Address: http://www.legrand.com
Brand Name: C2G
Product Name: 1.8m High Speed HDMI to Mini HDMI Cable with Ethernet - 4K 60Hz
Marketing Information:

This High Speed HDMI to Mini HDMI Cable with Ethernet supports all HDMI 2.0 features and is perfect for connecting a smartphone, tablet or other mobile device to an HD display for home theater or desktop applications. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.

Electrical Characteristics

Nominal Impedance - 100 ± 10

Nominal Velocity of Propagation - > 1.78ns

DC Resistance - 376/km

Dielectric Strength - AC 500V - 1 minute

Insulation Resistance - 100

Physical Characteristics

Voltage Rating - 30V

Minimum Bend Radius - 70mm

Temperature Rating - 80°C

Approvals - RoHS Compliant

Warranty - Lifetime

Package Type - Polybag

Conductor 1 (5 pair)

Conductor Type - 30AWG (7/0.10), Tinned Copper

Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.8mm

Drain Wire - 30AWG (7/0.10), Tinned Copper

Shield - Aluminum Foil, 100% Coverage

Conductor 2 (4 conductors)

Conductor Type - 30AWG (7/0.10), Tinned Copper

Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.6mm

Connector

Connector Type - HDMI® - Type A

Pin Construction - Phosphor Copper

Plating - 3m Gold

Insulation - Black LCP

Hood - 45P™ PVC, Black

Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm

Connector

Connector Type - HDMI® - Type C

Pin Construction - Phosphor Copper

Plating - 3m Gold

Insulation - Black LCP

Hood - 45P™ PVC, Black

Dimensions (HxWxL) - 8.3 x 14.0 x 32.7mm

Overall Cable

Drain Wire - 30AWG (7/0.10), Tinned Copper

Foil Shield - Aluminum Foil, 100% Coverage

Braided Shield - 16/4/0.12, Aluminum/Magnesium, 50% Coverage

Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm

Product Type: A/V Cable

Technical Information

Cable Type: HDMI
Cable Length: 5.9 ft (1.80 m)
Connector Type on First End: HDMI 2.0 Type A Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 19 Pin HDMI 2.0 Type A Digital Audio/Video - Male
Connector Type on Second End: Mini HDMI 2.0 Type C Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 19 Pin Mini HDMI 2.0 Type C Digital Audio/Video - Male
Connector Plating: Gold
Shielding: Yes
Jacket Type: VW-1
Device Supported: Audio/Video Device,Smartphone,Tablet,Desktop Computer,Display,Mobile Device,Home Theater System
American Wire Gauge: 30 AWG
Data Transfer Rate: 18 Gbit/s
Supported Resolution: 4096 x 2160
HDMI Version: 2.0
Features: x.v.Color,4K UHD,Consumer Electronics Control (CEC),Hybrid Log Gamma (HLG),HDR Support,Static HDR Metadata,Direct Stream Digital (DSD),Audio Return Channel (ARC),Braided,Molded Hood

Physical Characteristics

Jacket Color: Black
Connector Color: Black
Insulation Color: Red/White,White/Brown,White/Blue,White/Green,White/Black,Yellow,Red,Green,Purple,Black
Contact Material: Brass,Gold-flash
Insulation Material: Foam Skin Polyethylene (PE),High-density Polyethylene (HDPE)
Shielding Material: Aluminum Foil,Aluminum/Magnesium
Jacket Material: Polyvinyl Chloride (PVC)

Miscellaneous

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances 2 (China RoHS 2)

Warranty

Limited Warranty: Lifetime
