55UH7Q-E LG 55UH7Q-E Digital Signage Display

General Information

Manufacturer: LG Electronics
Manufacturer Part Number: 55UH7Q-E
Manufacturer Website Address: https://solutions.lg.com/us
Brand Name: LG
Product Series: UH7Q-E
Product Model: 55UH7Q-E
Product Name: 55UH7Q-E Digital Signage Display
Marketing Information:

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

Even & Slim Bezel Design

The UH7Q-E series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience..

Convenient webOS Platform

The UH7Q-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

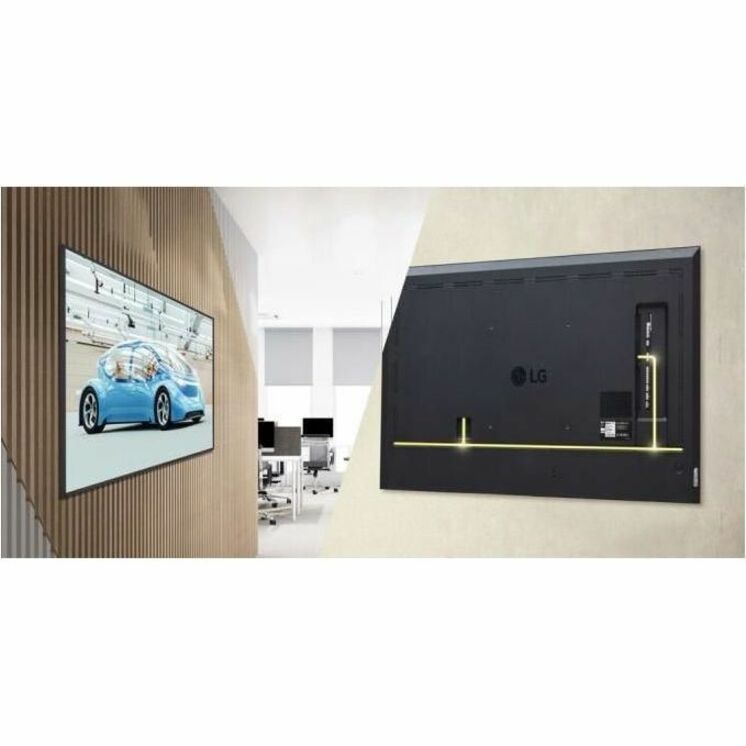

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH7Q saves space. With specialized hidden
Product Type: Digital Signage Display

Technical Information

Bezel Width: 0.45" (11.40 mm)
Ingress Protection (IP) Rating: IP5X
Panel Technology: Advanced Super Dimension Switch ( ADS )
Operation Hours: 24 Hours/7 Days
Maximum Heat Generation: 576.1 kJ

Display & Graphics

Number of Screens: 1
Viewable Screen Size: 55" (1397 mm)
Screen Size Class: 55" (1397 mm)
Display Screen Type: LCD
High Dynamic Range (HDR): Yes
Response Time: 8 ms
Display Resolution: 3840 x 2160
Orientation: Landscape/Portrait
Backlight Technology: Edge LED
Aspect Ratio: 16:9
Maximum LED Life: 5.7 Year

Video

Scan Format: 2160p
Native Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 1,000,000:1
Brightness: 700 cd/m²
Color Gamut: 95% BT.709

Network & Communication

Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes

Interfaces/Ports

USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of USB 2.0 Ports: 1
Number of HDMI Inputs: 2
Number of DisplayPorts: 1
RS-232C Input: Yes
RS-232C Output: Yes
Number of Network (RJ-45) Ports: 1
Number of Audio Line Out: 1

Software

Operating System: webOS 8.0

Power Description

Input Voltage: 120 V AC,230 V AC
Off-Mode Power Consumption: 500 mW

Physical Characteristics

Bezel Color: Black
VESA Mount Standard: 300 x 300
Mount Type: Wall Mountable
Mount Surface: Wall
Height: 27.98" (710.80 mm)
Width: 48.78" (1239 mm)
Depth: 1.17" (29.70 mm)
Weight (Approximate): 45.19 lb (20500 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%

Miscellaneous

Package Contents:

• 55UH7Q-E Digital Signage Display
• Remote Controller
• 2 x Battery
• Power Cord
• QSG
• Regulation Book
• Phone to RS232C Gender
• USB-C Cable
• Cable

Application/Usage: Retail,Business
Energy Star: Yes
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
