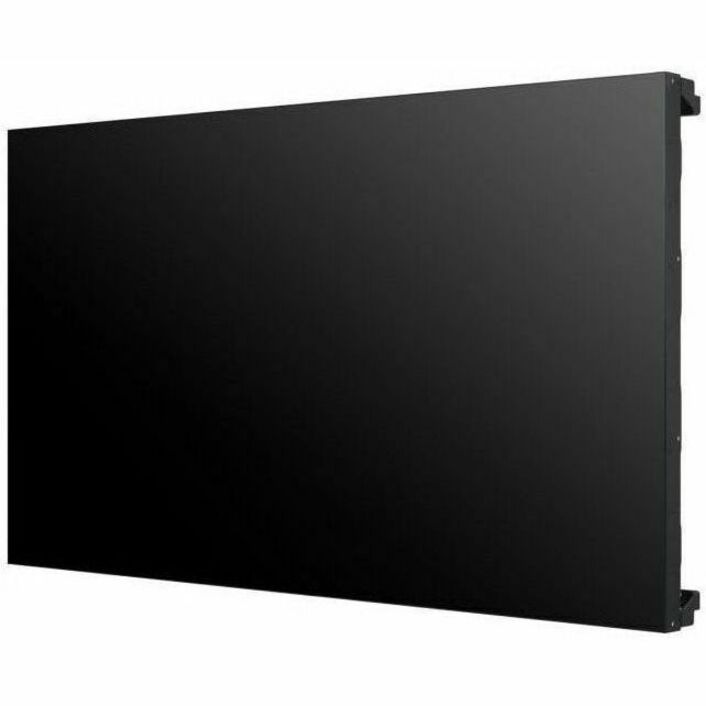

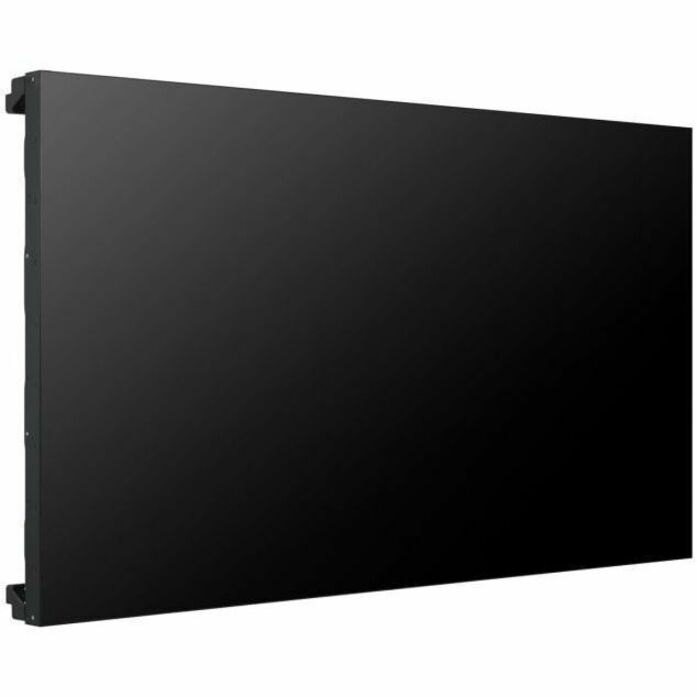

55VL5F-A LG 55VL5F-A Digital Signage Display

General Information

Manufacturer: LG Electronics
Manufacturer Part Number: 55VL5F-A
Manufacturer Website Address: https://solutions.lg.com/us
Brand Name: LG
Product Model: 55VL5F-A
Product Name: 55VL5F-A Digital Signage Display
Marketing Information:

Incredible Immersion with Ultra-Narrow Bezel

The VL5F series video wall provides an immersive experience thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from virtually any angle. The design of this video wall display is attractive and highly functional and can be used to deliver advertising and information in a variety of business environments.

Achieving Incredible Immersion

3.5mm Ultra-narrow Bezel

The 3.5mm ultra-narrow bezel of the 55VL5F-A video wall creates a visually stunning digital wall that delivers dynamic content and immerses the viewer. The 55" screens can be combined to create a virtually seamless large screen.

Achieving Incredible Immersion

Image Gap Reduction

The VL5F series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a virtuall
Product Type: Digital Signage Display

Technical Information

Bezel Width (Top): 88.58 mil (2.25 mm)
Bezel Width (Bottom): 49.21 mil (1.25 mm)
Bezel Width (Left): 88.58 mil (2.25 mm)
Bezel Width (Right): 49.21 mil (1.25 mm)
Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days

Display & Graphics

Viewable Screen Size: 55" (1397 mm)
Multi-touch Screen: No
Response Time: 8 ms
Display Resolution: 1920 x 1080
Orientation: Landscape/Portrait
Aspect Ratio: 16:9
Maximum LED Life: 6.8 Year

Audio

Speakers: No

Video

Native Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 500,000:1
Brightness: 500 cd/m²
Color Gamut: 72% NTSC

Network & Communication

Wireless LAN: No
Bluetooth: No

Interfaces/Ports

Audio Line Out: Yes
Number of USB 2.0 Ports: 1
Number of HDMI Inputs: 2
DisplayPort Output: Yes
RS-232C Output: Yes
Number of Network (RJ-45) Ports: 1
Number of Audio Line Out: 1
Number of DisplayPort Outputs: 1

Power Description

Input Voltage: 120 V AC,230 V AC
Off-Mode Power Consumption: 500 mW

Physical Characteristics

Bezel Color: Black
VESA Mount Standard: 600 x 400
Height: 36.90" (937.26 mm)
Width: 47.80" (1214.12 mm)
Depth: 3.70" (93.98 mm)
Weight (Approximate): 44.80 lb (20320.94 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%

Miscellaneous

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: ENERGY STAR 8.0,ErP
Energy Efficiency Certification: ENERGY STAR 8.0
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
TAA Compliant: No

Warranty

Limited Warranty: 3 Year
