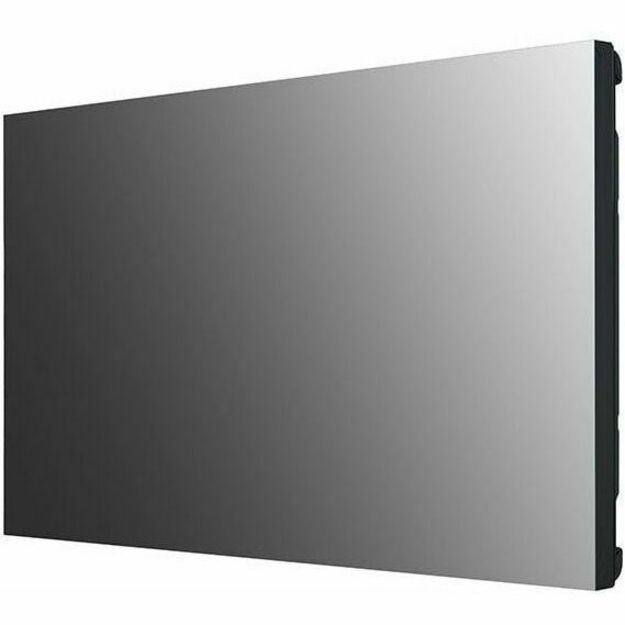

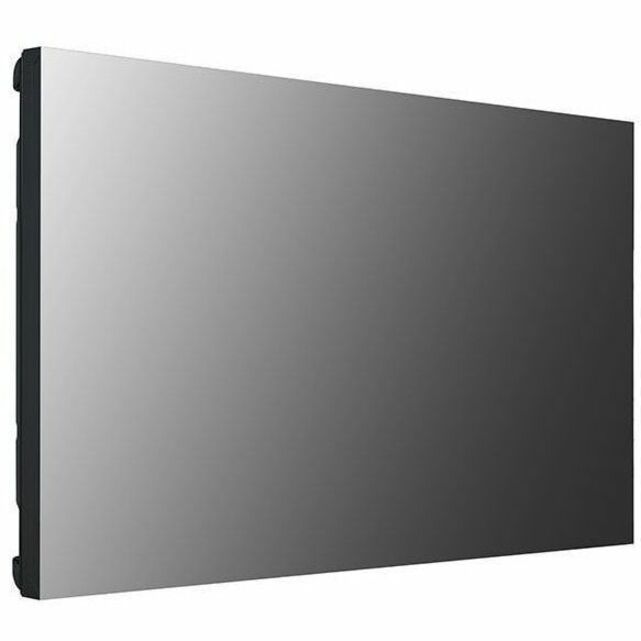

55VM5J-H LG 55'' 500 nits FHD Slim Bezel Video Wall

General Information

Manufacturer: LG Electronics
Manufacturer Part Number: 55VM5JH
Manufacturer Website Address: https://solutions.lg.com/us
Brand Name: LG
Product Model: 55VM5J-H
Product Name: 55'' 500 nits FHD Slim Bezel Video Wall
Marketing Information:

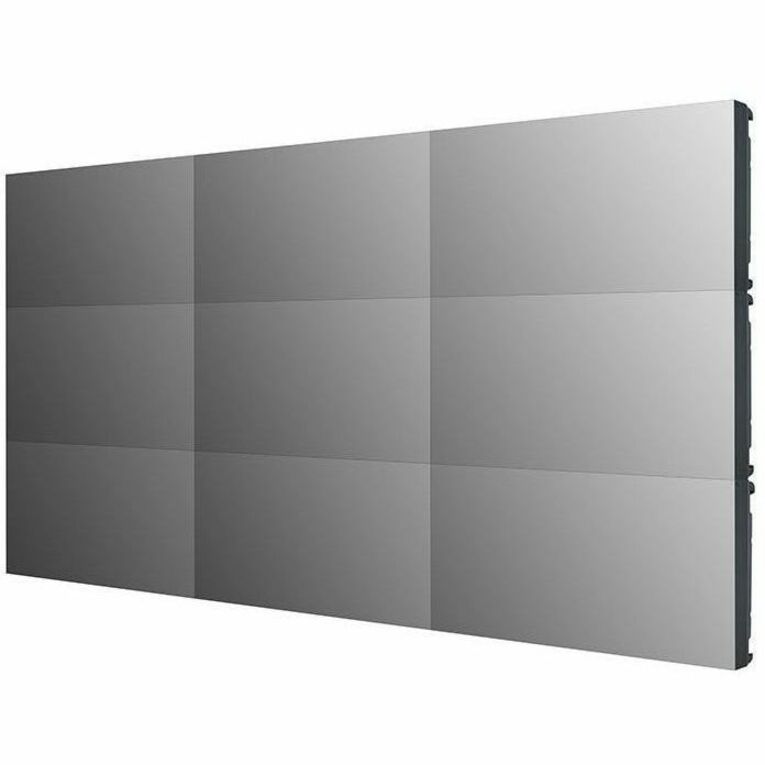

Artistic Immersion, Overwhelming Captivation | Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

Image Gap Reduction

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40°) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to
Product Type: Digital Signage Display

Technical Information

Bezel Width (Top): 51.18 mil (1.30 mm)
Bezel Width (Bottom): 17.32 mil (0.44 mm)
Bezel Width (Left): 51.18 mil (1.30 mm)
Bezel Width (Right): 17.32 mil (0.44 mm)
Ingress Protection (IP) Rating: IP5X
Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days
Maximum Heat Generation: 683.7 kJ
On Screen Display (OSD) Languages: Arabic,Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Greek,Italian,Japanese,Korean,Norwegian,Brazilian Portuguese,Portuguese (Europe),Russian,Simplified Chinese,Spanish,Swedish,Turkish

Display & Graphics

Viewable Screen Size: 55" (1397 mm)
Multi-touch Screen: No
Response Time: 8 ms
Display Resolution: 1920 x 1080
Orientation: Landscape/Portrait
Aspect Ratio: 16:9
Maximum LED Life: 6.8 Year

Audio

Speakers: No

Video

Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 500,000:1
Brightness: 500 cd/m²
Color Gamut: 72% NTSC

Network & Communication

Wireless LAN: No
Bluetooth: No

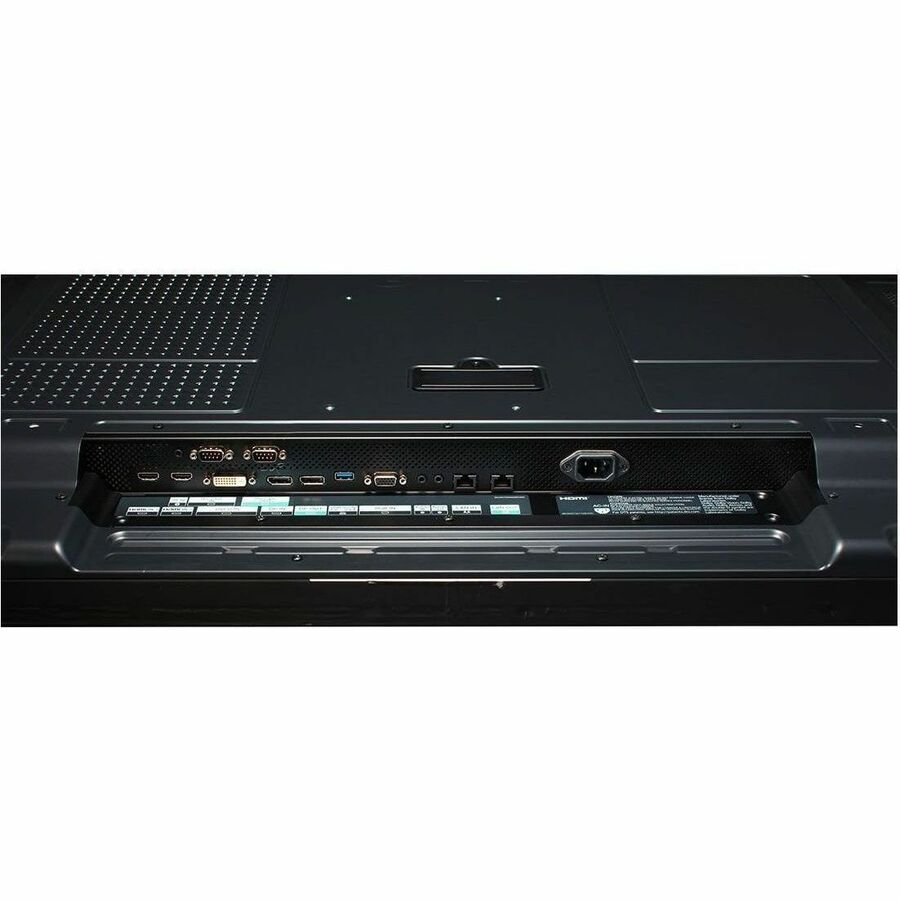

Interfaces/Ports

Audio Line Out: Yes
Number of USB 2.0 Ports: 1
Number of HDMI Inputs: 2
DisplayPort Output: Yes
RS-232C Output: Yes
Number of Network (RJ-45) Ports: 1
Number of Audio Line Out: 1
Number of DisplayPort Outputs: 1

Software

Operating System: webOS 4.1

Power Description

Input Voltage: 120 V AC,230 V AC
Off-Mode Power Consumption: 500 mW

Physical Characteristics

Bezel Color: Black
VESA Mount Standard: 600 x 400
Height: 26.90" (683.26 mm)
Width: 47.70" (1211.58 mm)
Depth: 3.40" (86.36 mm)
Weight (Approximate): 41.40 lb (18778.72 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%

Miscellaneous

Package Contents:

Remote Controller (include battery 2ea)

Power Cord

RS232C cable

Lan cable

DP cable

IR Receiver

Guide Bracket

Screws

Manual

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: ENERGY STAR 8.0,ErP
Energy Efficiency Certification: ENERGY STAR 8.0
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
TAA Compliant: No

Warranty

Limited Warranty: 3 Year
