55VSM5J-H LG 55VSM5J-H Digital Signage Display

General Information

Manufacturer: LG Electronics
Manufacturer Part Number: 55VSM5J-H
Manufacturer Website Address: https://solutions.lg.com/us
Brand Name: LG
Product Model: 55VSM5J-H
Product Name: 55VSM5J-H Digital Signage Display
Marketing Information:

Groundbreaking 0.44mm Even Bezel

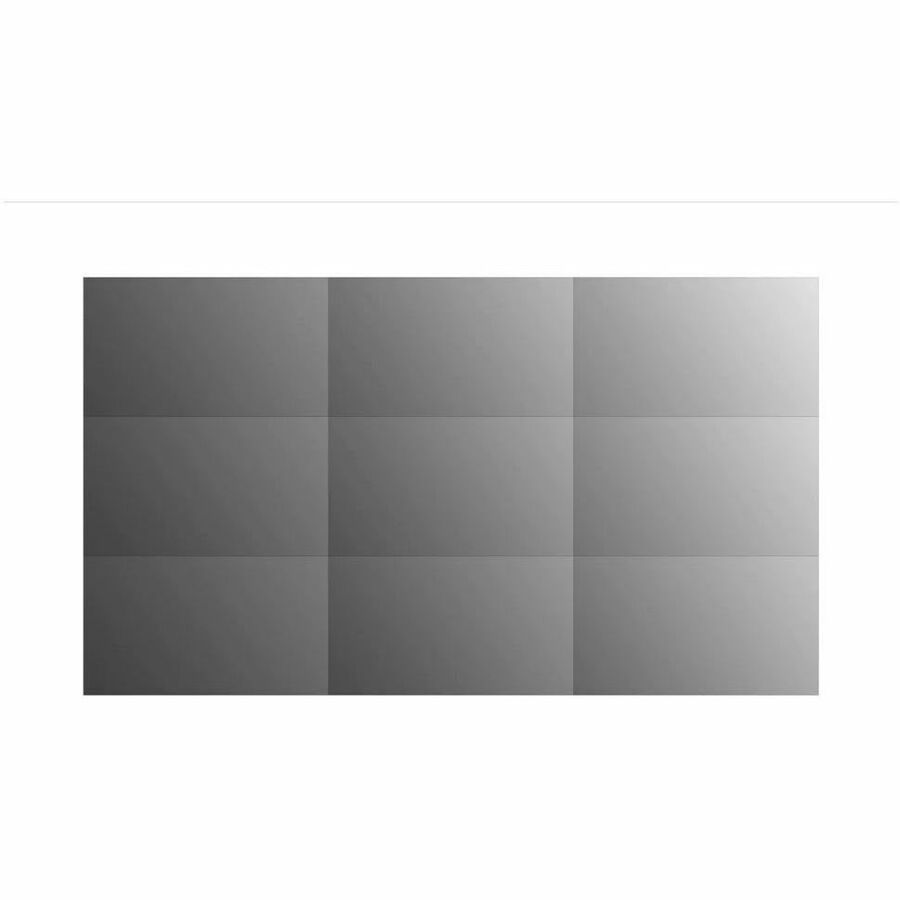

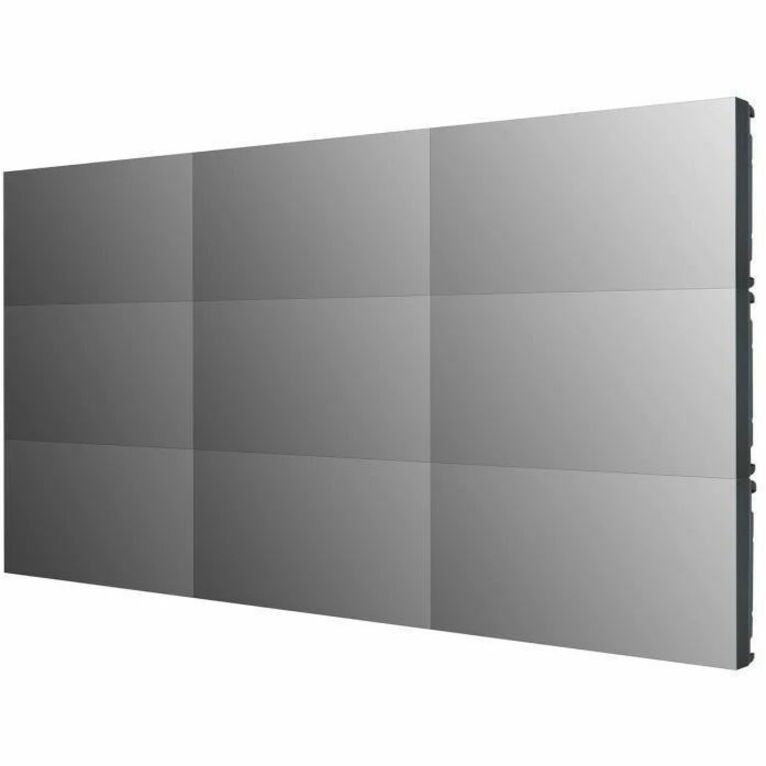

The unprecedented razor-thin bezel - 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL - which has been verified by Nemko, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSM5J series will provide an even more immersive experience to viewers.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSM5J series is high enough to display vivid colours throughout the screen with no distortion.

Wide Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSM5J series captures the attention of and captivates more viewers with lifelike colours, regardles
Product Type: Digital Signage Display

Technical Information

Bezel Width: 17.32 mil (0.44 mm)
Ingress Protection (IP) Rating: IP5X
Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days
Maximum Heat Generation: 900 kJ
On Screen Display (OSD) Languages: Arabic,Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Greek,Italian,Japanese,Korean,Norwegian,Brazilian Portuguese,Portuguese (Europe),Russian,Simplified Chinese,Spanish,Swedish,Turkish

Display & Graphics

Viewable Screen Size: 55" (1397 mm)
Multi-touch Screen: No
Response Time: 8 ms
Display Resolution: 1920 x 1080
Orientation: Landscape/Portrait
Aspect Ratio: 16:9
Maximum LED Life: 6.8 Year

Audio

Speakers: No

Video

Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 500,000:1
Brightness: 500 cd/m²
Color Gamut: 72% NTSC

Network & Communication

Wireless LAN: No
Bluetooth: No

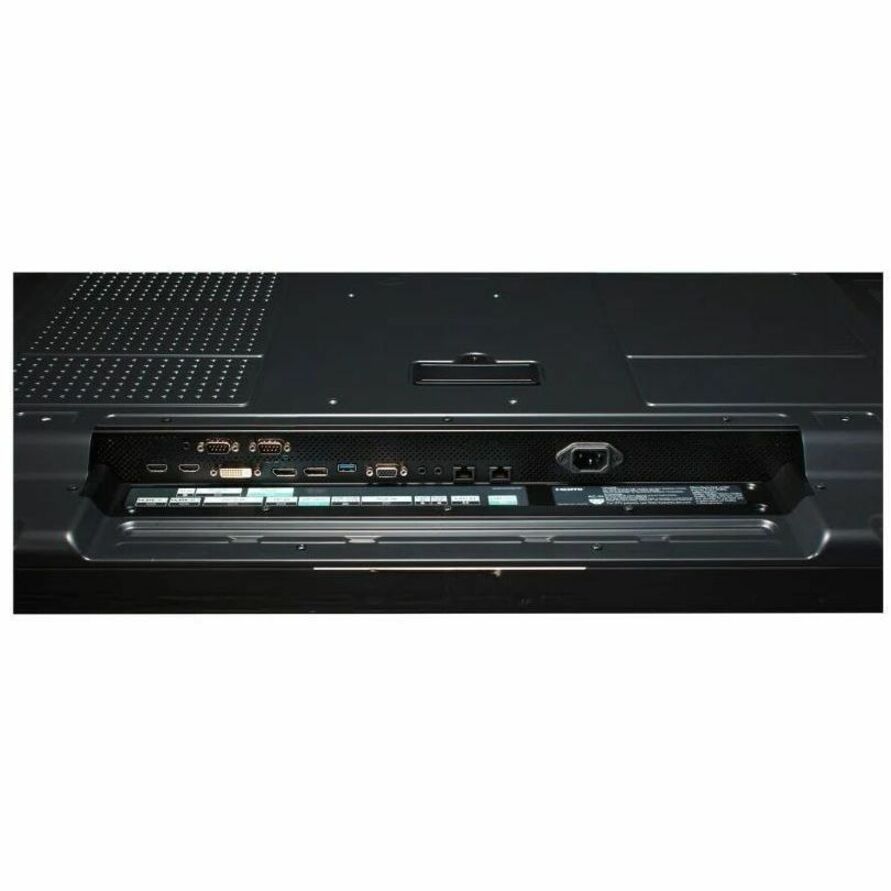

Interfaces/Ports

Audio Line Out: Yes
Number of USB 2.0 Ports: 1
Number of HDMI Inputs: 2
DisplayPort Output: Yes
RS-232C Output: Yes
Number of Network (RJ-45) Ports: 1
Number of Audio Line Out: 1
Number of DisplayPort Outputs: 1

Software

Operating System: webOS 4.1

Power Description

Input Voltage: 120 V AC,230 V AC
Off-Mode Power Consumption: 500 mW

Physical Characteristics

Bezel Color: Black
VESA Mount Standard: 600 x 400
Height: 26.80" (680.72 mm)
Width: 47.70" (1211.58 mm)
Depth: 3.40" (86.36 mm)
Weight (Approximate): 40.60 lb (18415.85 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%

Miscellaneous

Package Contents:

Remote Controller (include battery 2ea)

Power Cord

RS232C cable

Lan cable

DP cable

IR Receiver

Guide Bracket

Screws

Manual

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: ENERGY STAR 8.0,ErP
Energy Efficiency Certification: ENERGY STAR 8.0
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
TAA Compliant: No

Warranty

Limited Warranty: 3 Year
