5P1500R-L Eaton 5P1500R-L 1500VA Rack/Wall Mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 5P1500R-L
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 5P
Product Model: 5P1500R-L
Product Name: 5P1500R-L 1500VA Rack/Wall Mountable UPS
Marketing Information:

1.44kVA/1.1kW/120V Long-Term Battery Backup for Network Closets and Small Data Centers

This 5P rack-mount line-interactive UPS system is an efficient ""set it and forget it"" solution, providing reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1500R-L protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

The maintenance-free lithium-ion battery modules have a service life up to eight years to align with your IT refresh cycle. They allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. They also recharge in just 6 to 8 hours following power disruptions to reduce vulnerability and improve uptime. On-board battery management system (BMS) monitoring of batt
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.10 kW
Input Voltage: 120 V AC,100 V AC,125 V AC
Input Voltage Range: 89 V AC - 151 V AC
Output Voltage: 120 V AC,100 V AC,125 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz

Controls/Indicators

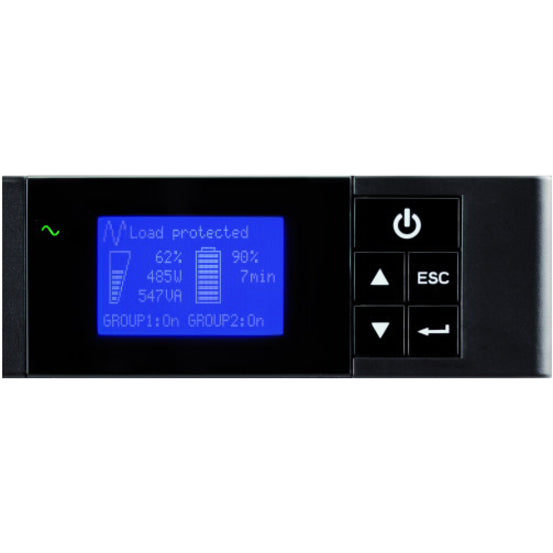

Status Indicators: LEDs:

• Load protected
• On battery
• Fault

Interfaces/Ports

Network (RJ-45): Yes
USB (HID Compliant) Port: Yes

Battery Information

Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 11 Minute
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Storage Relative Humidity: 0% - 90%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 45 dB

Physical Characteristics

Height: 1.70" (43.20 mm)
Width: 17.24" (438 mm)
Depth: 21.81" (554 mm)
Rack Height: 1U
Form Factor: Rack/Wall Mountable
Weight (Approximate): 36.40 lb (16510.76 g)

Miscellaneous

Package Contents:

• 5P1500R-L 1500VA Rack/Wall Mountable UPS
• 6-foot RS-232 Cable
• USB Cable

Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 5 Year
