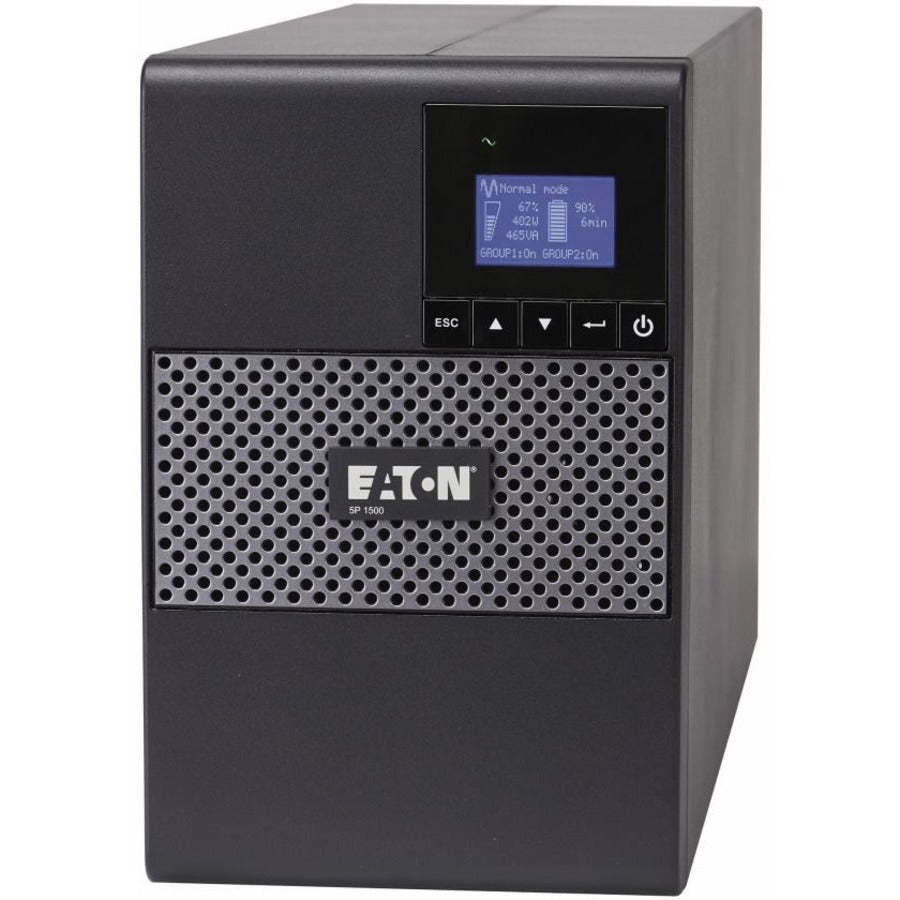

5P1550G Eaton 5P Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 5P1550G
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Model: 5P
Product Name: 5P Tower UPS
Marketing Information:

1.55kVA/1.1kW/230V Battery Backup for Network Closets and Small Data Centers

This 5P line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1550G protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

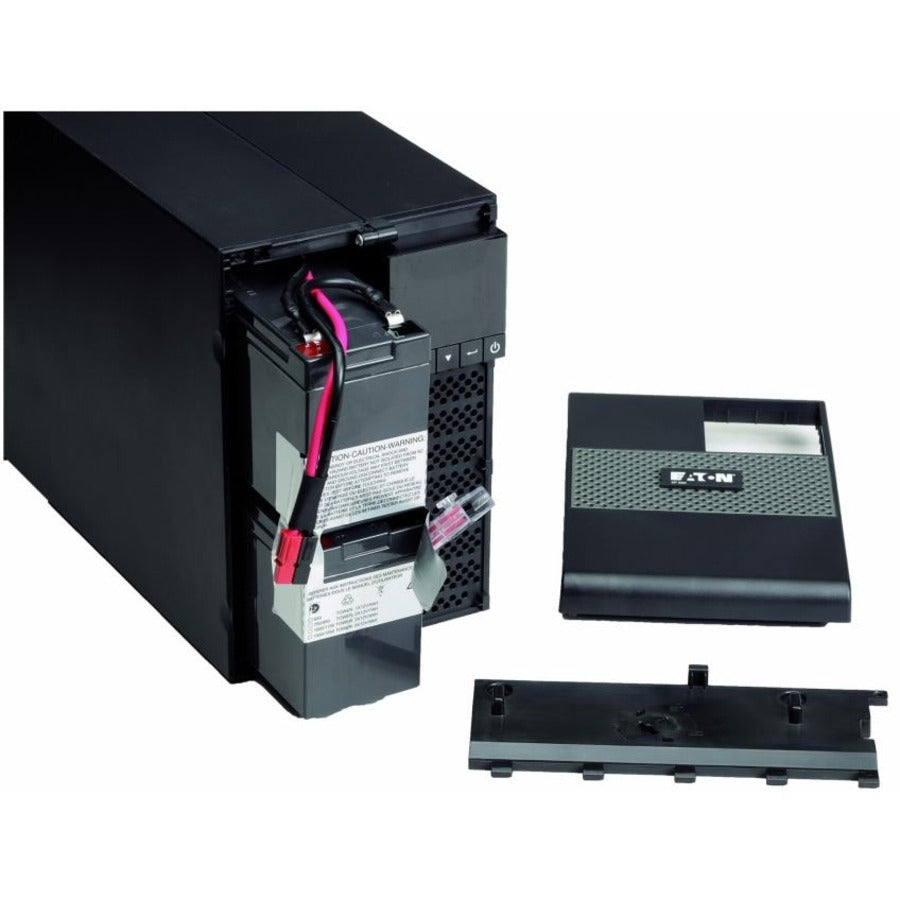

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card (sold separately) enables
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13

Power Description

Load Capacity (VA): 1.55 kVA
Load Capacity (Watt): 1.10 kW
Input Voltage: 220 V AC
Output Voltage: 240 V AC,200 V AC,132 V AC,220 V AC,230 V AC

Interfaces/Ports

USB: Yes
Network (RJ-45): Yes

Battery Information

Battery Characteristics: Maintenance-free, Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 13 Minute
Hot Swappable: Yes

Physical Characteristics

Height: 9.10" (231.14 mm)
Width: 5.90" (149.86 mm)
Depth: 17.50" (444.50 mm)
Form Factor: Tower
Weight (Approximate): 34.40 lb (15603.58 g)

Miscellaneous

Package Contents:

• 5P Tower UPS
• User Manual CD
• Intelligent Power Software Suite CD
• Quick Start Guide
• USB Cable
• RS-232 Serial Cable
• 2 x IEC-to-IEC Jumper Cables

Software Included: Intelligent Power Software Suite
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
