5P1550GR-L Eaton 5P UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 5P1550GR-L
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 5P
Product Name: 5P UPS
Marketing Information:

1.55kVA/1.1kW/230V Long-Term Battery Backup for Network Closets and Small Data Centers

This 5P rack-mount line-interactive UPS system is an efficient ""set it and forget it"" solution, providing reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1550GR-L protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

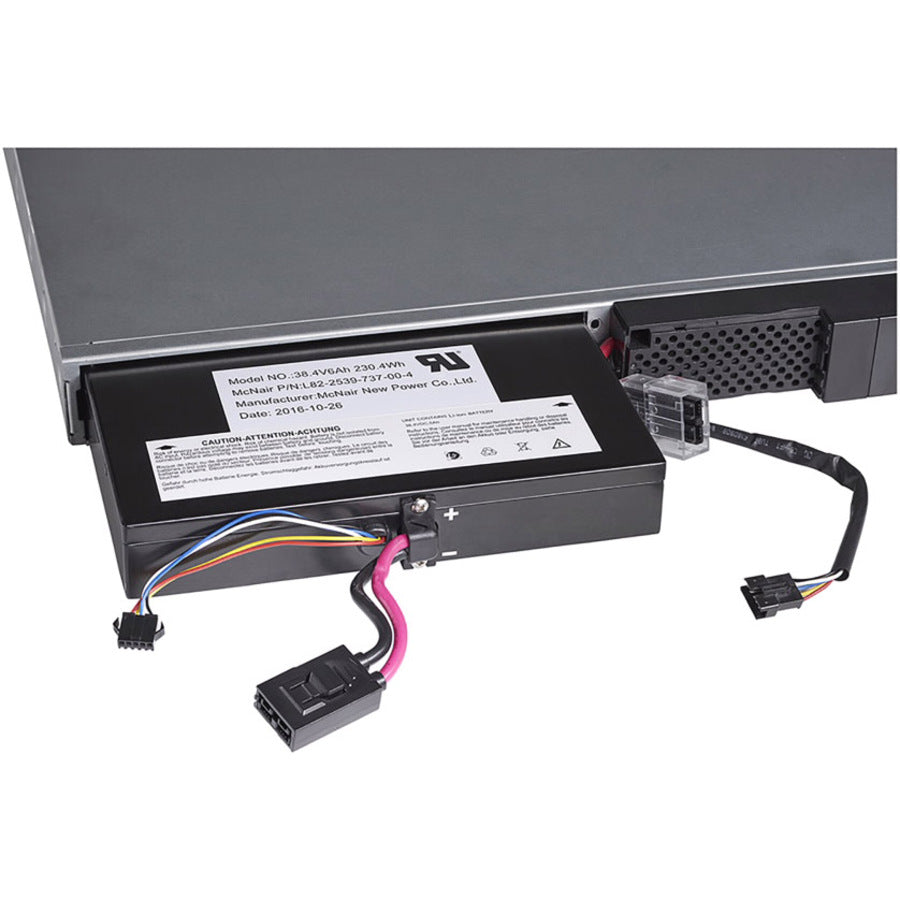

The maintenance-free lithium-ion battery modules have a service life up to eight years to align with your IT refresh cycle. They allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. They also recharge in just 6 to 8 hours following power disruptions to reduce vulnerability and improve uptime. On-board battery management system (BMS) monitoring of bat
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13

Power Description

Load Capacity (VA): 1.55 kVA
Load Capacity (Watt): 1.10 kW
Input Voltage: 230 V AC
Input Voltage Range: 160 V AC - 294 V AC
Output Voltage: 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC

Interfaces/Ports

Network (RJ-45): Yes

Physical Characteristics

Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 21.80" (553.72 mm)
Rack Height: 1U
Form Factor: Rack-mountable,Wall Mountable
Weight (Approximate): 34.61 lb (15700 g)

Miscellaneous

Package Contents:

• 5P UPS
• Quick Start Guide
• USB Cable
• RS-232 Serial Cable
• 4-post Rail Kit
• 2 IEC-to-IEC Jumper Cables
• Output Cable Locking System
• Input Cable Locking System

Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 5 Year
