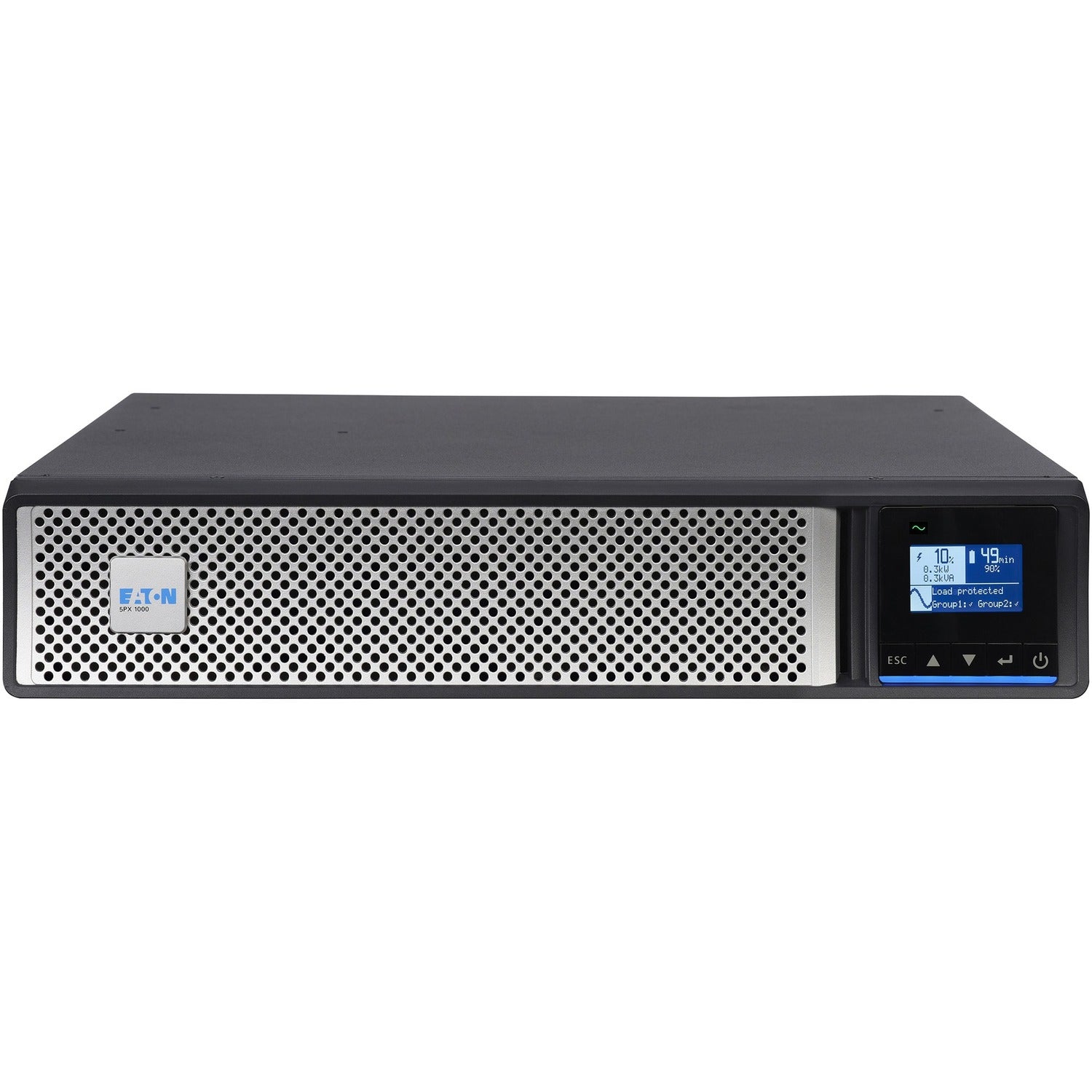

5PX1000RTNG2 Eaton 5PX G2 UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 5PX1000RTNG2
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 5PX G2
Product Name: 5PX G2 UPS
Marketing Information:

1kVA/1kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This 5PX G2 rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The 5PX1000RTNG2 is ideal power management for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors ba
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Application/Usage: Server,Storage System,VoIP,Network Equipment,Switch,IT Equipment,Enterprise,Telecommunication,Retail Building,Bank,Business

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Input Frequency: 60 Hz

Management

Network Management: Network-M3 Card

Controls/Indicators

Status Indicators:

LCD Graphical Display

Interfaces/Ports

USB (HID Compliant) Port: Yes

Battery Information

Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 6 Minute
Replaceable Battery: Yes

Physical Characteristics

Product Color: Black
Height: 3.40" (86.36 mm)
Width: 17.20" (436.88 mm)
Depth: 17.60" (447.04 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 44.50 lb (20184.86 g)

Miscellaneous

Package Contents:

• 5PX G2 UPS
• Tower Pedestal Feet
• Four-post Rail Kit
• Quick Start Guide
• Safety Guide
• USB Cable
• RS-232 Cable
• Gigabit Network Card (Network-M3)

Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
