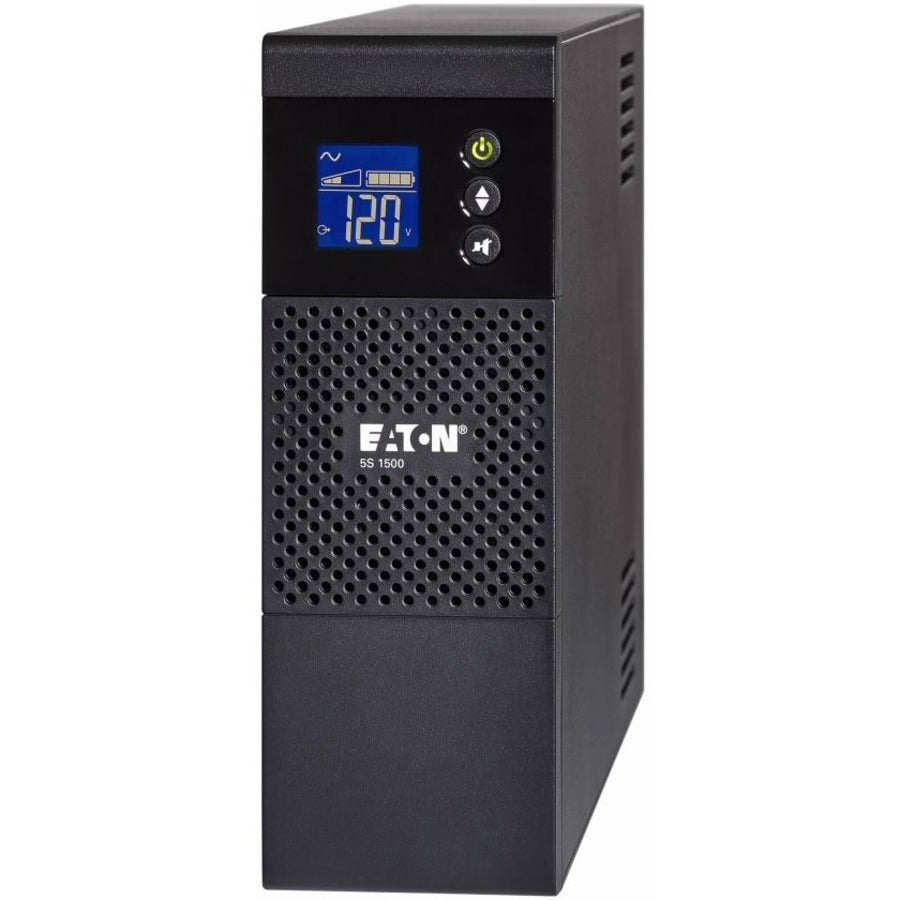

5S1500G Eaton 5S UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 5S1500G
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 5S
Product Name: 5S UPS
Marketing Information:

The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.

Tower 230V line-interactive sine wave uninterruptible power supply w/ LCD interface provides battery backup through power outages as well as robust voltage regulation

11 min at half load; 2 min full load

>95% line-power efficiency rating saves you money

Ideal for servers/network/telecom equipment in all environments

C14 Input w/ 8 C13 receptacles

3 Year Eaton warranty covers UPS and batteries

Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 900 W
Input Voltage: 220 V AC
Output Voltage: 230 V AC

Interfaces/Ports

USB: Yes

Battery Information

Number of Batteries: 1
Battery Characteristics: Maintenance-free, Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 11 Minute

Physical Characteristics

Height: 9.80" (248.92 mm)
Width: 3.40" (86.36 mm)
Depth: 15" (381 mm)
Form Factor: Tower
Weight (Approximate): 24.60 lb (11158.37 g)

Miscellaneous

Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
