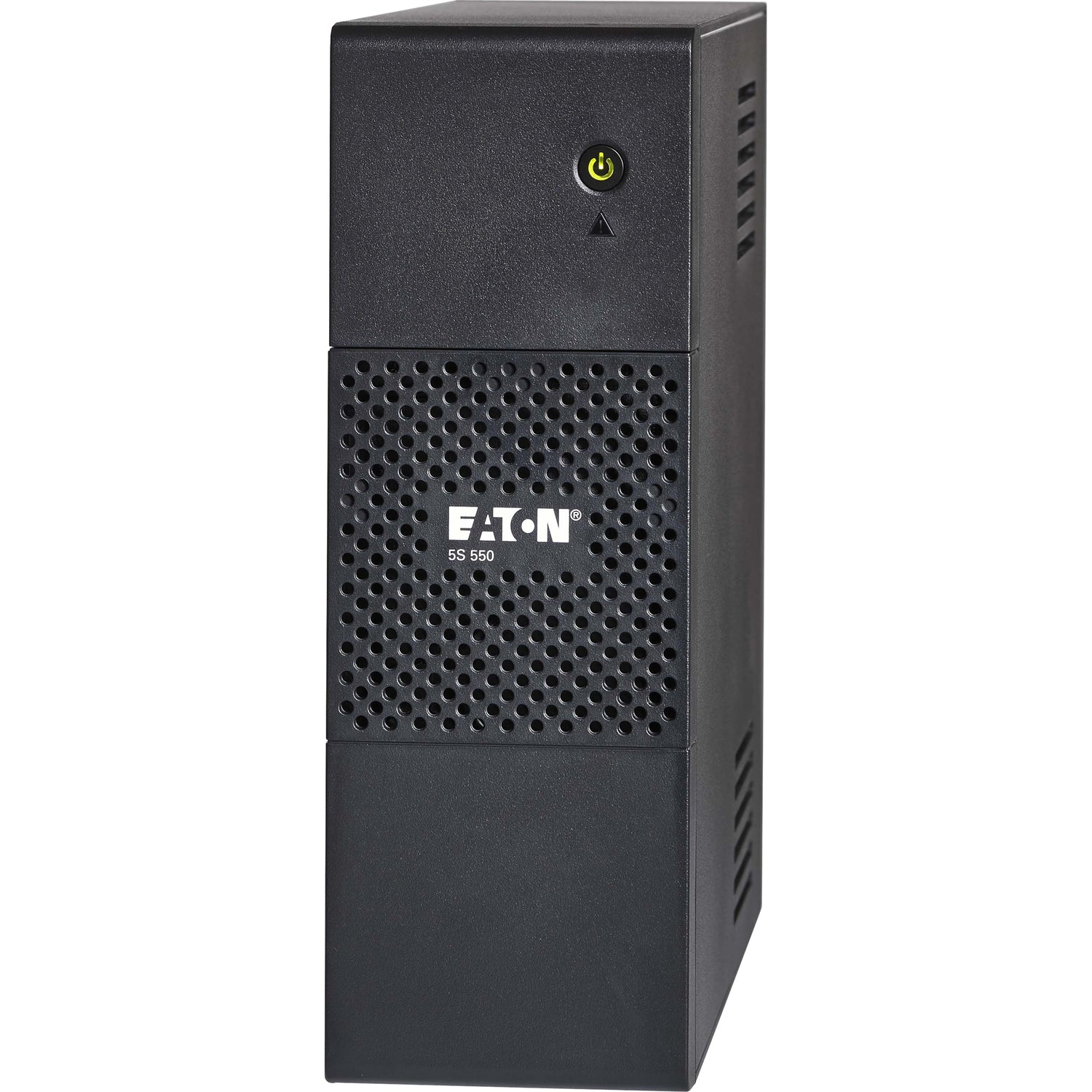

5S550 Eaton 5S UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 5S550
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 5S
Product Name: 5S UPS
Marketing Information:

The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.

Compact tower line-interactive UPS offers complete protection from blackouts/brownouts and surges

12 min runtime at half load; 1 min runtime at full load

Free Eaton UPS Companion software enhances your power protection/safeguards data

5-15P input/ 4 5-15R surge/battery & 4 5-15R surge only outlets provide power to desktop/home theater systems

Eco-Control capability enables you save up to 30% in energy consumption which saves you money

3 Year Eaton warranty covers UPS and batteries

Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Dataline Protection: RJ-45

Power Description

Load Capacity (VA): 550 VA
Load Capacity (Watt): 330 W
Input Voltage: 110 V AC
Output Voltage: 115 V AC

Interfaces/Ports

USB: Yes
Network (RJ-45): Yes

Battery Information

Number of Batteries: 1
Battery Characteristics: Maintenance-free, Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 1 Minute

Physical Characteristics

Height: 9.80" (248.92 mm)
Width: 3.40" (86.36 mm)
Depth: 10.20" (259.08 mm)
Form Factor: Tower
Weight (Approximate): 12.30 lb (5579.19 g)

Miscellaneous

Package Contents:

• 5S UPS
• USB Cable
• User Manual

Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
