Manufacturer Part Number: 5SC1000
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 5SC

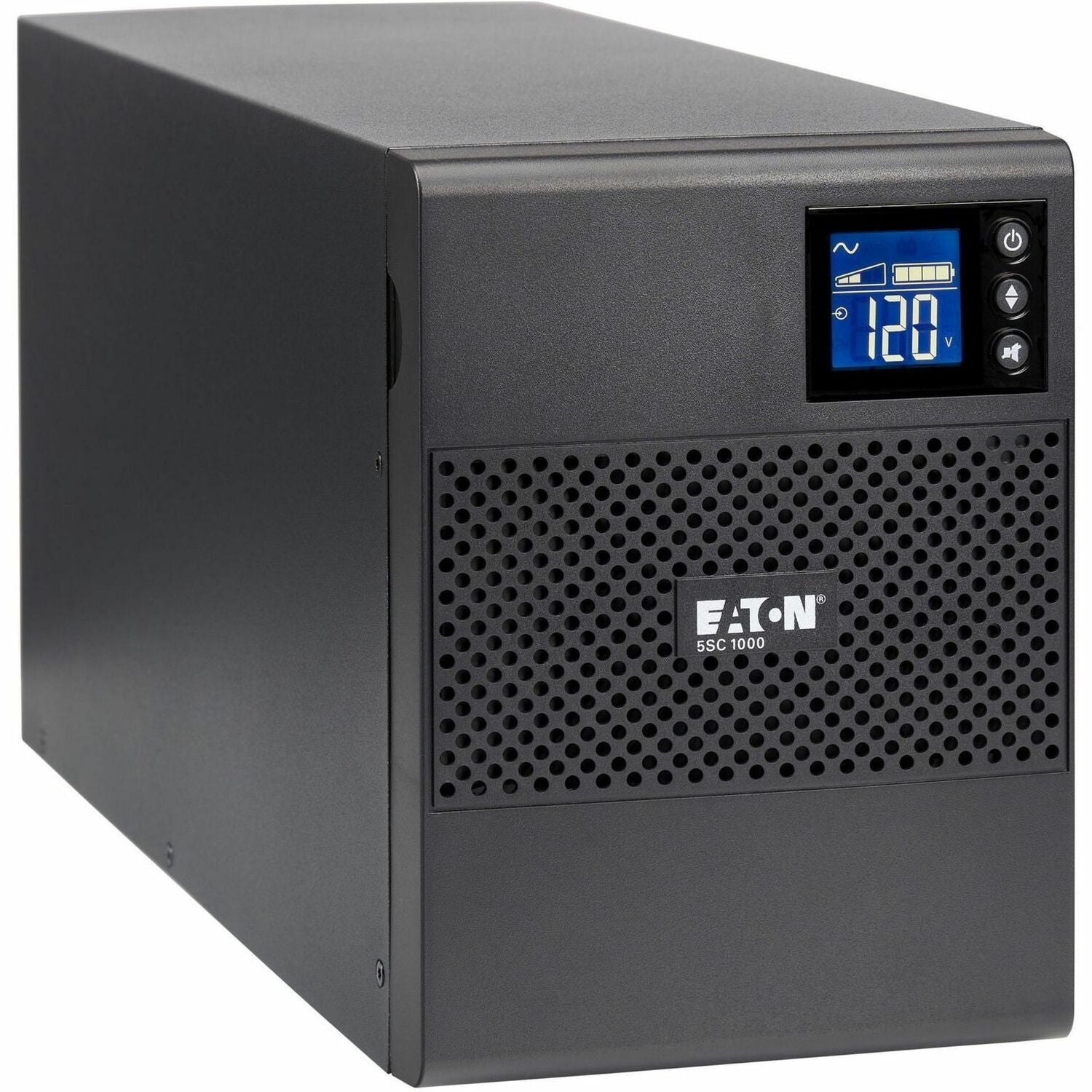

Product Name: 5SC UPS

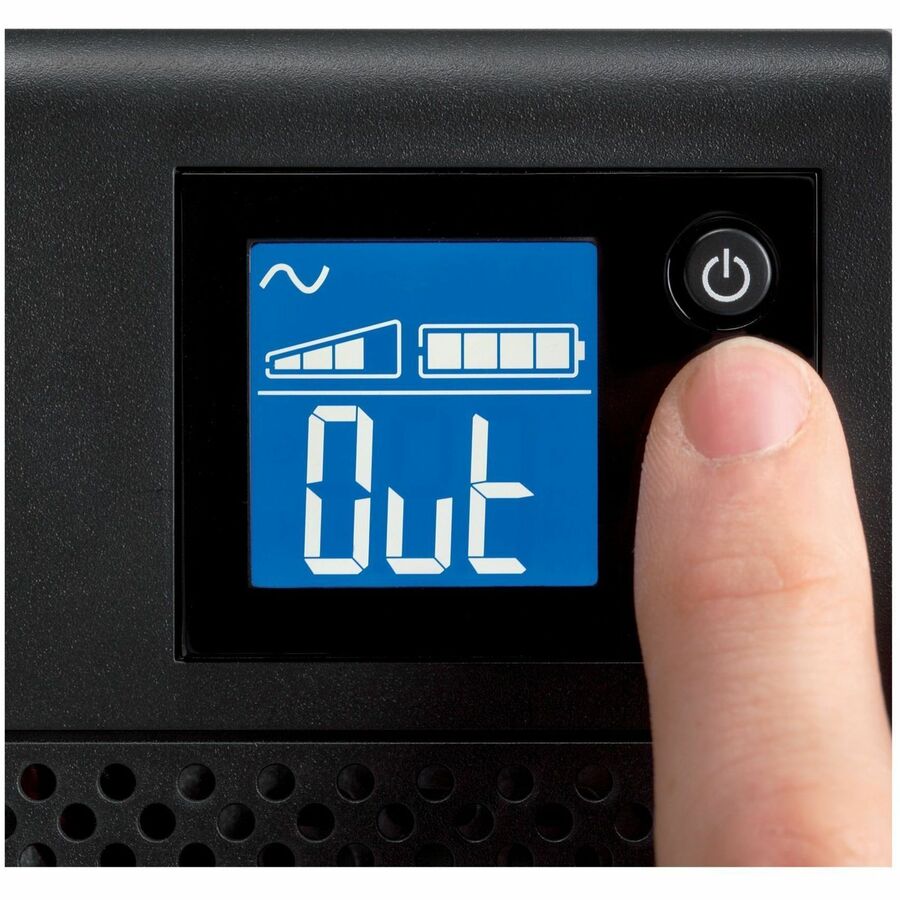

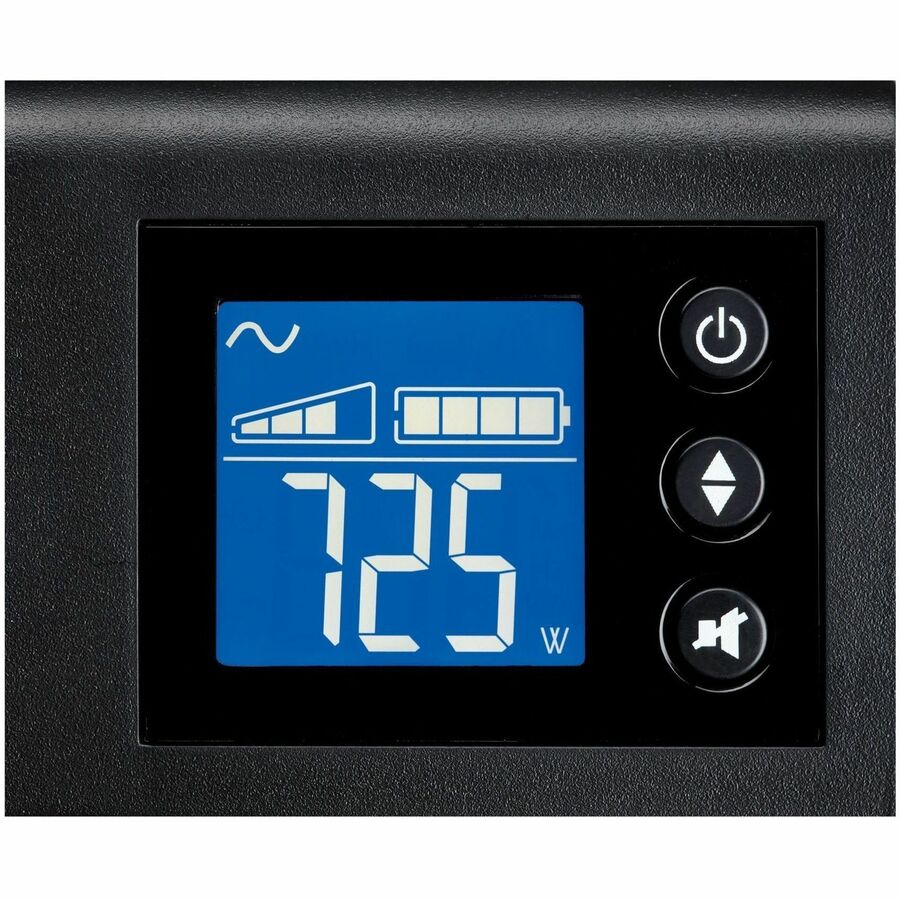

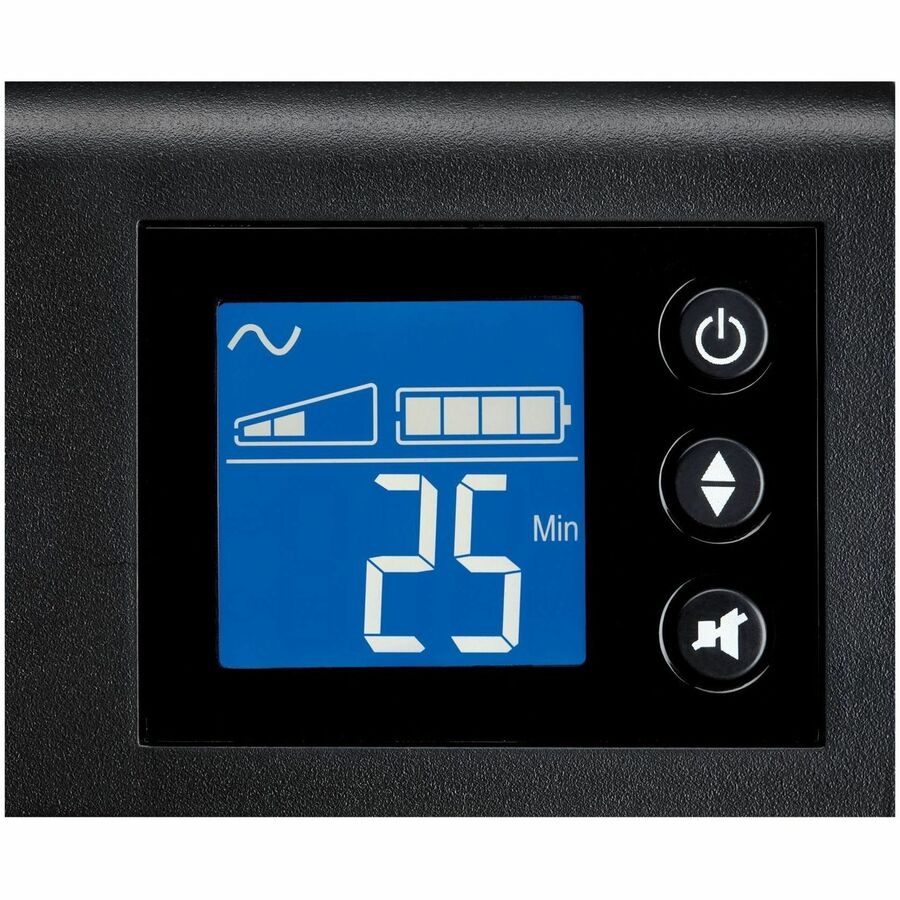

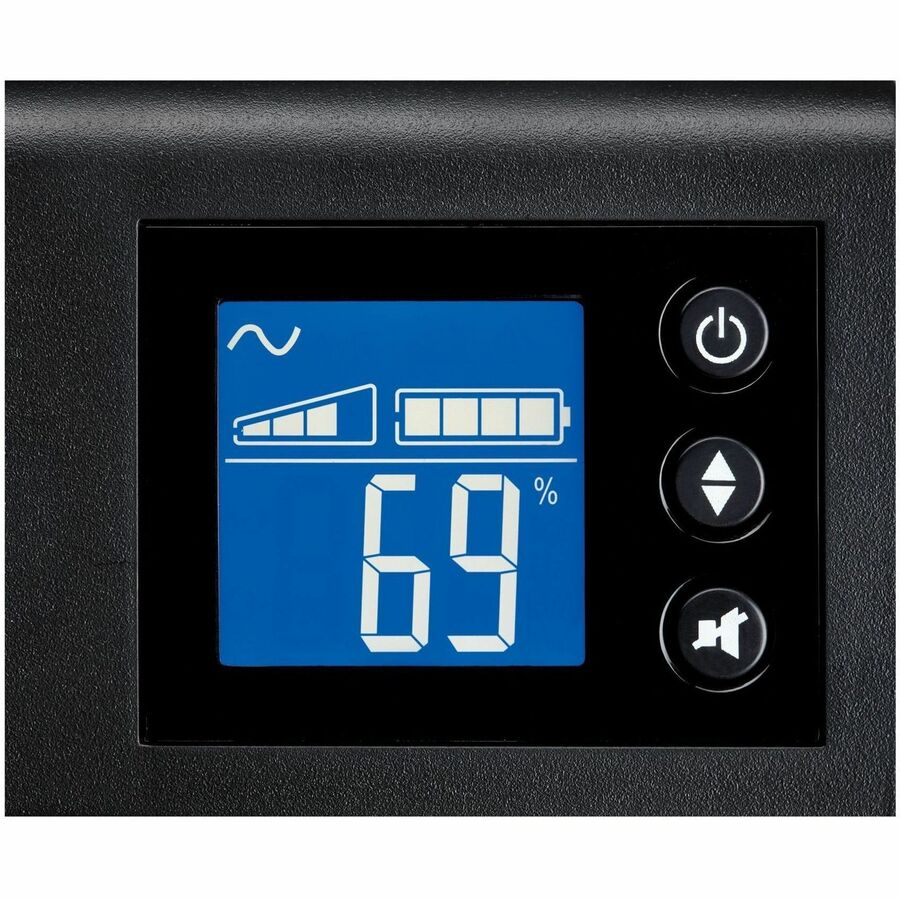

Marketing Information: The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
Product Type: Line-interactive UPS
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Cord Length: 6 ft (1.83 m)
Load Capacity (Watt): 700 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
USB: Yes
Network (RJ-45): Yes
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 13 Minute
Hot Swappable: No
Sound Emission: 55 dB
Height: 8.23" (209 mm)
Width: 5.91" (150 mm)
Depth: 13.39" (340 mm)
Form Factor: Tower
Weight (Approximate): 25.60 lb (11611.96 g)
Software Included: Intelligent Power Manager Software
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: 5SC1000
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 5SC
Product Name: 5SC UPS
Marketing Information: The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Cord Length: 6 ft (1.83 m)
Power Description
Load Capacity (VA): 1 kVALoad Capacity (Watt): 700 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Interfaces/Ports
Serial Port: YesUSB: Yes
Network (RJ-45): Yes
Battery Information

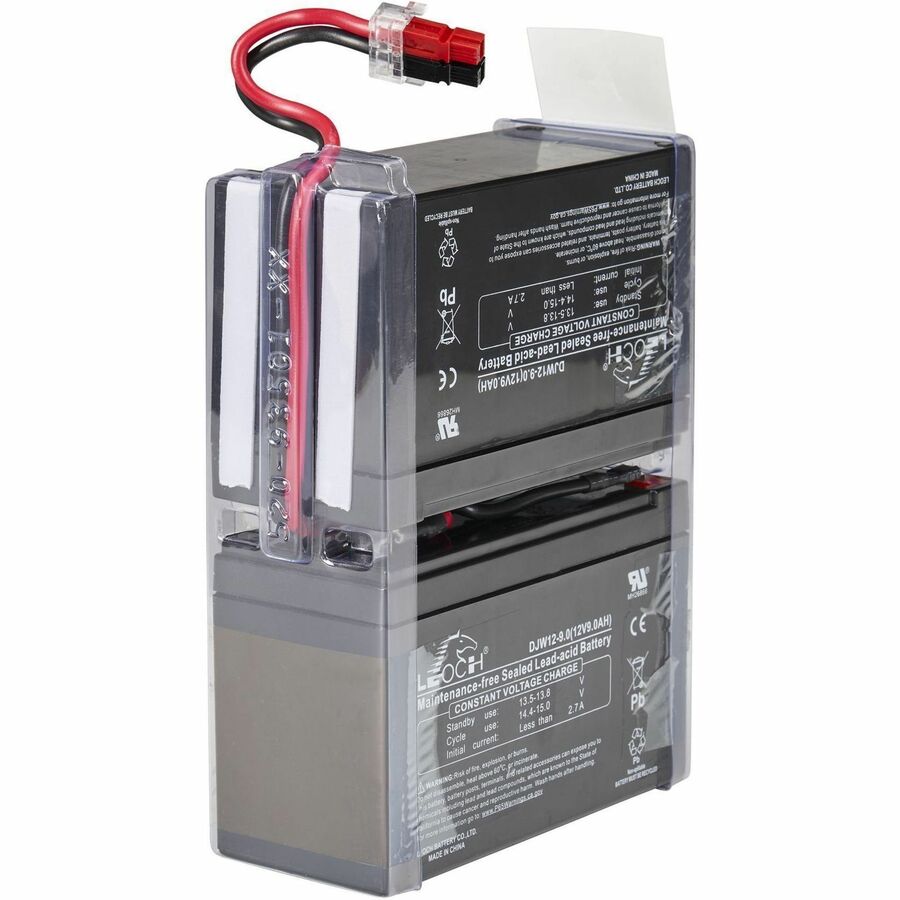

Battery Characteristics: Maintenance-free, SealedBattery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 13 Minute
Hot Swappable: No
Environmental Conditions
Maximum Operating Temperature: 104°F (40°C)Sound Emission: 55 dB
Physical Characteristics
Product Color: BlackHeight: 8.23" (209 mm)
Width: 5.91" (150 mm)
Depth: 13.39" (340 mm)
Form Factor: Tower
Weight (Approximate): 25.60 lb (11611.96 g)
Miscellaneous

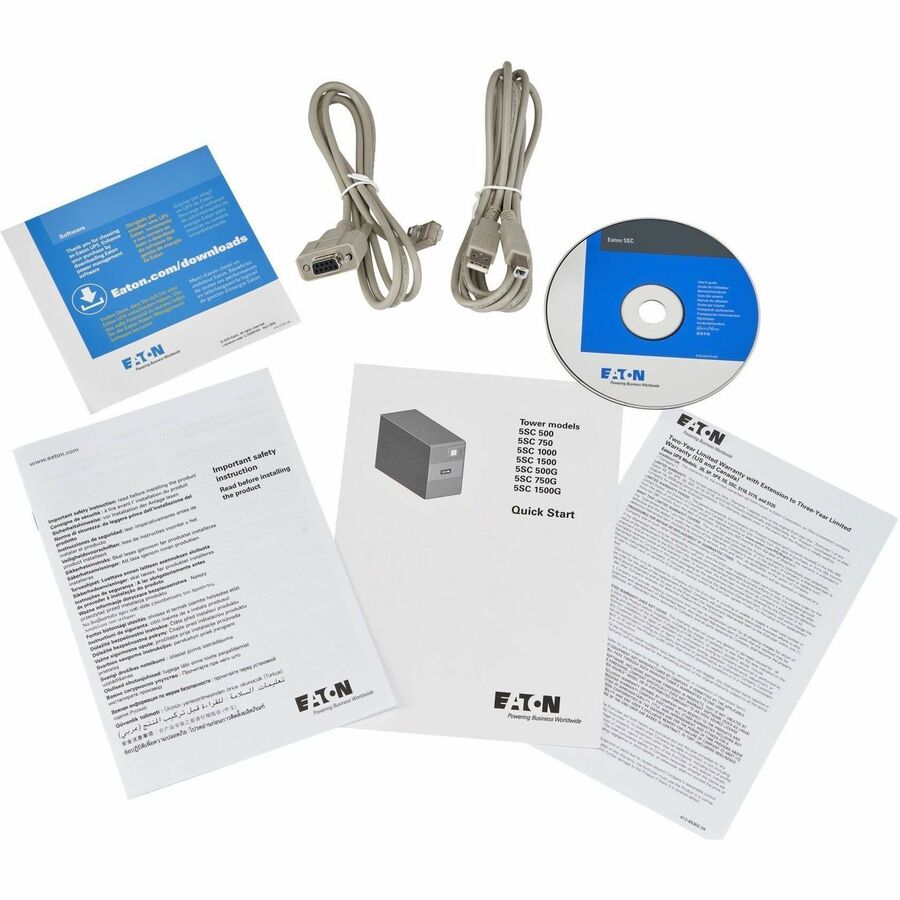

Package Contents:- 5SC UPS
- User Manual CD
- Intelligent Power Manager Software CD
- USB Cable
- Serial Cable (RJ45 to DB9)
- Important Safety Instructions
- Limited Warranty Details
Software Included: Intelligent Power Manager Software
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
