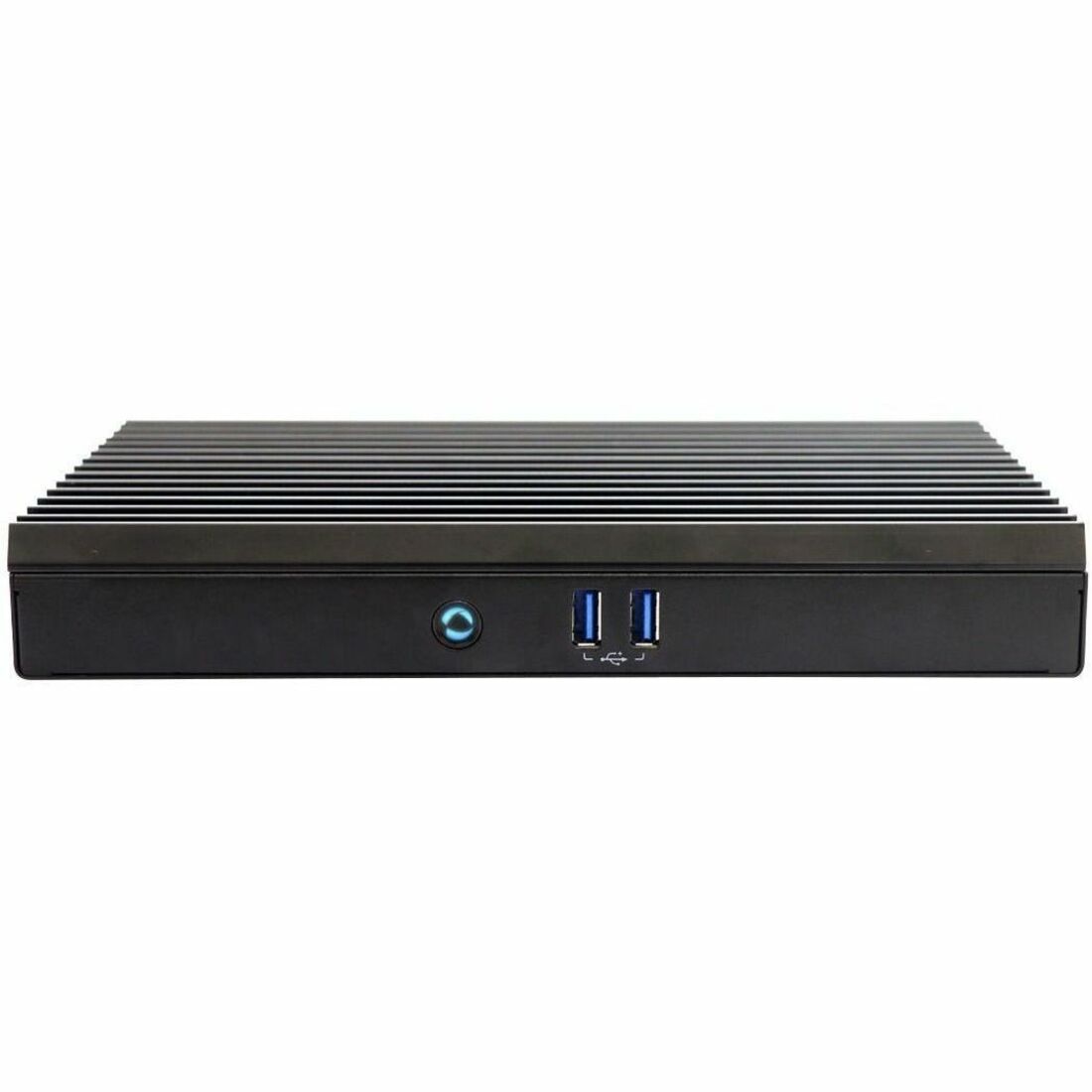

791.DEK00.1020 AOpen DEX5550-W Digital Signage Appliance

General Information

Rugged design for industrial applications in harsh environments DEX5550-W

The DEX5550-W is a fanless Industrial Engine, based on the DEX5550. With a high operating temperature and the fact that the DEX5550-W withstands shocks, make this device perfect for demanding environments, such as factories. The 7th generation Intel® Core™ CPU is powerful and ensures a stable, high-end operating player which functions 24/7. Specifically designed for quality control and industrial automation.

The DEX5550-W features:

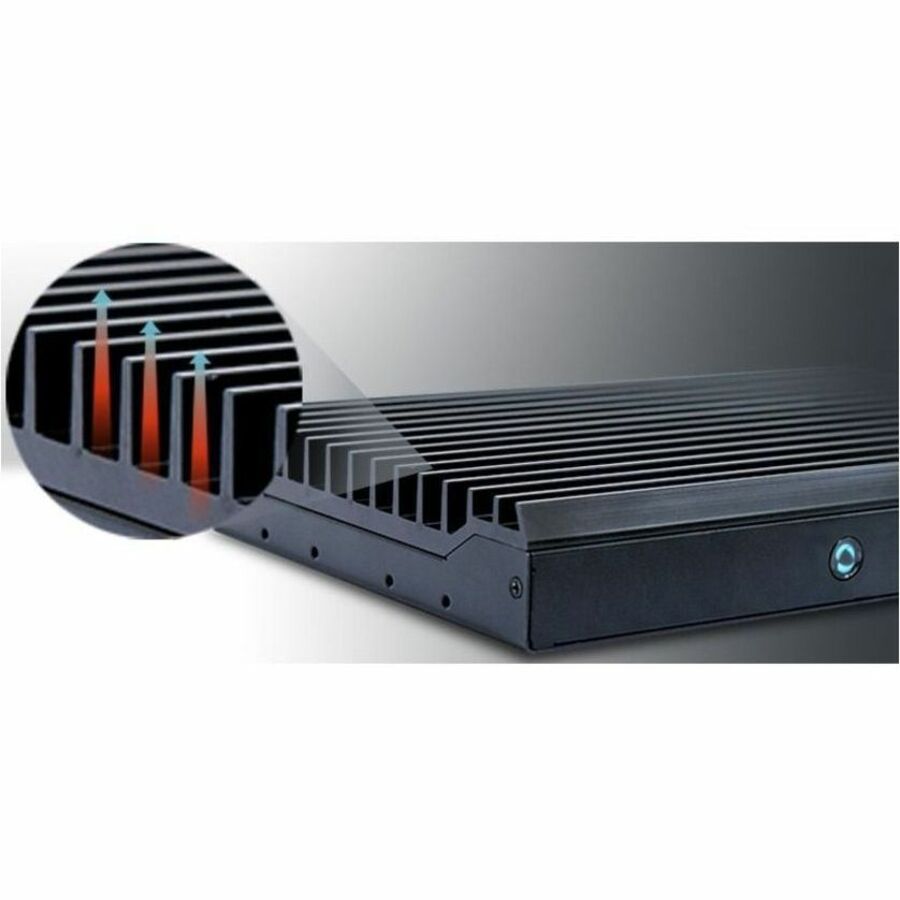

• + Rugged and fanless design
• + Suitable for industrial automation and quality control
• + Supports TPM 2.0
• + Wide operating temperature ran
  Product Type: Digital Signage Appliance


  Technical Information

  Operation Hours: 24 Hours/7 Days


  Processor & Chipset

  Processor Manufacturer: Intel
  Processor Type: Core i5
  Processor Model: i5-7300U


  Memory

  Standard Memory: 4 GB
  Memory Technology: DDR4 SDRAM


  Network & Communication

  Ethernet: Yes

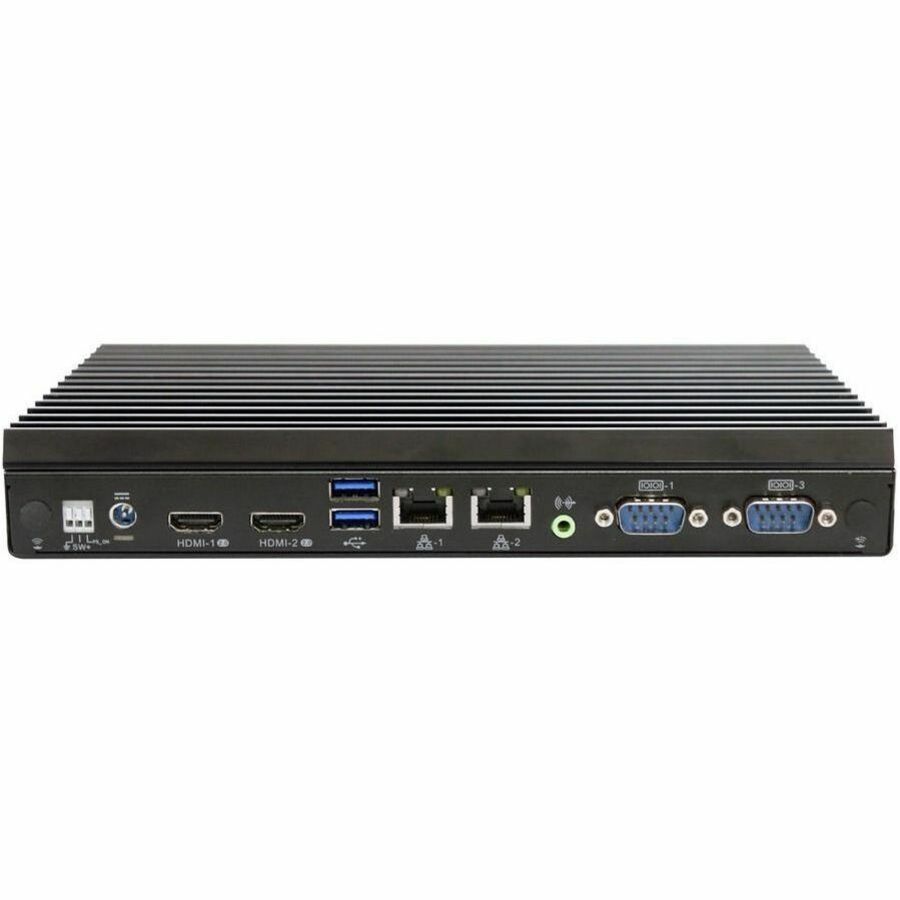

  Interfaces/Ports

  USB: Yes
  HDMI: Yes
  Number of USB 3.0 Ports: 2
  Number of Network (RJ-45) Ports: 2
  Number of Audio Line Out: 1
  Number of HDMI 2.0 Ports: 2


  Software

  Operating System: Windows 10 IoT


  Power Description

  Input Voltage: 12 V DC,19 V DC


  Physical Characteristics

  Mount Type: Wall Mountable
  Height: 1.38" (35 mm)
  Width: 9.45" (240 mm)
  Depth: 6.22" (158 mm)
  Weight (Approximate): 4.01 lb (1820 g)


  Environmental Conditions

  Minimum Operating Temperature: -4°F (-20°C)
  Maximum Operating Temperature: 140°F (60°C)
  Minimum Storage Temperature: -22°F (-30°C)
  Maximum Storage Temperature: 158°F (70°C)


  Miscellaneous

  Application/Usage: Industrial


  Warranty

  Limited Warranty: 3 Year
