86UH5N-M LG 86" UHD Ultra Slim Signage with webOS 6.0 and Advanced Security

General Information

Manufacturer: LG Electronics
Manufacturer Part Number: 86UH5N-M
Manufacturer Website Address: https://solutions.lg.com/us
Brand Name: LG
Product Model: 86UH5N-M
Product Name: 86" UHD Ultra Slim Signage with webOS 6.0 and Advanced Security
Marketing Information:

Large UHD Signage Display with Slim Design | Eye-catching Large Screen

A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.

Sturdy Design with Fire Flame Resistance

The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

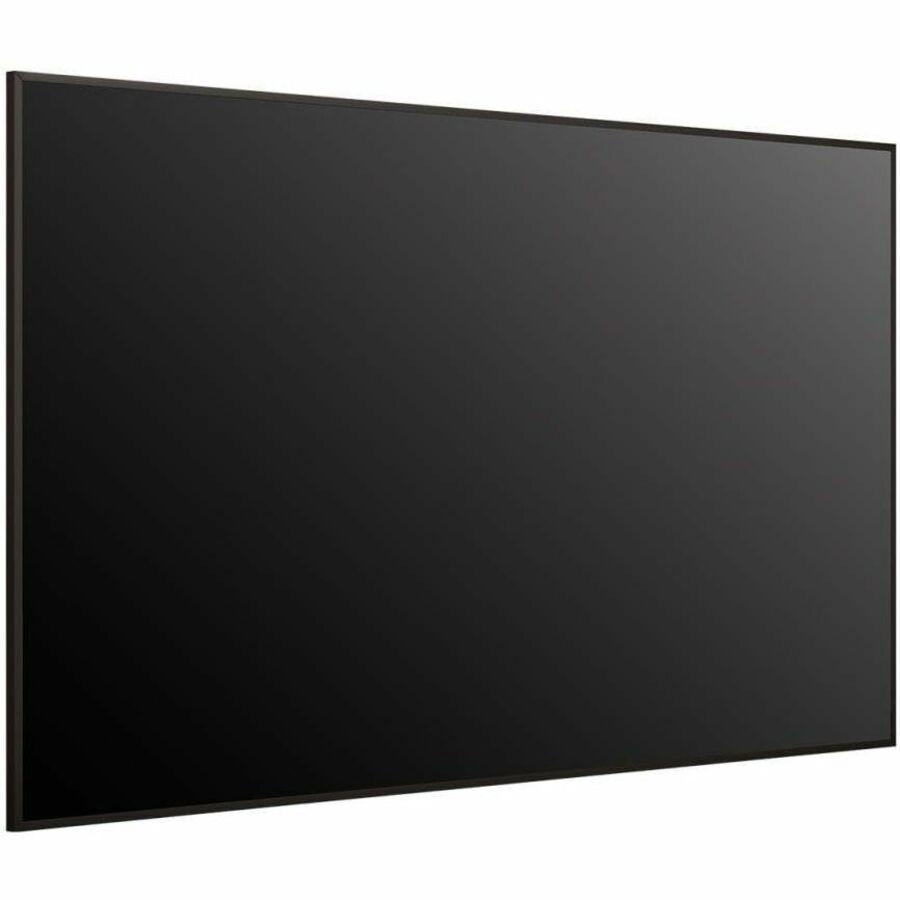

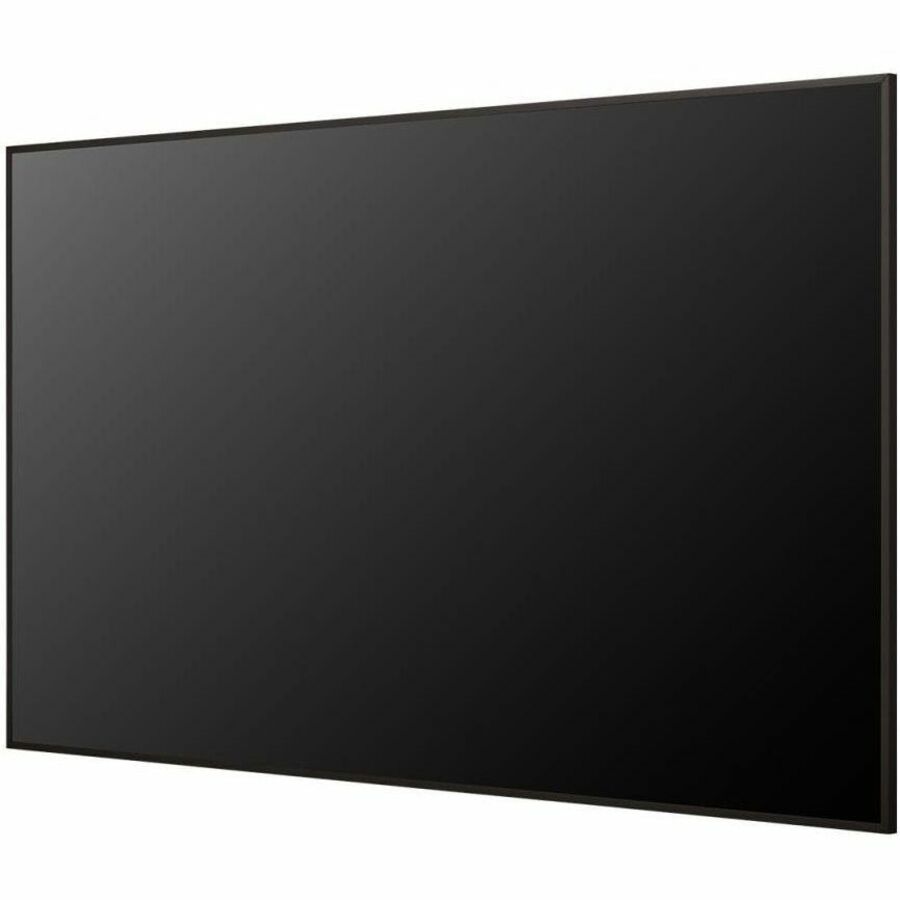

Slim Depth with Even Bezel

Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

Versatile Operation with Multi-USB

With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected d
Product Type: Digital Signage Display

Technical Information

Bezel Width: 0.53" (13.40 mm)
Ingress Protection (IP) Rating: IP5X
Panel Technology: Advanced Super Dimension Switch ( ADS )
Operation Hours: 24 Hours/7 Days
Maximum Heat Generation: 1068.8 kJ
On Screen Display (OSD) Languages: Arabic,Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Greek,Italian,Japanese,Korean,Norwegian,Brazilian Portuguese,Portuguese (Europe),Russian,Simplified Chinese,Spanish,Swedish,Turkish

Display & Graphics

Viewable Screen Size: 86" (2184.40 mm)
Response Time: 8 ms
Display Resolution: 3840 x 2160
Orientation: Landscape/Portrait
Backlight Technology: Edge LED
Aspect Ratio: 16:9
Maximum LED Life: 5.7 Year

Audio

Speakers: Yes

Video

Native Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 100,000,0:1
Brightness: 500 cd/m²
Color Gamut: 95% BT.709

Network & Communication

Wireless LAN: Yes
Bluetooth: Yes

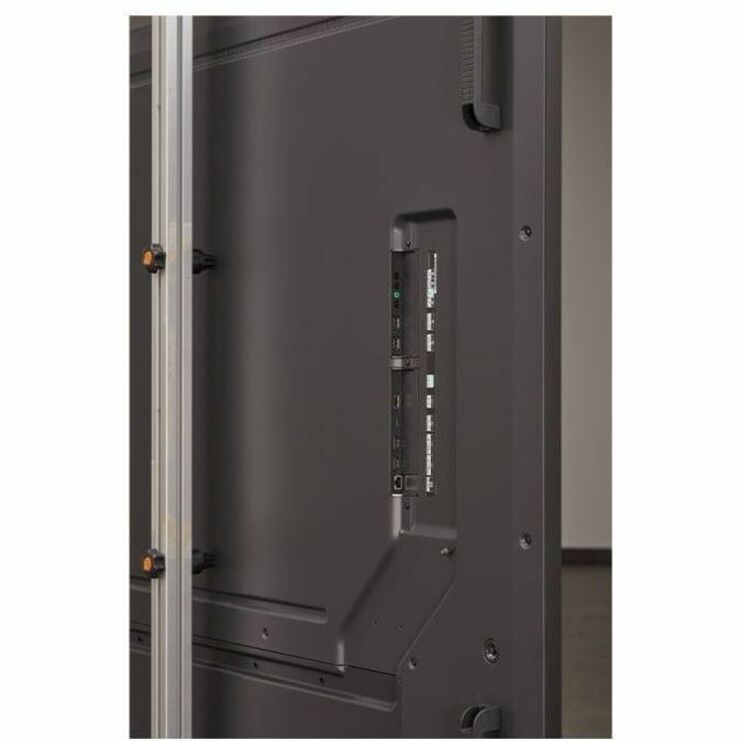

Interfaces/Ports

Audio Line Out: Yes
Number of USB 2.0 Ports: 1
Number of HDMI Inputs: 3
DisplayPort Output: No
RS-232C Input: Yes
RS-232C Output: Yes
Number of Network (RJ-45) Ports: 1
Number of Infrared Inputs: 1
Number of Audio Line Out: 1

Software

Operating System: webOS 6.0

Power Description

Input Voltage: 120 V AC,230 V AC
Off-Mode Power Consumption: 500 mW

Physical Characteristics

Bezel Color: Black
VESA Mount Standard: 600 x 400
Height: 43.29" (1099.57 mm)
Width: 75.93" (1928.62 mm)
Depth: 1.16" (29.46 mm)
Weight (Approximate): 115.74 lb (52498.78 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%

Miscellaneous

Package Contents:

Remote Control (include battery 2ea)

Power Cord

QSG

Regulation Book

Phone to RS-232C Gender

Cable Holder (6EA)

Cable Holder (7Pin/1EA)

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool (EPEAT)
TAA Compliant: No

Warranty

Limited Warranty: 3 Year
