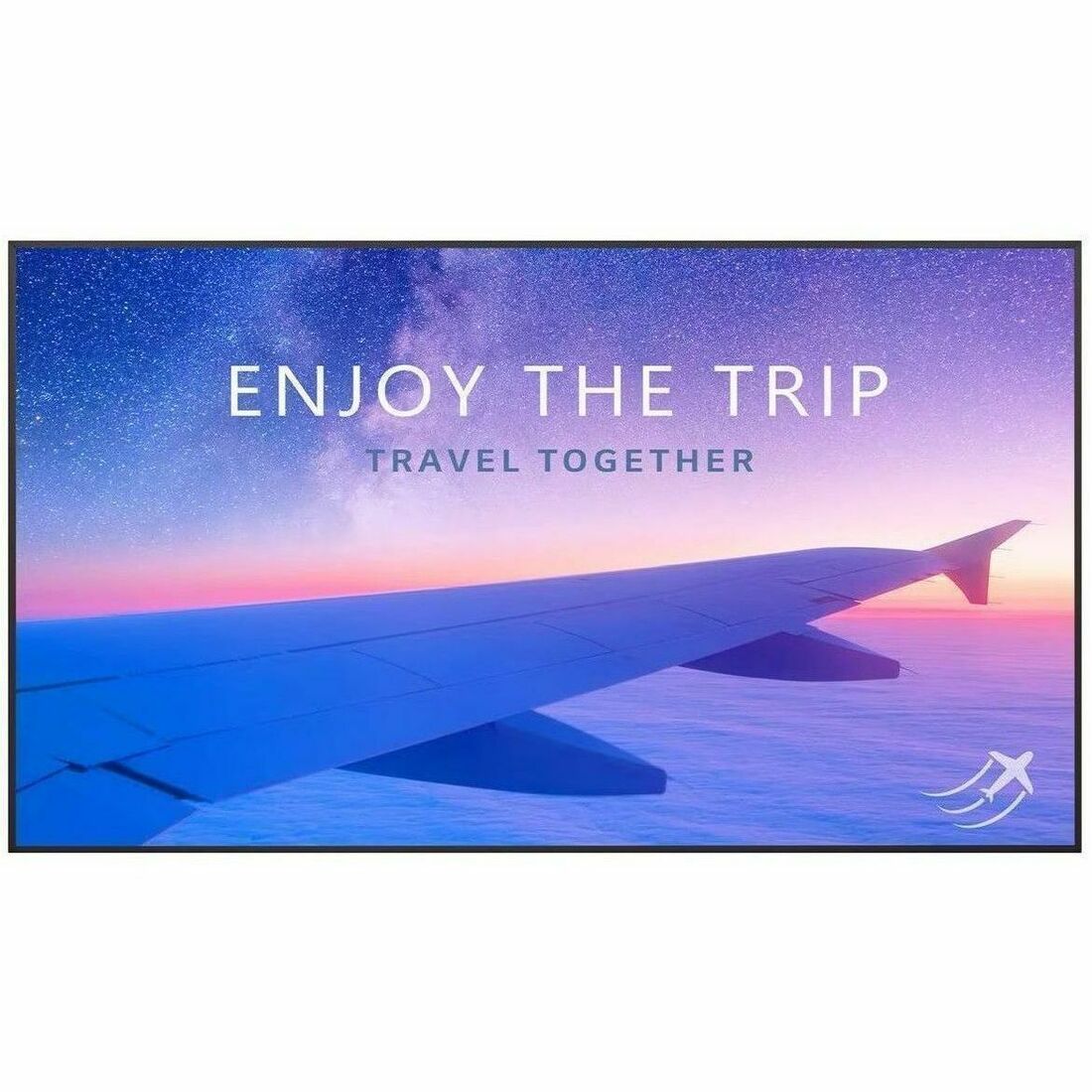

86UH7N-M LG 86UH7N-M Digital Signage Display

General Information

Manufacturer: LG Electronics
Manufacturer Part Number: 86UH7N-M
Manufacturer Website Address: https://solutions.lg.com/us
Brand Name: LG
Product Model: 86UH7N-M
Product Name: 86UH7N-M Digital Signage Display
Marketing Information:

High Brightness

The UH7N-M display, with a great brightness of 700 nits, clearly delivers content even in bright stores.

Sturdy Design with Fire Flame Resistance

The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

Eye-catching Large Screen

A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.

Versatile Operation with Multi-USB

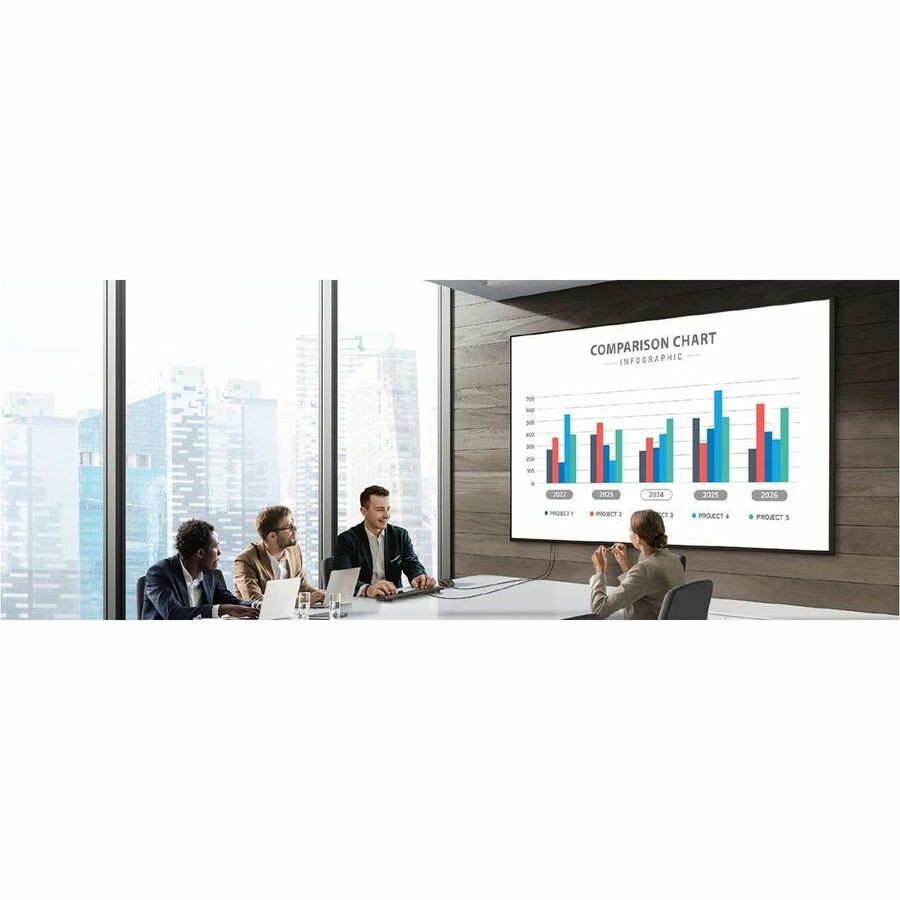

With support for two USB ports, UH7N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visu
Product Type: Digital Signage Display

Technical Information

Bezel Width: 0.53" (13.40 mm)
Panel Technology: Advanced Super Dimension Switch ( ADS )
Operation Hours: 24 Hours/7 Days
Maximum Heat Generation: 1068.8 kJ
On Screen Display (OSD) Languages: Arabic,Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Italian,Japanese,Korean,Norwegian,Brazilian Portuguese,Portuguese (Europe),Russian,Simplified Chinese,Spanish,Swedish,Turkish

Display & Graphics

Viewable Screen Size: 86" (2184.40 mm)
Response Time: 8 ms
Display Resolution: 3840 x 2160
Orientation: Landscape/Portrait
Backlight Technology: Edge LED
Aspect Ratio: 16:9
Maximum LED Life: 5.7 Year

Video

Native Contrast Ratio: 1,200:1
Dynamic Contrast Ratio: 100,000,0:1
Color Gamut: 95% BT.709

Network & Communication

Wireless LAN: Yes

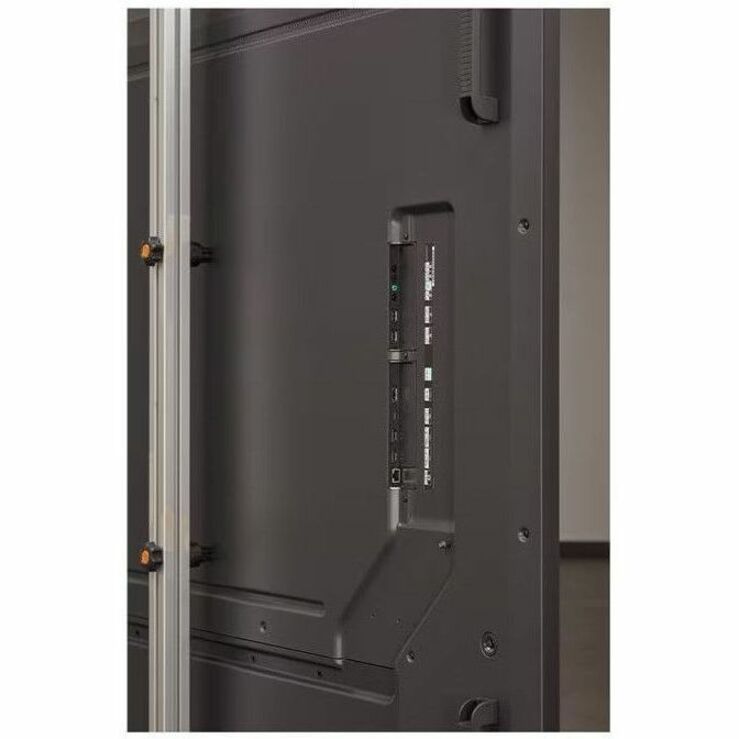

Interfaces/Ports

Audio Line Out: Yes
Number of USB 2.0 Ports: 2
Number of HDMI Inputs: 2
RS-232C Input: Yes
RS-232C Output: Yes
Number of Network (RJ-45) Ports: 1
Number of Infrared Inputs: 1

Power Description

Off-Mode Power Consumption: 500 mW

Physical Characteristics

Bezel Color: Black
VESA Mount Standard: 600 x 400
Height: 43.29" (1099.57 mm)
Width: 75.93" (1928.62 mm)
Depth: 1.16" (29.46 mm)
Weight (Approximate): 116.84 lb (52997.73 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%

Miscellaneous

Package Contents:

Remote Controller(include battery 2ea)

Power Cord

QSG

Regulation Book

Phone to RS232C Gender

Cable Holder(6EA)

Cable Holder(7Pin/1EA)

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool (EPEAT)

Warranty

Limited Warranty: 3 Year
