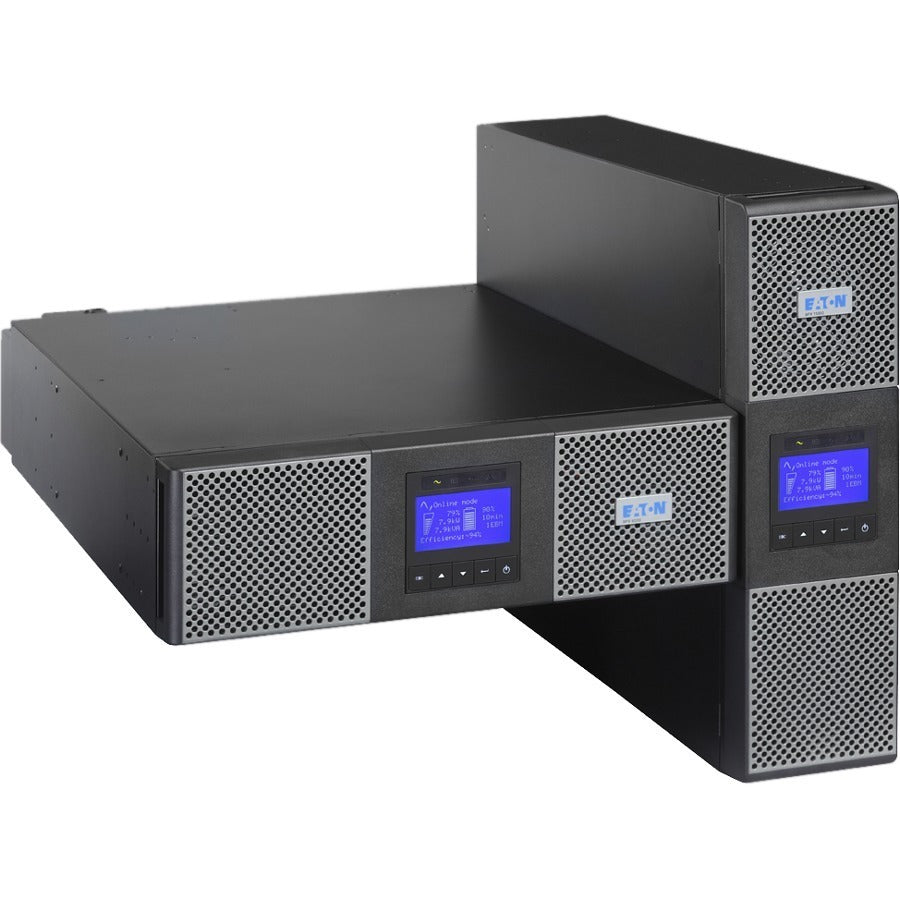

9PX10KSP Eaton 9PX 10000VA Tower/Rack Mountable Dual Conversation Online UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX10KSP
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Model: 9PX
Product Name: 9PX 10000VA Tower/Rack Mountable Dual Conversation Online UPS
Marketing Information:

10kVA/9kW Battery Backup for IT Installations and Edge Networks

This 9PX split-phase online double-conversion UPS system delivers both 120V and 208V output without the expense or extra weight of a bulky transformer or distribution module. The 9PX10KSP fits into 6U of rack space and provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX10KSP is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent
Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: Hardwired
Receptacle Type: NEMA L6-30R,NEMA L14-30R,Hardwired
Receptacle Detail: 1 x NEMA L6-30R,2 x NEMA L14-30R

Power Description

Load Capacity (VA): 10 kVA
Load Capacity (Watt): 9 kW
Input Voltage: 127 V AC,240 V AC
Output Voltage: 127 V AC,240 V AC
Circuit Breaker: Yes

Controls/Indicators

Status Indicators: 4 x LEDs

Interfaces/Ports

Serial Port: Yes
USB: Yes
Network (RJ-45): Yes

Battery Information

Battery Characteristics: Maintenance-free, Sealed
Battery Chemistry: Lead Acid
Hot Swappable: Yes

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Product Color: Black,Silver
Height: 10.30" (261.62 mm)
Width: 17.30" (439.42 mm)
Depth: 27.60" (701.04 mm)
Rack Height: 6U
Form Factor: Rack/Tower
Weight (Approximate): 225 lb (102058.28 g)

Miscellaneous

Package Contents:

• 9PX 10000VA Tower/Rack Mountable Dual Conversation Online UPS
• 4-post Rail Kit
• Tower Pedastals
• RS-232 Cable
• USB Cable
• Intelligent Power Software Suite CD

Software Included: Intelligent Power Software Suite
Energy Star: Yes
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
