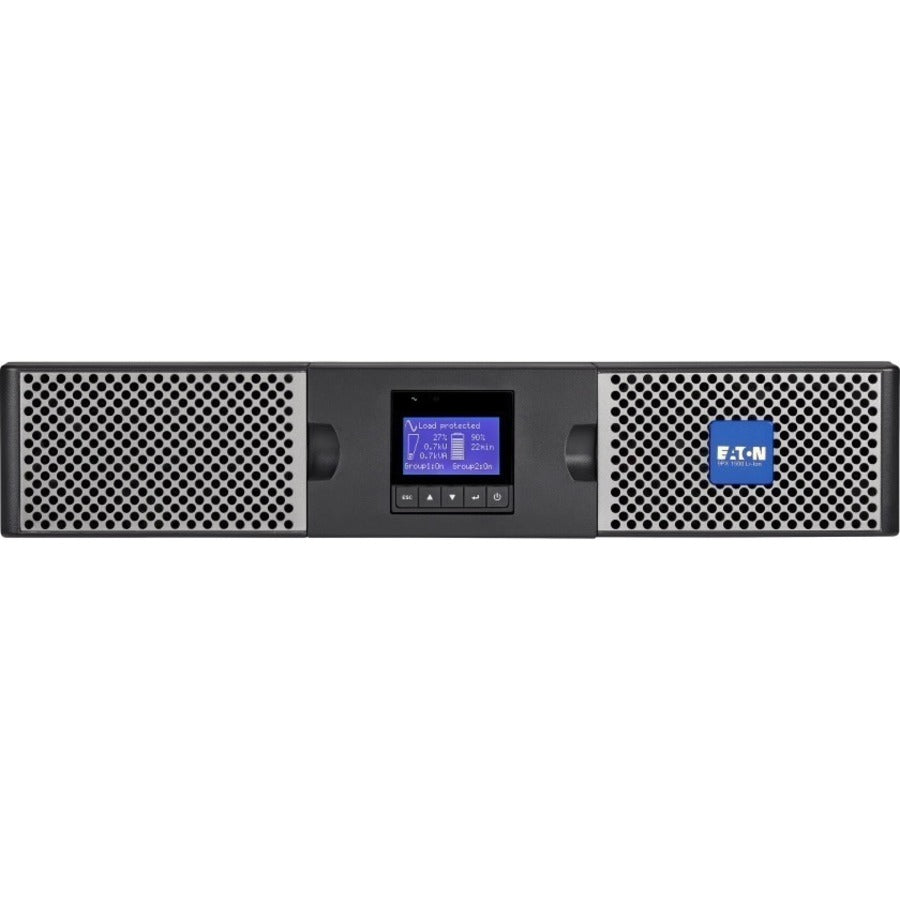

9PX2000RT-L Eaton 9PX Lithium-Ion UPS 2000VA 1800W 120V 2U Rack/Tower UPS Network Card Optional

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX2000RT-L
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 9PX
Product Name: 9PX UPS
Marketing Information:

2kVA/1.8kW/120V Long-Term Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. Ideal for locations that are difficult to access or infrequently maintained, the 9PX2000RT-L is an efficient "set it and forget it" solution. It's ideal power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The hot-swappable maintenance-free lithium-ion battery modules have a service life of 8 to 10 years. They allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery li
Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20R,NEMA L5-20R

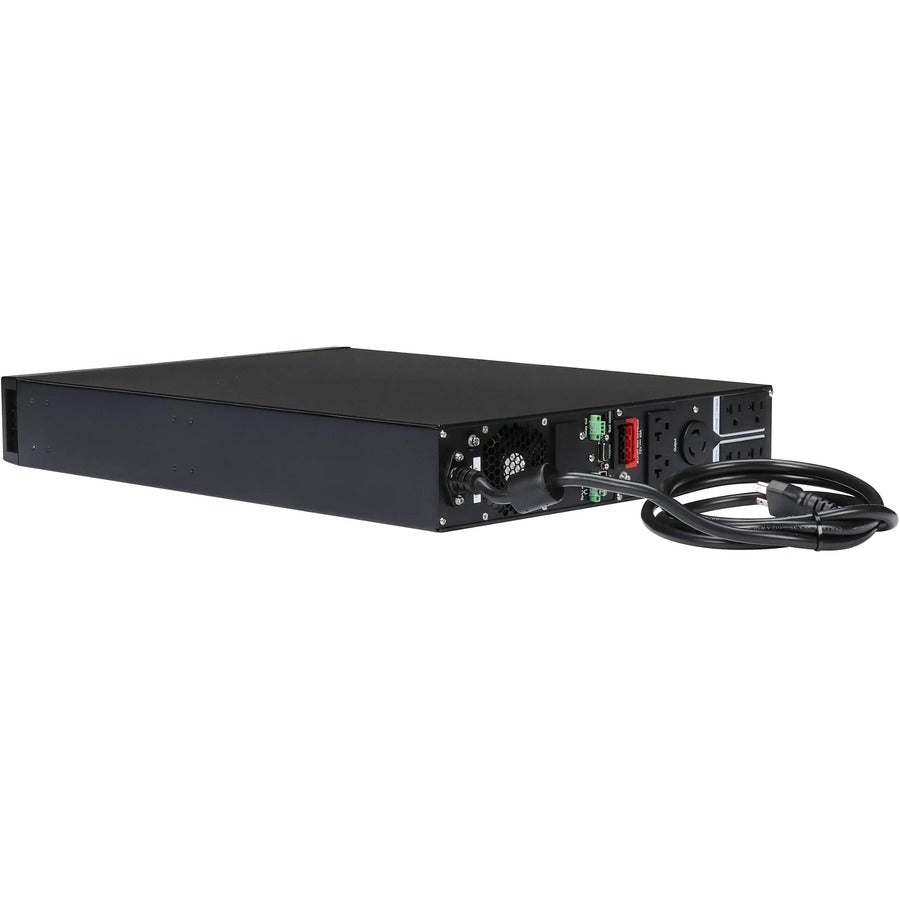

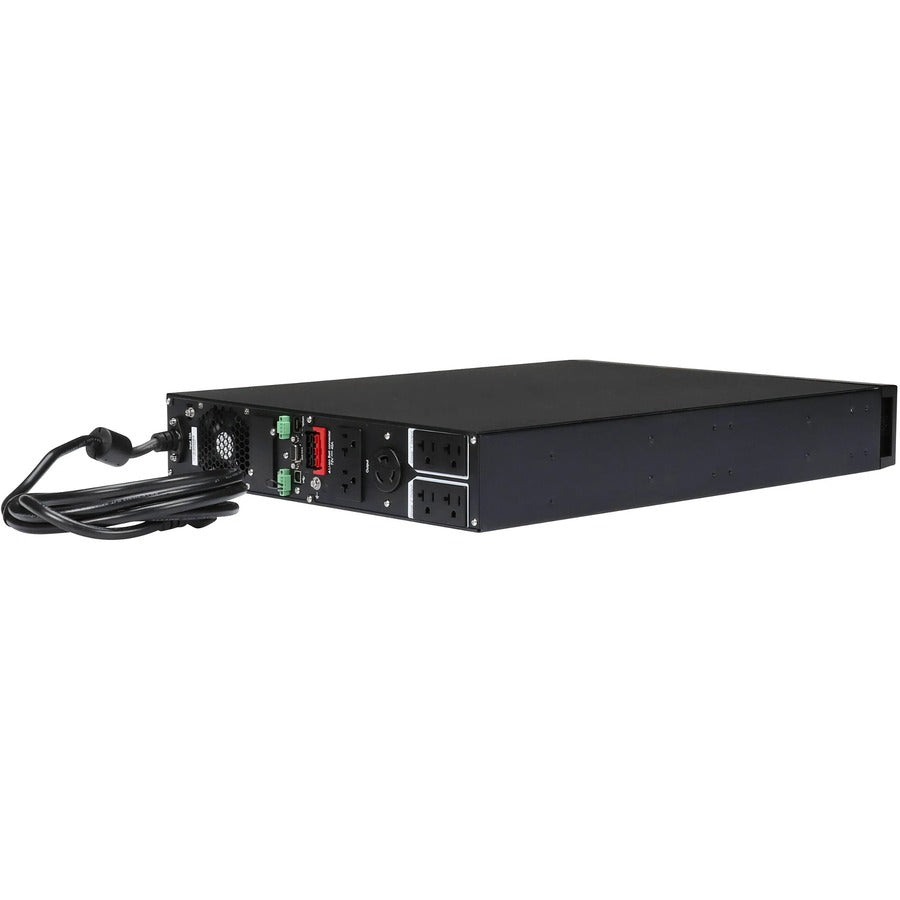

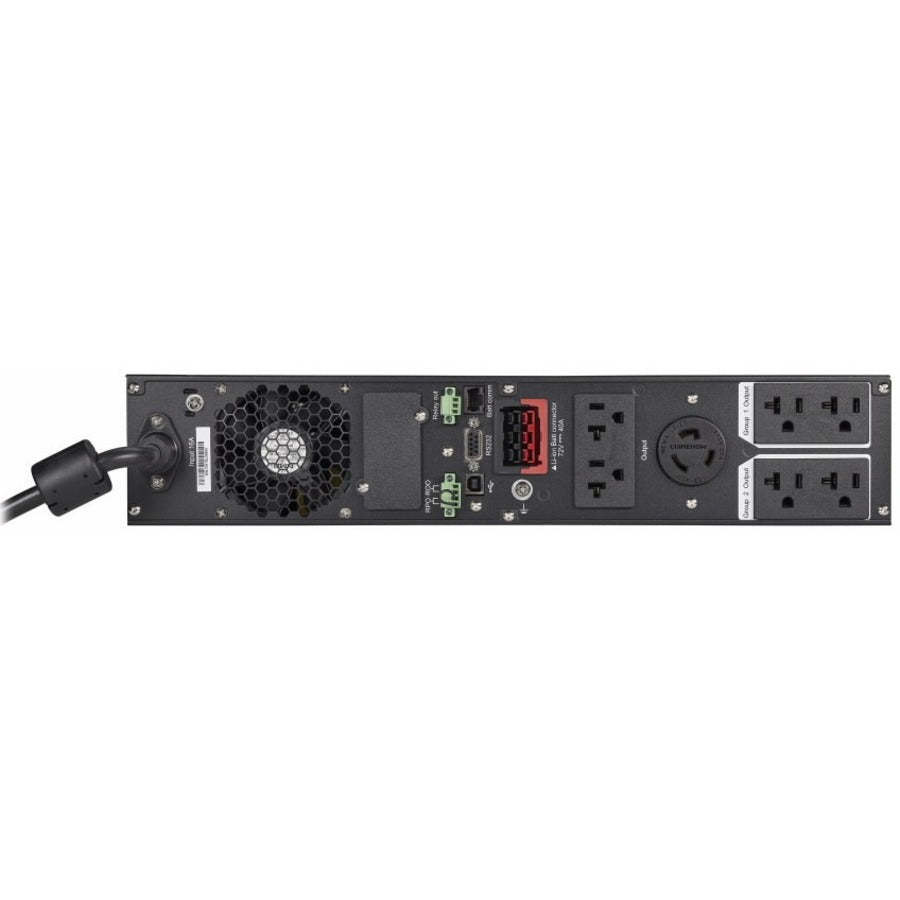

Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-20R
Application/Usage: IT,Edge Computing,Medical,Healthcare,University,Industrial Automation System,Electronic

Power Description

Load Capacity (VA): 2 kVA
Load Capacity (Watt): 1.80 kW
Input Voltage: 120 V AC
Input Frequency: 60 Hz
Waveform Type: True Sine Wave

Management

Network Management: ModBus-MS Card,Relay-MS Card,Network-M3 Card

Controls/Indicators

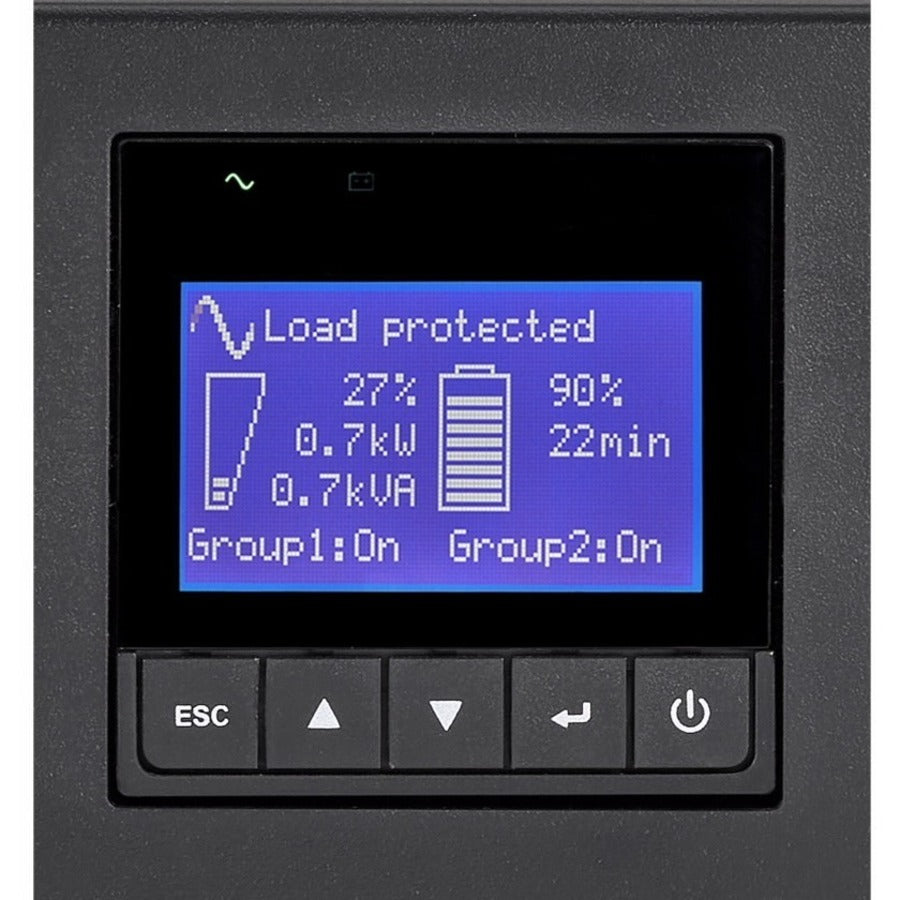

Status Indicators: Grpahical Display

Interfaces/Ports

Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)
Hot Swappable: Yes
Replaceable Battery: Yes

Environmental Conditions

Sound Emission: 47 dB

Physical Characteristics

Product Color: Black,Silver
Height: 3.41" (86.50 mm)
Width: 17.32" (440 mm)
Depth: 23.82" (605 mm)

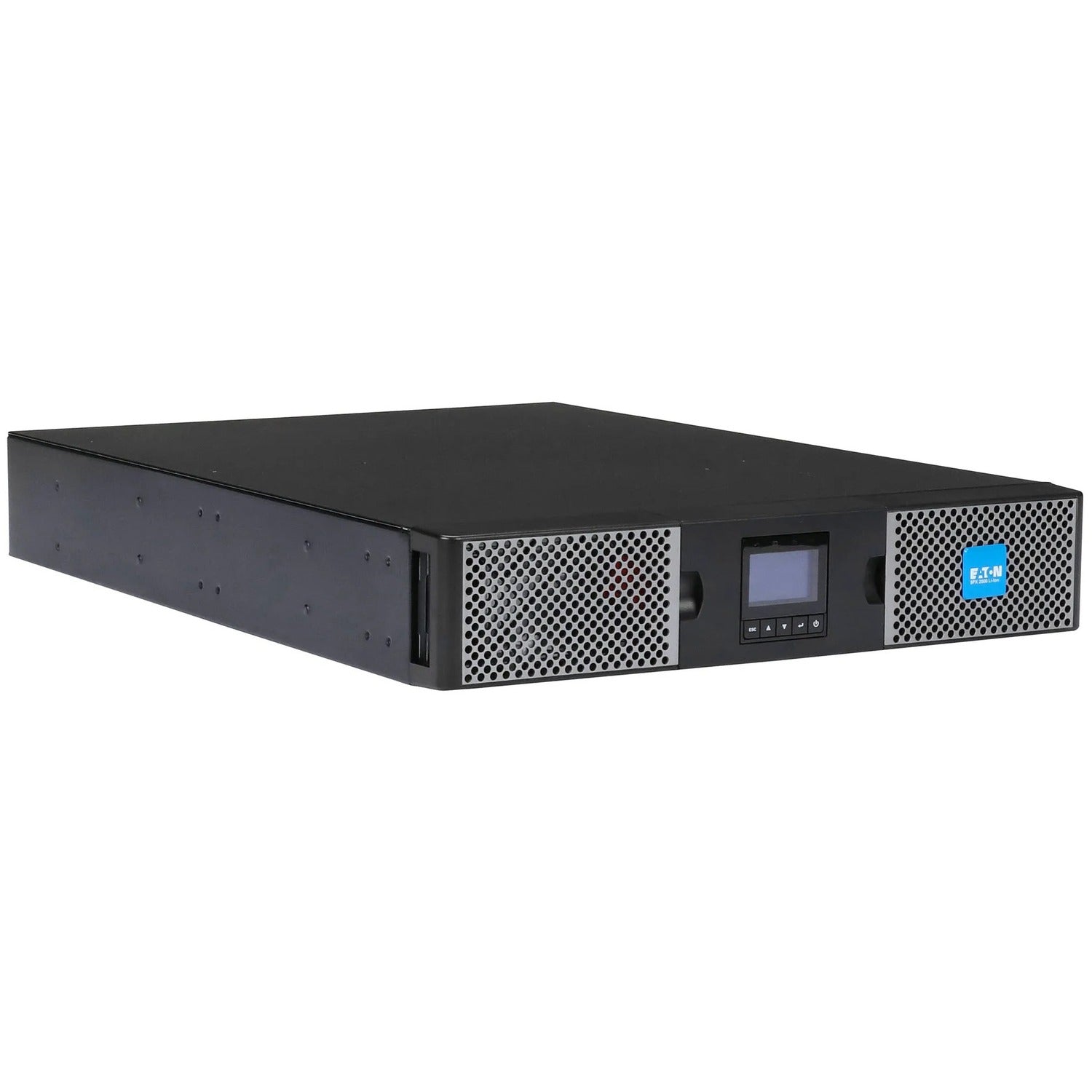

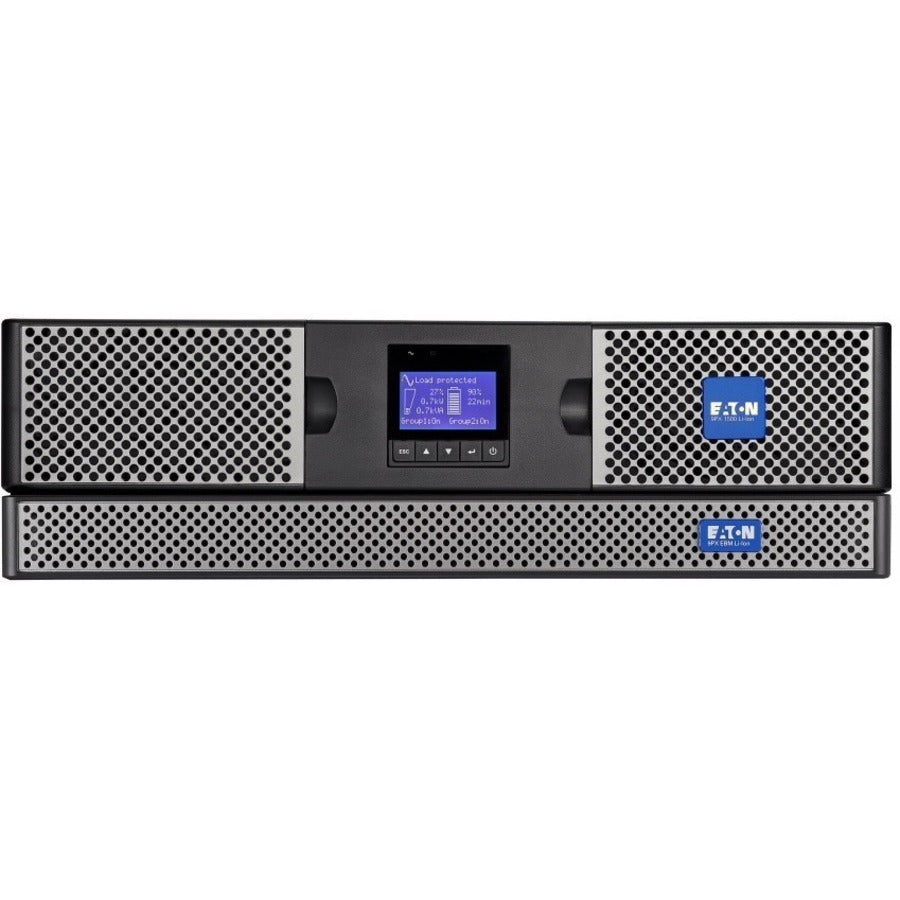

Rack Height: 2U

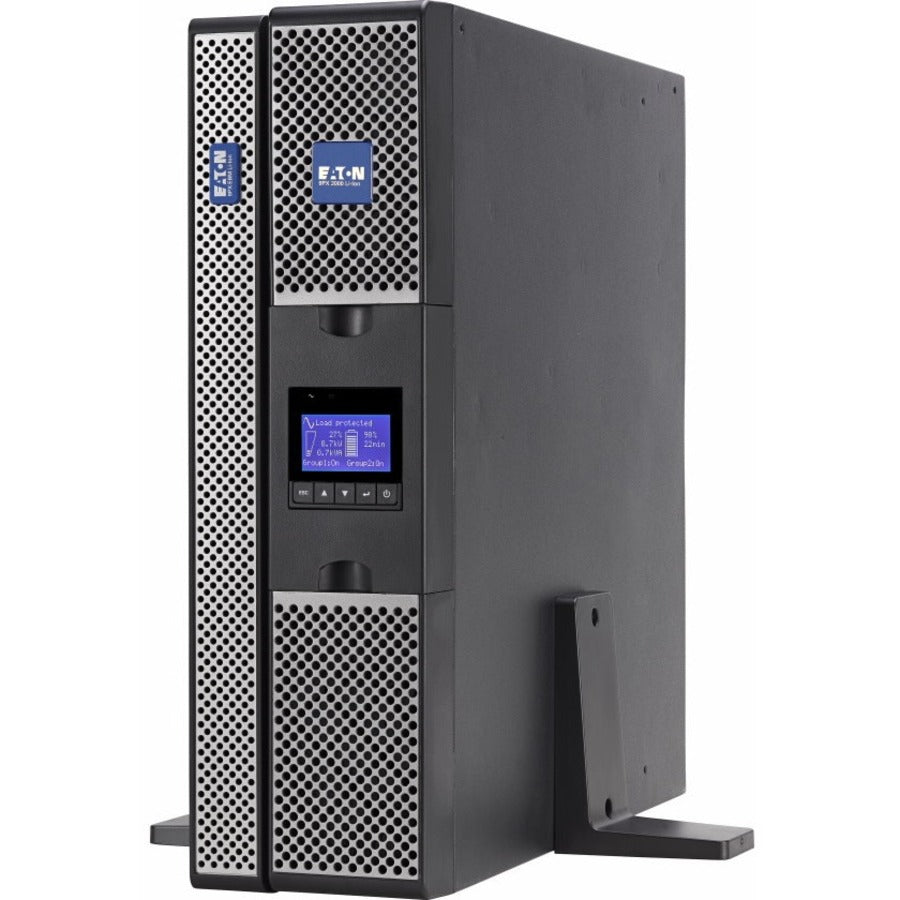

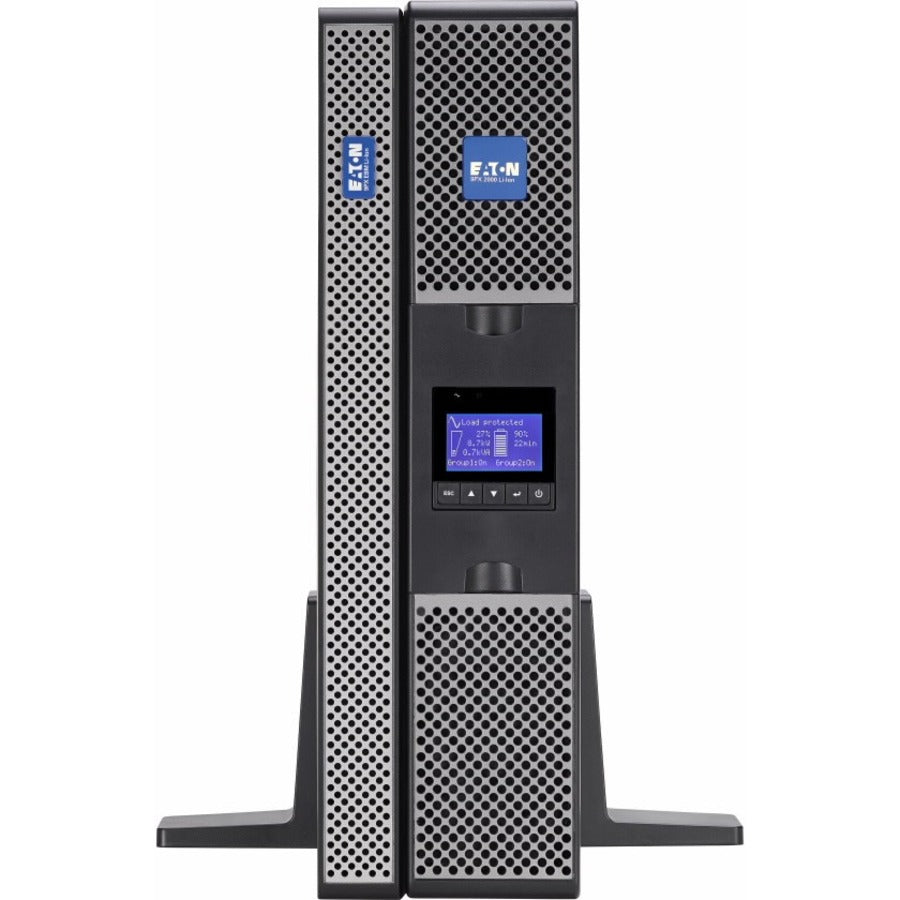

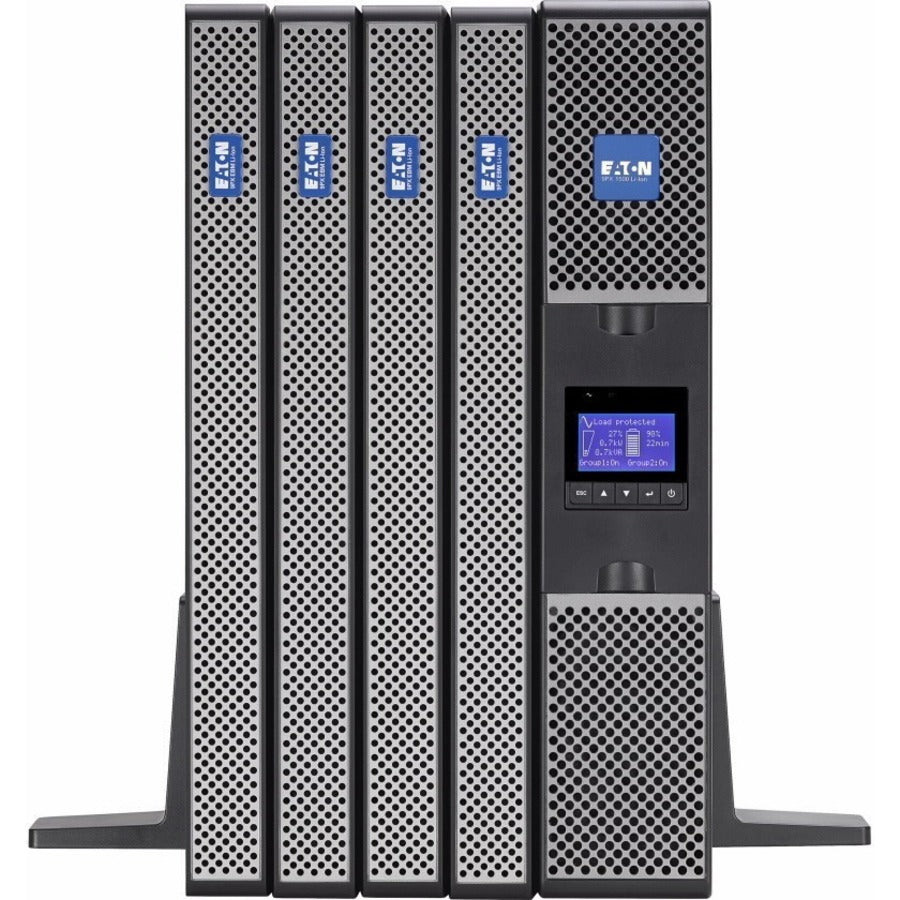

Form Factor: Rack/Tower
Weight (Approximate): 50.71 lb (23000 g)

Miscellaneous

Package Contents:

• 9PX UPS
• Quick Start Guide
• Safety Instructions
• USB Communciation Cable
• RS-232 Serial Communication Cable
• 4-post Rail for 19-inch Enclosures
• Software Leaflet
• 2 x Pedestals for Tower Poition

Country of Origin: Philippines

Warranty

Limited Warranty: 5 Year
