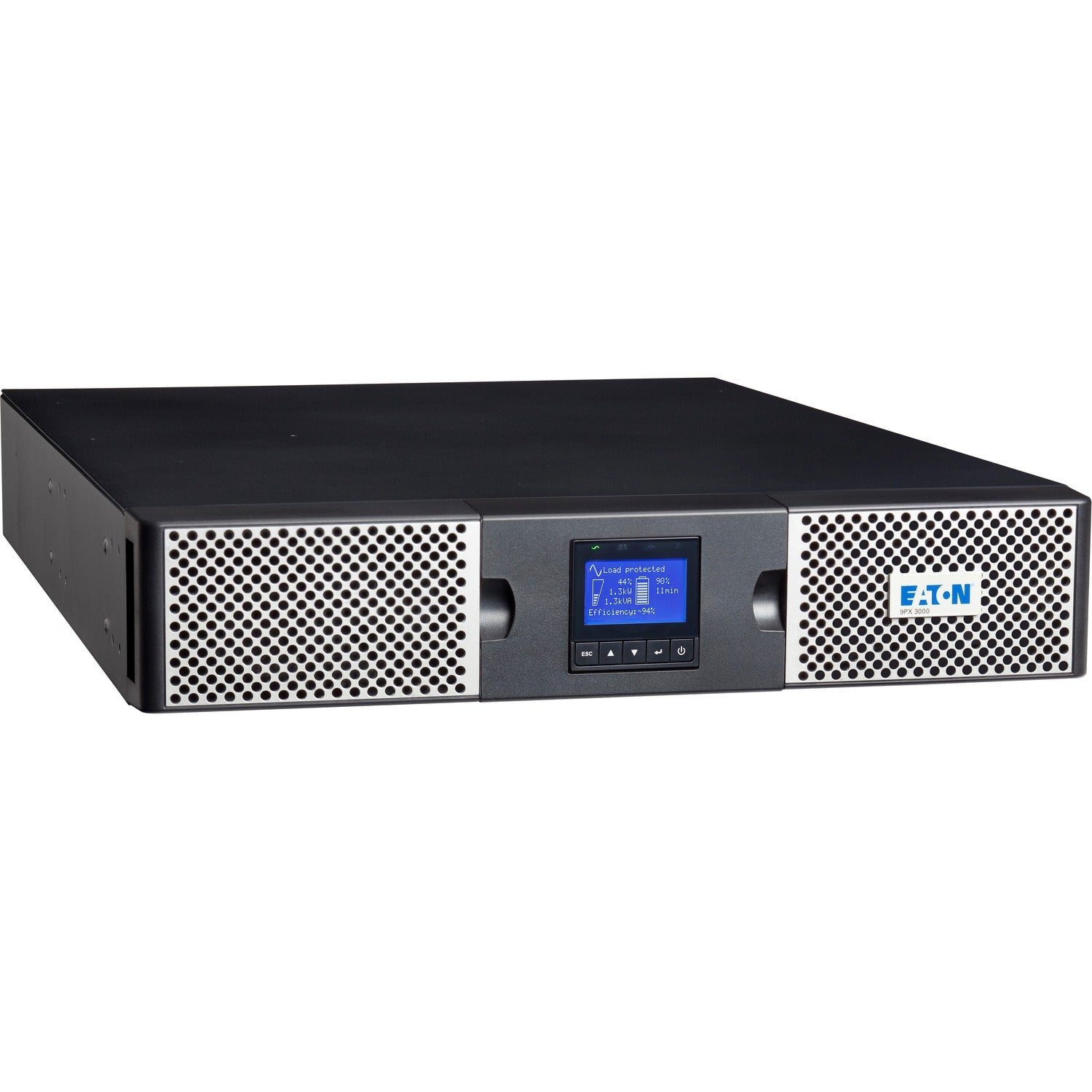

9PX3000RTN Eaton 9PX3000RTN 3000VA Tower/Rack Mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX3000RTN
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 9PX
Product Model: 9PX3000RTN
Product Name: 9PX3000RTN 3000VA Tower/Rack Mountable UPS
Marketing Information:

3kVA/2.7kW/120V Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX3000RTN is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9P
Product Type: Double Conversion Online UPS

Technical Information

Receptacle Type: NEMA L5-30R,NEMA 5-20R
Receptacle Detail: 1 x NEMA L5-30R,6 x NEMA 5-20R
Transfer Time: 0 ns

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 100 V AC,110 V AC,120 V AC,125 V AC
Output Voltage: 100 V AC,110 V AC,120 V AC,125 V AC

Physical Characteristics

Height: 3.40" (86.36 mm)
Width: 17.30" (439.42 mm)
Depth: 23.80" (604.52 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 63.05 lb (28600 g)

Miscellaneous

Package Contents:

• 9PX3000RTN 3000VA Tower/Rack Mountable UPS
• Network-M2 Web/SNMP Card
• Safety Manual
• User Manual
• 4-Post Rail Kit
• Tower Pedestals
• RS-232 Serial Cable
• USB Cable
• Intelligent Power Software Suite CD

Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 1.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
