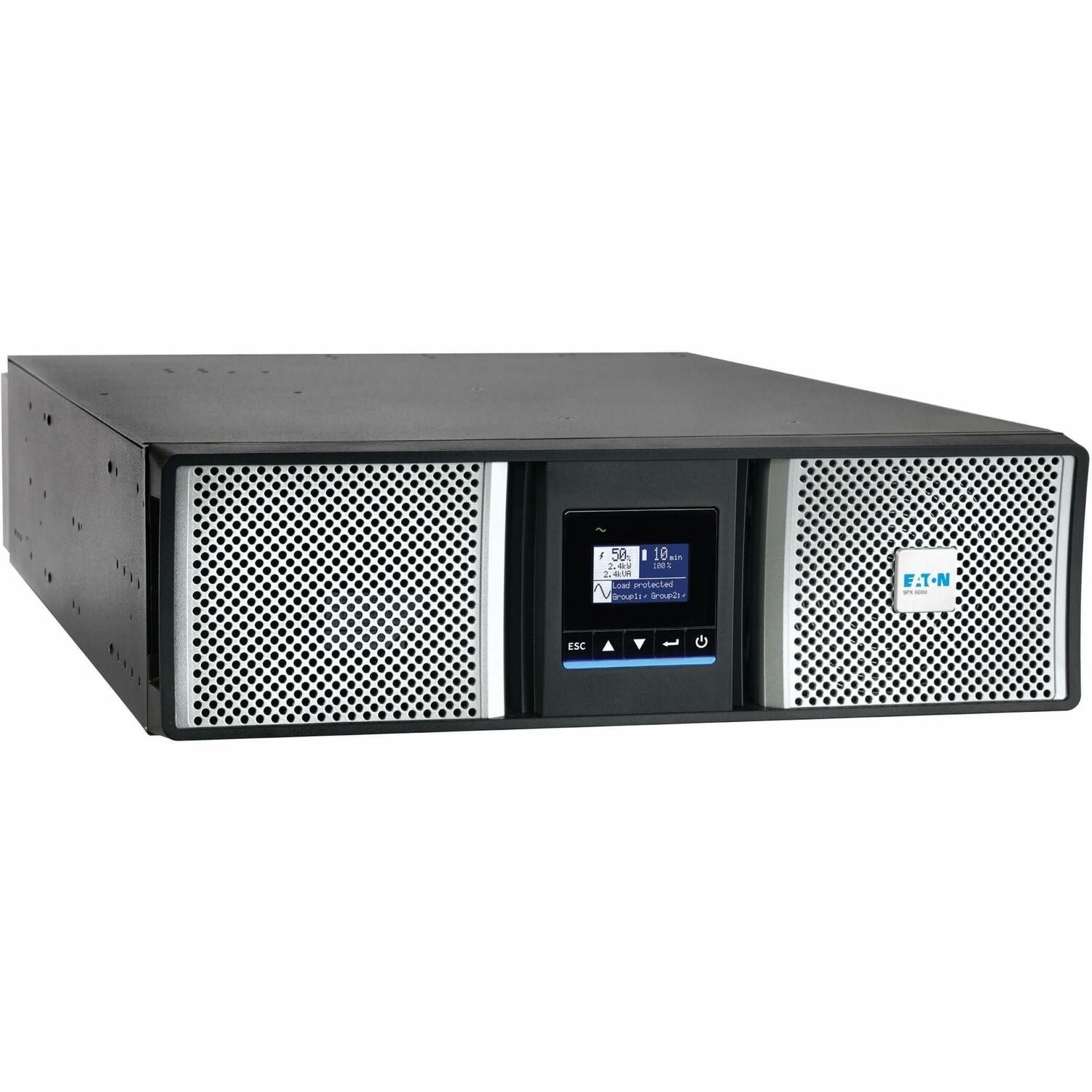

9PX5KG2 Eaton 9PX G2 9PX5KG2 5000VA Rack/tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX5KG2
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 9PX G2
Product Model: 9PX5KG2
Product Name: 9PX G2 9PX5KG2 5000VA Rack/tower UPS
Marketing Information:

5kVA/5kW/208V Battery Backup for Distributed IT and Edge Networks

This 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage critical IT equipment or destroy data. The 9PX5KG2 is ideal power management for IT managers, data center managers, electrical contractors, integrators, specifying engineers and other end users in business, edge computing, education, government, healthcare, retail and other networking applications.

Delivers Maximum Power Reliability with Best-in-Class Efficiency

With unity power factor (5000VA/5000W output), the 9PX5KG2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, the 9PX5KG2 complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to
Product Type: Double Conversion Online UPS

Technical Information

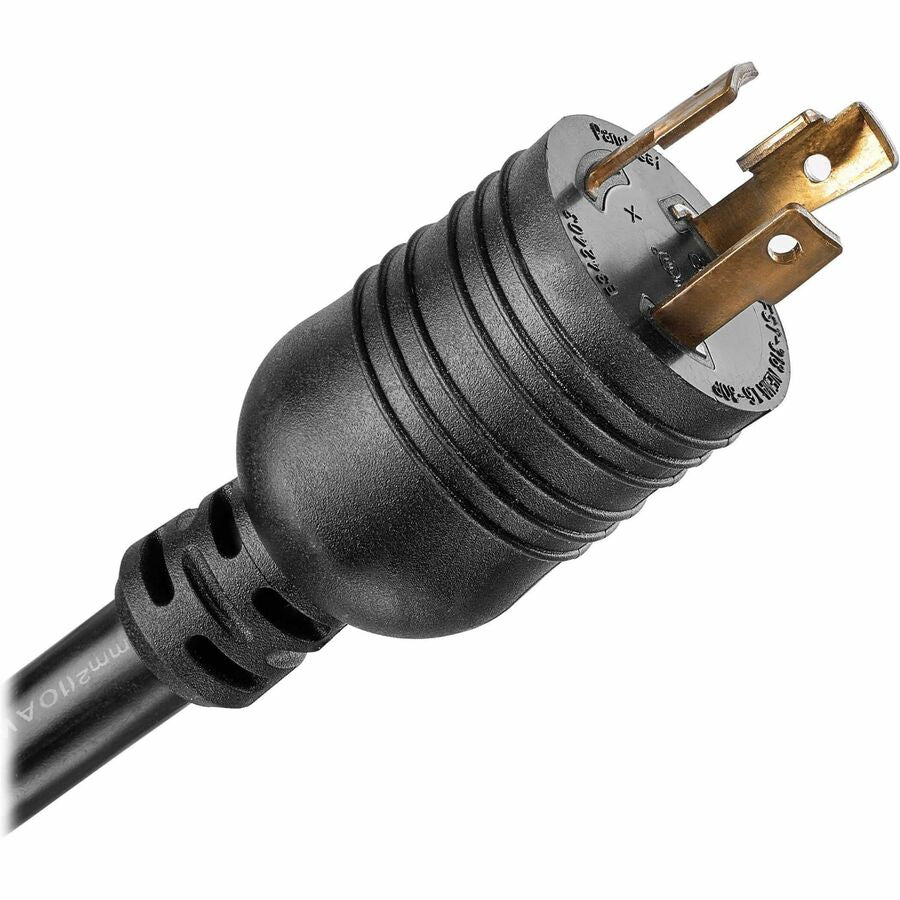

Plug/Connector Type: NEMA L6-30P,Hardwired

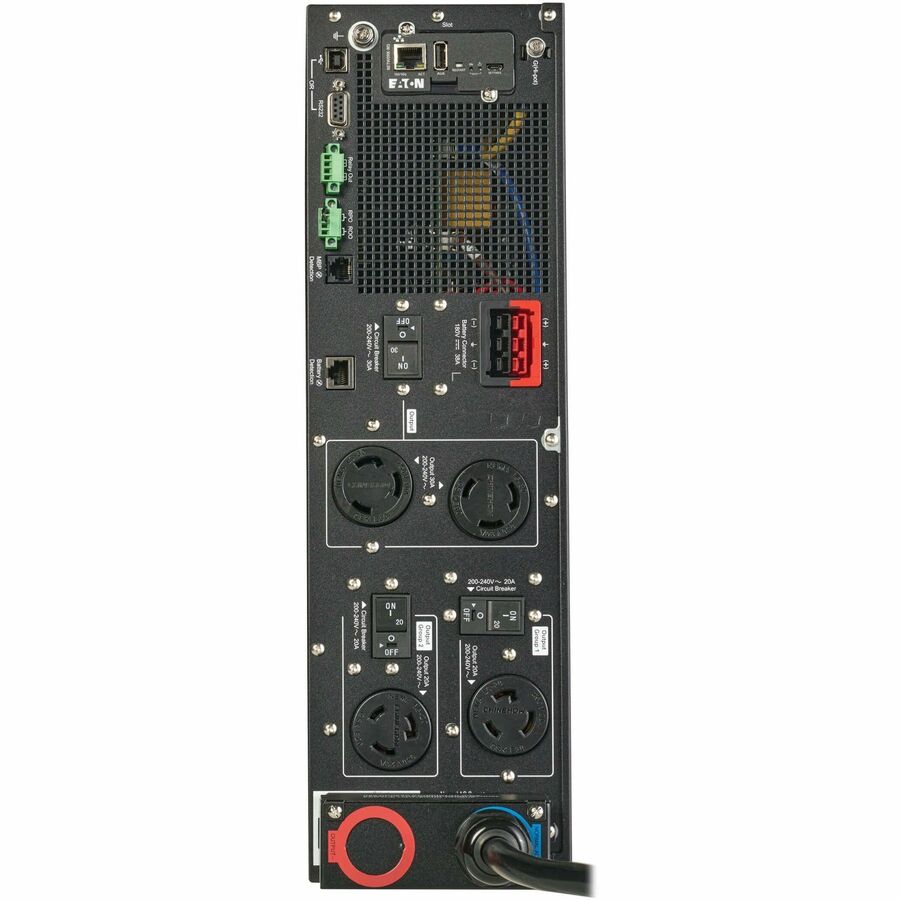

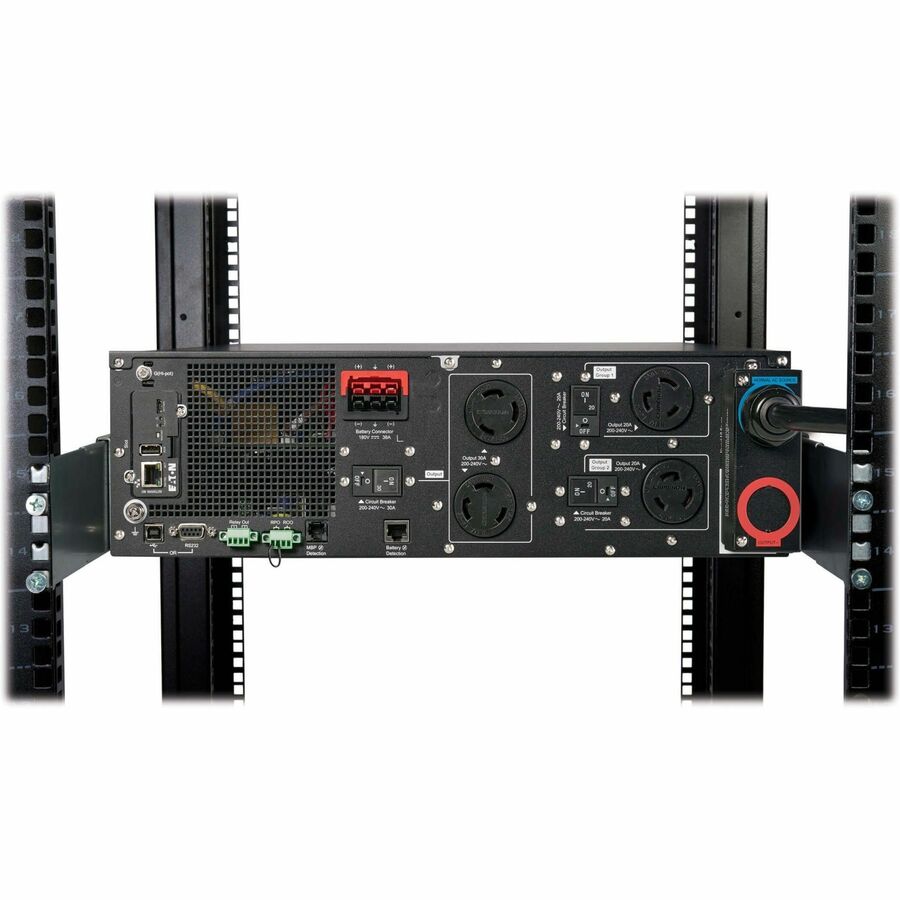

Receptacle Type: NEMA L6-20R,Hardwired,NEMA L6-30R
Receptacle Detail: 2 x NEMA L6-20R,2 x NEMA L6-30R
Cord Length: 10 ft (3.05 m)
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Efficiency Detail: 96.3% (AC Mode),98.9% (Eco Mode)
Application/Usage: Mission Critical Equipment,Network,IT Equipment,Data Center,Electronic,Edge Computing,Education,Government,Healthcare,Retail,Server,Switch,Network Equipment
Surge Suppression: Yes
Features: Audible Alarm,Advanced Battery Management (ABM+)

Power Description

Load Capacity (VA): 5 kVA
Load Capacity (Watt): 5 kW
Input Voltage: 230 V AC
Input Current: 24.40 A
Output Voltage: 240 V AC,230 V AC,220 V AC,208 V AC,200 V AC
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pure Sine Wave
Output Power Factor: 1

Display & Graphics

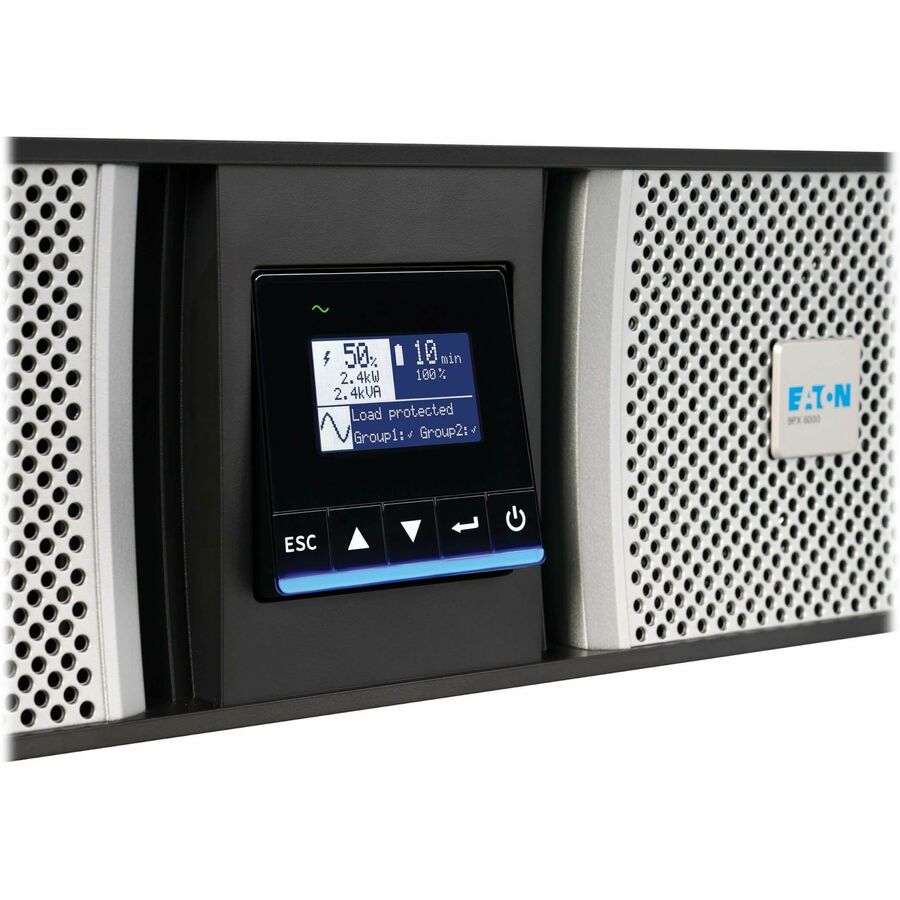

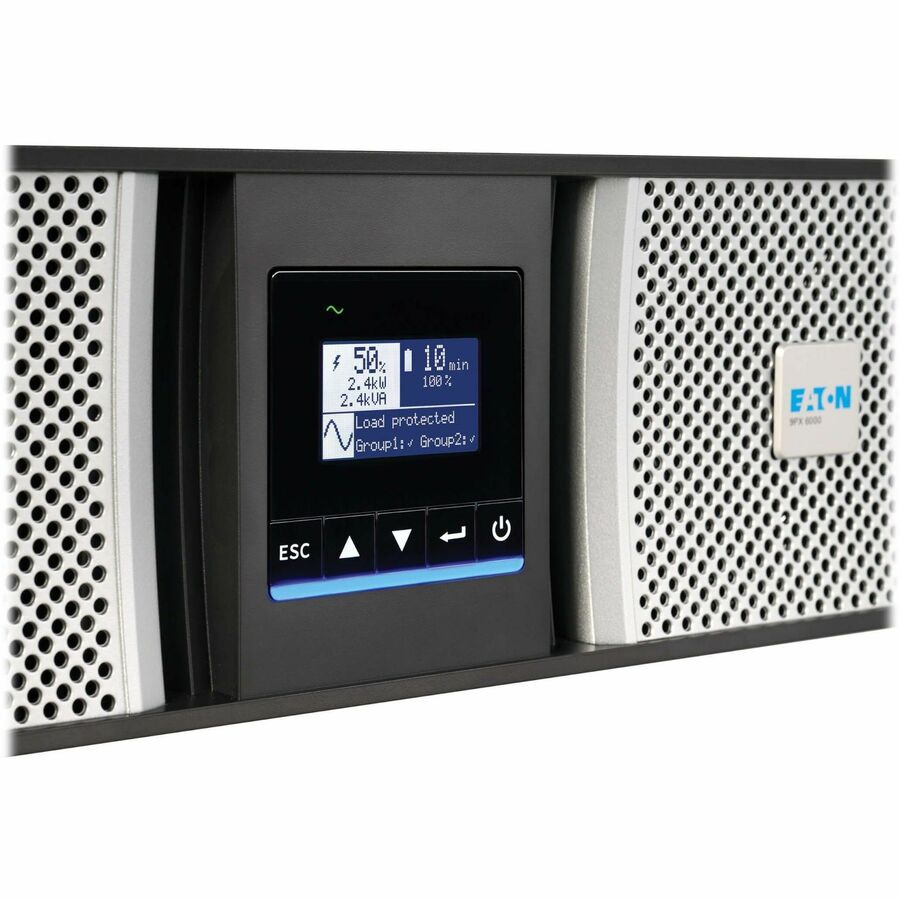

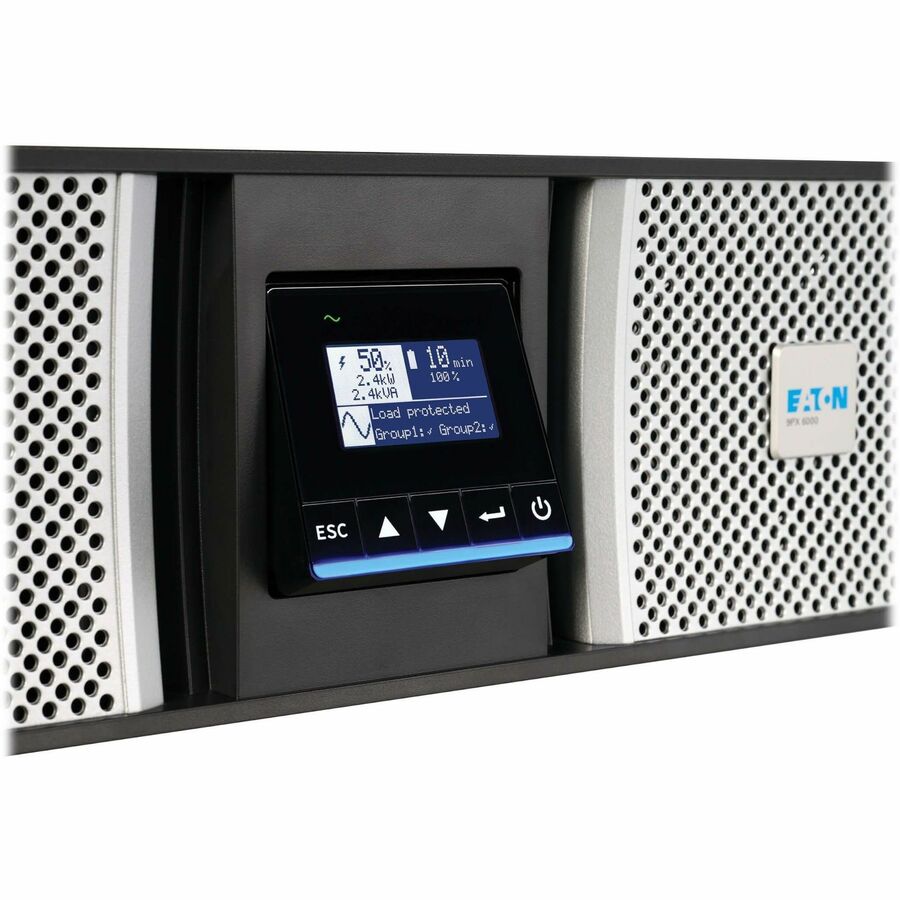

Display: LCD

Management

Network Management: Network-M3 Card,INDGW-M2 Card,Relay-MS Card
Alarm: Utility Power Failure,Low Battery,Overload,UPS Fault,Battery Fault,Remote Shutdown

Controls/Indicators

Status Indicators:

LED Indicators

Interfaces/Ports

Serial Port: Yes
USB: Yes
EPO Port: Yes

Battery Information

DC System Voltage: 180 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3.50 Minute
Backup/Run Time (Half Load): 9.40 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 935 BTU/h

Physical Characteristics

Height: 5.10" (129.54 mm)
Width: 17.30" (439.42 mm)
Depth: 27" (685.80 mm)

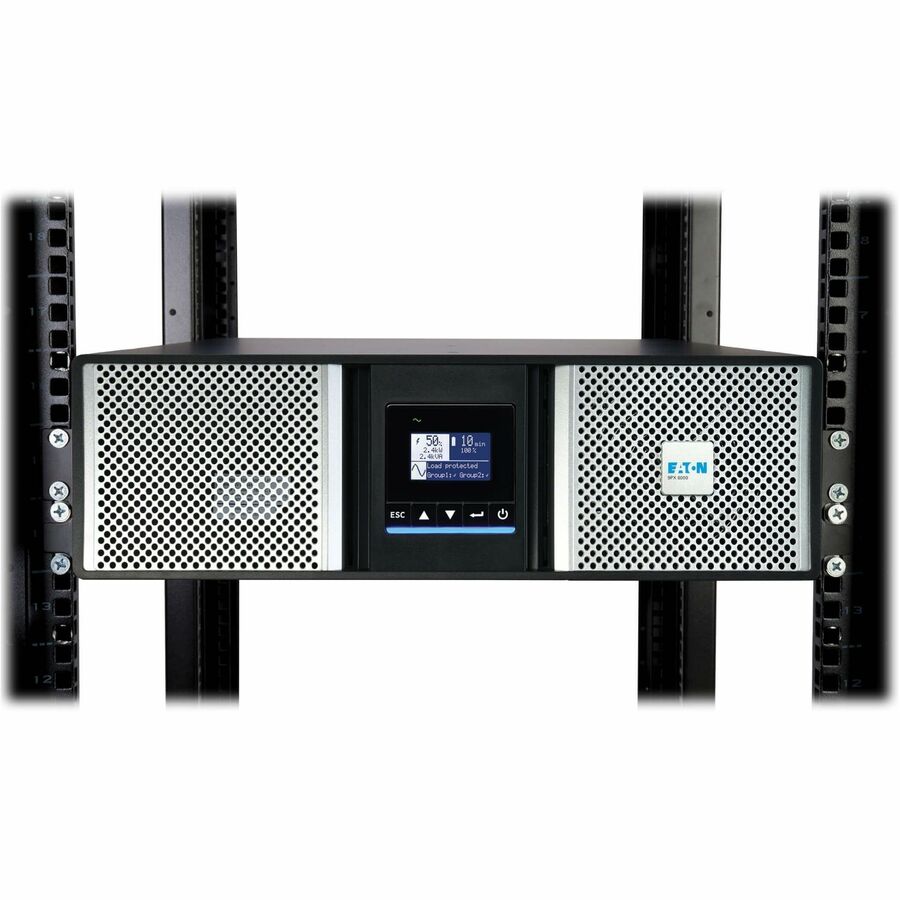

Rack Height: 3U

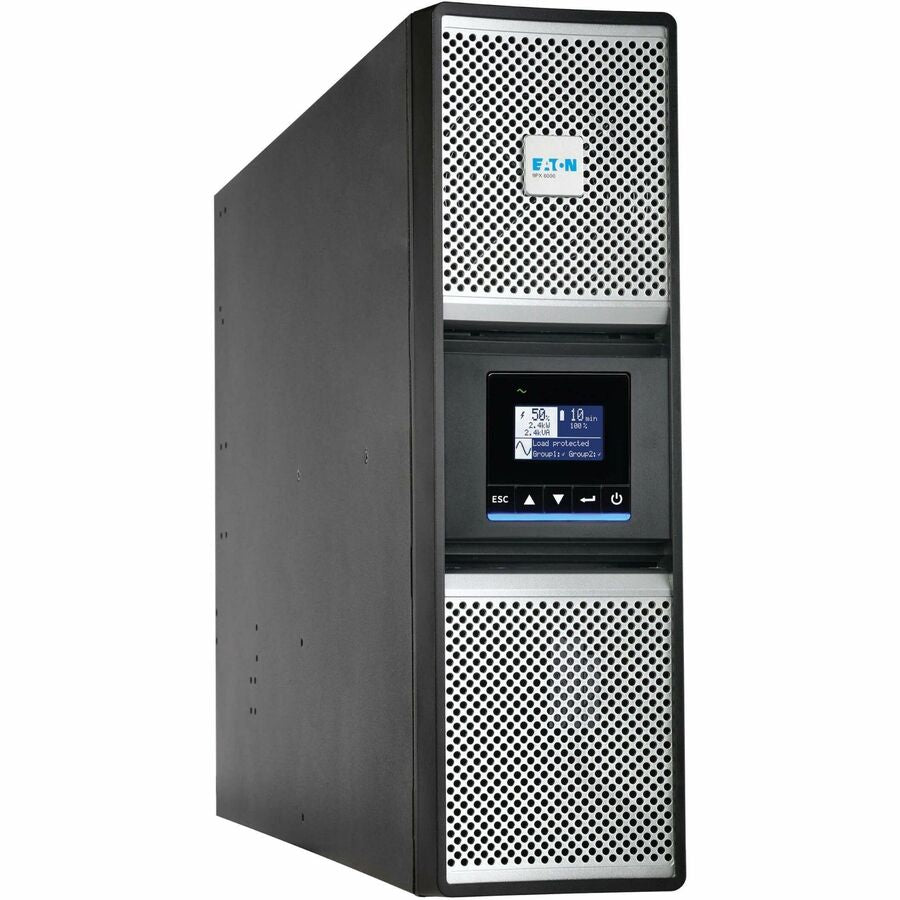

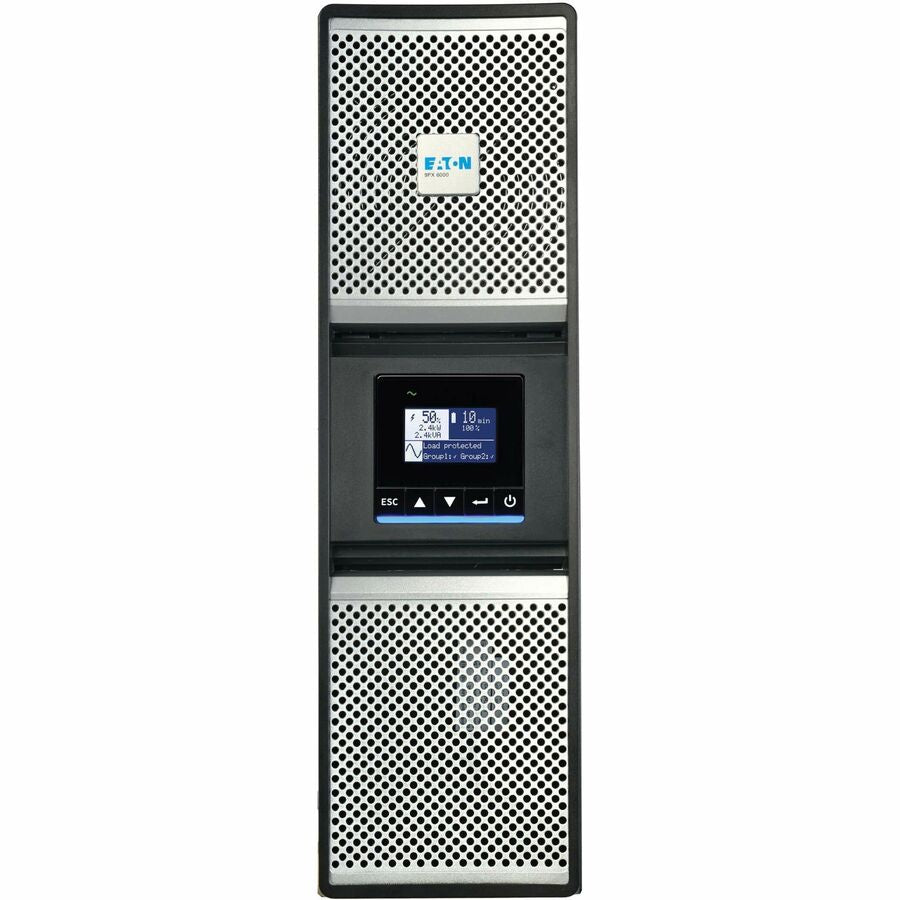

Form Factor: Rack/Tower
Weight (Approximate): 98.30 lb (44588.13 g)

Miscellaneous

Package Contents:

• 9PX G2 9PX5KG2 5000VA Rack/tower UPS
• NETWORK-M3 Gigabit Network Card
• USB Cable
• RS-232 Cable
• Cable Gland for Hardwire Connection
• Rack-mounting Hardware
• Tower Support Stands
• Quick Start Guide

Energy Star: Yes
Country of Origin: Philippines
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
