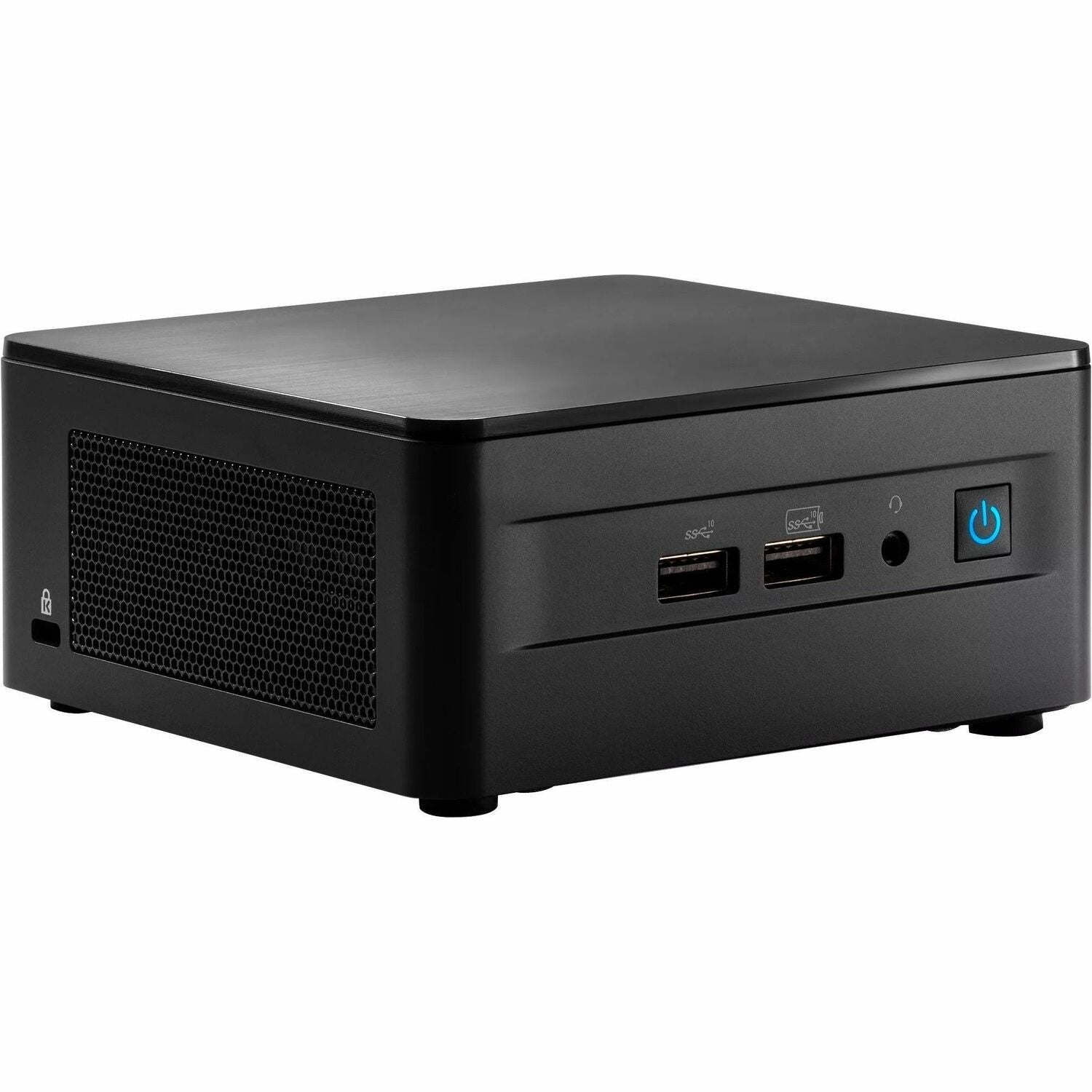

RNUC12WSKV50001 Asus NUC 12 Pro NUC12WSKV5 Barebone System - Core i5 12th Gen i5-1250P Dodeca-core (12 Core)

General Information

Manufacturer: ASUS Computer International
Manufacturer Part Number: RNUC12WSKV50001
Manufacturer Website Address: http://www.asus.com
Brand Name: Asus
Product Line: NUC 12 Pro
Product Model: NUC12WSKV5
Product Name: NUC 12 Pro NUC12WSKV5 Barebone System
Marketing Information:

Built for Business. NUC 12 Pro

Boost business performance with 12th Gen Intel^®Core^™processors and the latest features to support productivity, collaboration, and edge compute.

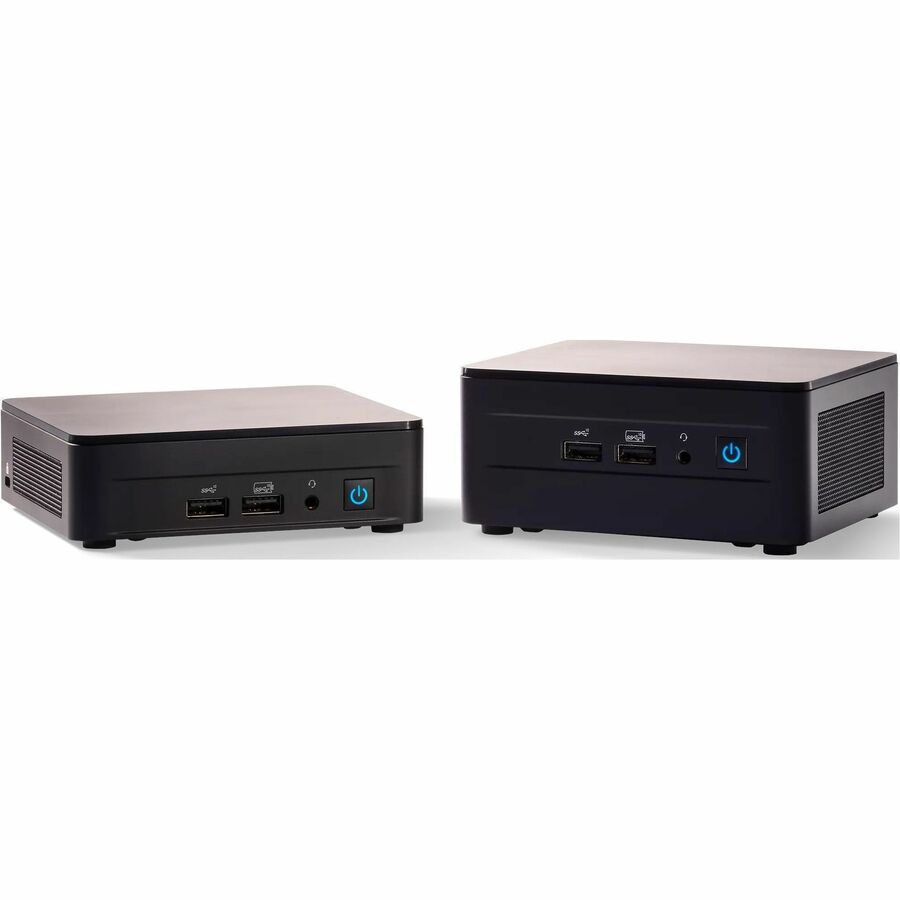

NUC 12 Pro Mini PCs, Kits, & Boards

Ready to work, wherever it's needed-the 4x4 compact device is designed to go where you go, and fit into any space.

Powerful Performance Perfect Fit

Experience the advanced power and performance for edge computing, collaboration, home offices, and more- 12th Gen Intel^®Core^™processors deliver it all.

Small Size. Big Business Performance

NUC 12 Pro Mini PCs and Kits raise the bar for performance and connectivity in a 4x4 device for the edge, business, or home. 12th Gen Intel^®Core^™processors deliver revved-up performance with up to 64 GB dual-channel memory and ample SSD capacity-plus lightning-fast wired and wireless connectivity.

Product Type: Barebone System

Processor

Processor Type: Core i5
Processor Generation: 12th Gen
Processor Model: i5-1250P
Processor Core: Dodeca-core (12 Core)
Maximum Turbo Speed: 4.40 GHz
64-bit Processing: Yes

Chipset

Chipset Manufacturer: Intel

Memory

Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Intel Optane Memory Ready: No

Controllers

Controller Type: Serial ATA,NVMe

Display & Graphics

Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared

Network & Communication

Ethernet Technology: 2.5 Gigabit Ethernet
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3

I/O Expansions

Number of M.2 Interfaces: 2

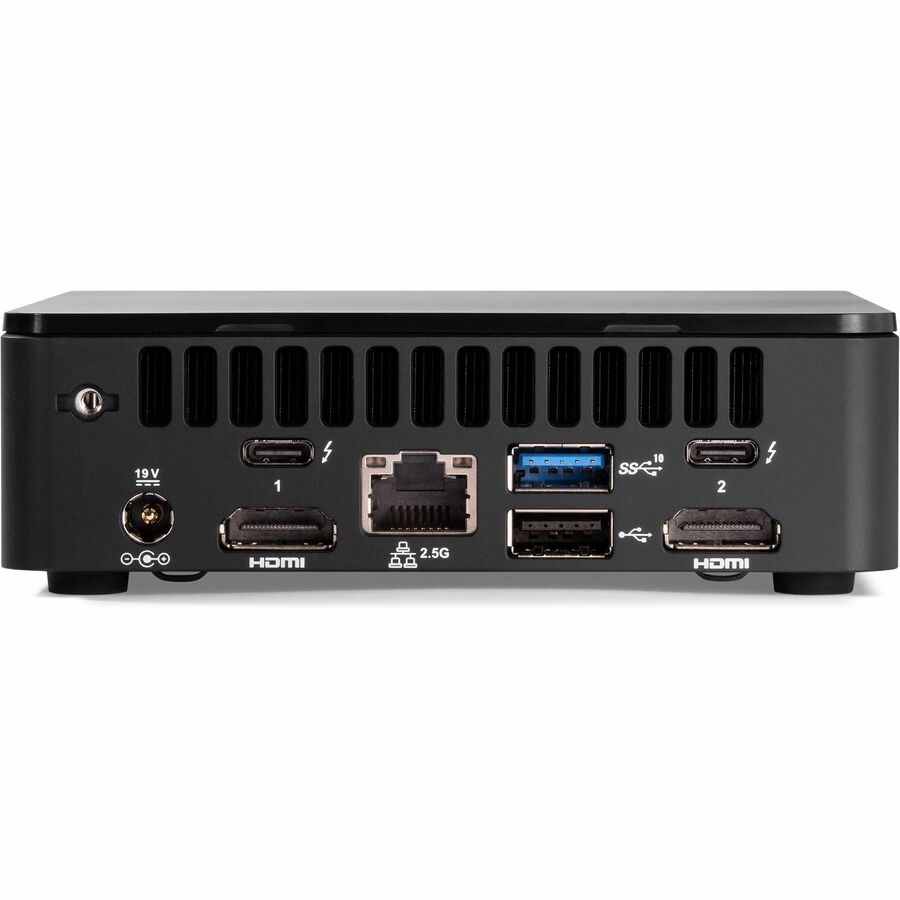

Interfaces/Ports

HDMI: Yes
Total Number of USB Ports: 7
Number of USB 3.2 Ports: 4
Number of USB4 Ports: 2
Number of Onboard USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Thunderbolt 4 Ports: 2

Operating System

Operating System Supported: Windows 11 Home,Windows 11 Pro,Windows 10 Home,Windows 10 IoT Enterprise,Windows 10 Pro,Red Hat Linux,Ubuntu 20.04 LTS

Power Description

Thermal Design Power: 35 W

Physical Characteristics

Height: 1.46" (37 mm)
Width: 4.41" (112 mm)
Depth: 4.61" (117 mm)

Miscellaneous

Package Contents:

• NUC 12 Pro NUC12WSKV5 Barebone System
• VESA Bracket

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
