Manufacturer Part Number: AVR550U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Series: AVR
Product Model: AVR550U
Product Name: Desktop/Wall Mount Battery Backup Outlets

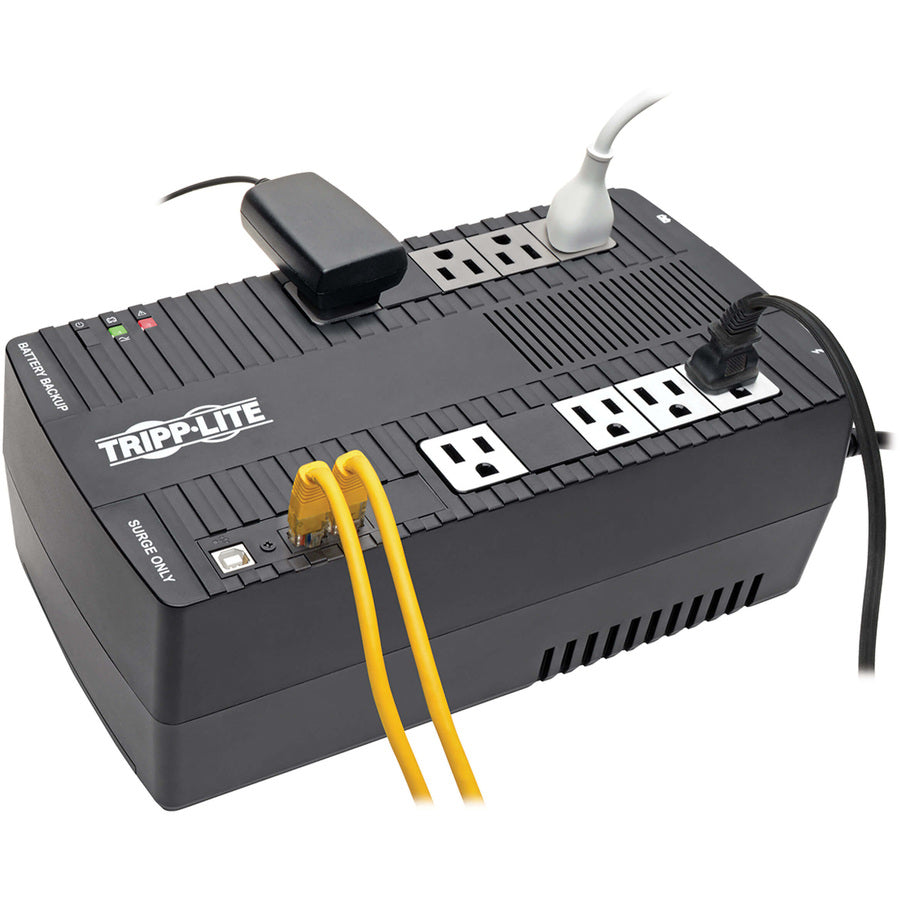

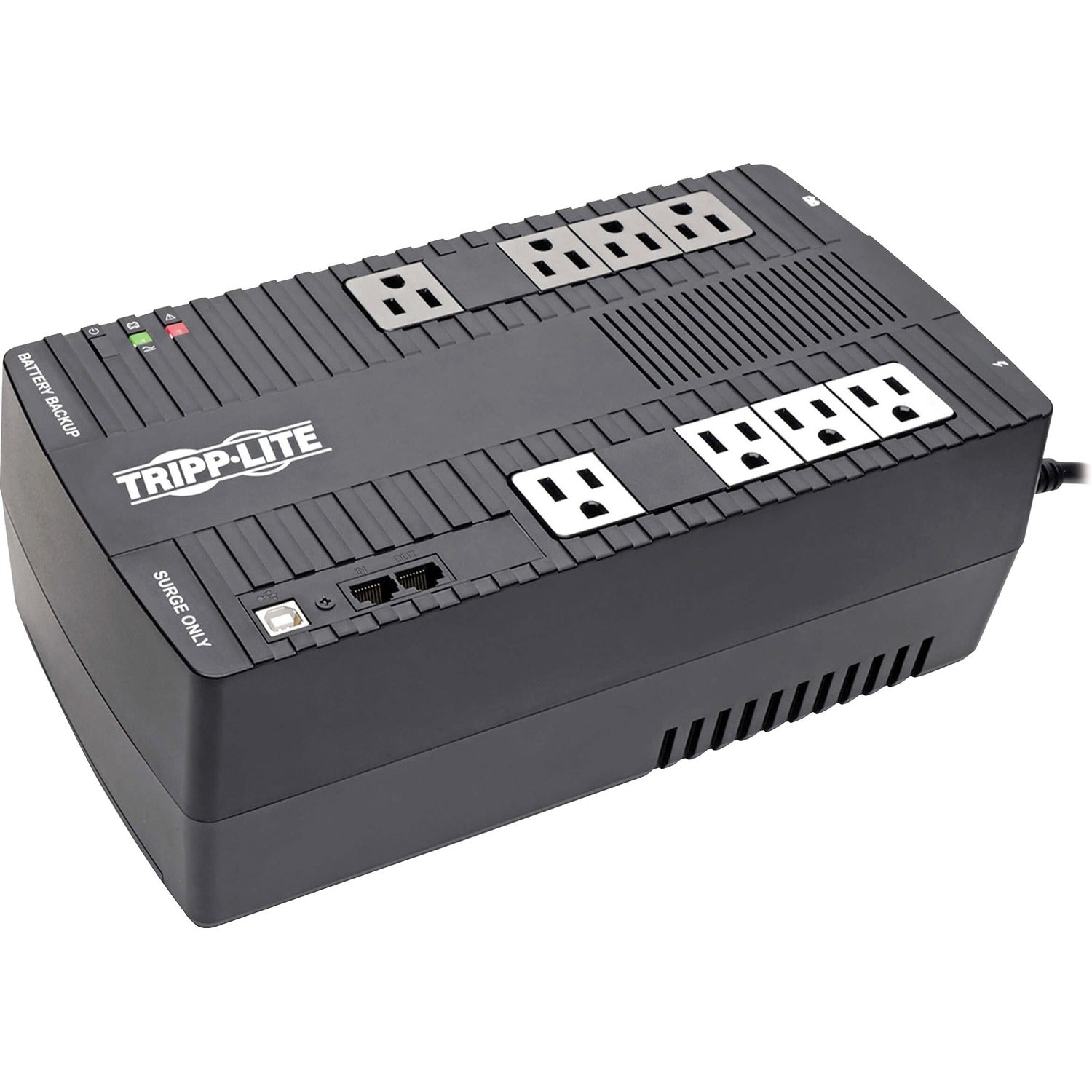

Marketing Information: AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS
AVR Range: Boost +18% / Buck -15%
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 4
Dataline Protection: RJ-11
Cord Length: 6 ft (1.83 m)
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS
Application/Usage: Printer,Speaker,Computer,Router,TV,Blu-ray Player,Gaming Console,ATM,Security System,Digital Signage,Media Center,Home/Office,Home Theater
Load Capacity (Watt): 300 W
Input Voltage: 120 V AC
Input Current: 12 A
Output Voltage: 110 V AC,115 V AC,120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J
USB (HID Compliant) Port: Yes
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 9 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Maximum Operating Temperature: 104°F (40°C)
Height: 4.33" (109.98 mm)
Width: 6.40" (162.56 mm)
Depth: 12" (304.80 mm)
Form Factor: Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate): 13.69 lb (6210 g)
Software Included: PowerAlert UPS monitoring software
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Additional Warranty Information:
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: AVR550U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Series: AVR
Product Model: AVR550U
Product Name: Desktop/Wall Mount Battery Backup Outlets
Marketing Information: AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS
Technical Information
AVR: YesAVR Range: Boost +18% / Buck -15%
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 4
Dataline Protection: RJ-11
Cord Length: 6 ft (1.83 m)
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS
Application/Usage: Printer,Speaker,Computer,Router,TV,Blu-ray Player,Gaming Console,ATM,Security System,Digital Signage,Media Center,Home/Office,Home Theater
Power Description
Load Capacity (VA): 550 VALoad Capacity (Watt): 300 W
Input Voltage: 120 V AC
Input Current: 12 A
Output Voltage: 110 V AC,115 V AC,120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J
Management
Alarm: Battery Backup,Low Battery,Overload,Replace Battery,FaultControls/Indicators
Status Indicators:2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
Interfaces/Ports
USB: YesUSB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 12 V DCBackup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 9 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
Product Color: BlackHeight: 4.33" (109.98 mm)
Width: 6.40" (162.56 mm)
Depth: 12" (304.80 mm)
Form Factor: Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate): 13.69 lb (6210 g)
Miscellaneous

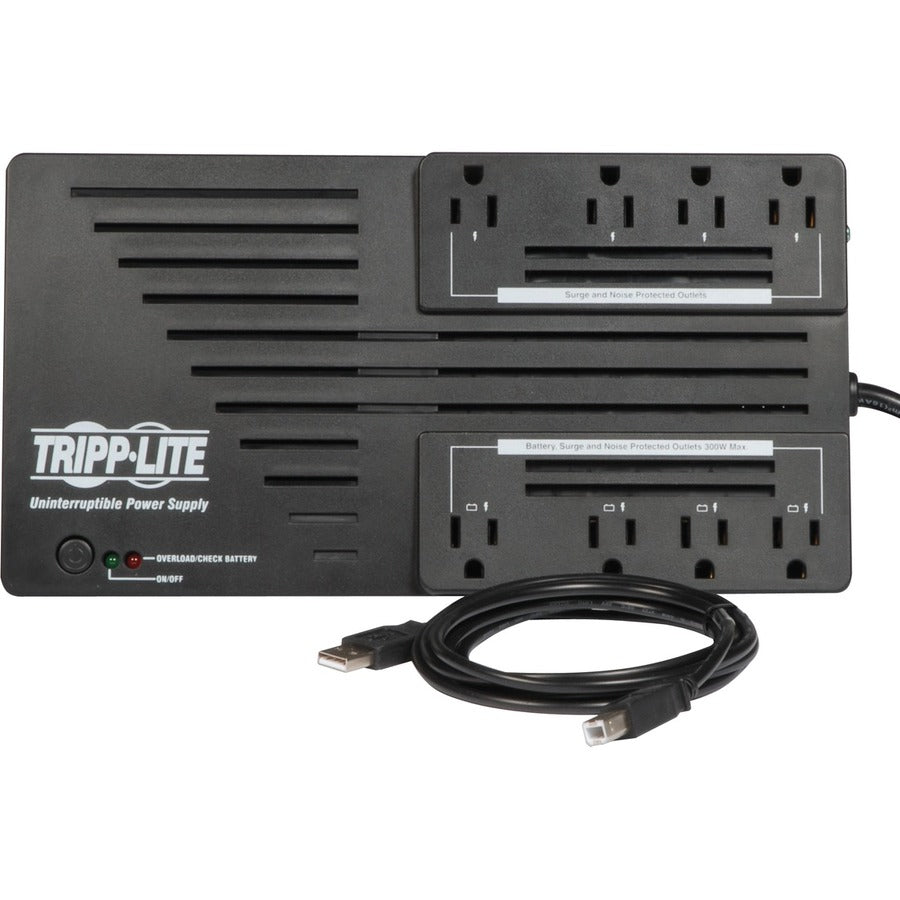

Package Contents:- Desktop/Wall Mount Battery Backup Outlets
- USB cable
- Owner's manual
Software Included: PowerAlert UPS monitoring software
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year LifetimeAdditional Warranty Information:
2-year warranty.
- 100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
