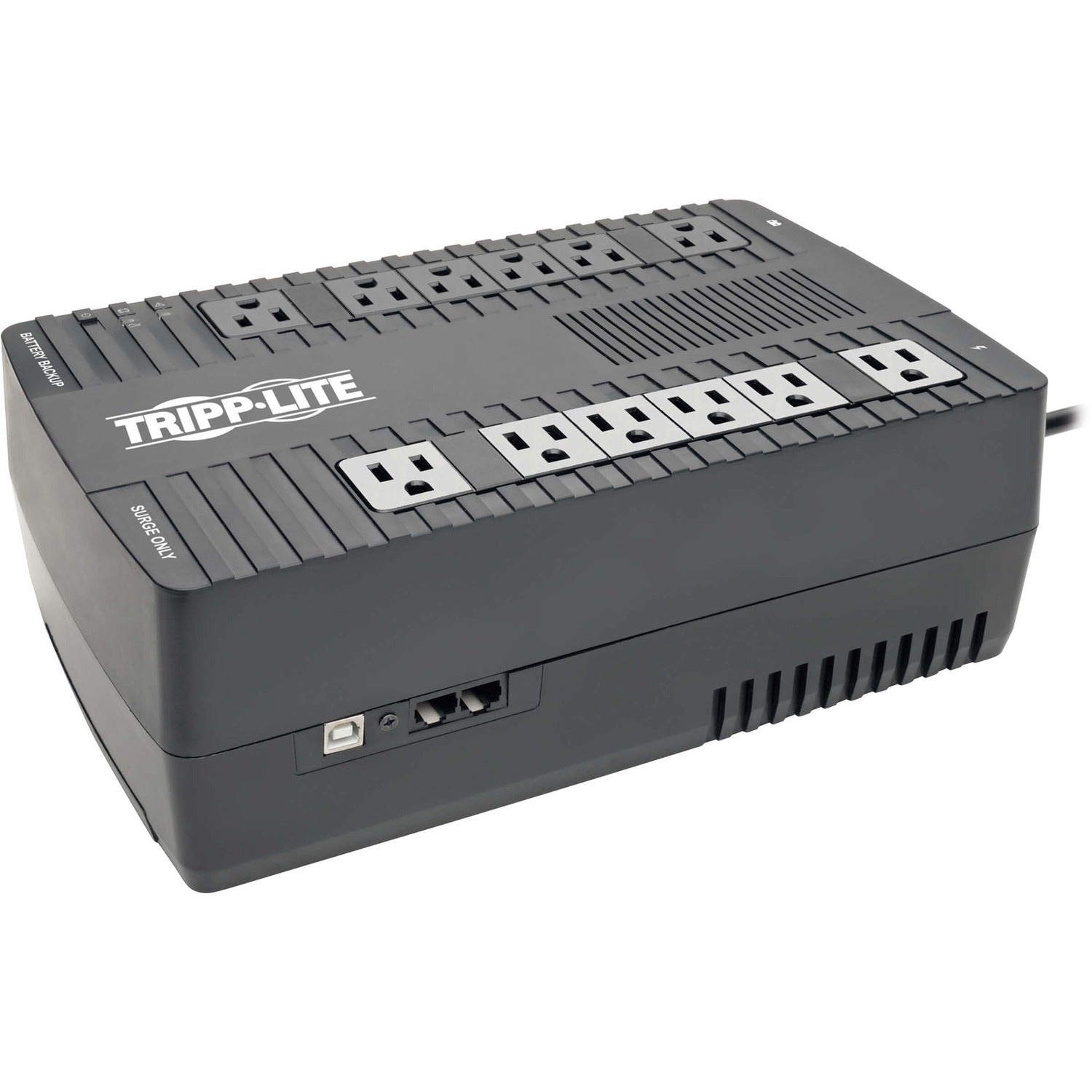

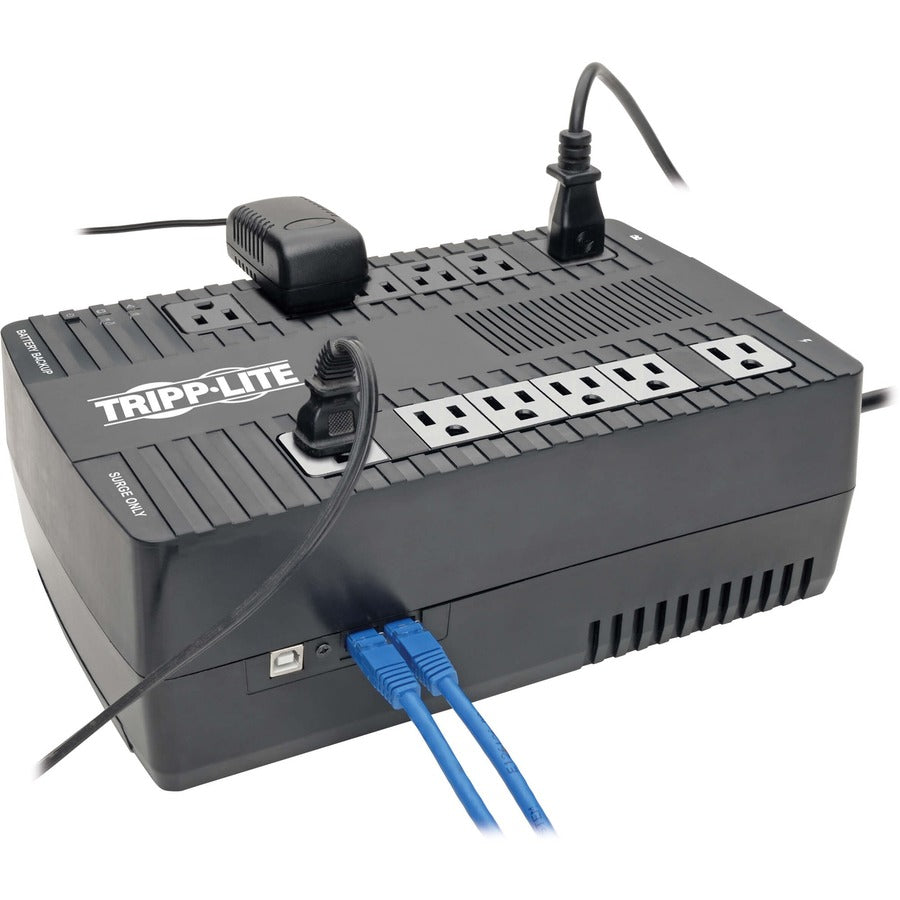

AVR900U Tripp Lite series AVR 900VA Desktop UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: AVR900U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Series: AVR
Product Name: AVR 900VA Desktop UPS
Marketing Information: AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
AVR Range: Boost +18% / Buck -15%
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 12 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 6
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase

Power Description

Load Capacity (VA): 900 VA
Load Capacity (Watt): 480 W
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J

Management

Alarm: Battery Backup,Low Battery,Fault,Overload,Replace Battery

Controls/Indicators

Status Indicators:

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Interfaces/Ports

USB: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 12 V DC
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.70 Minute
Backup/Run Time (Half Load): 10 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 4.14" (105.16 mm)
Width: 7.48" (189.99 mm)
Depth: 12" (304.80 mm)
Form Factor: Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate): 16.50 lb (7484.27 g)

Miscellaneous

Package Contents:

• AVR 900VA Desktop UPS
• Owner's manual

Software Included: PowerAlert Software
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

• 2 year warranty

• 100,000 Connected equipment guarantee
