Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: AVRG900LCD
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Intelligent LCD UPS
Product Model: AVRG900LCD
Product Name: AVRG900LCD Intelligent LCD UPS Systems
Marketing Information:
A compact UPS with line interactive topology, the CyberPower AVRG900LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG900LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG900LCD comes with a three-year warranty (including coverage of batteries) and a
- 200,000 Connected Equipment Guarantee.
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

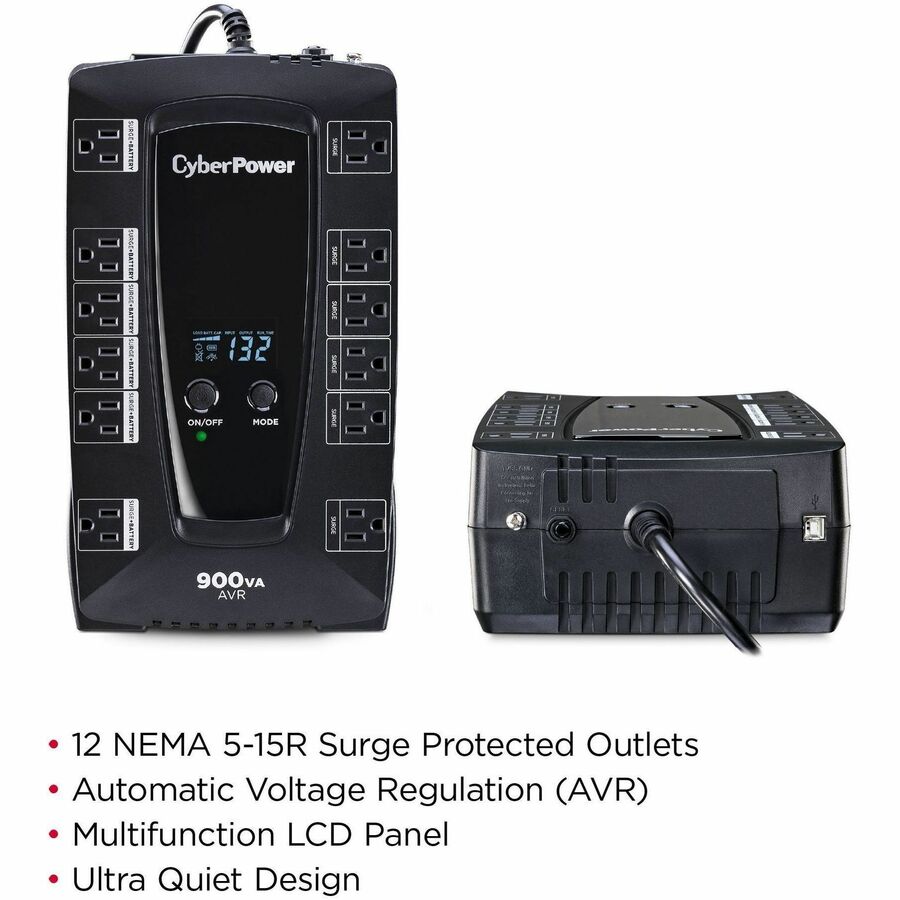

Receptacle Detail: 12 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 6
Dataline Protection: RJ-11
Overload Protection: Yes
Cord Length: 5 ft (1.52 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: Desktop Computer,Workstation,Network Device,Home Entertainment System
Surge Suppression: Yes
Features: Audible Alarm
Power Description
Load Capacity (VA): 900 VALoad Capacity (Watt): 480 W
Input Voltage: 120 V AC
Input Voltage Range: 90 V AC - 148 V AC
Output Voltage: 120 V AC
Input Frequency: 57 Hz,63 Hz
Output Frequency: 60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 1030 J
Circuit Breaker: Yes
Output Power Factor: 0.5
Display & Graphics

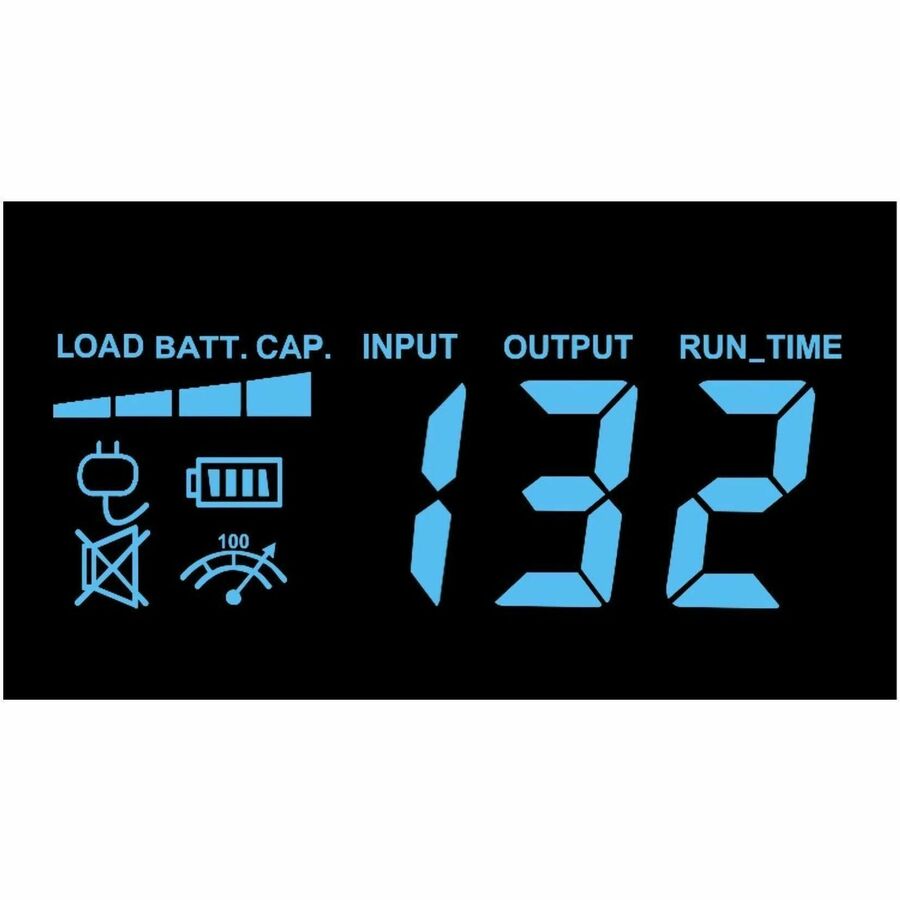

Display: LCDManagement
Alarm: Battery Mode,On Battery,Low Battery,OverloadControls/Indicators
Status Indicators:- Power On
- Fault
Interfaces/Ports
USB: YesUSB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 1Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 10 Minute
Hot Swappable: No
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 6562 ft (2000097.60 mm)Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
Height: 7" (177.80 mm)Width: 12.20" (309.88 mm)
Depth: 3.50" (88.90 mm)
Form Factor: Compact
Weight (Approximate): 14.20 lb (6441.01 g)
Miscellaneous
Package Contents:- Intelligent LCD Series AVRG900LCD 900VA 480W UPS
- User Manual
- USB Cable
- PowerPanel Personal Edition Software Download Card
Software Included: PowerPanel Personal Edition Software available for free download from cyberpowersystems.com
Energy Star: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information: Three-year warranty (including coverage of batteries)
