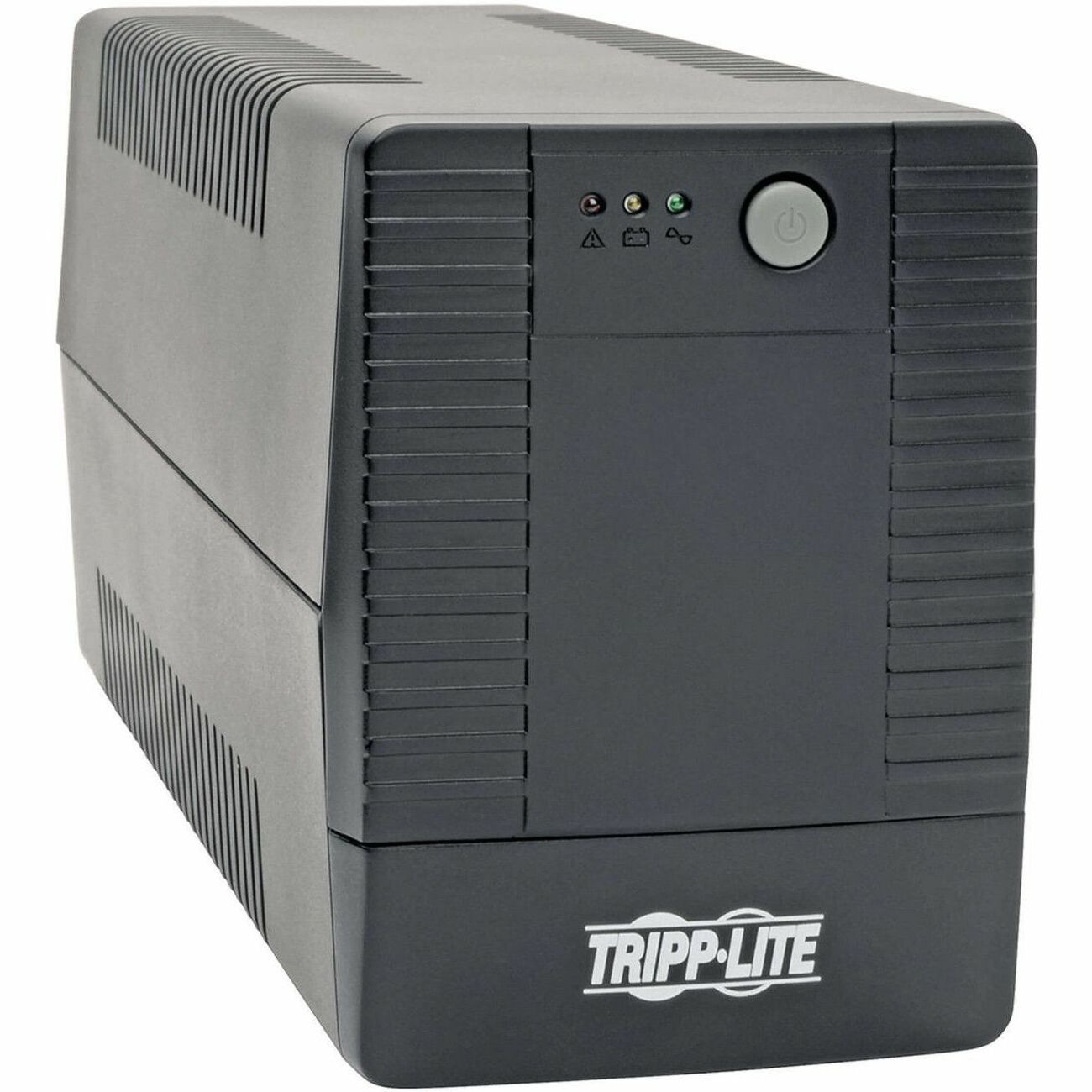

BC600TU Tripp Lite series BC600TU 600VA Desktop/tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: BC600TU
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Model: BC600TU
Product Name: BC600TU 600VA Desktop/tower UPS
Marketing Information:

600VA/360W/120V Battery Backup for PCs, Home Theater or Digital Signage

The line-interactive BC600TU UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 35 minutes. During normal operation, incom
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 2
Cord Length: 5 ft (1.52 m)
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS
Application/Usage: Home Theater,Desktop Computer,Digital Signage,Home/Office,Media Center,Computer,Router,Printer,HDTV,Blu-ray Player,Gaming Console,ATM,Security System,Audio/Video Equipment,Retail,POS,Hospital,Network,Electronic,Monitor,Speaker,DVR,Network Equipment,SOHO Networking Device,SOHO Office,TV,Wireless Router,Workstation
Surge Suppression: Yes
Features: Audible Alarm,Cold Start Function,Green Energy Saving

Power Description

Load Capacity (VA): 600 VA
Load Capacity (Watt): 360 W
Input Voltage: 120 V AC
Input Current: 6 A
Output Voltage: 120 V AC,110 V AC,115 V AC
Input Frequency: 60 Hz
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J
Circuit Breaker: Yes

Display & Graphics

Display: LCD

Management

Alarm: Low Battery,Fault,Overload,Replace Battery

Controls/Indicators

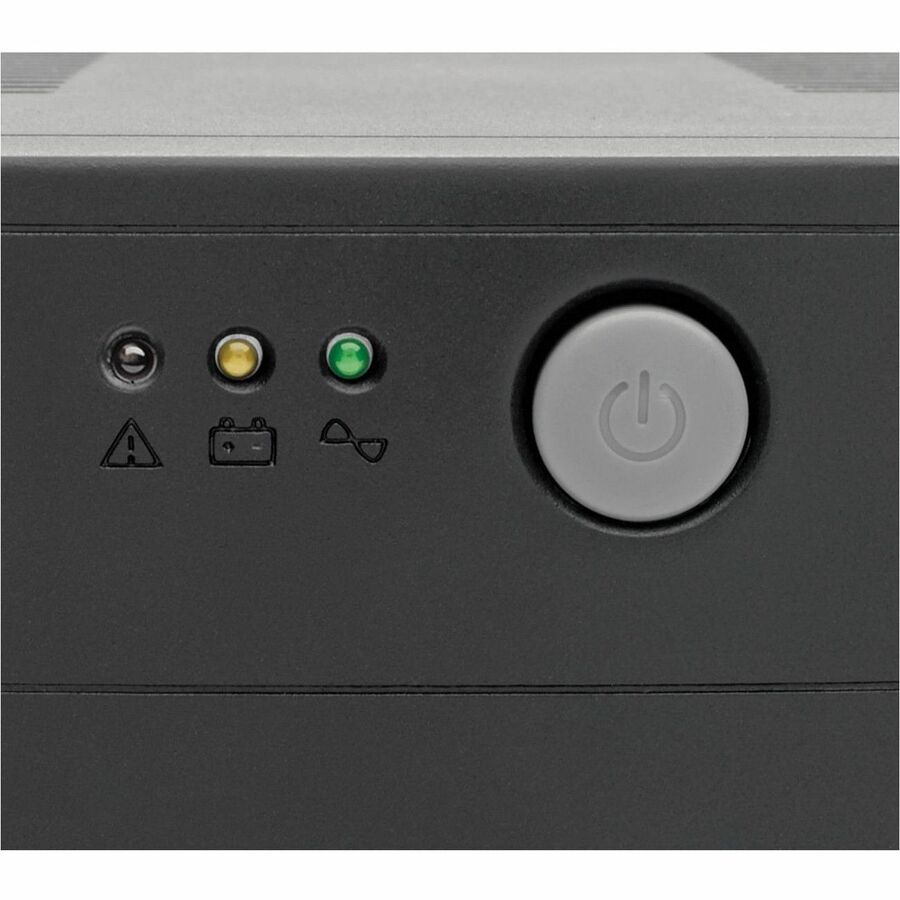

Status Indicators:

LED Indicators:

• Line Power Mode
• Battery Mode
• Battery-Low
• Overload
• Battery Replace
• Fault Conditions

Interfaces/Ports

USB: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 30 Second
Backup/Run Time (Half Load): 5.70 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000.10 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 41.01 BTU/h

Physical Characteristics

Height: 6.30" (160 mm)
Width: 4.80" (122 mm)
Depth: 13.58" (345 mm)
Form Factor: Desktop/Tower
Weight (Approximate): 10.60 lb (4808.08 g)

Miscellaneous

Package Contents:

• BC600TU 600VA Desktop/tower UPS
• USB Cable
• Owner's Manual

Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
Additional Warranty Information:

• 100,000 Ultimate Lifetime Insurance
