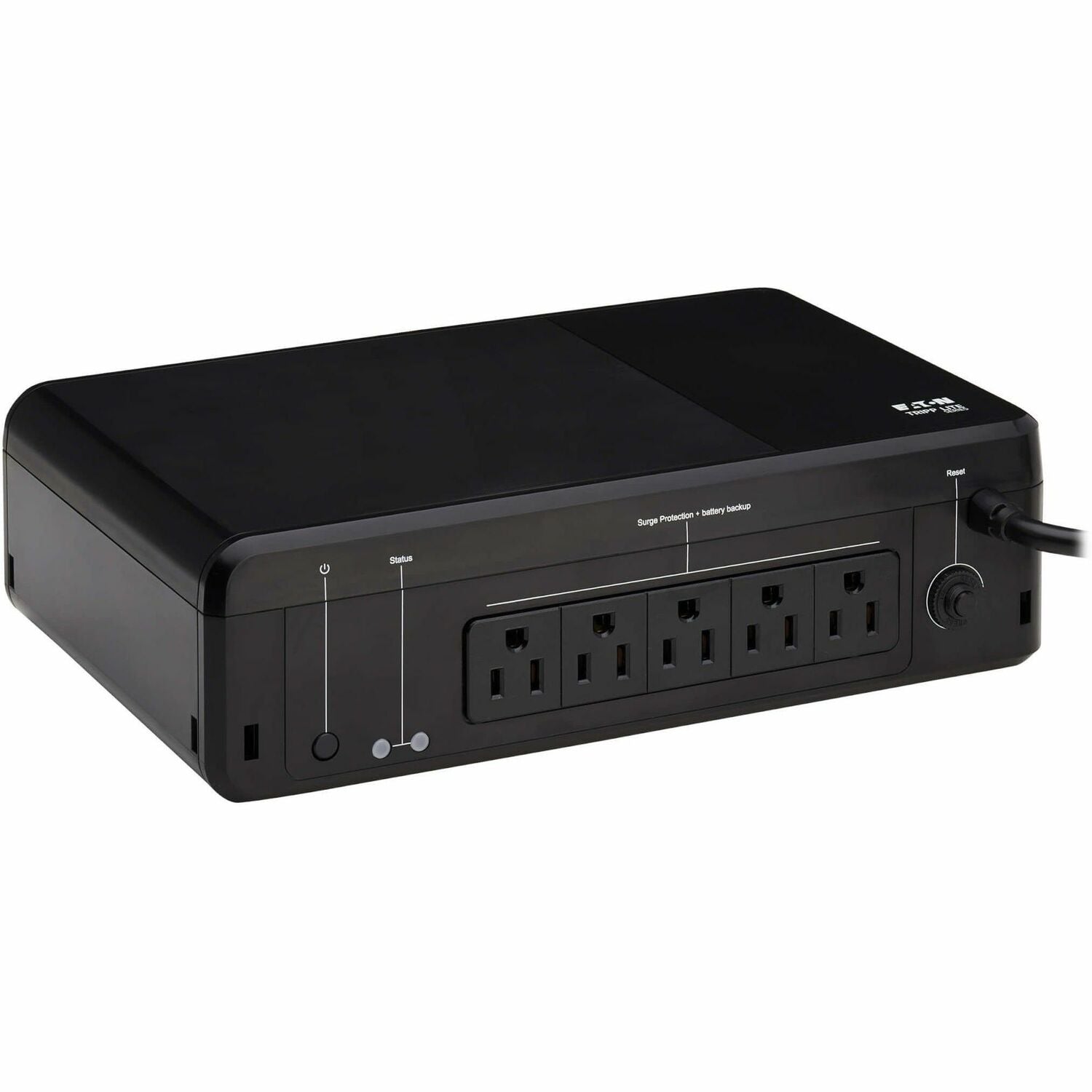

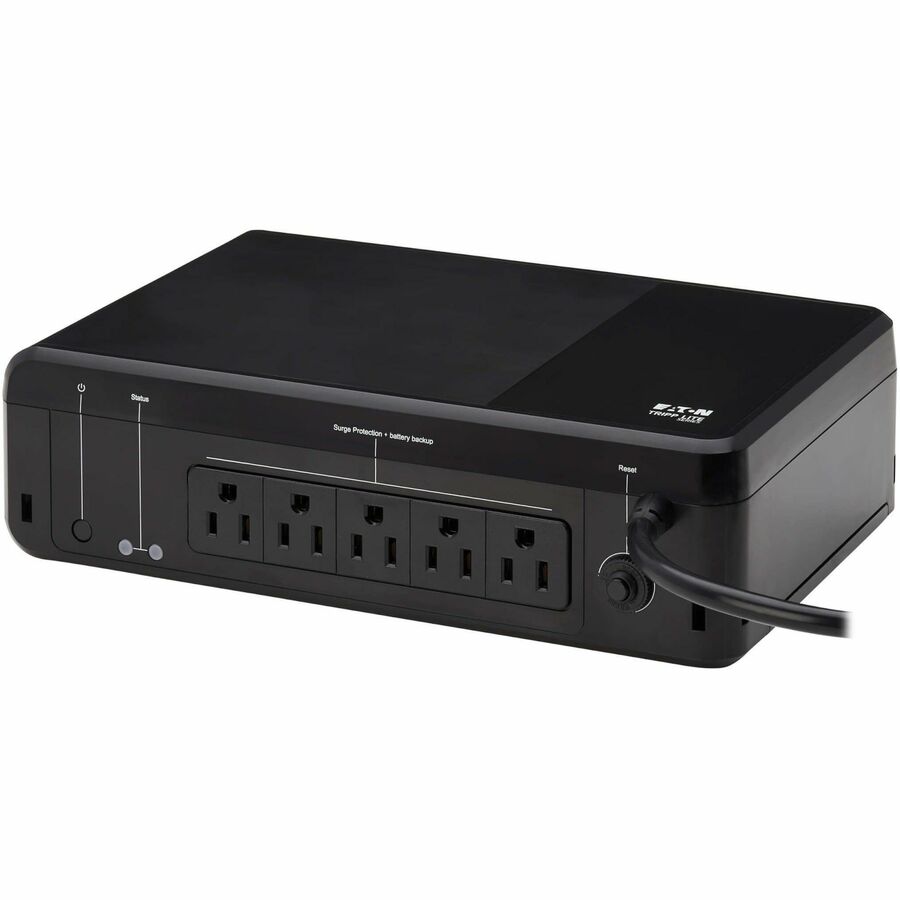

BC850R Tripp Lite series BC850R 850VA Desktop/Surface/Wall Mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: BC850R
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Model: BC850R
Product Name: BC850R 850VA Desktop/Surface/Wall Mountable UPS
Marketing Information:

850VA/450W/120V Battery Backup for PCs and Retail Point-of-Sale Applications

The BC850R standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It's easy to set up in minutes. Just plug the BC850R into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, outlets, power button and status LEDs are all on the same side.

Allows Time to Back Up Critical Files During a Blackout

During short blackouts and brownouts, the BC850R switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable VRLA battery fully charged, so backup power is always a
Product Type: Standby UPS

Technical Information

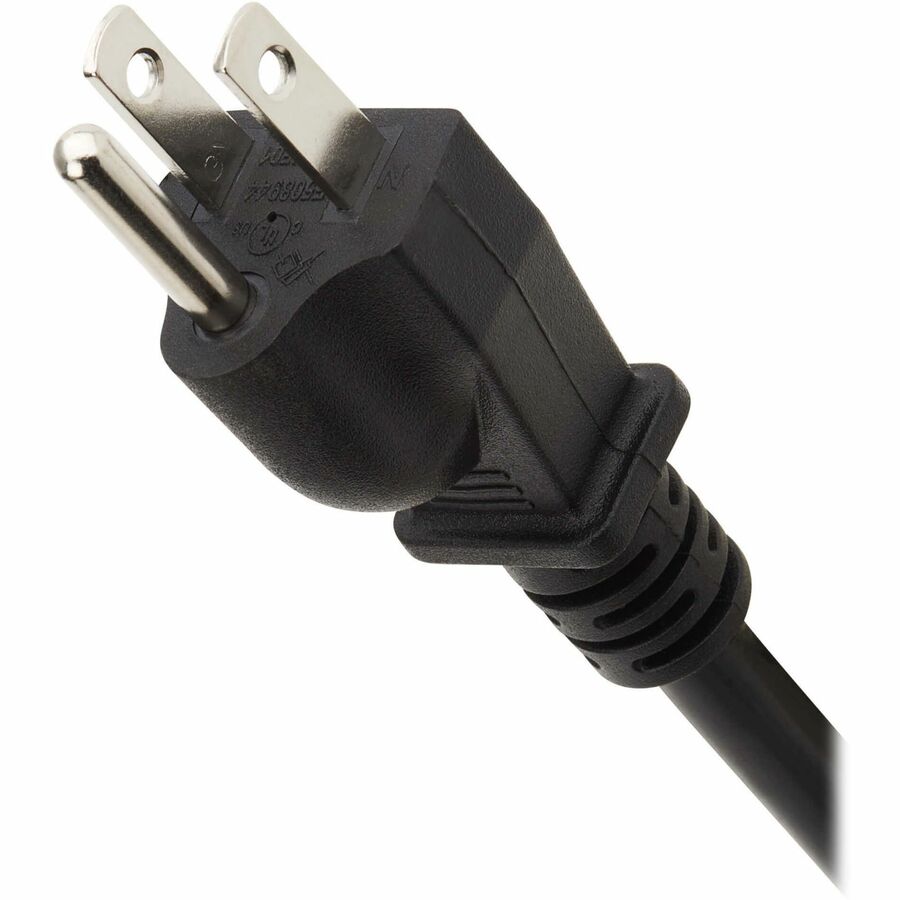

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 5 x NEMA 5-15R
Number of Battery & Surge Outlets: 5
Cord Length: 5 ft (1.52 m)
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Efficiency Detail: 97% (AC Mode)
Application/Usage: POS,Network,Retail,Kiosk,Industrial,Food Service,Home Network,Wireless Access Point,Desktop,Computer Peripheral,Home/Office,Hospital
Features: Audible Alarm,Cold Start Function,Green Energy Saving

Power Description

Load Capacity (VA): 850 VA
Load Capacity (Watt): 450 W
Input Voltage: 120 V AC
Input Current: 7.10 A
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 190 J
Circuit Breaker: Yes
Output Power Factor: 0.53

Controls/Indicators

Status Indicators:

LED Indicators:

• Low Battery or Fault Condition
• Power and Line/battery Mode Status

Battery Information

DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.50 Minute
Backup/Run Time (Half Load): 8 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 6561.68 ft (2000000 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Height: 3.15" (80.01 mm)
Width: 11.02" (279.91 mm)
Depth: 7.08" (179.83 mm)
Form Factor: Desktop/Surface/Wall Mountable
Weight (Approximate): 7.05 lb (3197.83 g)

Miscellaneous

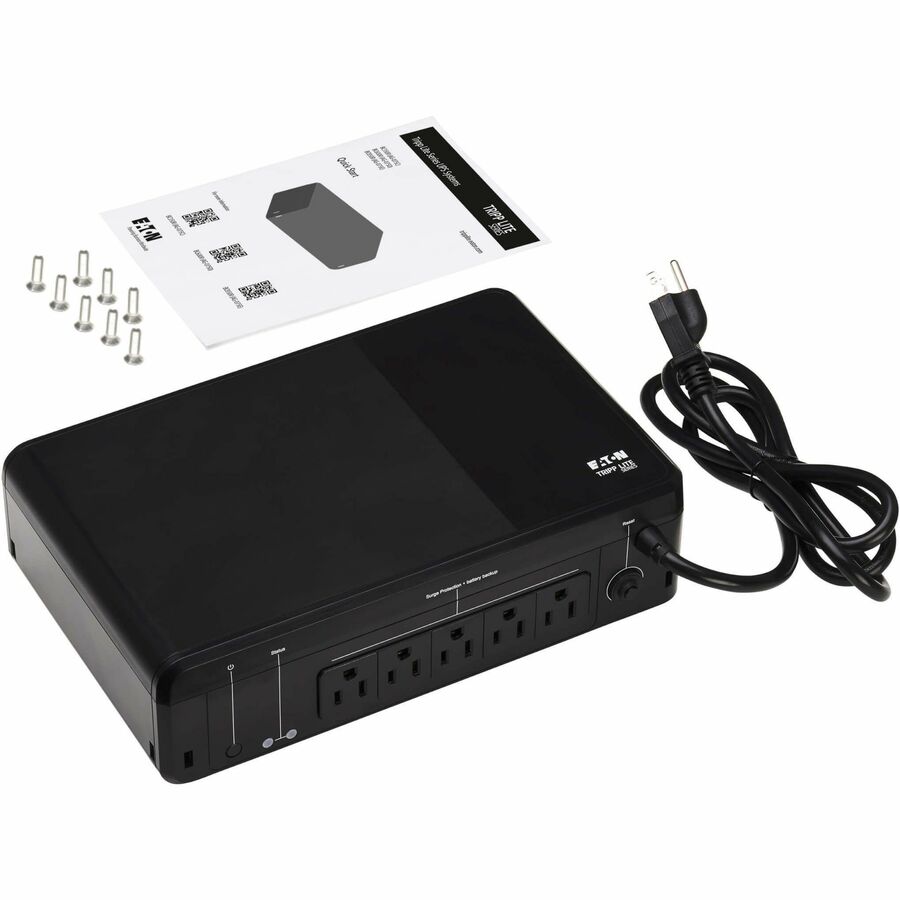

Package Contents:

• BC850R 850VA Desktop/Surface/Wall Mountable UPS
• 4 x M4 x 12 mm Screws
• 4 x M4 x 20 mm Screws
• Quick Start Guide

Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
