BC850RNC Tripp Lite series BC850RNC 850VA Desktop/Surface/Wall Mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: BC850RNC
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Model: BC850RNC
Product Name: BC850RNC 850VA Desktop/Surface/Wall Mountable UPS
Marketing Information: 850VA/450W/120V Battery Backup for PCs and Retail Point-of-Sale Applications

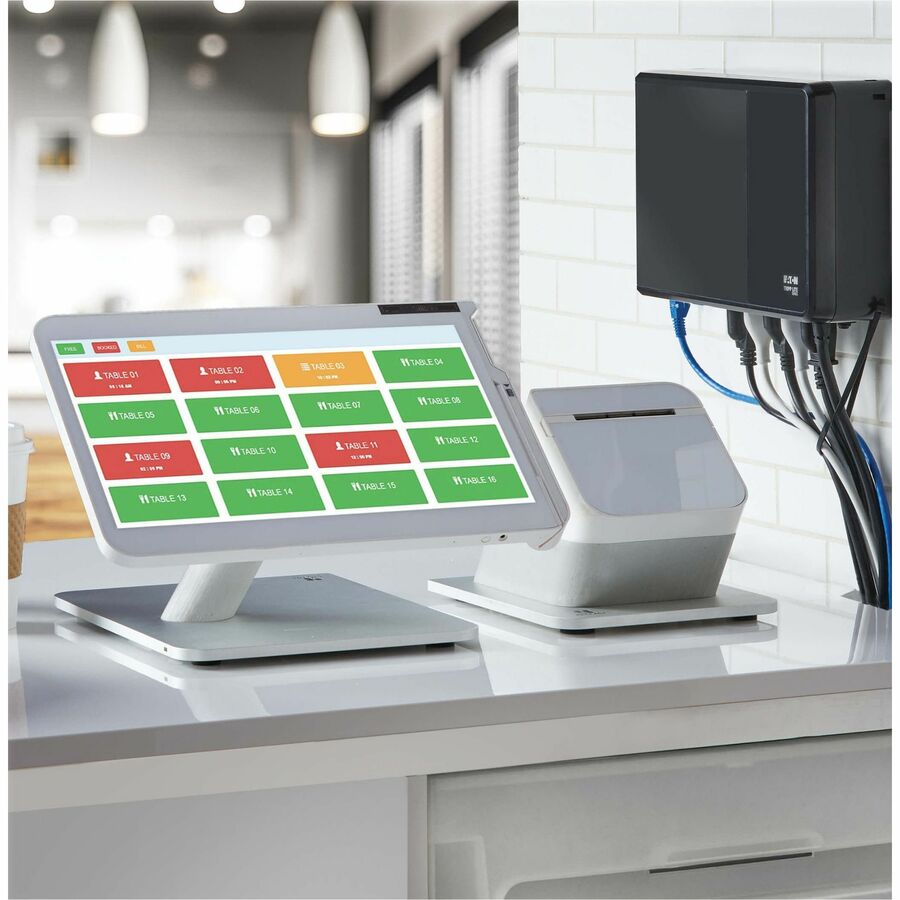

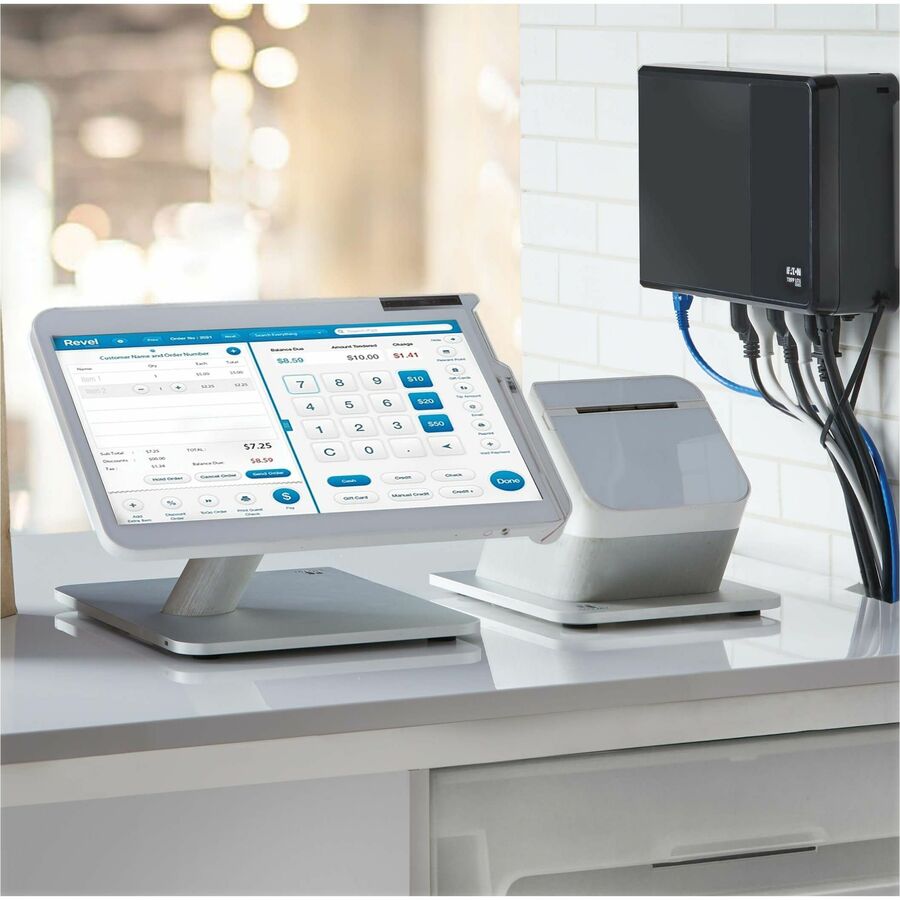

The BC850RNC standby cloud-connected UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for home/office computing, networking and point-of-sale equipment in retail, kiosks, food service and light industrial environments. For easy access, the input power cable, Ethernet port, AC outlets, power button and status LEDs are all on the same side.

Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer

Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control outlet banks using a mobile app or web browser. Being able to monitor and access an army of UPS systems from a remote location helps reduce the number of site visi
Packaged Quantity: 1 Each
Product Type: Standby UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 5 x NEMA 5-15R
Number of Battery & Surge Outlets: 5
Overload Protection: Yes
Cord Length: 5 ft (1.52 m)
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Efficiency Detail: 97% (AC Mode)
Application/Usage: Computer,POS,Home,Office,Retail,Kiosk,Food Service,Light Industrial Application,Computer Peripheral
Surge Suppression: Yes
Features: Audible Alarm,Cold Start Function,Green Energy Saving

Power Description

Load Capacity (VA): 850 VA
Load Capacity (Watt): 450 W
Input Voltage: 120 V AC
Input Current: 7.10 A
Output Voltage: 120 V AC
Input Frequency: 50 Hz,60 Hz
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 190 J
Circuit Breaker: Yes
Output Power Factor: 0.53

Management

Network Management: Network Card
Alarm: Battery Mode,Low Battery,Fault

Controls/Indicators

Status Indicators:

LEDs Indicators:

• Low Battery
• Fault
• Power
• Line/Battery Mode

Interfaces/Ports

USB: Yes
Network (RJ-45): Yes

Battery Information

DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 1.70 Minute
Backup/Run Time (Half Load): 8 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 6562 ft (2000097.60 mm)
Storage Temperature: 23°F (-5°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 122°F (50°C)
Sound Emission (A-Weighted): 40 dB(A)

Physical Characteristics

Height: 3.15" (80.01 mm)
Width: 11.02" (279.91 mm)
Depth: 7.08" (179.83 mm)
Form Factor: Desktop/Surface/Wall Mountable
Weight (Approximate): 7.05 lb (3197.83 g)

Miscellaneous

Package Contents:

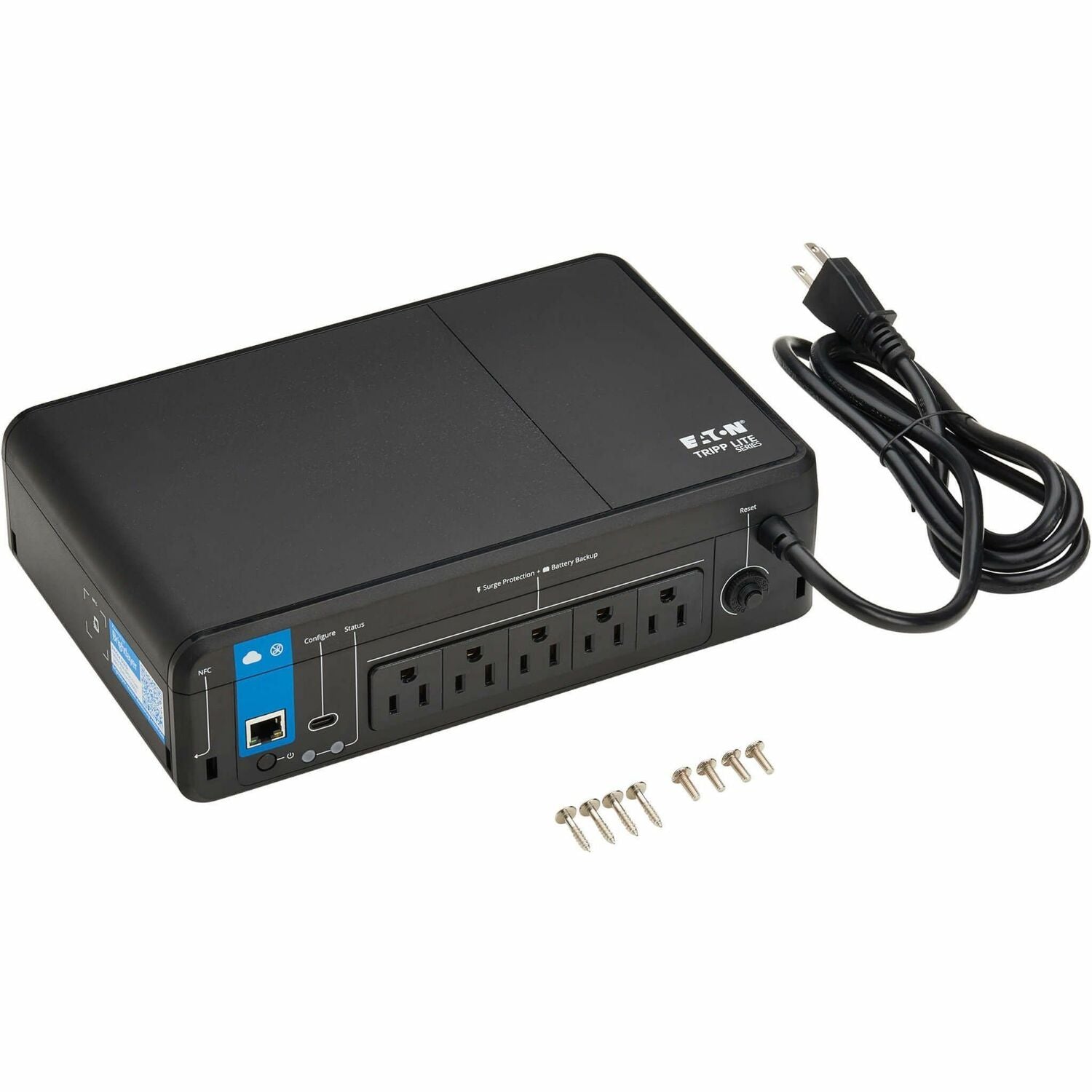

• BC850RNC 850VA Desktop/Surface/Wall Mountable UPS
• 4 x M4 x 12 mm Screws
• 4 x M4 x 20 mm Screws
• Quick Start Guide

Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
