Description
User-Manual
Manufacturer Part Number: BK350
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Back-UPS
Product Series: CS

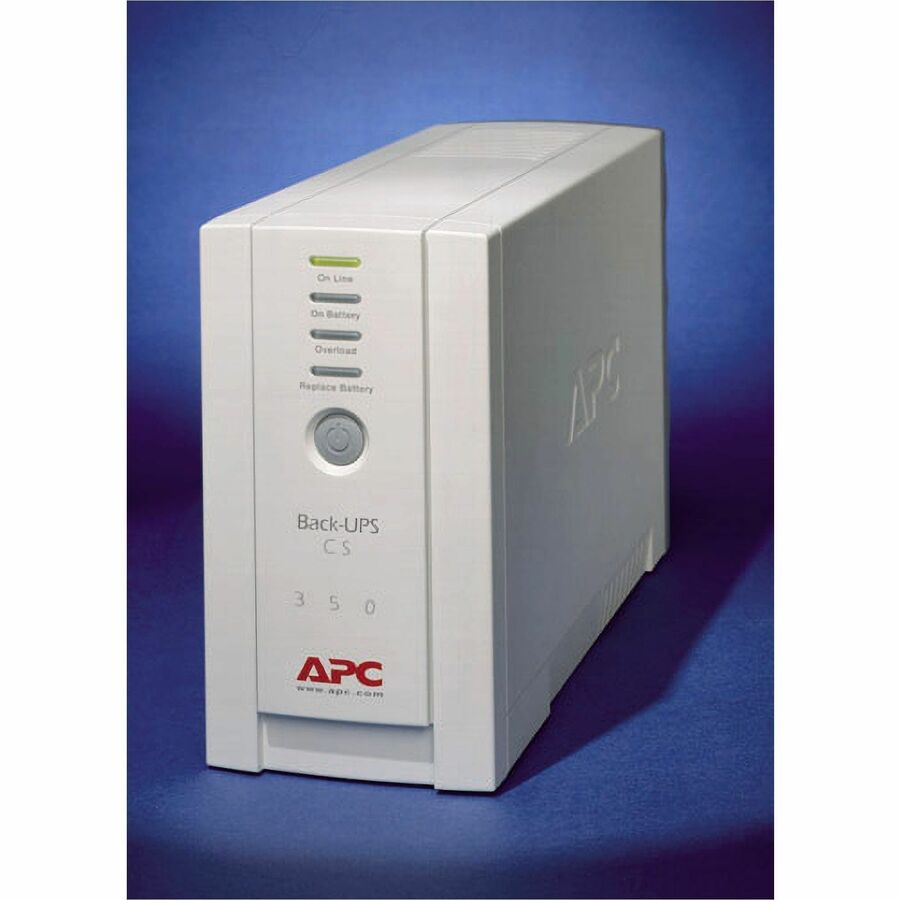

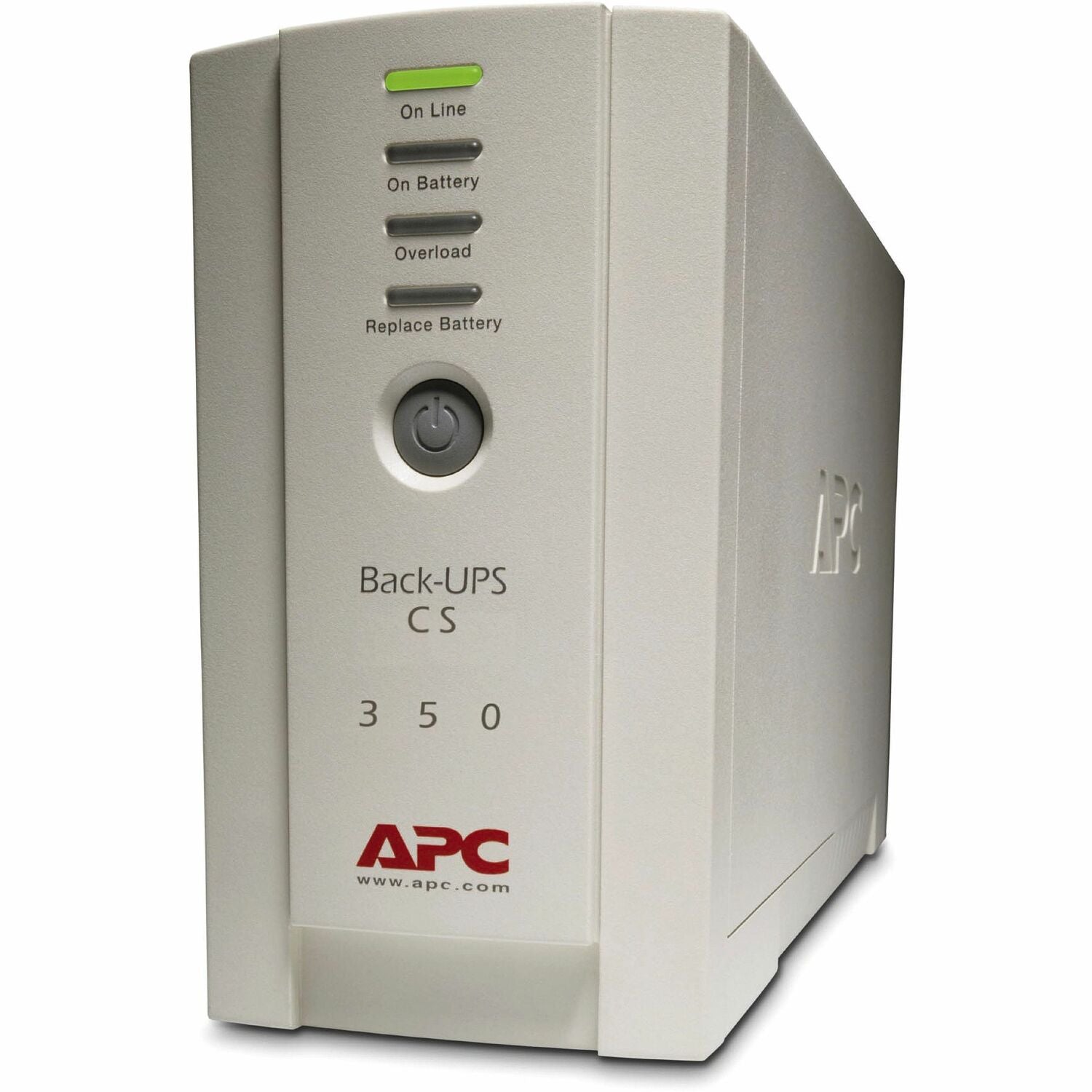

Product Name: BK350 120V Backup System
Marketing Information:
Product Type: Standby UPS
Receptacle Type: NEMA 5-15P
Receptacle Detail: 3 x NEMA 5-15R,3 x NEMA 5-15R Surge
Number of Battery & Surge Outlets: 6
Dataline Protection: RJ-11
Cord Length: 6 ft (1.83 m)
Phase: Single Phase
Input Voltage: 120 V
Input Current: 10 A
Output Voltage: 120 V AC
Waveform Type: Stepped Approximated Sine Wave
Surge Energy Rating: 1020 J
USB: Yes
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 6.60 Minute
Backup/Run Time (Half Load): 23.70 Minute
Typical Battery Recharge Time: 8 Hour
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 20 BTU/h
Height: 6.50" (165 mm)
Width: 3.58" (91 mm)
Depth: 11.18" (284 mm)
Form Factor: Tower
Weight (Approximate): 12.52 lb (5678.98 g)
BK350 120V Backup System
CD with software
Cord management straps
USB cable
User manual
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Additional Warranty Information: UPS: 36 month(s)|Battery: 12 month(s)
General Information
Manufacturer: Schneider Electric SAManufacturer Part Number: BK350
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Back-UPS
Product Series: CS
Product Name: BK350 120V Backup System
Marketing Information:
Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS BK 350VA. APC Back-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With 6 outlets, this tower UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 210w capacity is ideal for workstations, keeping you connected and productive during power fluctuations. This computer backup offers lifetime guaranteed surge protection with a
- 100,000 equipment protection policy. Use the included PowerChute software to configure settings and set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. Package Contains UPS, CD with software, Cord management straps, USB cable, User manual
Product Type: Standby UPS
Technical Information
Plug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15P
Receptacle Detail: 3 x NEMA 5-15R,3 x NEMA 5-15R Surge
Number of Battery & Surge Outlets: 6
Dataline Protection: RJ-11
Cord Length: 6 ft (1.83 m)
Phase: Single Phase
Power Description
Load Capacity (VA): 350 VAInput Voltage: 120 V
Input Current: 10 A
Output Voltage: 120 V AC
Waveform Type: Stepped Approximated Sine Wave
Surge Energy Rating: 1020 J
Management
Alarm: On Battery,Low Battery,OverloadControls/Indicators
Status Indicators: LED status display with On Line, On Battery, Replace Battery, Site wiring Fault and Overload indicatorsInterfaces/Ports
Serial Port: YesUSB: Yes
Battery Information
Battery Characteristics: Maintenance-freeBattery Chemistry: Lead Acid
Backup/Run Time (Full Load): 6.60 Minute
Backup/Run Time (Half Load): 23.70 Minute
Typical Battery Recharge Time: 8 Hour
Environmental Conditions
Maximum Operating Temperature: 113°F (45°C)Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 20 BTU/h
Physical Characteristics
Product Color: BeigeHeight: 6.50" (165 mm)
Width: 3.58" (91 mm)
Depth: 11.18" (284 mm)
Form Factor: Tower
Weight (Approximate): 12.52 lb (5678.98 g)
Miscellaneous
Package Contents:Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information: UPS: 36 month(s)|Battery: 12 month(s)
