Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: BRG1500AVRLCD2
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: Intelligent LCD
Product Model: BRG1500AVRLD2

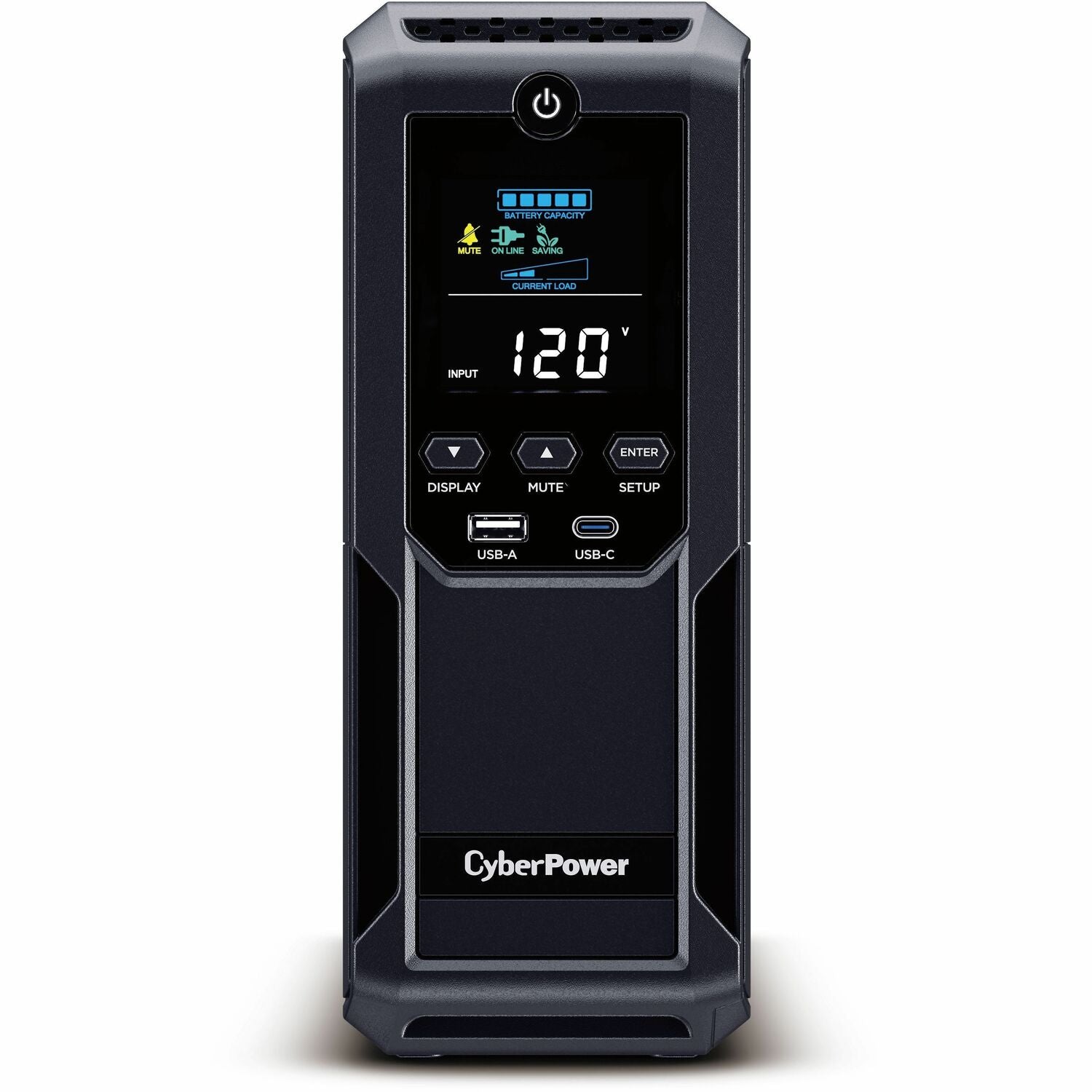

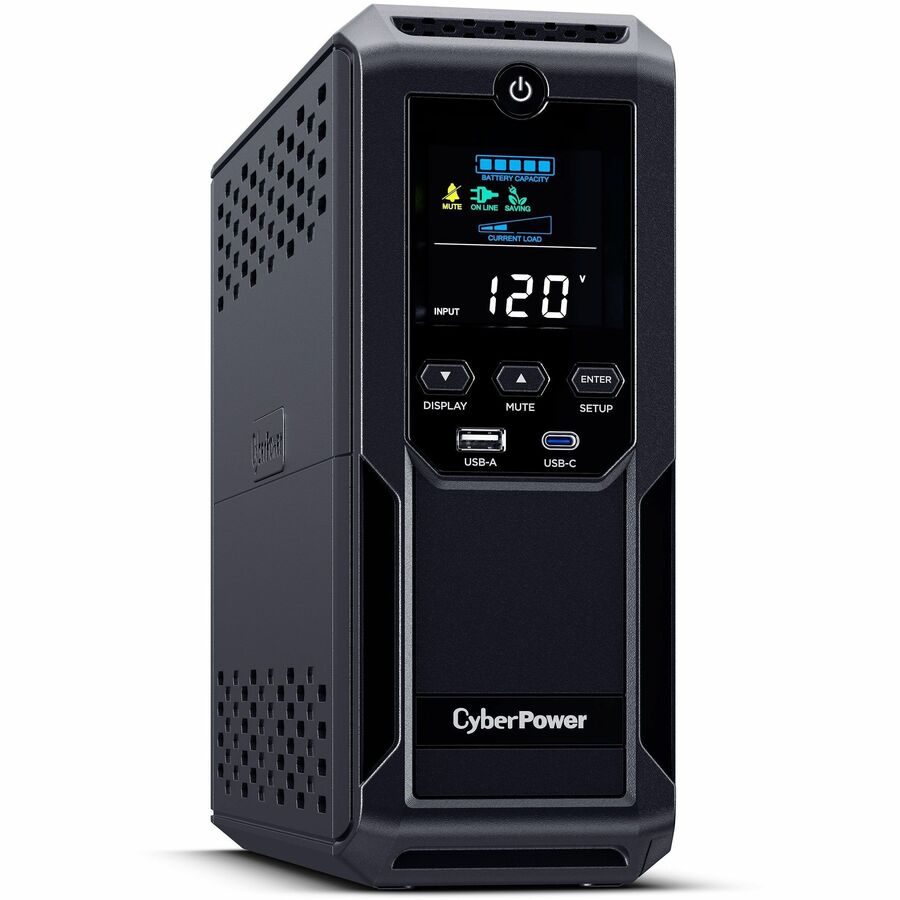

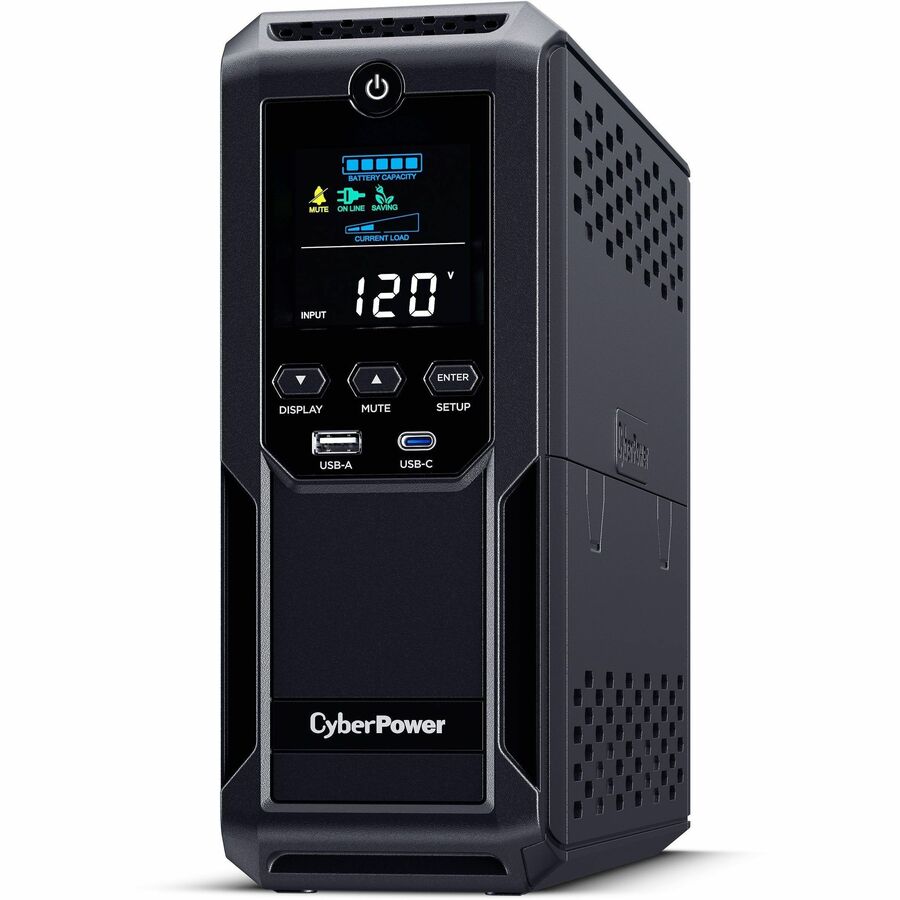

Product Name: BRG1500AVRLCD2 Intelligent LCD UPS Systems
Marketing Information:
A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1500AVRLD2 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The BRG1500AVRLD2 comes with a five year warranty (including coverage of batteries) and a
- 500,000 Connected Equipment Guarantee.
Product Type: Line-interactive UPS
Technical Information
AVR: YesAVR Range: Boost +10% / Buck --10%
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

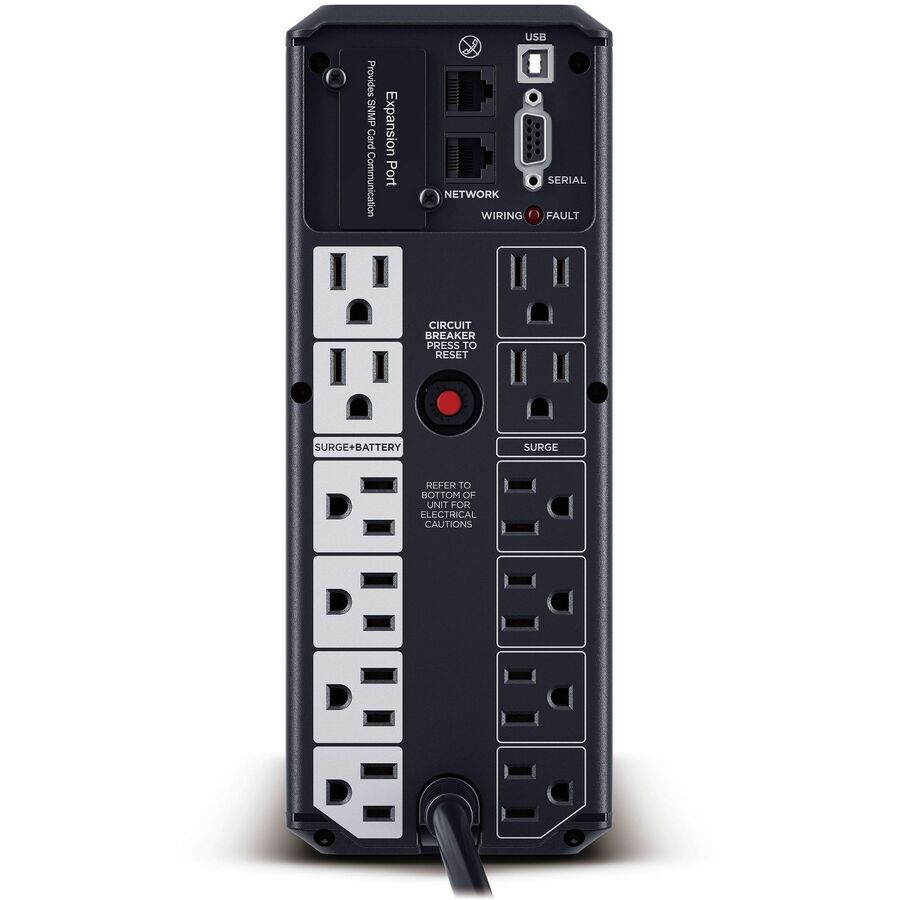

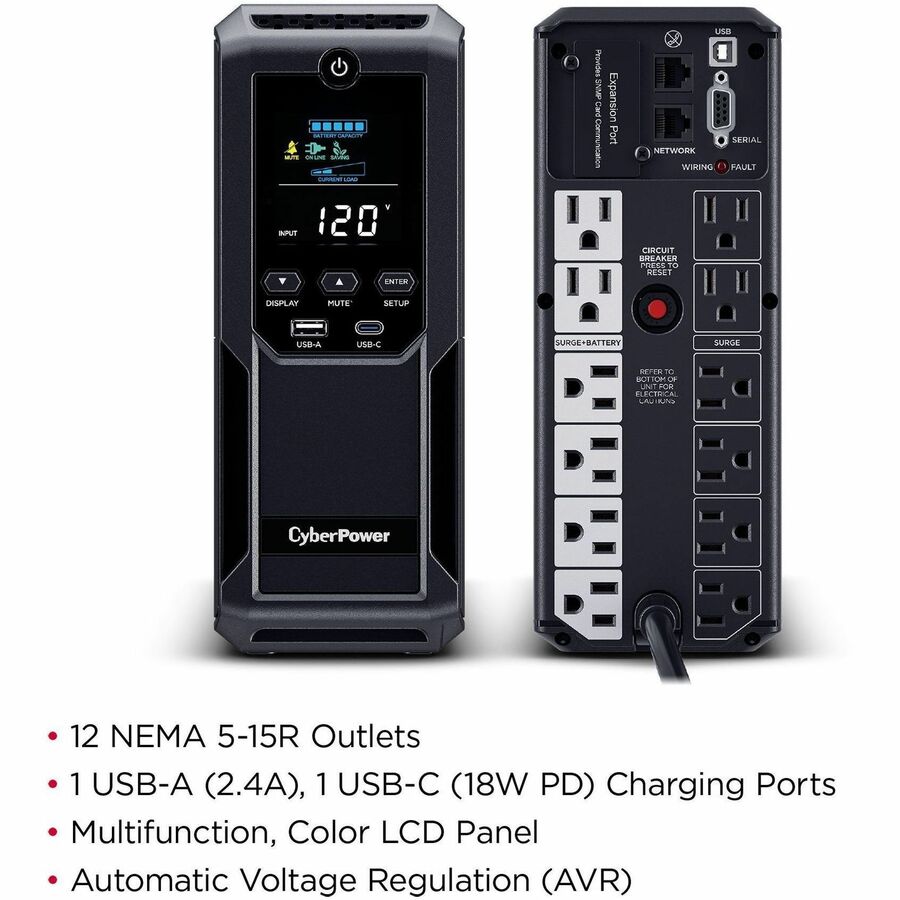

Receptacle Detail: 12 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 6
Dataline Protection: RJ-45
Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS Bypass Technology
Application/Usage: Desktop Computer,Workstation,Network Device,Home Entertainment System,Personal Electronic,Home Network,Router,Modem,VoIP Phone System
Power Description
Load Capacity (VA): 1.50 kVALoad Capacity (Watt): 900 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Input Frequency: 63 Hz
Output Frequency: 60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 1500 J
Management
Network Management: SNMP/HTTP Remote MonitoringAlarm: Battery Mode,Low Battery,Overload,Fault
Controls/Indicators
Status Indicators: LED Indicators:- Power On
- Wiring Fault
Interfaces/Ports
Serial Port: YesNetwork (RJ-45): Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 2Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 12 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics

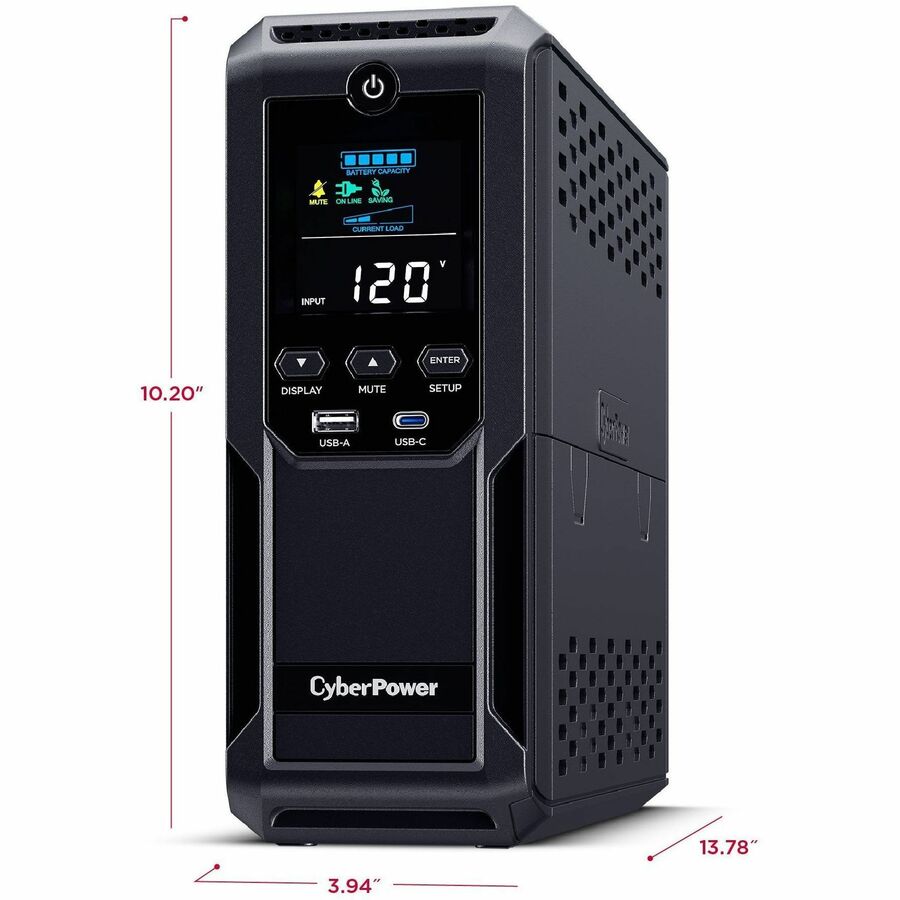

Product Color: BlackHeight: 10.20" (259 mm)
Width: 3.94" (100 mm)
Depth: 13.78" (350 mm)
Form Factor: Mini-tower
Weight (Approximate): 23.81 lb (10800 g)
Miscellaneous
Energy Star: YesEnvironmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
