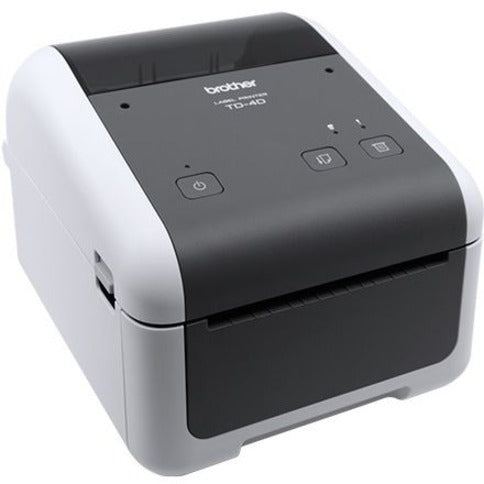

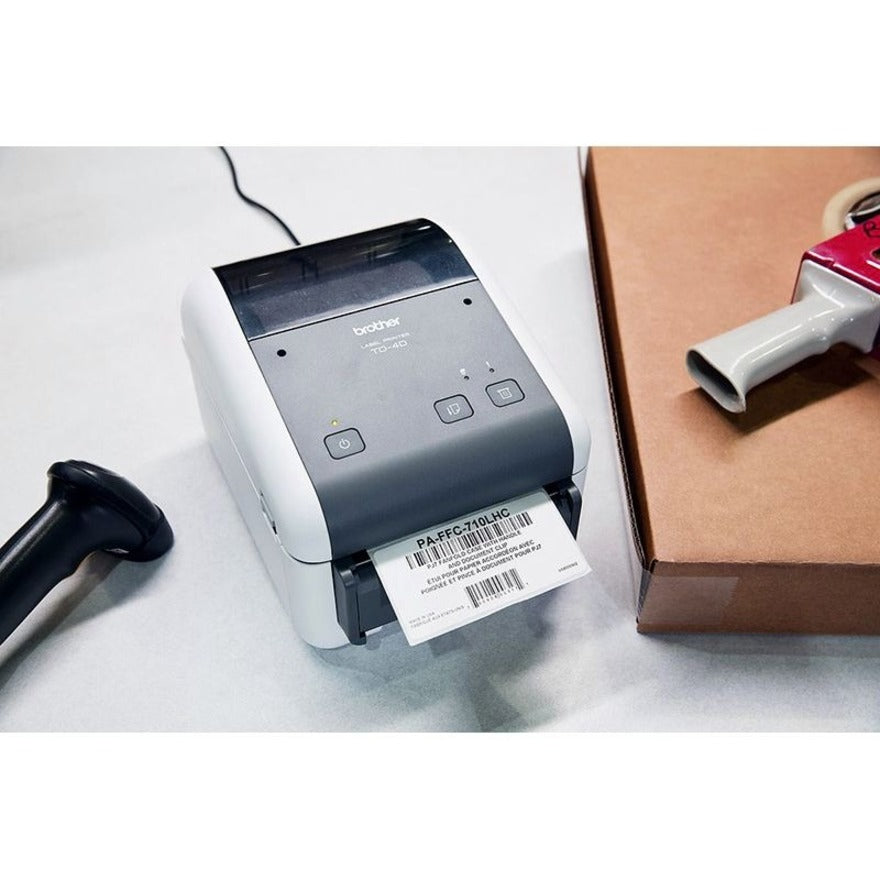

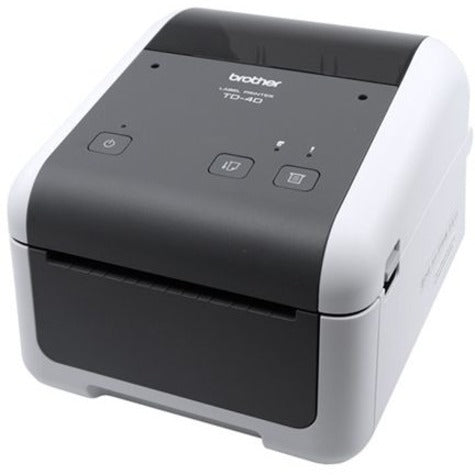

TD4520DN Brother TD4520DN Desktop Direct Thermal Printer - Monochrome - Label Print - Fast Ethernet - USB - Serial

General Information

Manufacturer: Brother Industries, Ltd
Manufacturer Part Number: TD4520DN
Manufacturer Website Address: http://www.brother.ca
Brand Name: Brother
Product Model: TD4520DN
Product Name: TD4520DN Professional Network Desktop Label Printer
Marketing Information:

Crop function

Ideal for creating shipping labels. Your A4 dispatch document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-4520DN desktop label printer.

Seamless integration

To support integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

Print from your Windows PC

Create customer labels using Brother P-touch Editor. Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.

Network connectivity

Sharing the TD-4520DN is simple with the integrated network port. Increase your teams productivity with this network desktop label printer. Many users can share the printer in a variety of locations.

Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 8 in/s (203.20 mm/s)
Maximum Print Resolution (dpi): 300
Maximum Print Length: 118.11" (3000 mm)
Maximum Print Width: 4.10" (104.10 mm)
Barcode Symbology Supported: Code 39,ITF I-2/5,EAN/JAN-8,EAN/JAN-13,UPC-A,UPC-E,Codabar (NW-7),Code 128,GS1-128,UCC/EAN 128,GS1 DataBar,GS1 DataBar Stacked,GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Limited,GS1 DataBar Expanded,Code 93,POSTNET,UPC-EAN Extensions,MSI,Inteligent Mail Barcode
Connectivity Technology: Wired
Application/Usage: Desktop

Interfaces/Ports

Serial Port: Yes
USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Display & Graphics

Display Screen: Yes
Display Screen Type: LED

Media Types & Handling

Media Type: Label,Shipping Label,Tag

Fonts & Emulation

Language Emulation: Raster,ESC/P,ZPL,CPCL,SBPL

Software

Operating System Supported: Windows 10, Windows 7, Windows 8, Windows Server 2003 & 2008 (32 & 64 bits), Windows Vista, Windows XP

Physical Characteristics

Height: 6.10" (155 mm)
Width: 7.09" (180 mm)
Depth: 8.82" (224 mm)
Weight (Approximate): 4.59 lb (2080 g)

Miscellaneous

Power Adapter Included: Yes
Platform Supported: PC,iOS,Android
