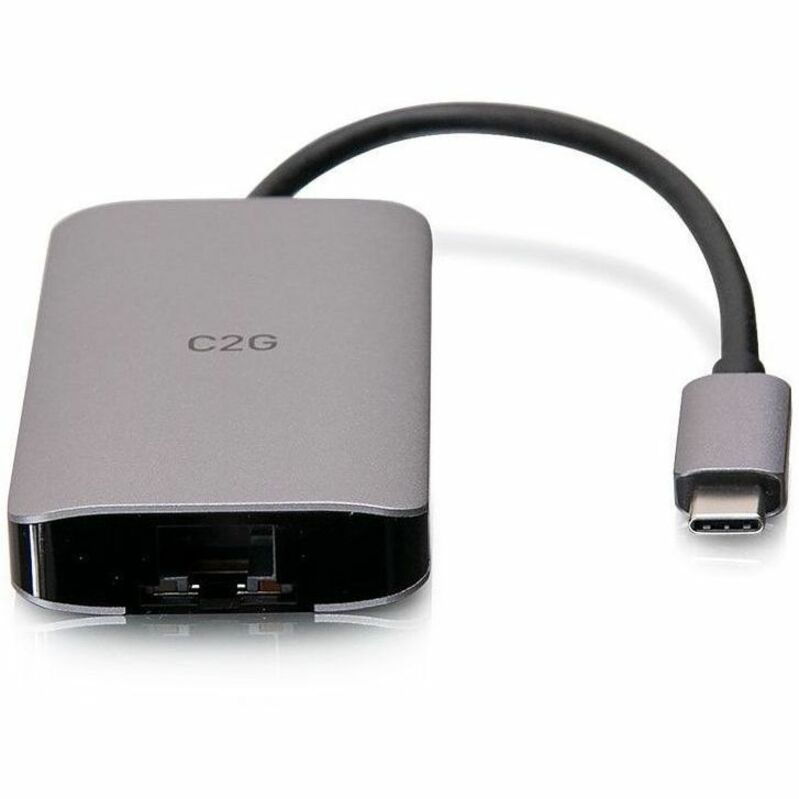

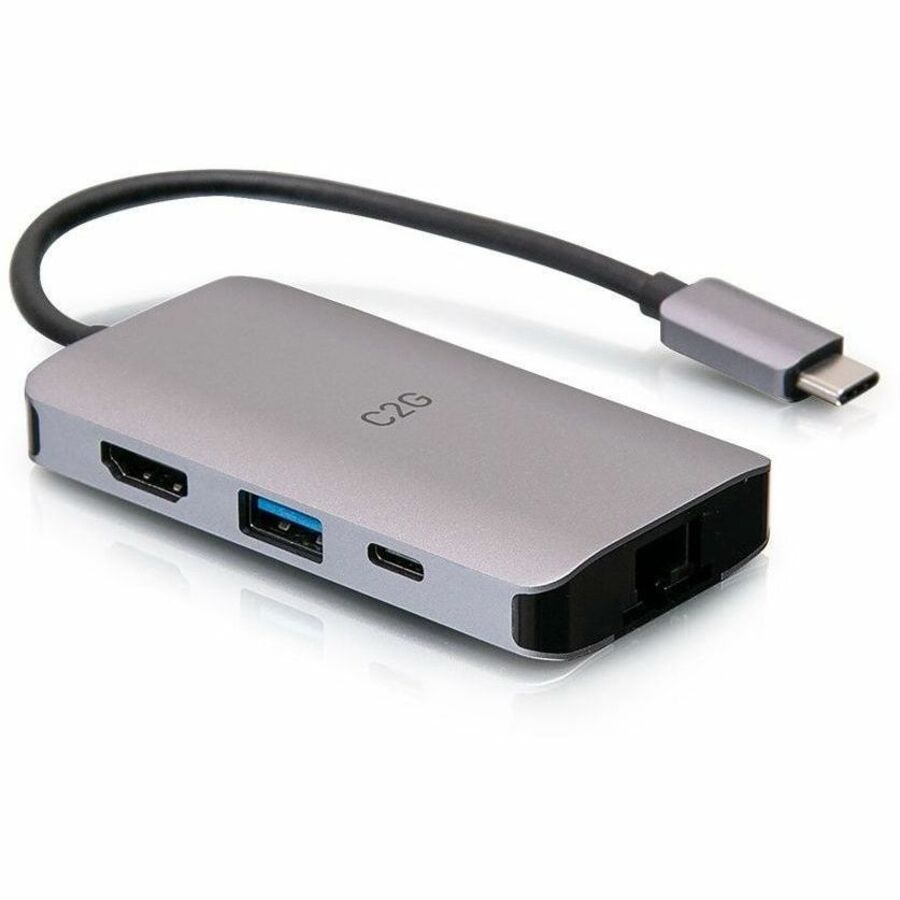

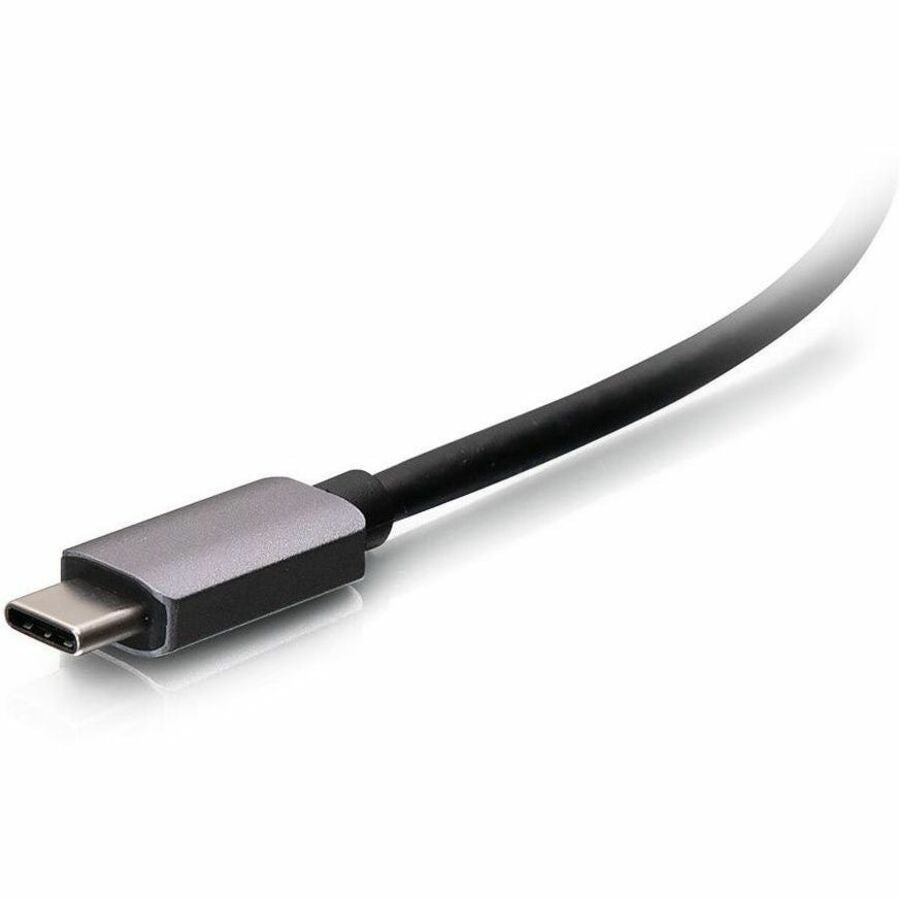

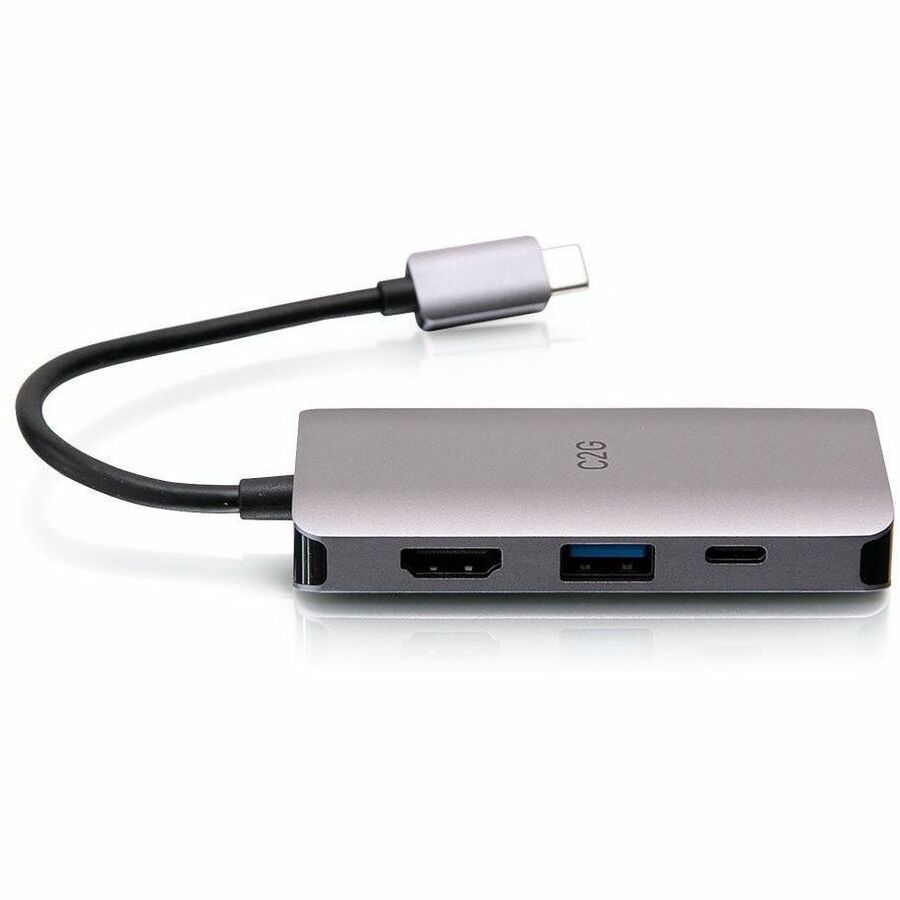

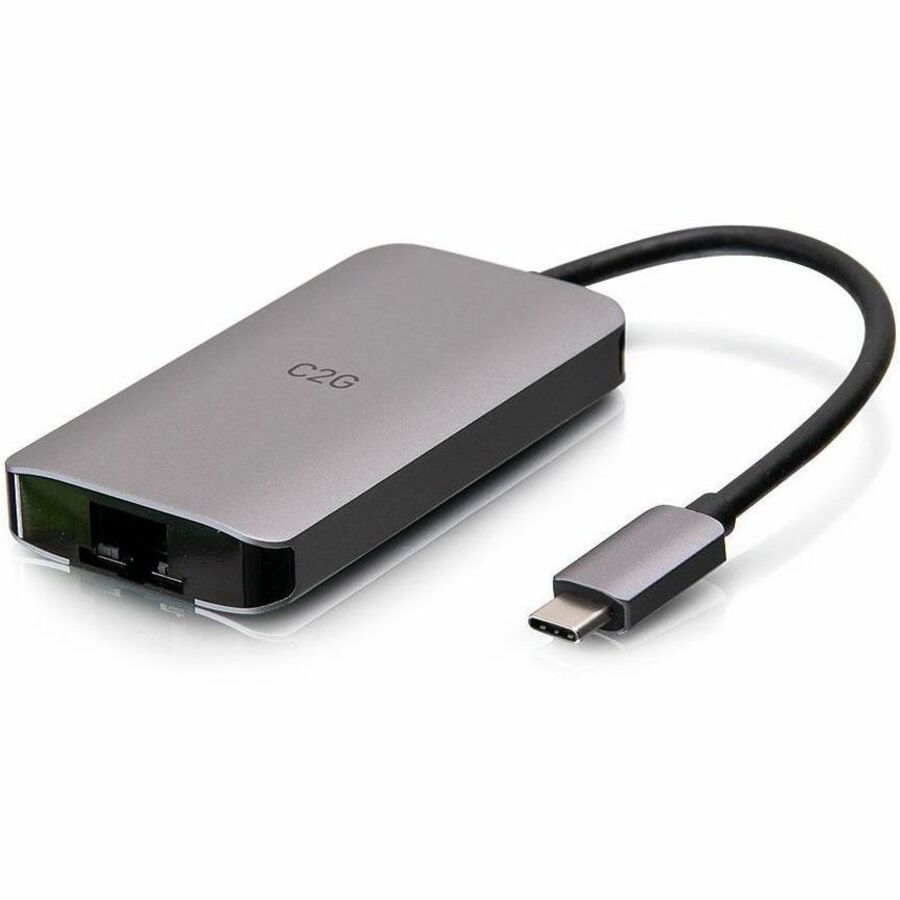

C2G54456 C2G USB-C® 4-in-1 Mini Docking Station with HDMI®, USB-A, Ethernet, and USB-C Power Delivery up to 100W - 4K 30Hz

General Information

Manufacturer: Legrand Group
Manufacturer Part Number: C2G54456
Manufacturer Website Address: http://www.legrand.com
Brand Name: C2G
Product Line: Mini Dock
Product Name: Mini Dock Docking Station
Marketing Information:

This USB-C 4-in-1 Mini Dock with HDMI, USB-A, Ethernet, and USB-C Power Delivery connects to USB-C or Thunderbolt™ 3 enabled laptops and is perfect for contributing to a desktop solution # making it ideal for inside reps that need essential connectivity while in the office or when working from home.

This USB-C mini dock supports up to 100W of power delivery to charge and power mobile laptops when using the USB-C power adapter that is included with the laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity.

This mini dock includes an HDMI port with a resolution up to 4K (3840 x 2160) at 30Hz for high definition audio/video. The USB-A and USB-C data ports support SuperSpeed USB 5Gbps data transfers # allowing up to 32GB of data to be downloaded in under a minute. The Ethernet port allows for re
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Charging Capability: Yes
Supported Resolutions: 3840 x 2160,1920 x 1080
Screen Mode Supported: 4K @30Hz,4K,Full HD
Device Supported: Notebook,Tablet PC

Network & Communication

Ethernet Technology: Ethernet

Interfaces/Ports

Host Interface: USB Type C
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 1
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C Male, 1 x USB-C Female
Number of USB Type-A Ports: 1
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of HDMI Ports: 1
HDMI: Yes
USB Power Delivery: 100W

Software

Operating System Supported: macOS,Windows,Linux

Physical Characteristics

Product Color: Gray
Height: 0.51" (12.95 mm)
Width: 1.78" (45.21 mm)
Depth: 3.34" (84.84 mm)

Miscellaneous

Compatibility: USB-C or Thunderbolt™ 3 Enabled Laptops
Country of Origin: China

Warranty

Limited Warranty: 5 Year
