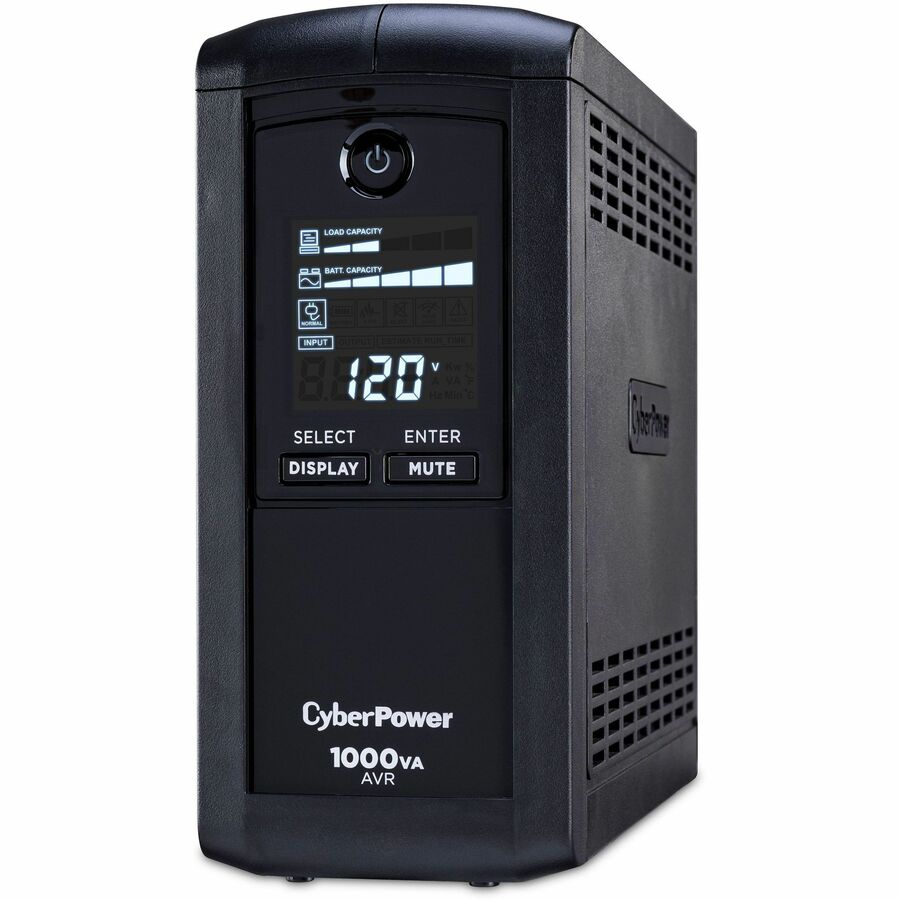

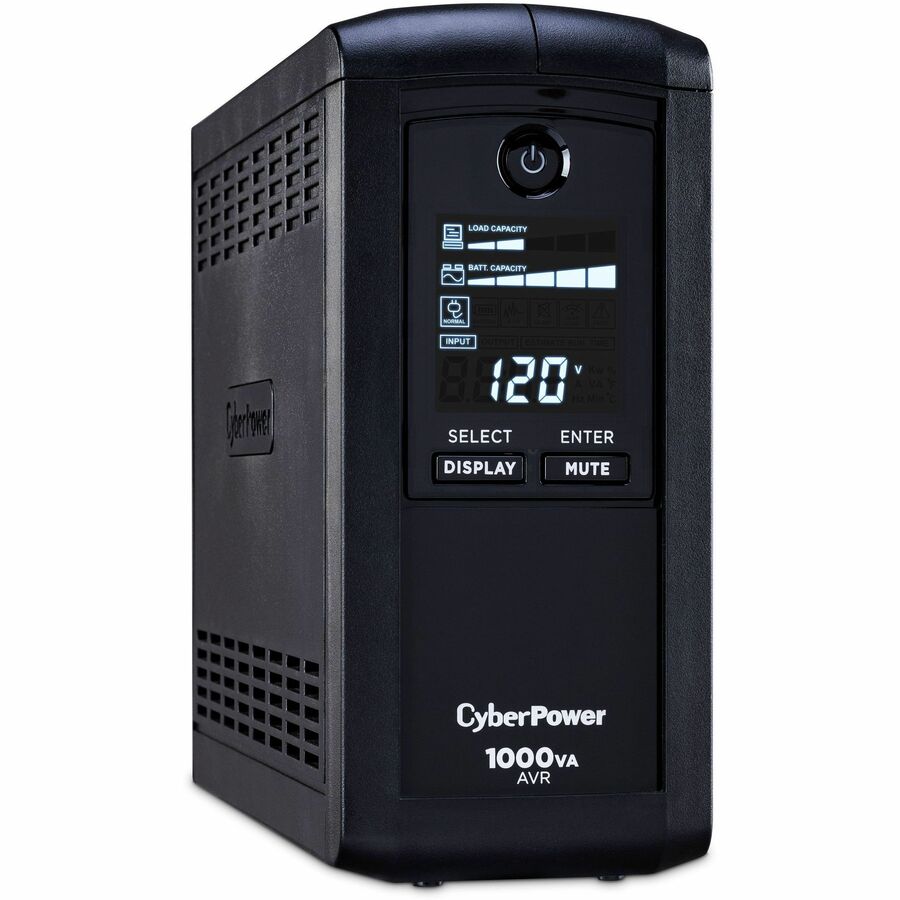

CP1000AVRLCD CyberPower CP1000AVRLCD Intelligent LCD UPS Systems

CyberPower Systems, IncSKU: CP1000AVRLCD
No reviews
Price:
$234.99

Description

User-Manual

General Information

Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: CP1000AVRLCD
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Intelligent LCD UPS
Product Model: CP1000AVRLCD
Product Name: CP1000AVRLCD Intelligent LCD UPS Systems
Marketing Information:

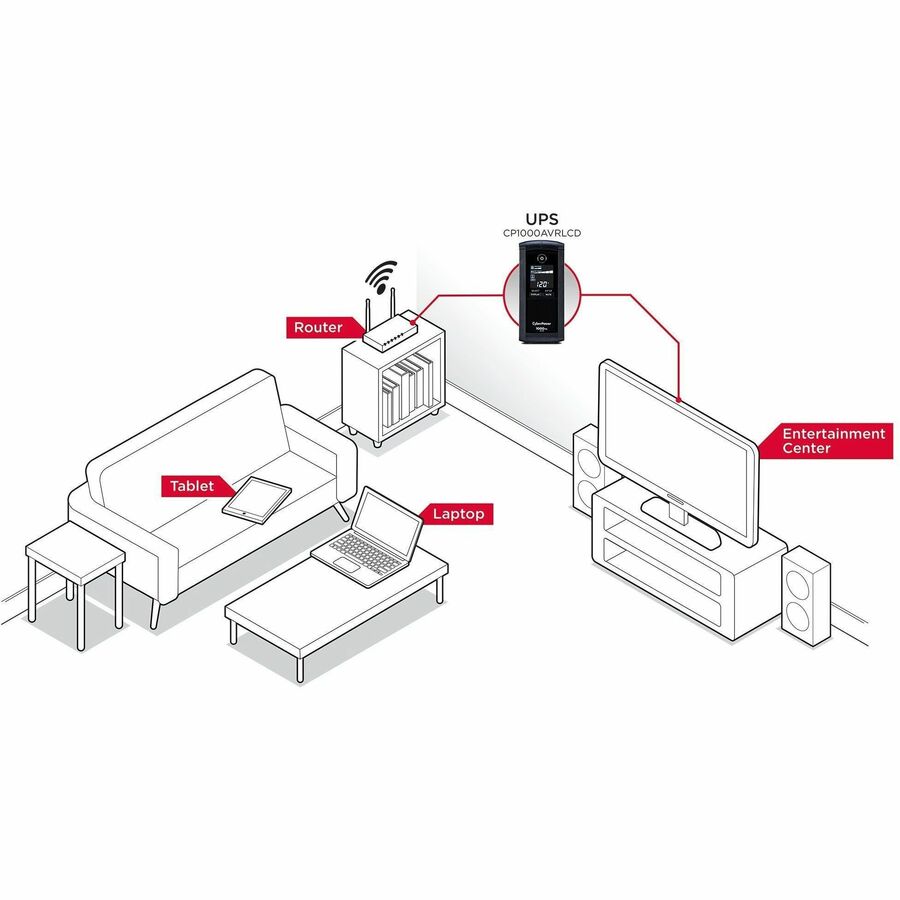

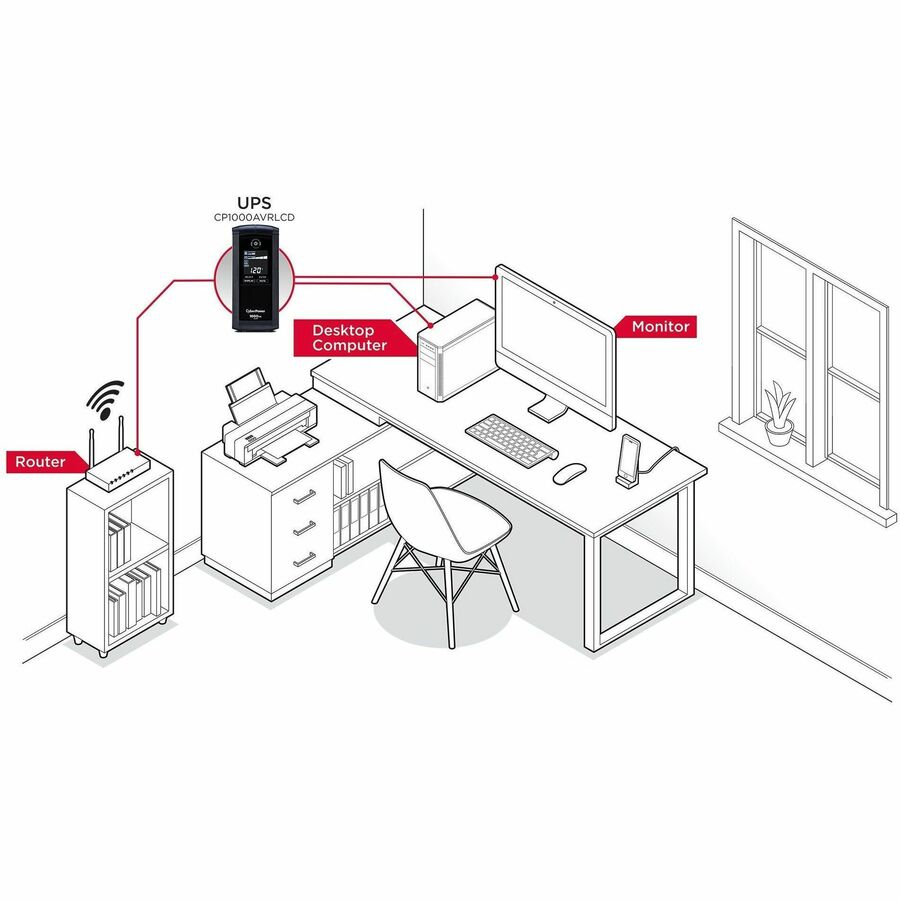

  • A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000AVRLCD comes with a three-year warranty (including coverage of batteries) and a

  • 350,000 Connected Equipment Guarantee.

    More from the Manufacturer


Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

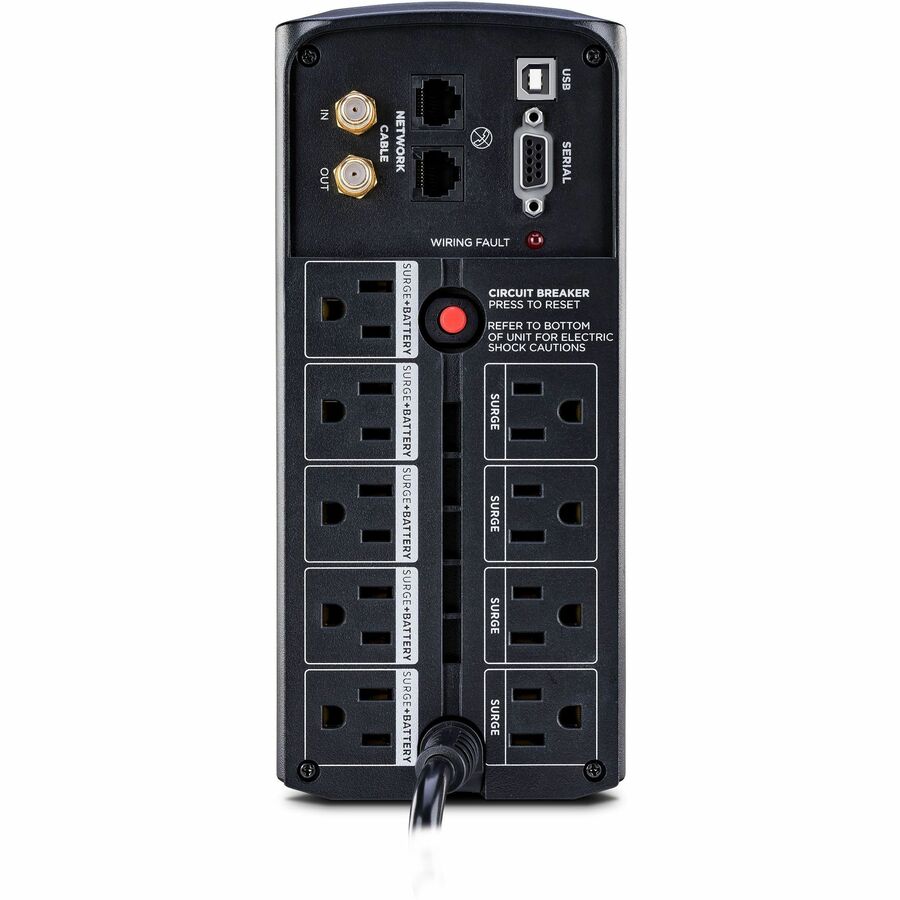

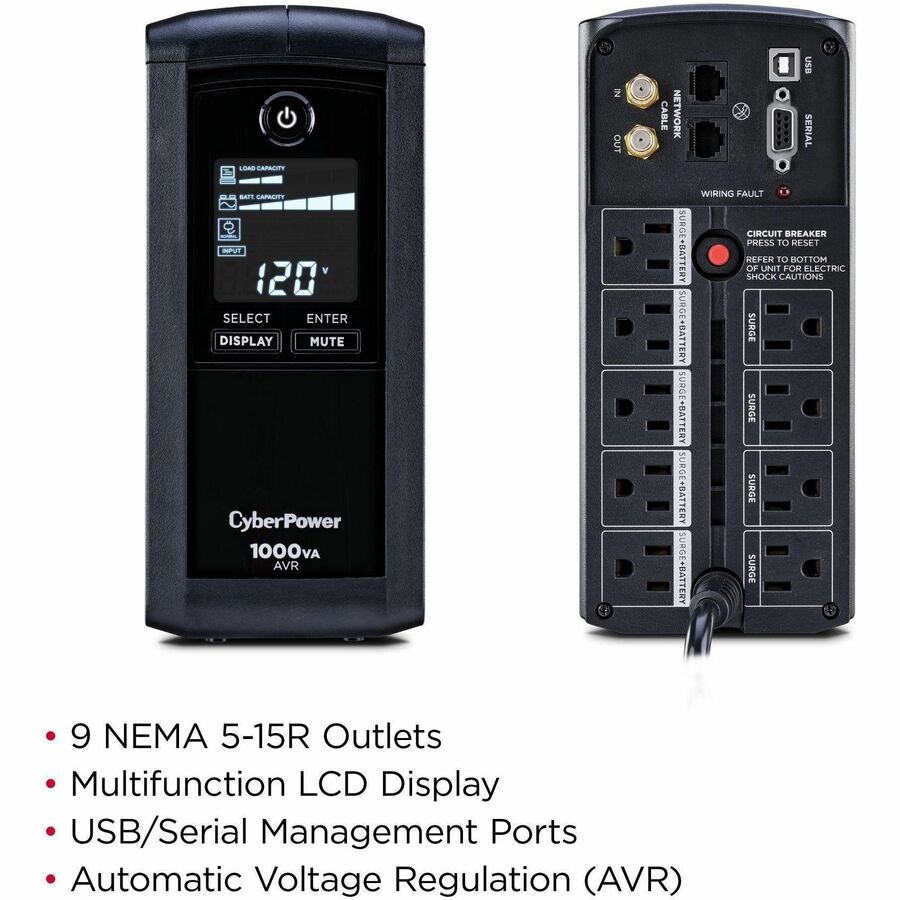

Receptacle Detail: 9 x NEMA 5-15R
Number of Battery & Surge Outlets: 5
Number of Surge-only Outlets: 4
Dataline Protection: RJ-45,RG-6
Overload Protection: Yes
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Input Voltage Range: 90 V AC - 142 V AC
Output Voltage: 120 V AC
Input Frequency: 50 Hz,60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave,Simulated Sine Wave
Surge Energy Rating: 1080 J
Circuit Breaker: Yes
Output Power Factor: 0.6

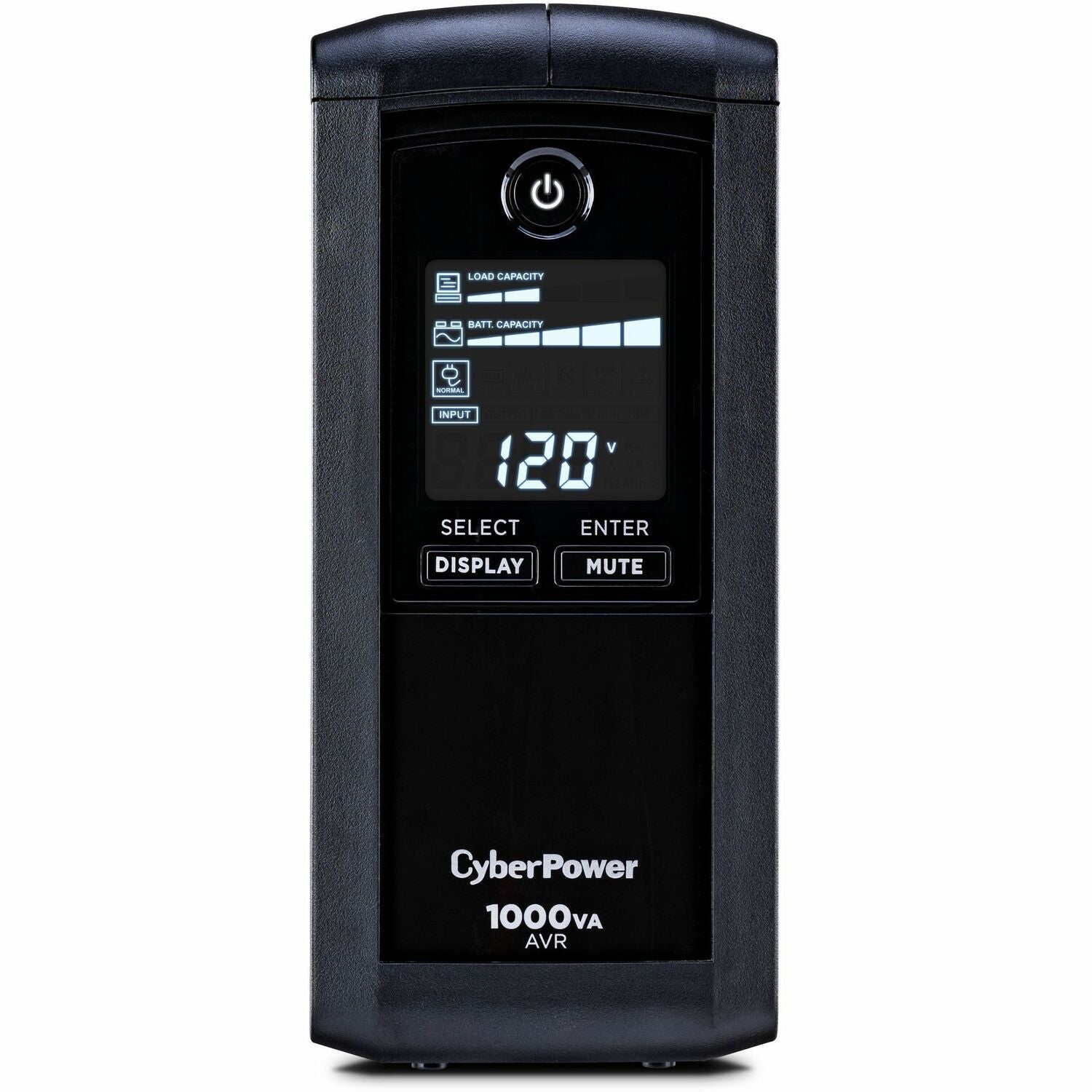

Display & Graphics

Display: LCD

Management

Alarm: Battery Mode

Controls/Indicators

Status Indicators: Power on

Interfaces/Ports

Serial Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

Number of Batteries: 1
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 9 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Product Color: Black
Height: 11" (279.40 mm)
Width: 3.90" (99.06 mm)
Depth: 14" (355.60 mm)
Form Factor: Mini-tower
Weight (Approximate): 15 lb (6803.89 g)

Miscellaneous

Package Contents:
  • Intelligent LCD CP1000AVRLCD 1000VA Tower UPS
  • User's Manual
  • USB Cable
  • Software Download Card
  • Registration Information Card

Software Included: PowerPanel Personal Edition Software
Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
