Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: CP1000PFCLCD
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: PFC Sinewave UPS
Product Model: CP1000PFCLCD
Product Name: CP1000PFCLCD PFC Sinewave UPS Systems
Marketing Information:
-
A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1000PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.
The CP1000PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.
The CP1000PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000PFCLCD comes with a three-year warranty (including coverage of batteries) and a
- 350,000 Connected
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: USB Type A,NEMA 5-15R,USB Type C

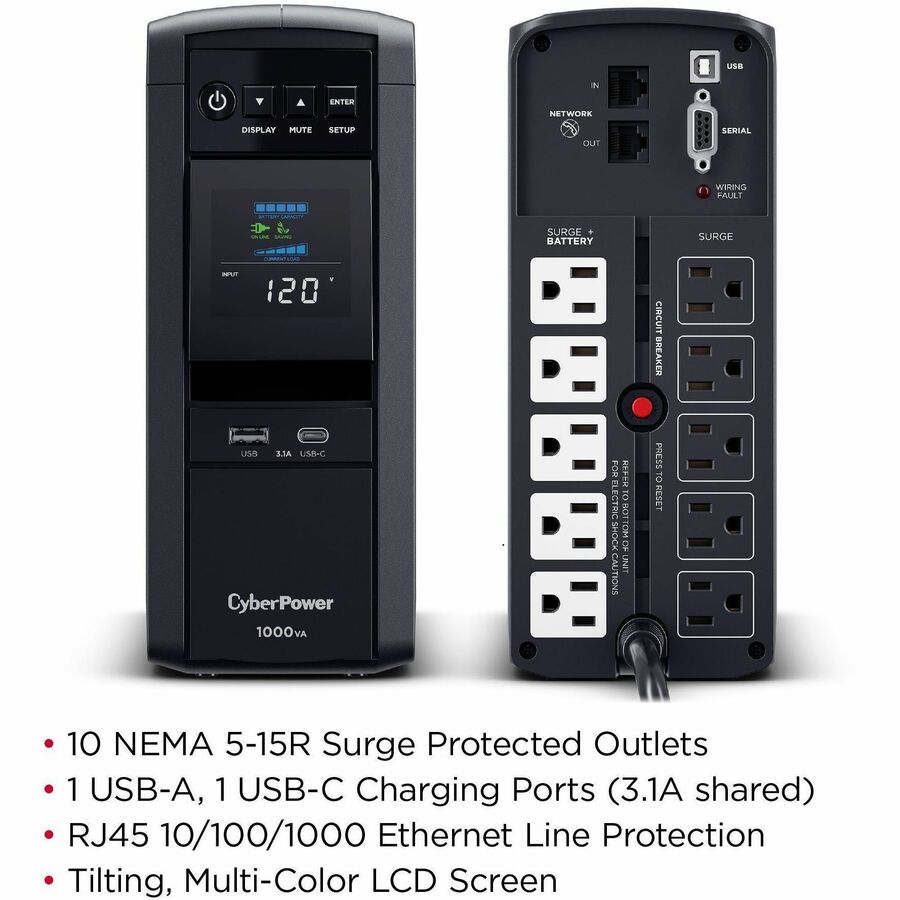

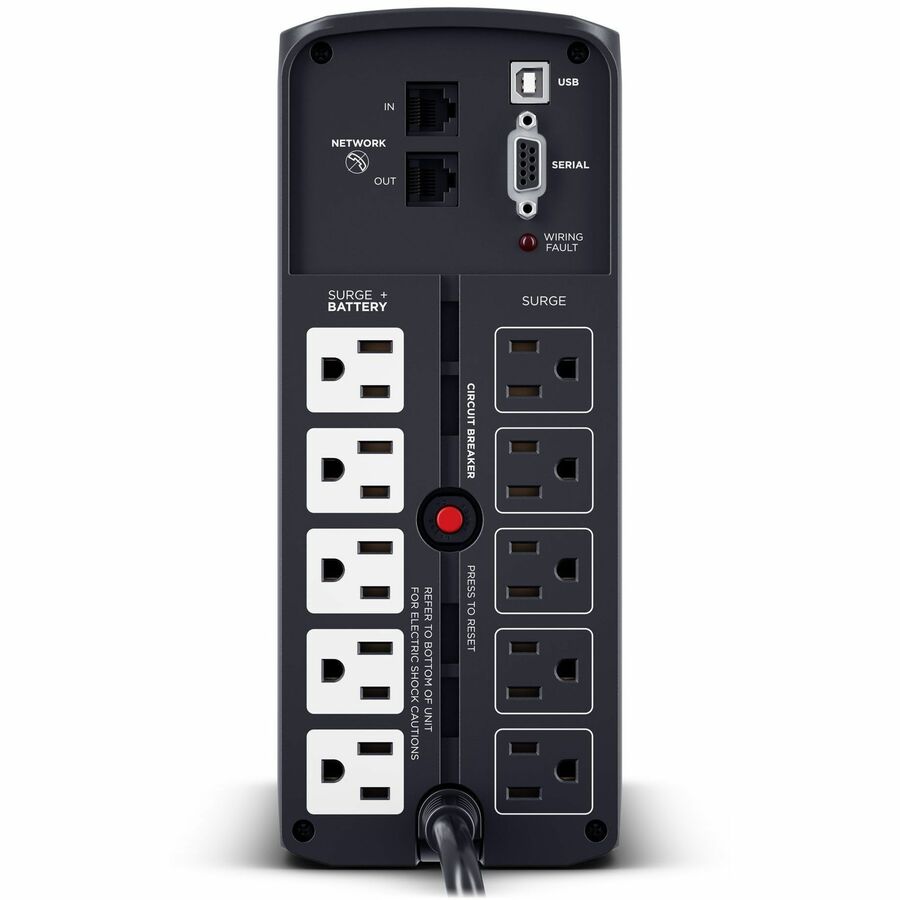

Receptacle Detail: 10 x NEMA 5-15R,1 x USB Type A,1 x USB Type C
Number of Battery & Surge Outlets: 5
Number of Surge-only Outlets: 5
Dataline Protection: RJ-45
Overload Protection: Yes
Cord Length: 5 ft (1.52 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS Bypass Technology
Application/Usage: Desktop Computer,Workstation,Home Theater,Electronic Equipment,Home Network,Router,Modem,VoIP Phone System
Surge Suppression: Yes
Features: Audible Alarm
Power Description
Load Capacity (VA): 1 kVALoad Capacity (Watt): 600 W
Input Voltage: 120 V AC
Input Voltage Range: 88 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 57 Hz,63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1150 J
Circuit Breaker: Yes
Output Power Factor: 0.6
Display & Graphics
Display: LCDManagement
Network Management: Relay-MS Card,Dry ContactAlarm: Battery Mode
Controls/Indicators
Status Indicators:- Power On
- Wiring Fault
Interfaces/Ports
Serial Port: YesUSB: Yes
EPO Port: No
USB (HID Compliant) Port: Yes
Number of USB Ports: 2
Battery Information
Number of Batteries: 1Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 6 Minute
Hot Swappable: No
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics

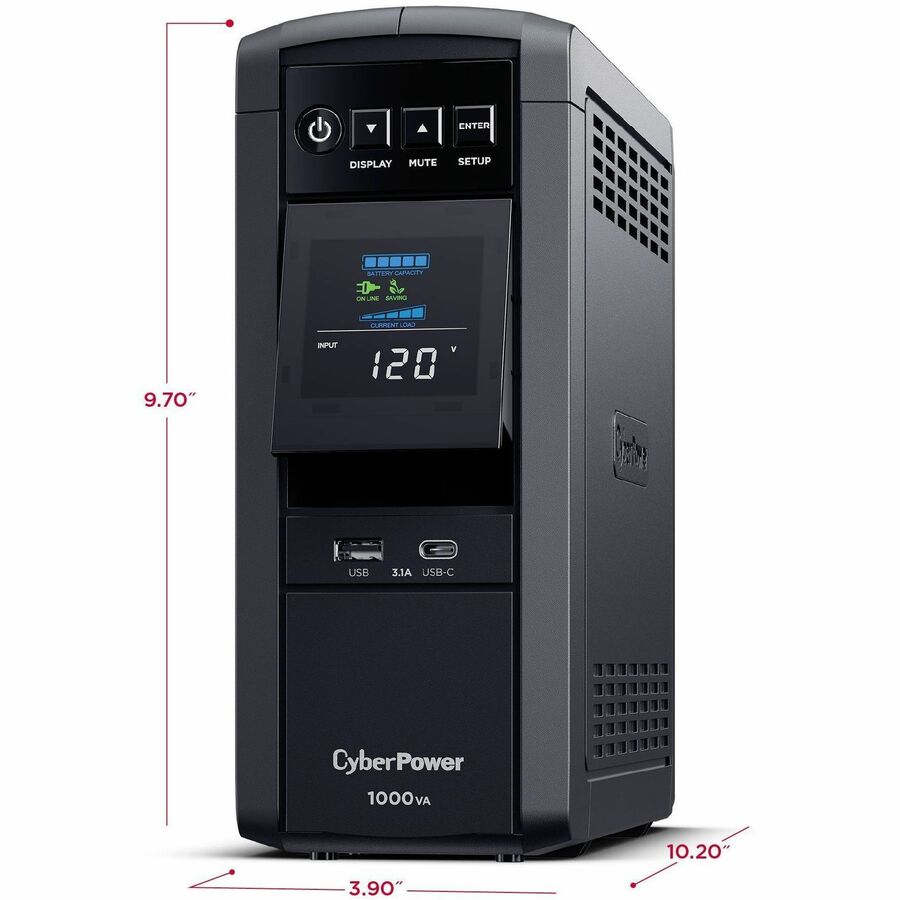

Product Color: BlackHeight: 9.70" (246.38 mm)
Width: 3.94" (100.08 mm)
Depth: 10.24" (260.10 mm)
Form Factor: Mini-tower
Weight (Approximate): 15.39 lb (6980.79 g)
Miscellaneous
Package Contents:- PFC Sinewave CP1000PFCLCD 1000VA Mini-Tower UPS
- User Manual
- Telephone Cable
- PowerPanel Personal Edition Software CD
- Coaxial Cable
- USB A+B Type Cable
- Warranty Registration Card
- Function Setup Guide
Software Included: PowerPanel Personal Edition Software
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information: Three-year warranty (including coverage of batteries)
