Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: CP1500AVRLCD3
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: Intelligent LCD
Product Series: Intelligent LCD UPS
Product Model: CP1500AVRLCD3
Product Name: CP1500AVRLCD3 Intelligent LCD UPS Systems
Marketing Information:
A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a
- 500,000 Connected Equipment Guarantee.
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: USB Type A,USB Type C,NEMA 5-15R

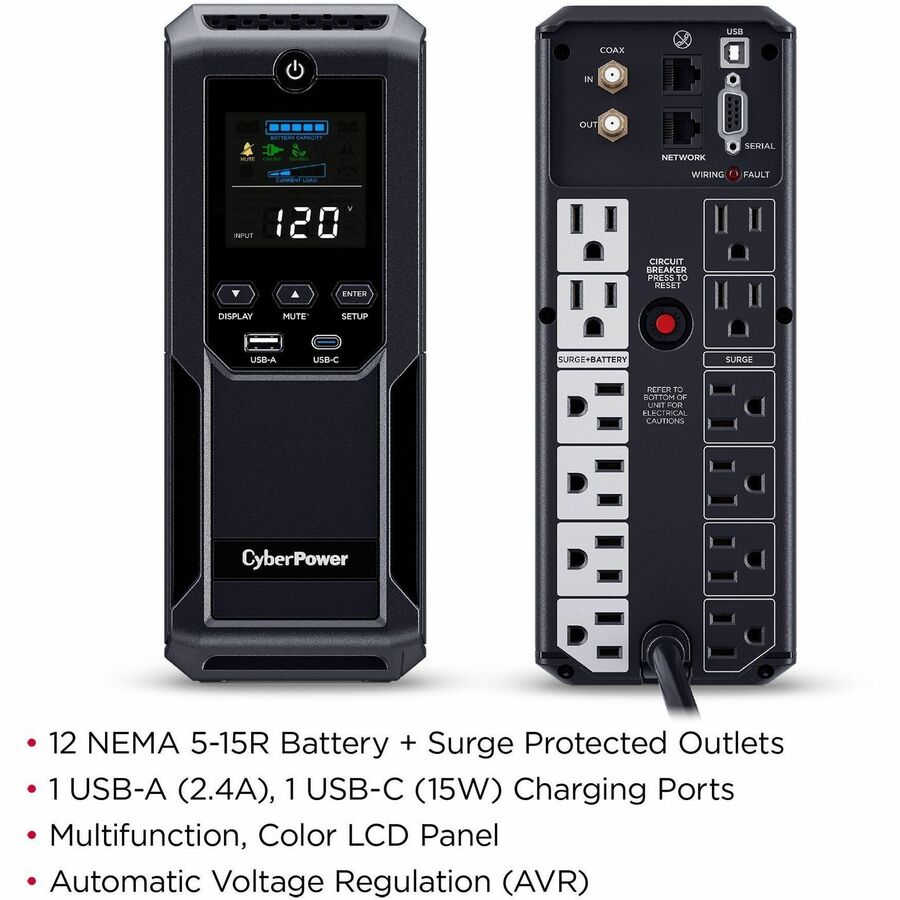

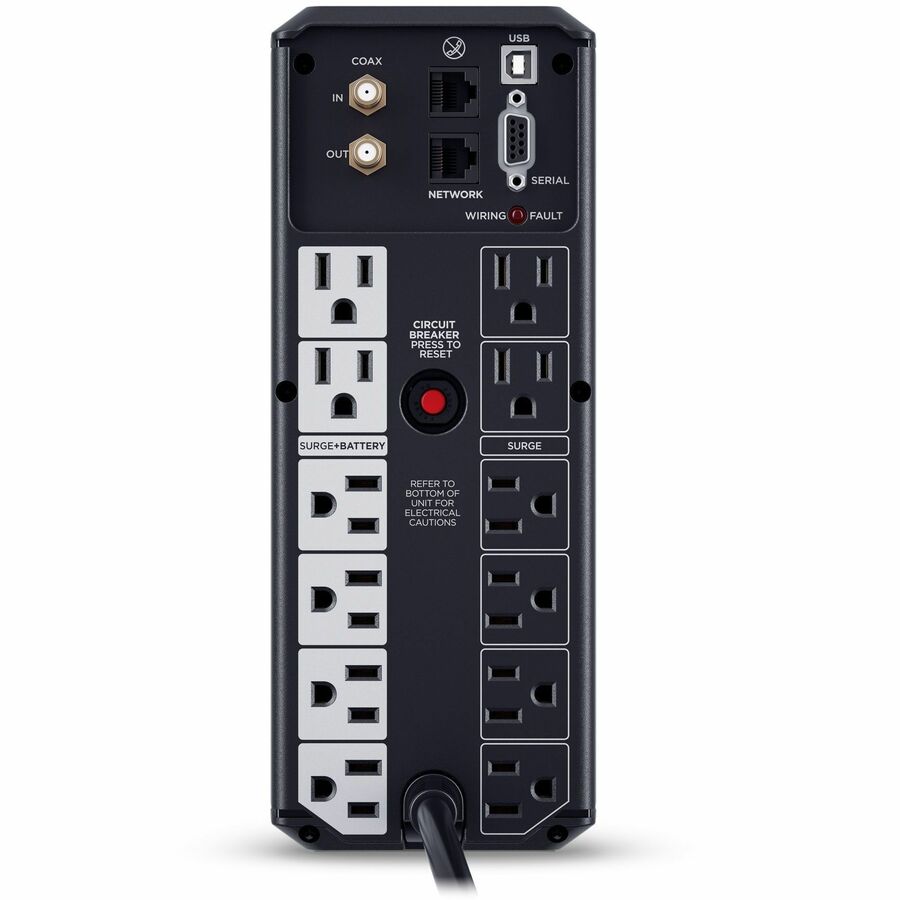

Receptacle Detail: 1 x USB Type A,1 x USB Type C,12 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 6
Dataline Protection: RJ-45,RG-6
Overload Protection: Yes
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: Desktop Computer,Workstation,Network Device,Home Entertainment System,SOHO Network,Computer Peripheral,Home Theater,Equipment,Personal Electronic,Home Network,Router,Modem,VoIP Phone System
Surge Suppression: Yes
Features: Audible Alarm
Power Description
Load Capacity (VA): 1.50 kVALoad Capacity (Watt): 900 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Input Frequency: 50 Hz,60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave,Simulated Sine Wave
Surge Energy Rating: 1500 J
Circuit Breaker: Yes
Output Power Factor: 0.6
Display & Graphics
Display: LCDManagement
Network Management: RS-232Alarm: Battery Mode,Low Battery,Overload,Fault
Controls/Indicators
Status Indicators:LED Indicators:
- Power On
- Wiring Fault
Interfaces/Ports
Serial Port: YesUSB: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Number of USB Ports: 2
Battery Information
Number of Batteries: 2Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 12 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)

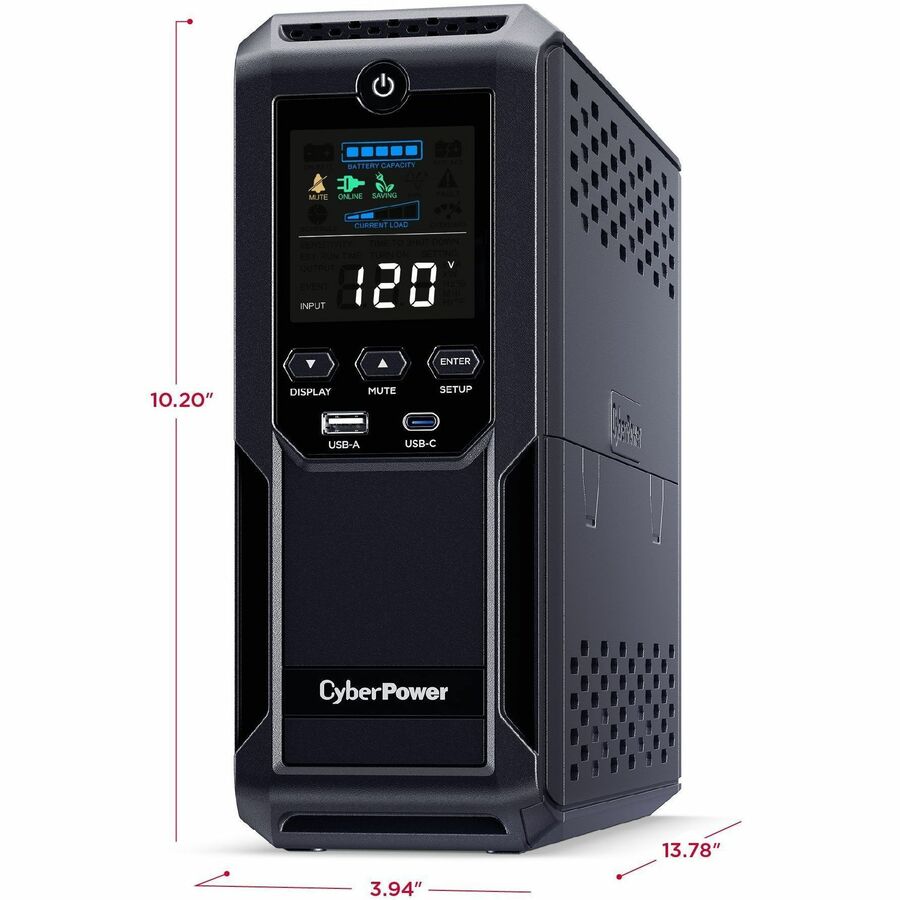

Physical Characteristics
Product Color: BlackHeight: 10.20" (259 mm)
Width: 3.94" (100 mm)
Depth: 13.78" (350 mm)
Form Factor: Mini-tower
Weight (Approximate): 23.81 lb (10800 g)
Miscellaneous
Energy Star: YesEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information:
Three-year warranty (including coverage of batteries)
