Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: CP1500PFCLCD
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: PFC Sinewave UPS
Product Model: CP1500PFCLCD
Product Name: CP1500PFCLCD PFC Sinewave UPS Systems
Marketing Information:
-

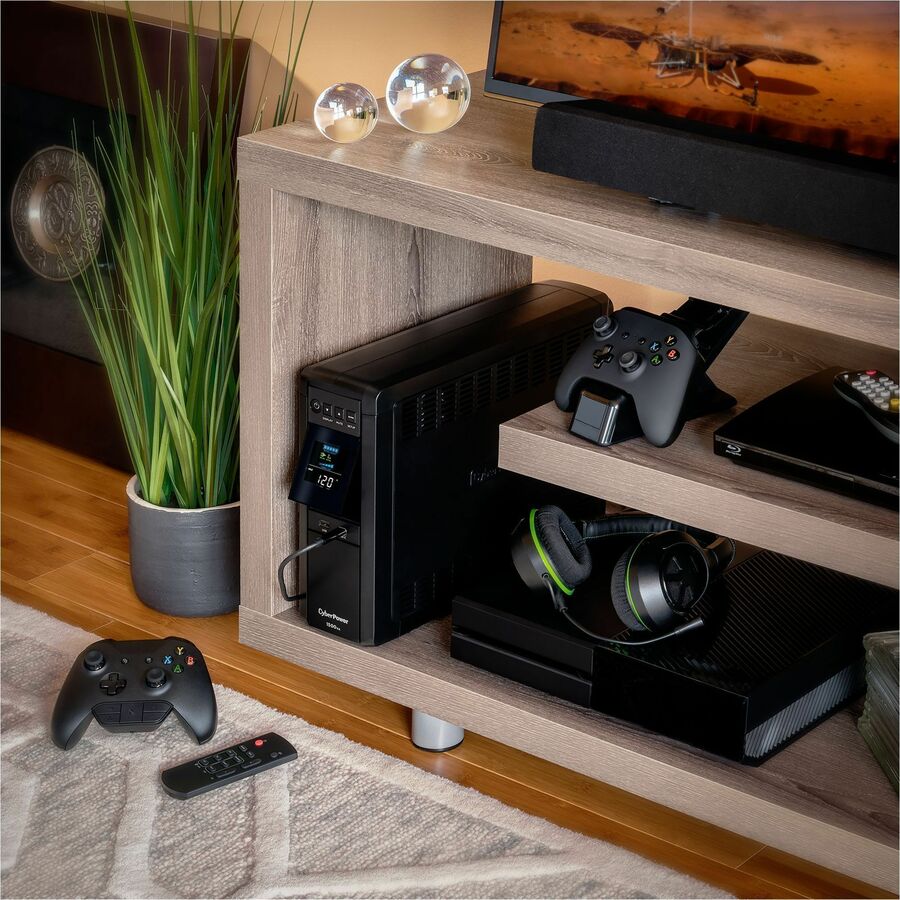

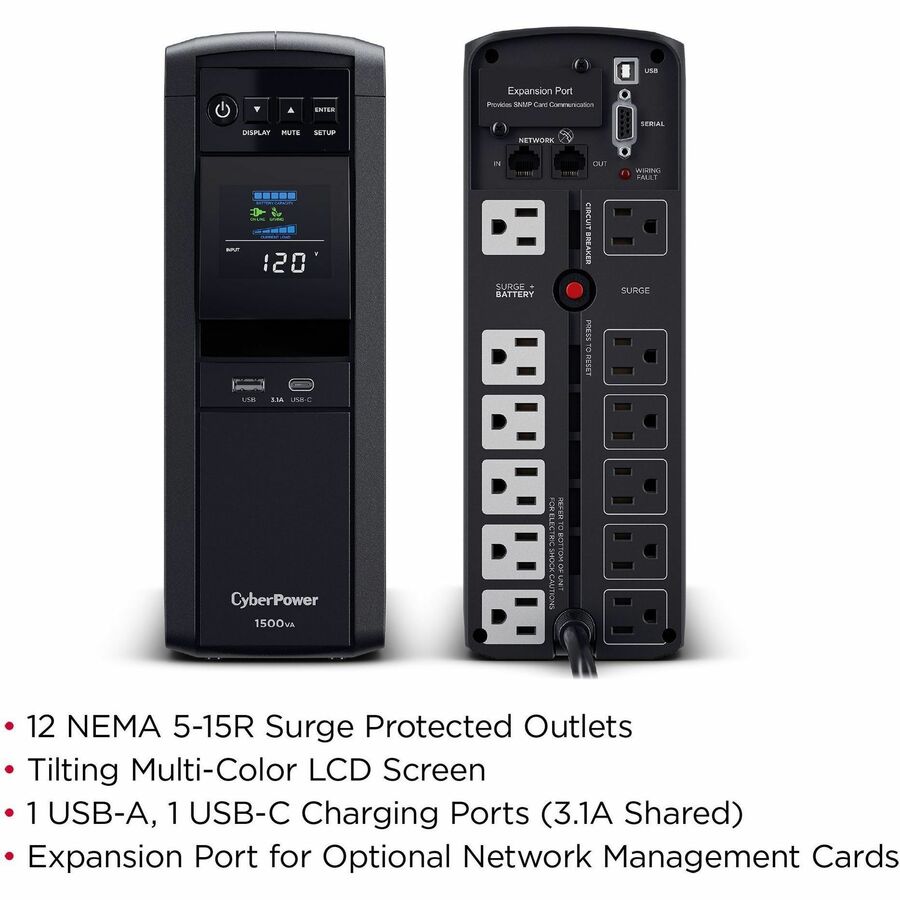

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

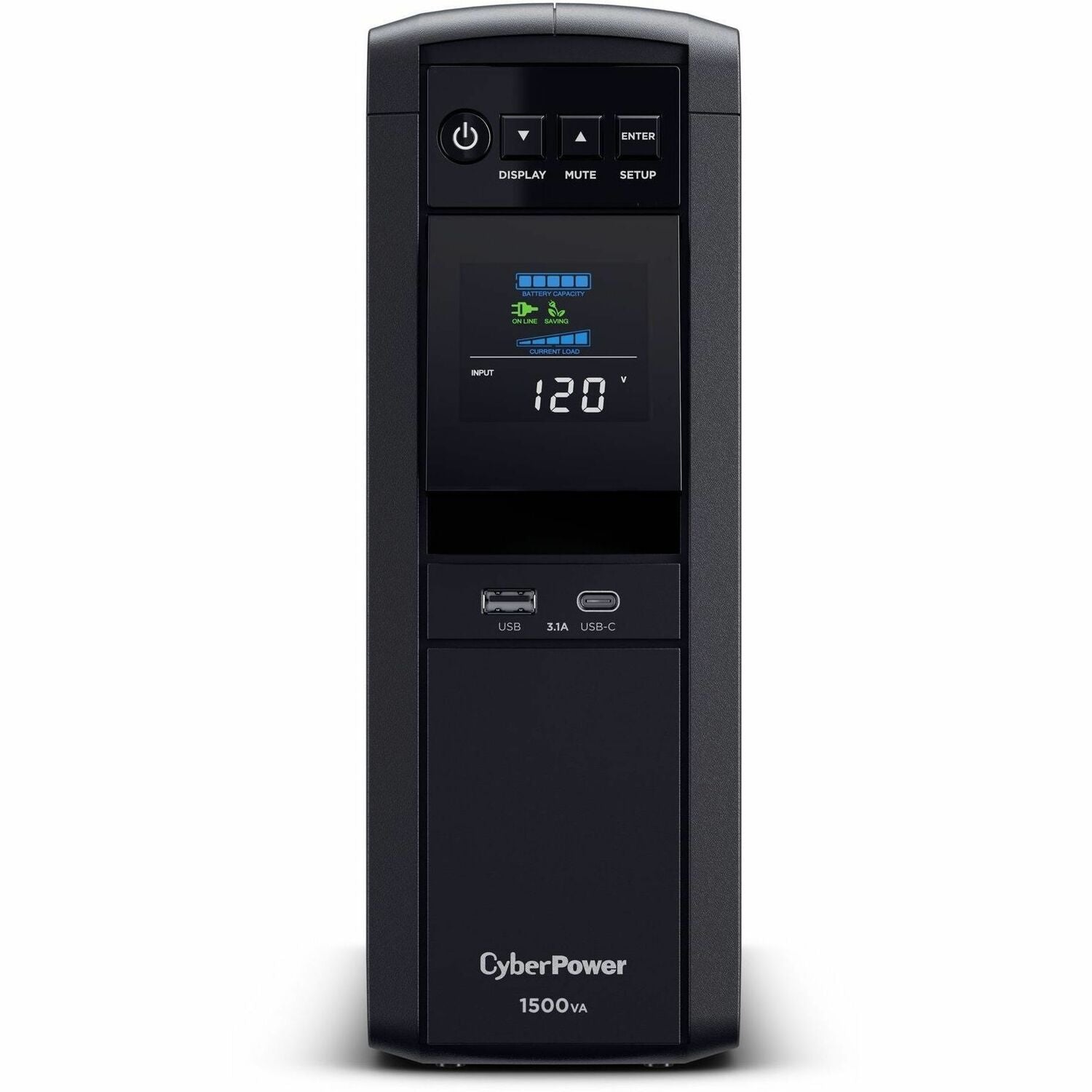

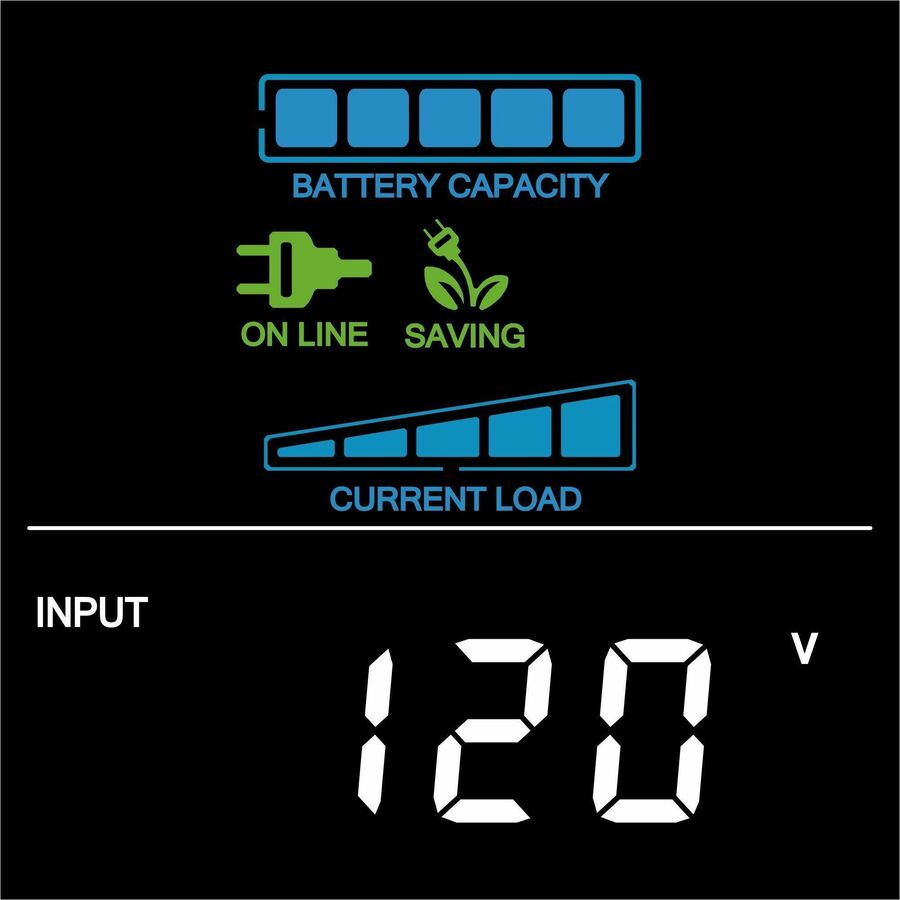

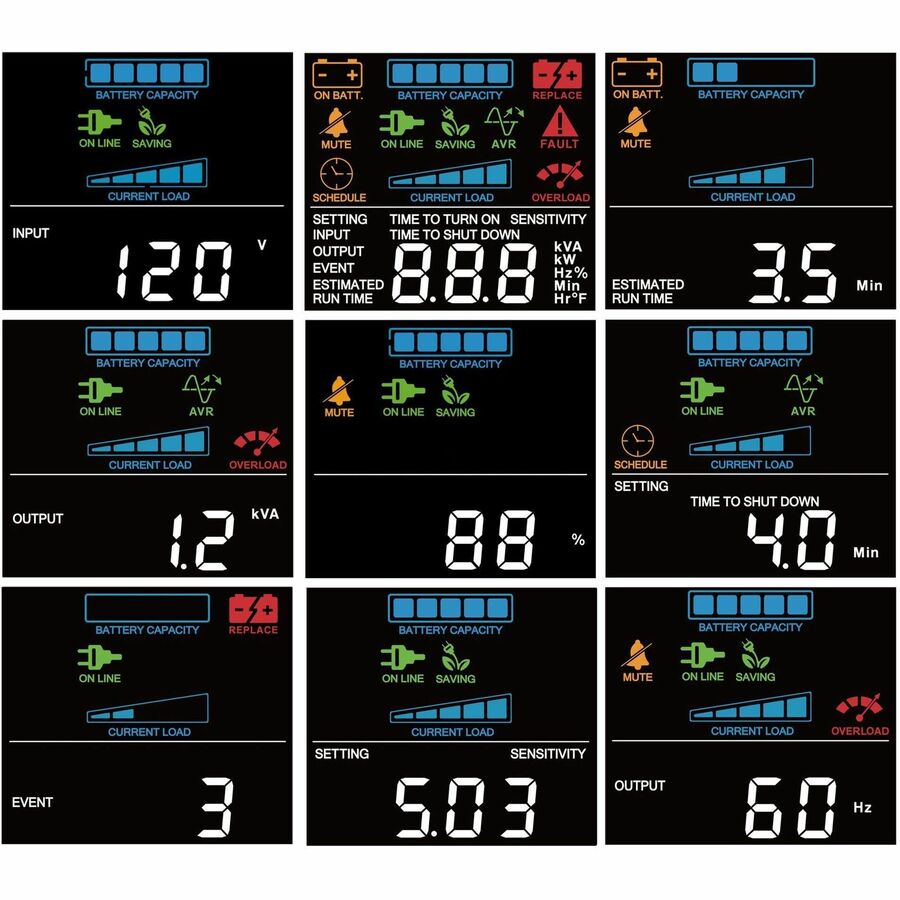

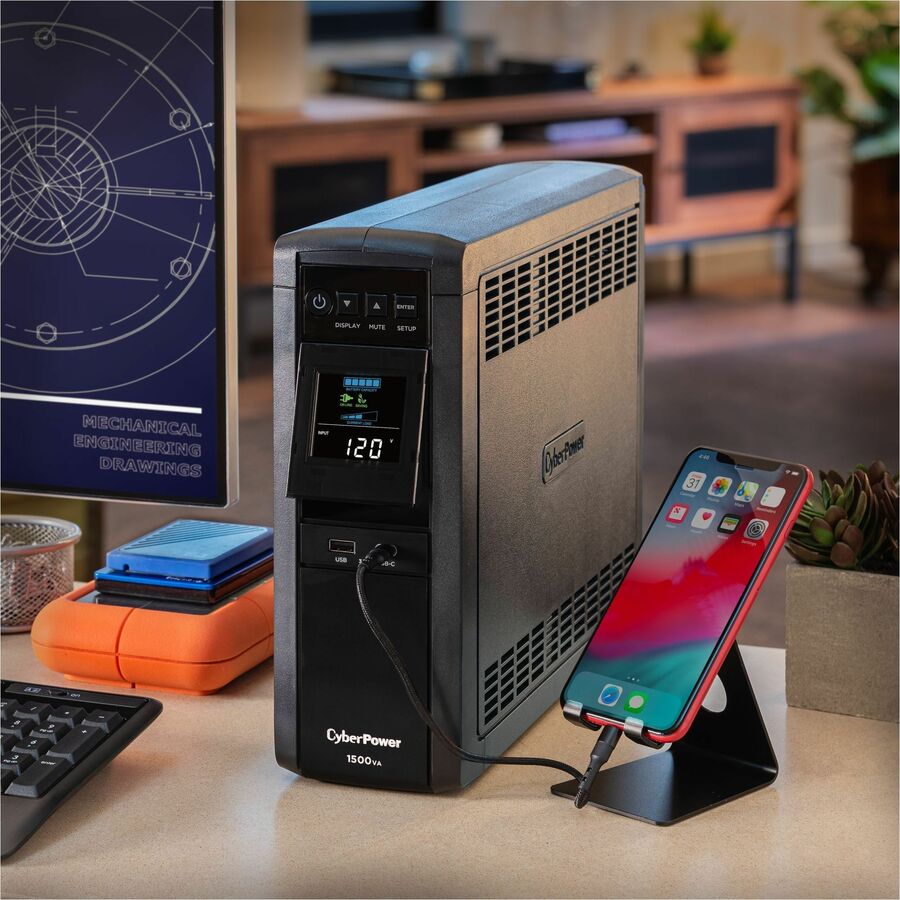

The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.
The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a
- 500,000 Connected
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P

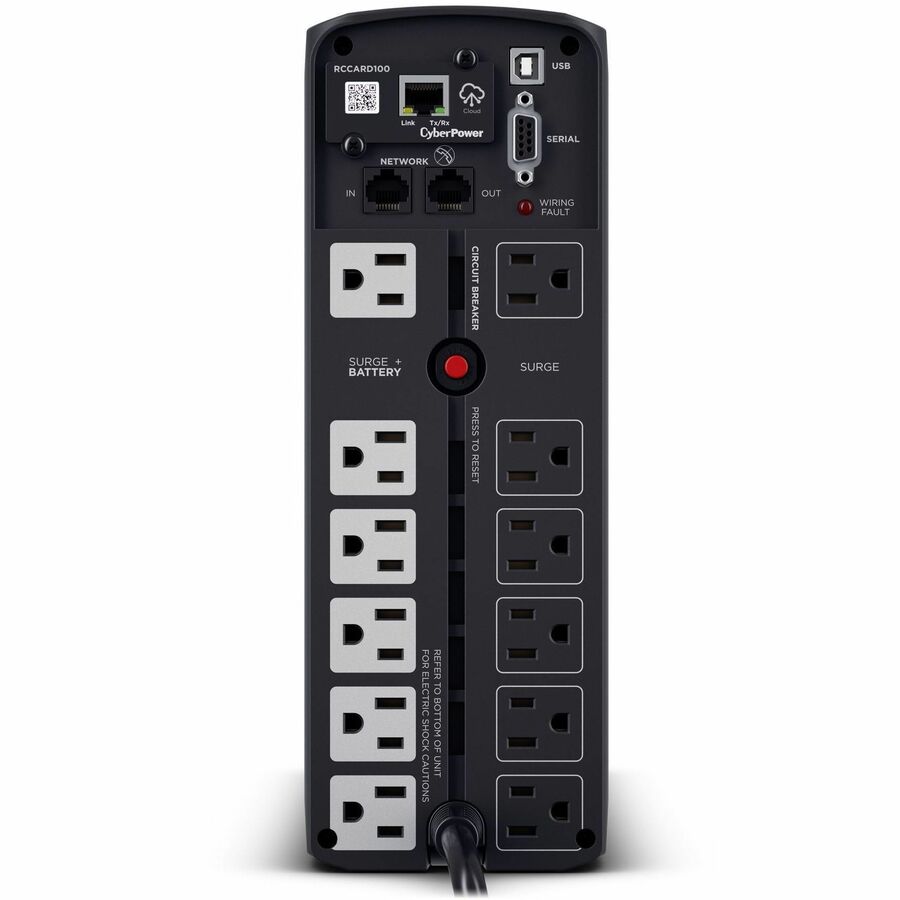

Receptacle Type: NEMA 5-15R,USB Type A
Receptacle Detail: 12 x NEMA 5-15R,2 x USB Type A
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 6
Dataline Protection: RJ-45
Overload Protection: Yes
Cord Length: 5 ft (1.52 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Features: Audible Alarm
Power Description
Load Capacity (VA): 1.50 kVALoad Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Input Voltage Range: 88 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 57 Hz,63 Hz,50 Hz,60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1445 J
Circuit Breaker: Yes
Output Power Factor: 0.7
Display & Graphics
Display: LCDManagement

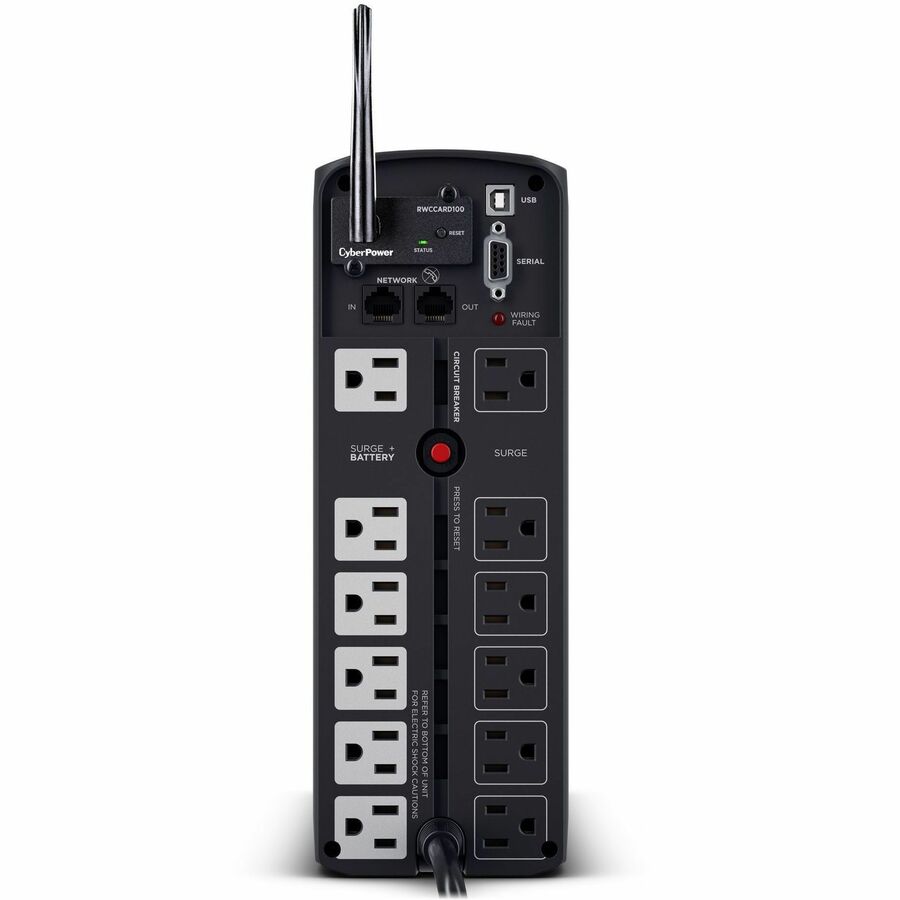

Network Management: SNMP/HTTP Remote Monitoring,Dry ContactAlarm: Low Battery,Overload,Fault,On Battery,Battery Mode
Controls/Indicators
Status Indicators:- Power On
- Wiring Fault
Interfaces/Ports
Serial Port: YesUSB: Yes
EPO Port: No
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 12 V DCNumber of Batteries: 2
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2.50 Minute
Backup/Run Time (Half Load): 10 Minute
Hot Swappable: No
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics

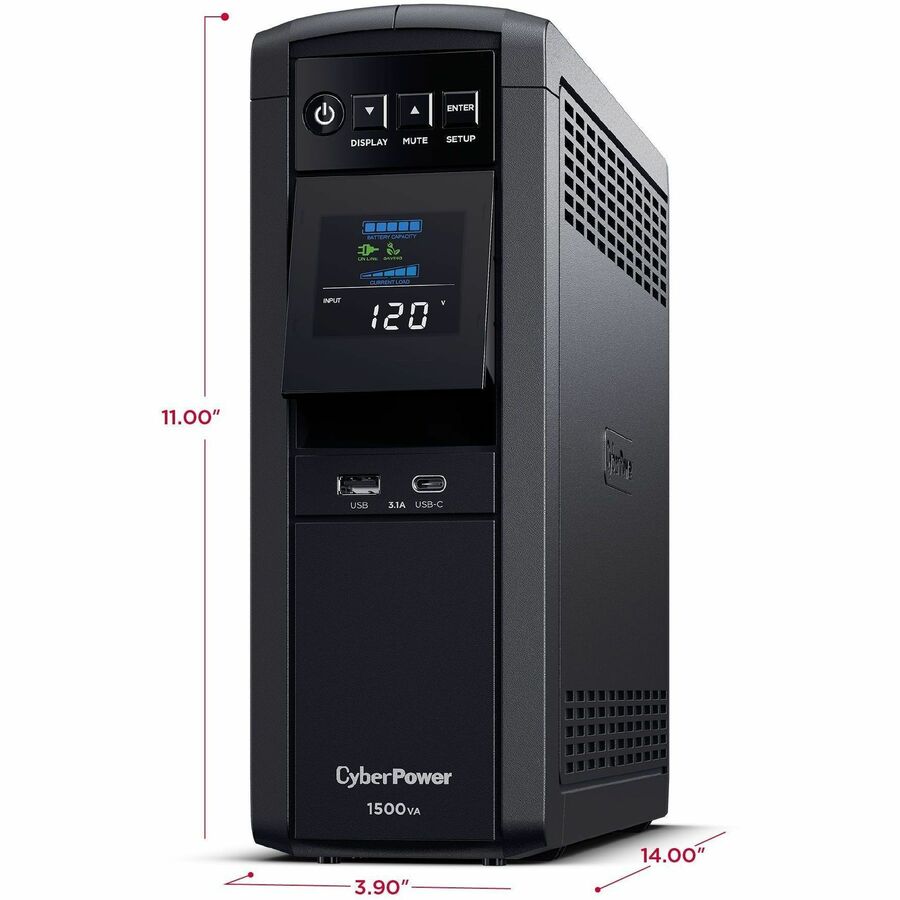

Product Color: BlackHeight: 11" (279.40 mm)
Width: 3.90" (99.06 mm)
Depth: 14" (355.60 mm)
Form Factor: Mini-tower
Weight (Approximate): 24.90 lb (11294.45 g)
Miscellaneous
Package Contents:- CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave
- PowerPanel Personal Edition Software
- USB Cable
- User Manual
- Registration Card
- Coax Cable
Software Included: PowerPanel® Business
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
