Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: CP1500PFCRM1U
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: PFC Sinewave
Product Model: CP1500PFCRM1U
Product Name: CP1500PFCRM1U PFC Sinewave UPS Systems
Marketing Information:
-
The CP1500PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
The CP1500PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card.
The CP1500PFCRM1U comes with a three-year warranty (including coverage of batteries) and a
- 300,000 Connected Equipment Guarantee.
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

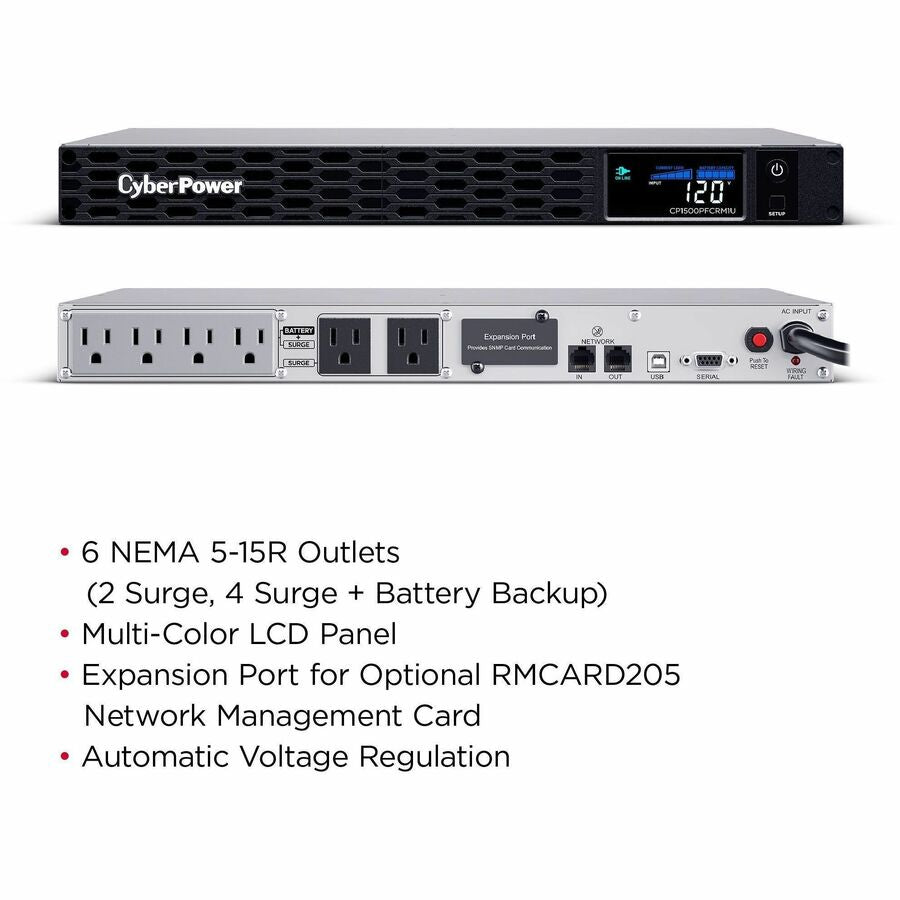

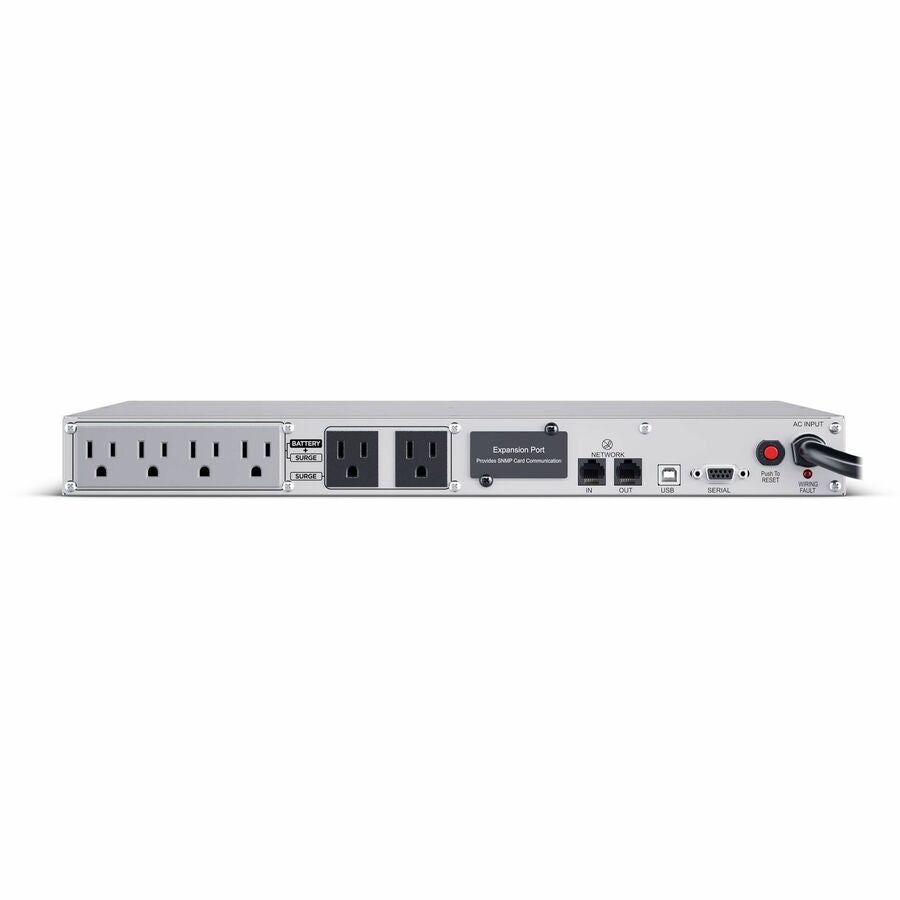

Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 2
Dataline Protection: RJ-45
Overload Protection: Yes
Cord Length: 10 ft (3.05 m)
Transfer Time: 8 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS Bypass Technology
Application/Usage: Security System,Audio/Video Equipment,Workstation,Corporate,Server,Network Device,Telecommunication
Surge Suppression: Yes
Features: Audible Alarm
Power Description
Load Capacity (VA): 1.50 kVALoad Capacity (Watt): 900 W
Input Voltage: 120 V AC
Input Voltage Range: 88 V AC - 144 V AC,97 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 57 Hz,63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1150 J
Circuit Breaker: Yes
Output Power Factor: 0.6
Display & Graphics
Display: LCDManagement
Network Management: Dry Contact,SNMP/HTTP Remote MonitoringAlarm: Battery Mode,Low Battery,Overload,Fault
Controls/Indicators
Status Indicators:LED Indicators:
- Power On
- Wiring Fault
Interfaces/Ports
Serial Port: YesUSB: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 4Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 6V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 1.60 Minute
Backup/Run Time (Half Load): 10 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics

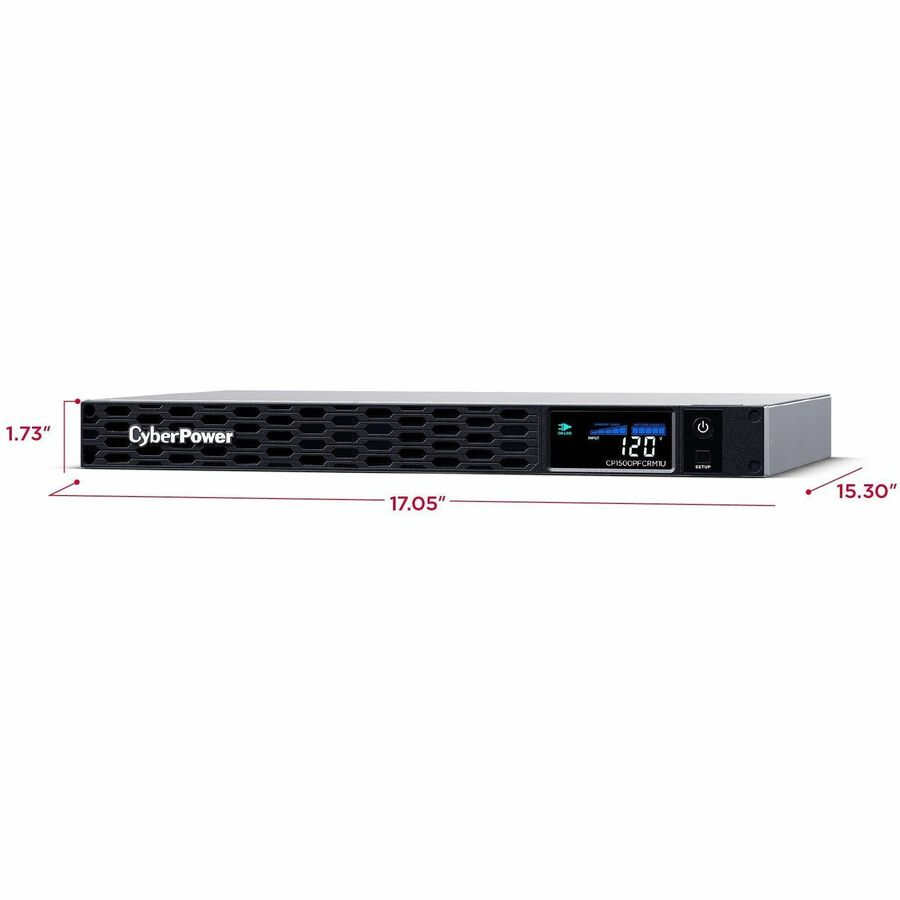

Product Color: BlackHeight: 1.73" (44 mm)
Width: 17.05" (433 mm)
Depth: 15.31" (389 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 34 lb (15420 g)
Miscellaneous
Energy Star: YesEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information:
Three-year warranty (including coverage of batteries)
