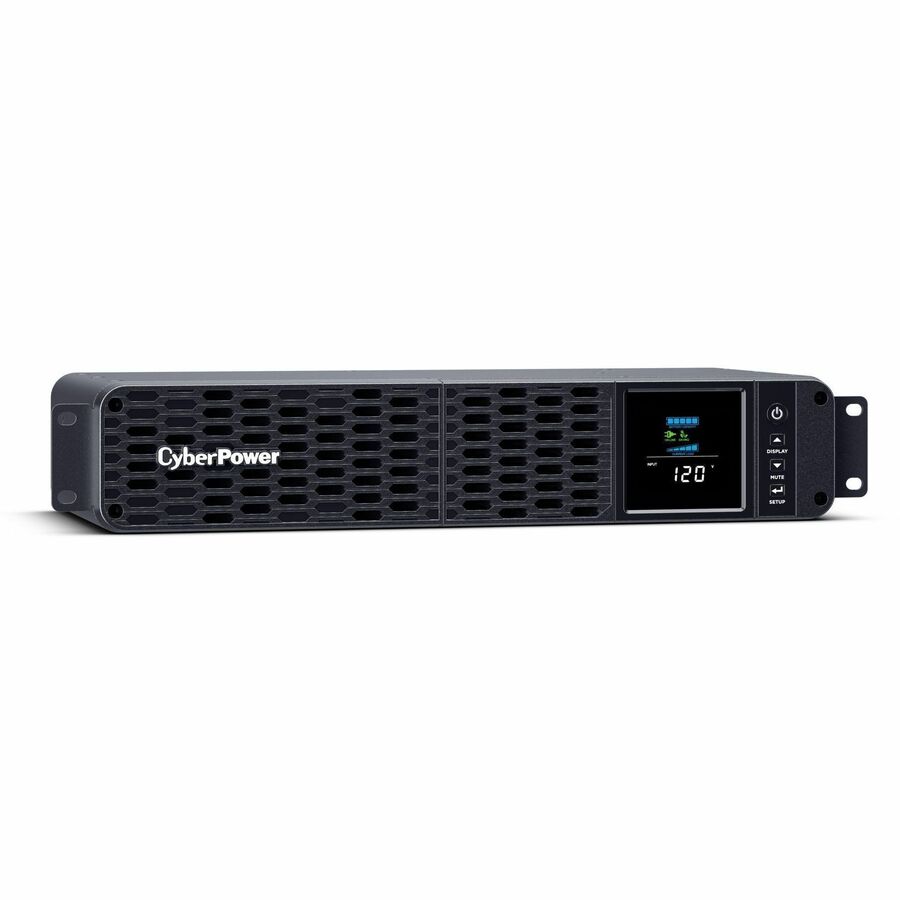

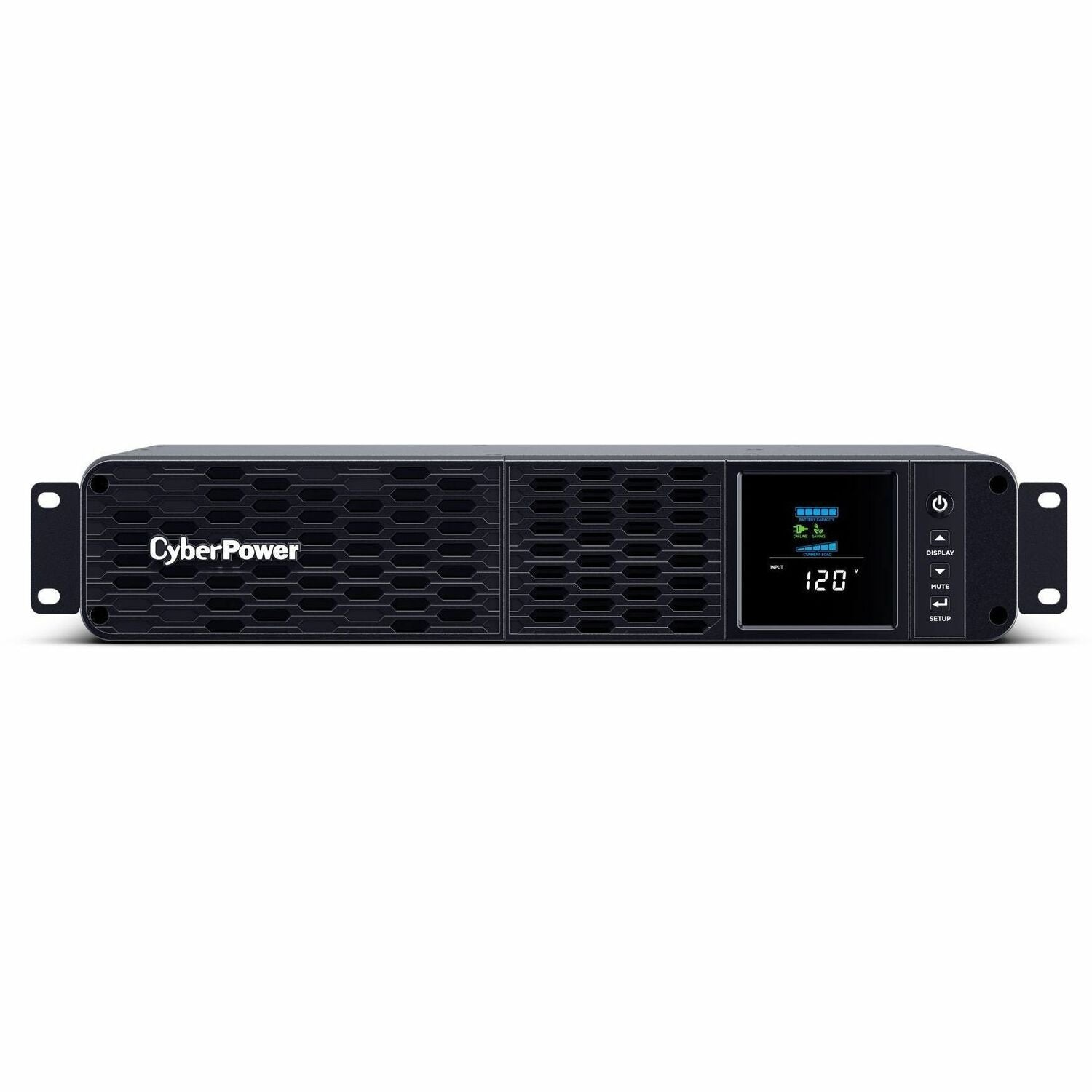

CP2000PFCRM2U CyberPower CP2000PFCRM2U PFC Sinewave UPS Systems

General Information

Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: CP2000PFCRM2U
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: PFC Sinewave UPS
Product Model: CP2000PFCRM2U
Product Name: CP2000PFCRM2U PFC Sinewave UPS Systems
Marketing Information:

The CP2000PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

The CP2000PFCRM2U is equipped with Automatic Voltage Regulation (AVR) technology, enabling it to stabilize minor voltage fluctuations without engaging the battery, thereby extending battery life. It features an advanced multifunction control interface with a color LCD, providing real-time system status and alert notifications for at-a-glance monitoring. For enhanced system oversight, remote management and monitoring capabilities are supported via optional Remote Network Management Card or Cloud Monitoring Card integration. With a compact chassis depth of just 10.8 inches, the CP2000PFCRM2U is optimized for deployment in shallow-depth rack environments where space constraints are a critical consideration.

The CP2000PFCRM2U comes wit
Product Type: Line-interactive UPS

Technical Information

AVR: Yes

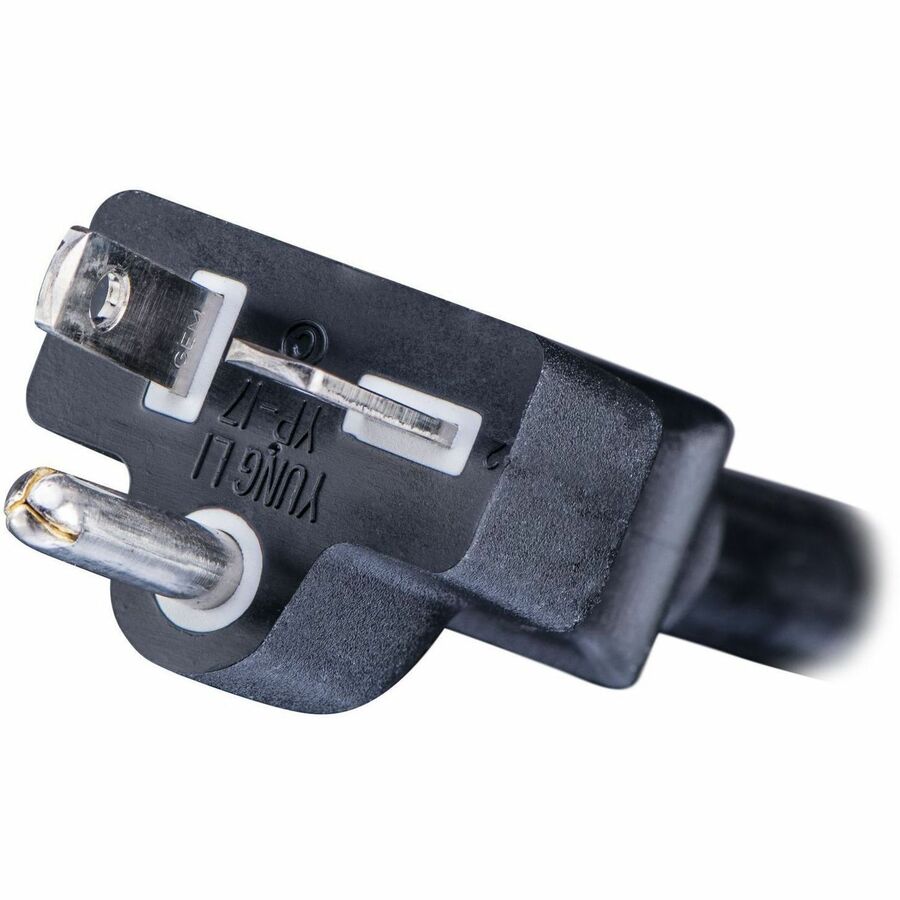

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20R

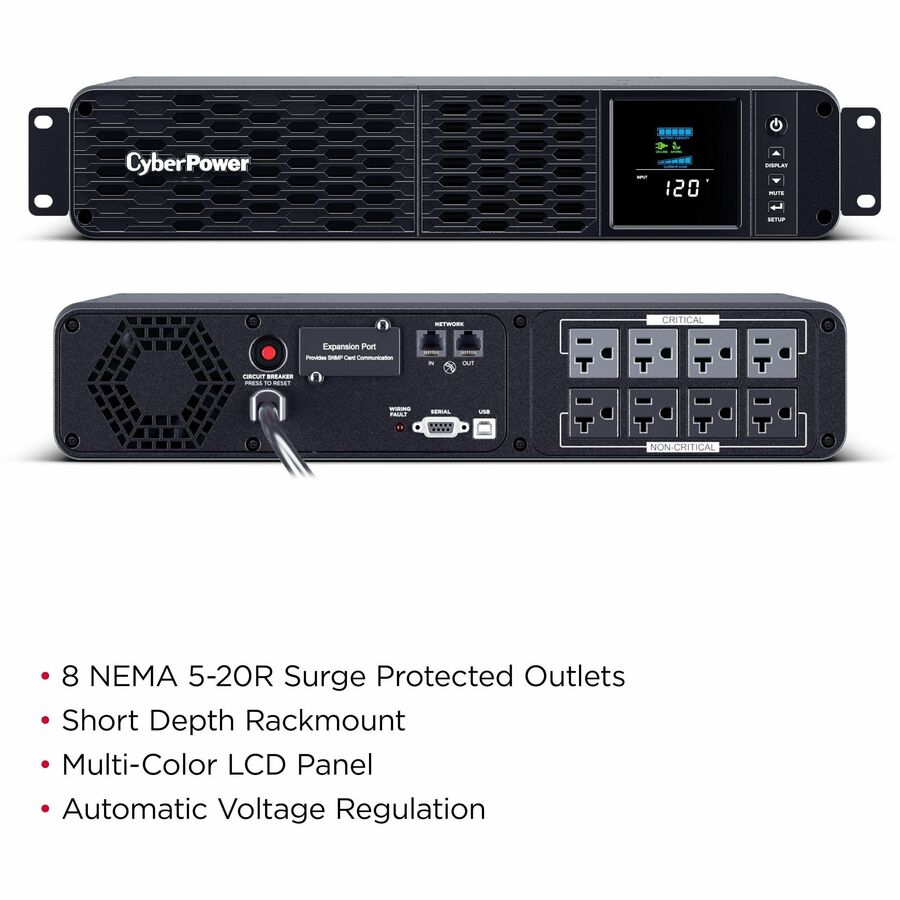

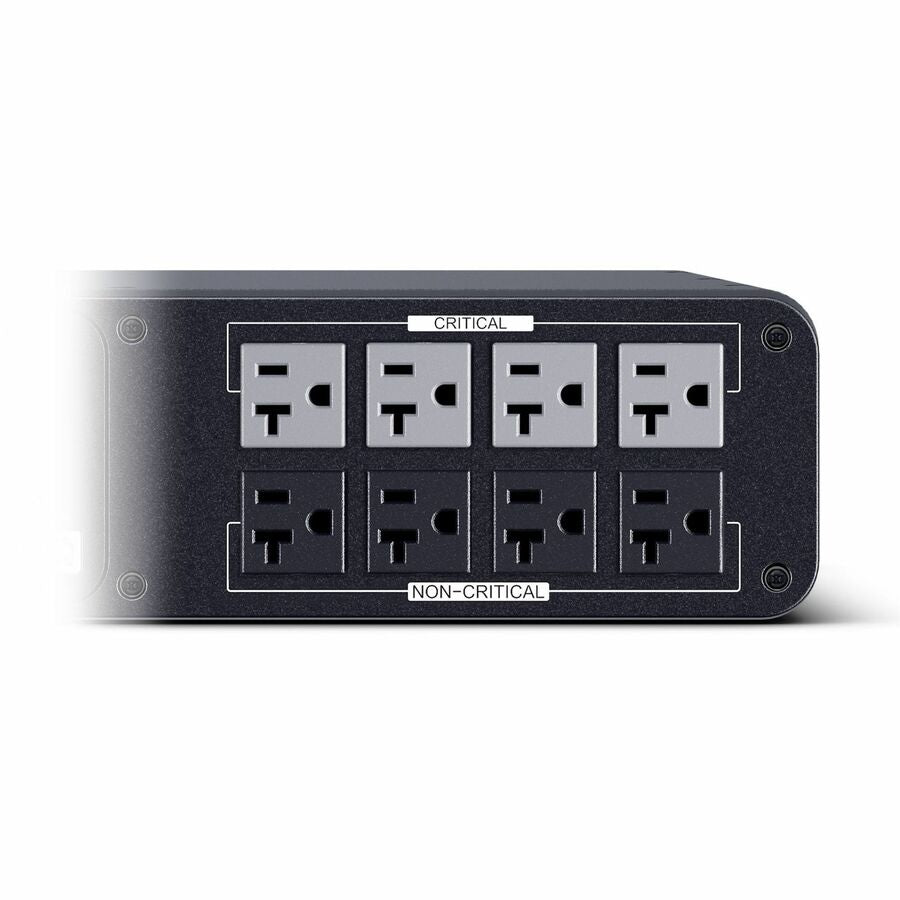

Receptacle Detail: 8 x NEMA 5-20R
Number of Battery & Surge Outlets: 8
Dataline Protection: RJ-45
Overload Protection: Yes
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: Security System,Audio/Video Equipment,Network Equipment
Surge Suppression: Yes
Features: Audible Alarm

Power Description

Load Capacity (VA): 2 kVA
Load Capacity (Watt): 1.20 kW
Input Voltage: 120 V AC
Input Voltage Range: 88 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 50 Hz,60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1500 J
Circuit Breaker: Yes
Output Power Factor: 0.6

Display & Graphics

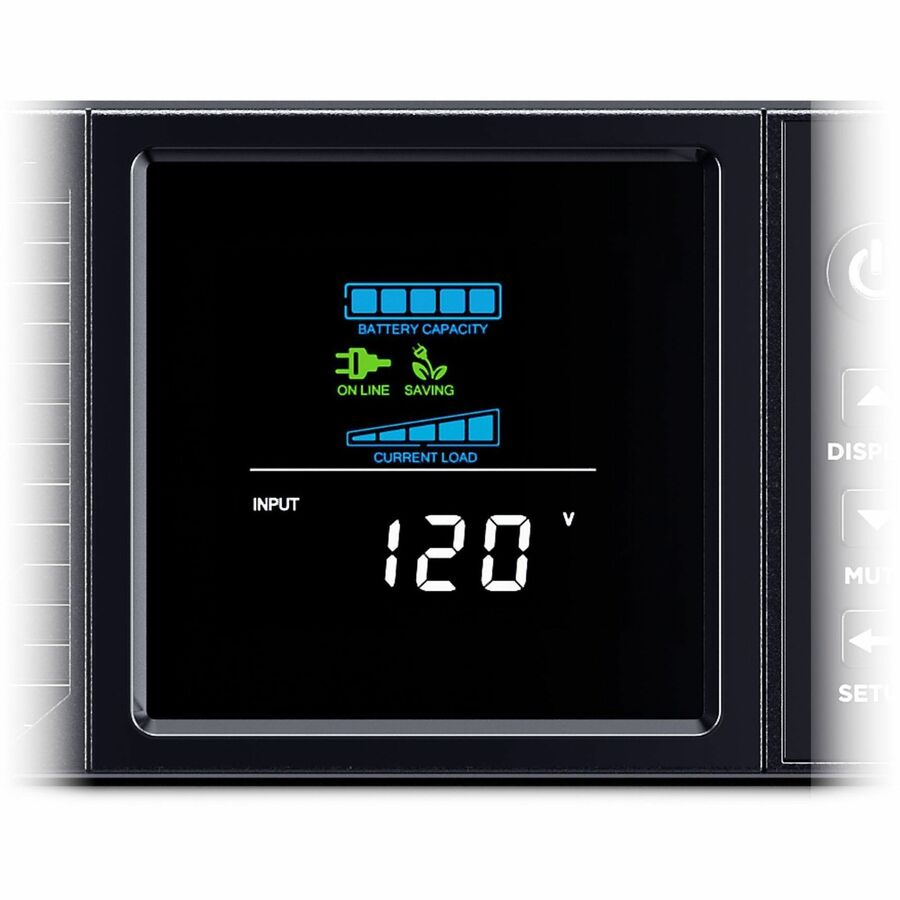

Display: LCD

Management

Network Management: Dry Contact,SNMP/HTTP Remote Monitoring
Alarm: Battery Mode

Controls/Indicators

Status Indicators:

LED Indicators:

• Wiring Fault

Interfaces/Ports

Serial Port: Yes
USB: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes

Battery Information

Number of Batteries: 2
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2.20 Minute
Backup/Run Time (Half Load): 9 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 57.60 BTU/h

Physical Characteristics

Product Color: Black
Height: 3.39" (86.11 mm)
Width: 17.05" (433.07 mm)
Depth: 10.79" (274.07 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 28.68 lb (13010 g)

Miscellaneous

Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
