Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: CP800AVR
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: AVR UPS
Product Model: CP800AVR
Product Name: CP800AVR AVR UPS Systems
Marketing Information:
-

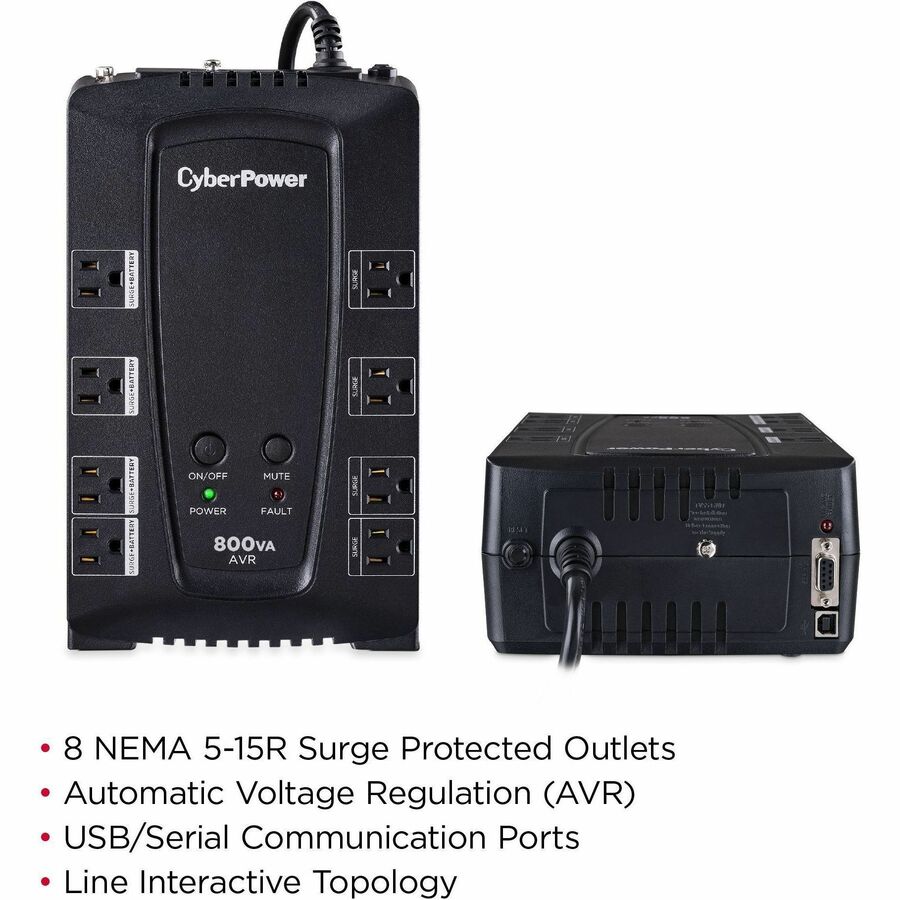

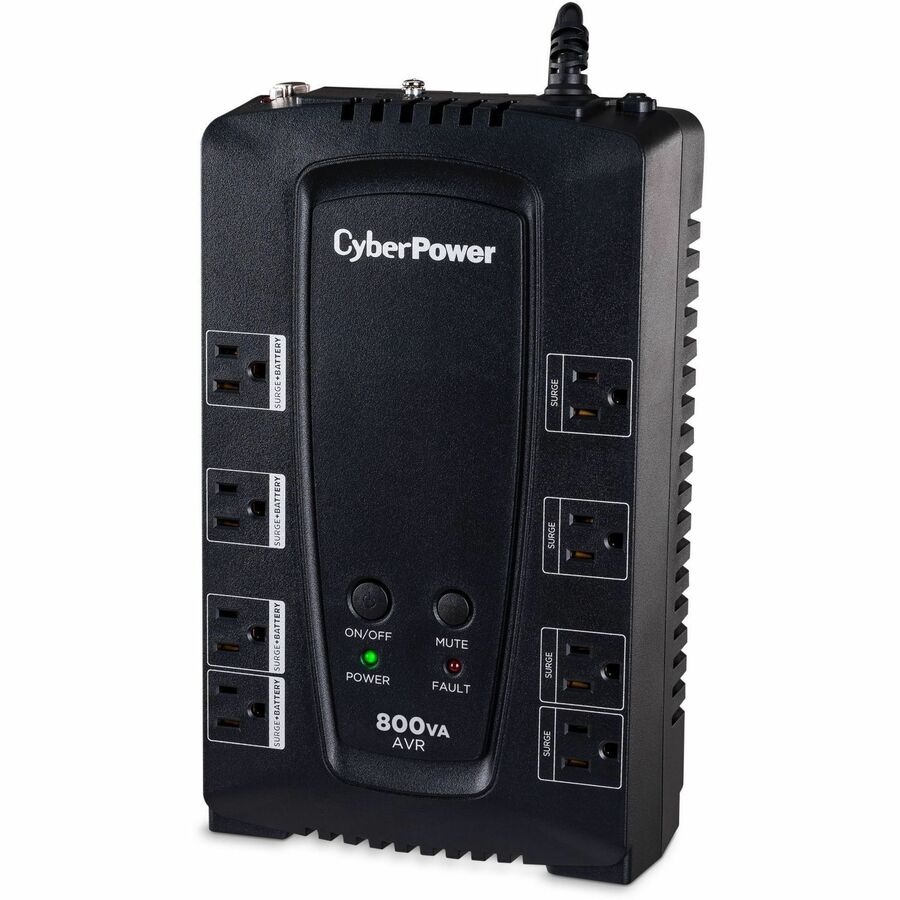

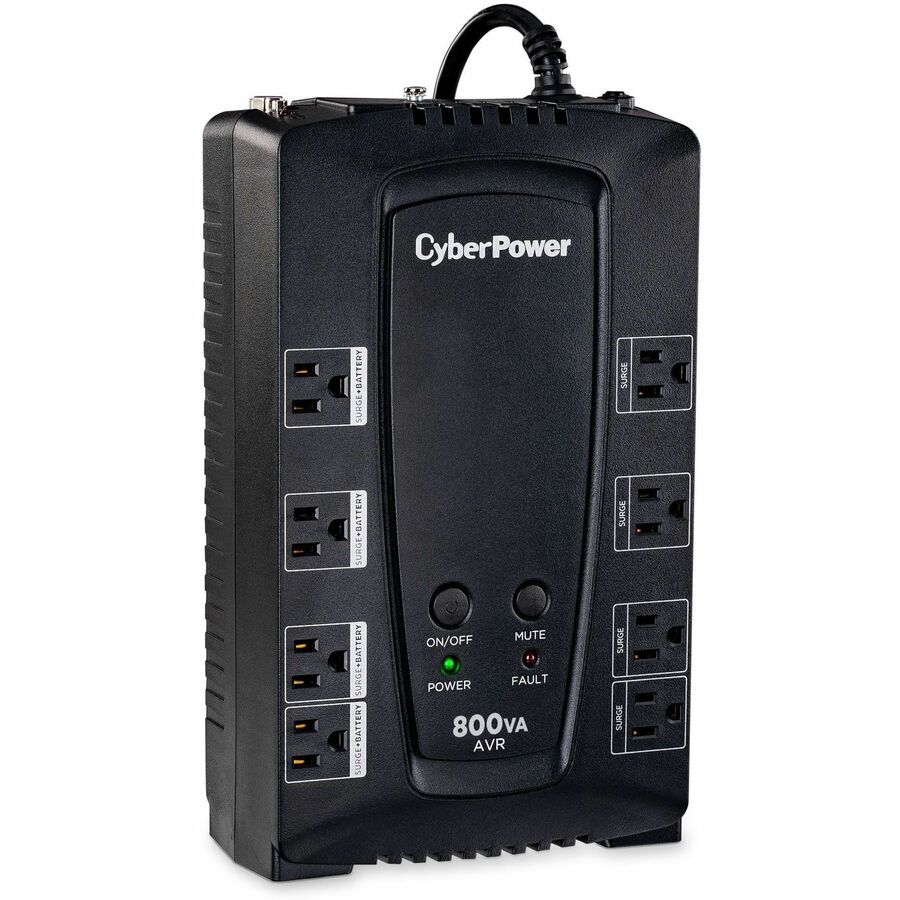

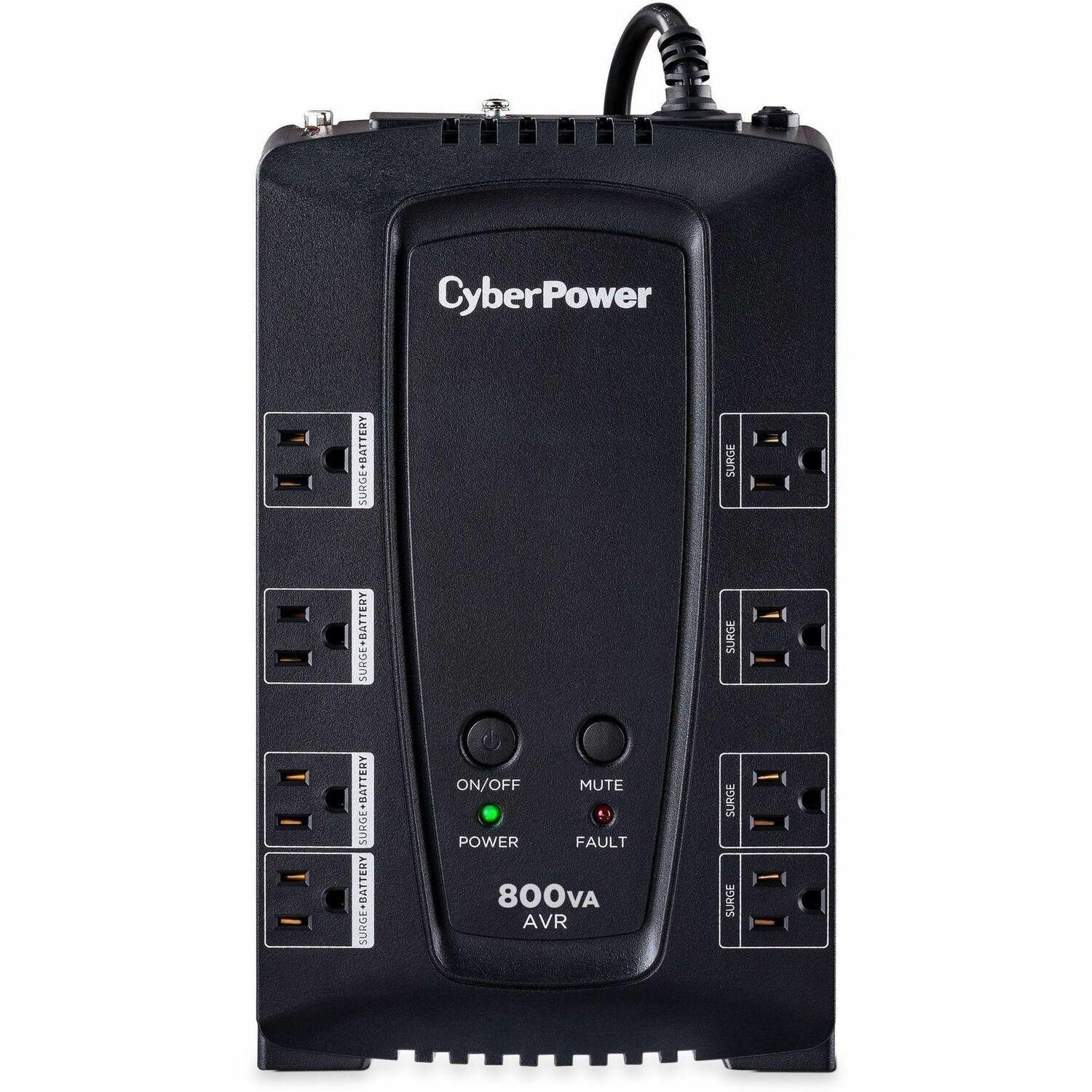

The CyberPower CP800AVR uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This UPS, with line-interactive topology, uses simulated sine wave output to deliver battery backup to power connected electronics during a utility power failure. The unit has enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable desktop computers, workstations, networking devices, and home entertainment systems.
The CP800AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power. AVR is essential in areas where power fluctuations occur frequently, and it helps to extend the unit's battery life. CyberPower designed the CP800AVR to minimize noise for a quieter work environment and run efficiently to reduce power consumption.
With a
- 200,000 lifetime connected equipment guarantee and a three-
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 4
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms
Energy Saving: GreenPower UPS™ Bypass
Application/Usage: Desktop Computer,Workstation,Home Theater,Electronic Equipment,Home Network,Router,Modem,VoIP Phone System
Power Description
Load Capacity (VA): 800 VALoad Capacity (Watt): 450 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Output Frequency: 60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 1030 J
Circuit Breaker: Yes
Management
Alarm: Low Battery,On Battery,OverloadControls/Indicators
Status Indicators:- Power On
- Wiring Fault

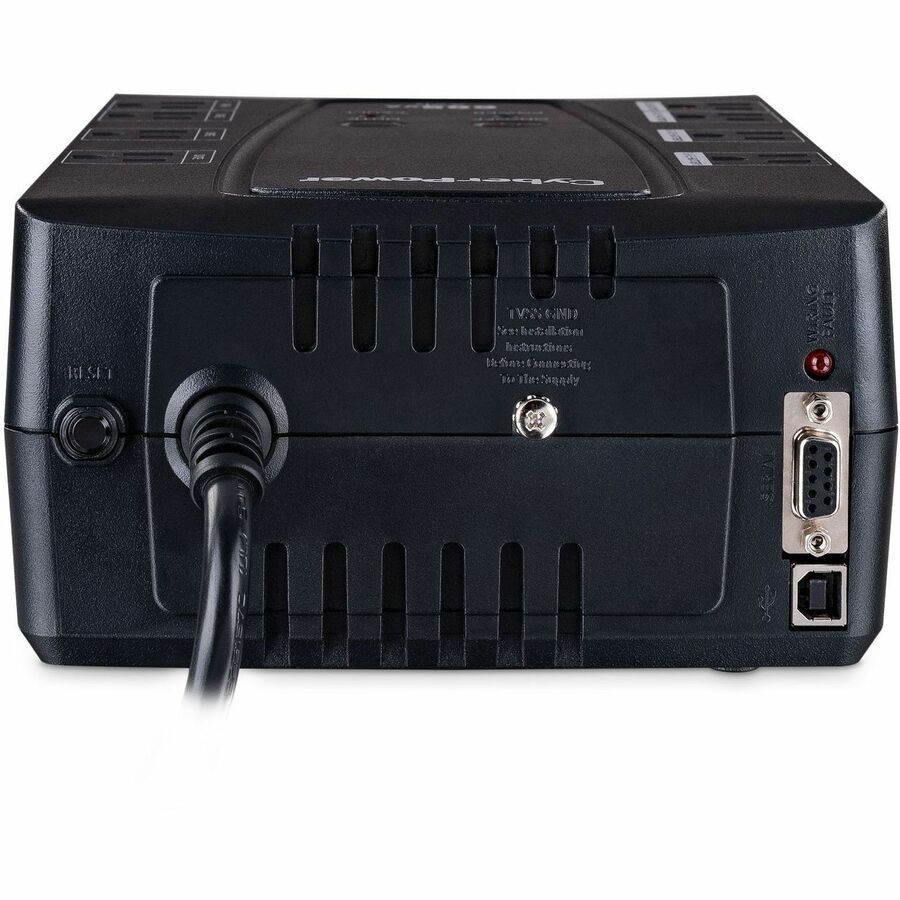

Interfaces/Ports
Serial Port: YesUSB: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 1Battery Characteristics: Maintenance-free
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 1.20 Minute
Backup/Run Time (Half Load): 13.50 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 95°F (35°C)Physical Characteristics
Product Color: BlackHeight: 6.80" (172.72 mm)
Width: 11" (279.40 mm)
Depth: 3.50" (88.90 mm)
Form Factor: Compact
Weight (Approximate): 12.74 lb (5778.77 g)
Miscellaneous
Package Contents:- AVR CP800AVR 800VA UPS
- User Manual
- USB A+B Type Cable
- Serial Cable
- Warranty Registration Card
Software Included: PowerPanel® Personal
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information:
- CyberPower stands behind its products by offering an industry leading 3-year warranty
- CyberPower also has a technical support team that will assist you with product, installation, or warranty concerns.
