General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: CPS1500AVR
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Smart App LCD UPS
Product Model: CPS1500AVR
Product Name: CPS1500AVR Smart App LCD UPS Systems
Marketing Information:

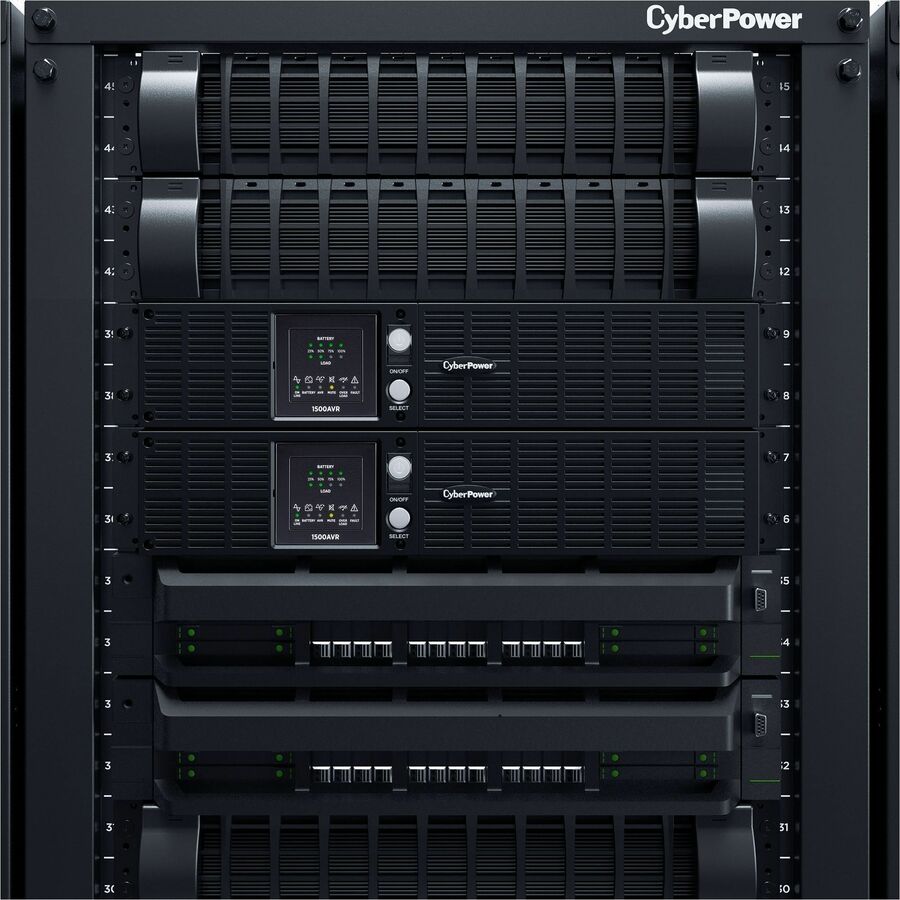

A rack/tower UPS with line interactive topology, the CyberPower Intelligent LCD CPS1500AVR provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The CPS1500AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CPS1500AVR comes with a three-year warranty and a
- 300,000 Connected Equipment Guarantee.
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

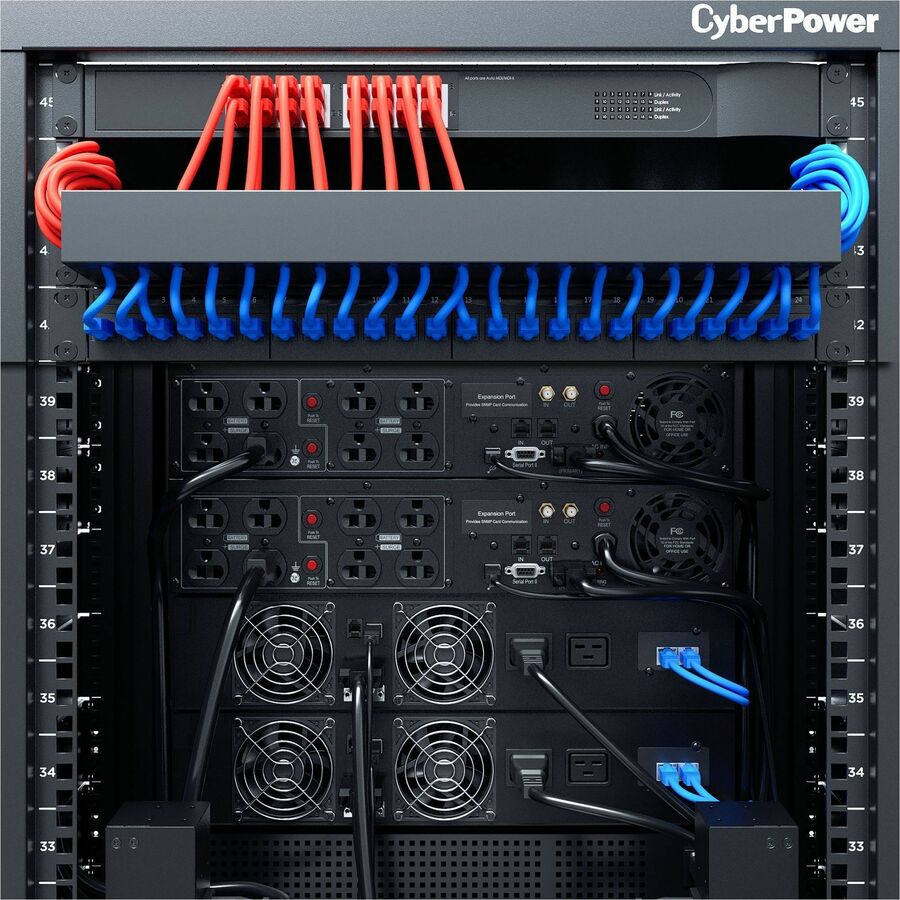

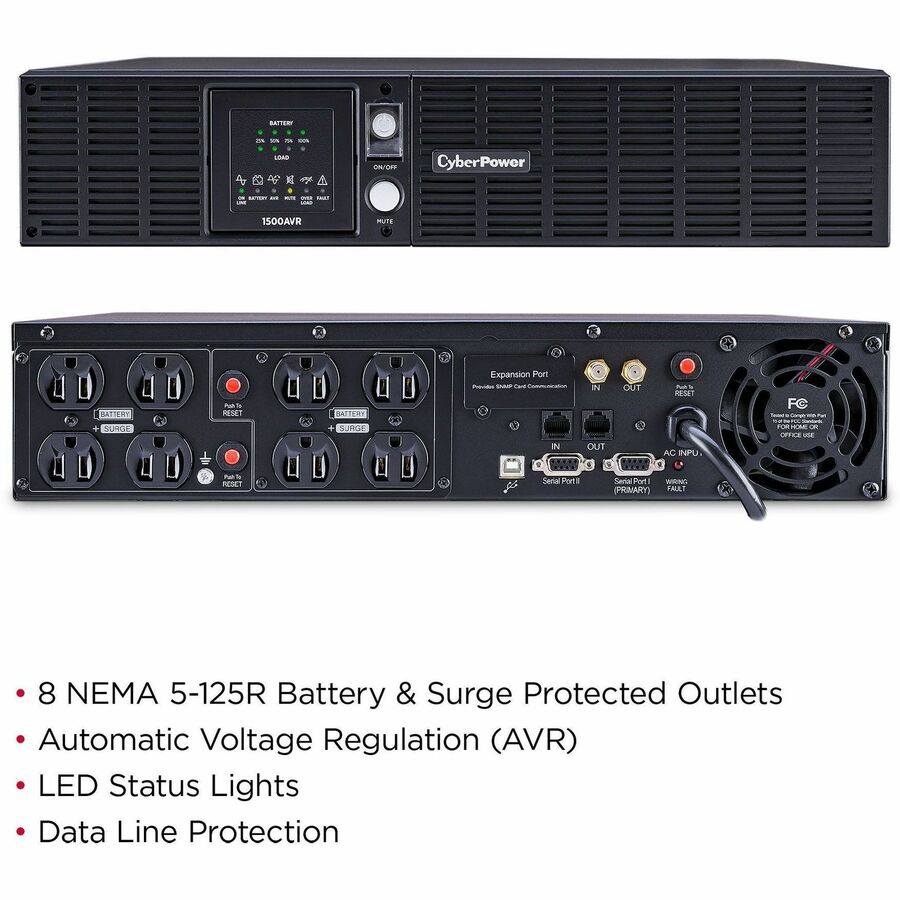

Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Transfer Time: 4 ms
Dataline Protection: RJ-45,RJ-11,Coax
Protection Type: Surge,Spike
Overload Protection: Yes
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: Server,Workstation,Network Device,Telecommunication
Cord Length: 10 ft (3048 mm)
Circuit Breaker Current Rating: 15 A
Power Description
Load Capacity (VA): 1.50 kVALoad Capacity (Watt): 900 W
Input Voltage: 120 V AC
Input Voltage Range: 90 V AC - 140 V AC
Output Voltage: 120 V AC
Input Frequency: 47 Hz,63 Hz
Output Frequency: 50 Hz,60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 1840 J
Output Power Factor: 0.6
Management
Network Management: SNMP/HTTP Remote MonitoringAlarm: Battery Mode
Controls/Indicators

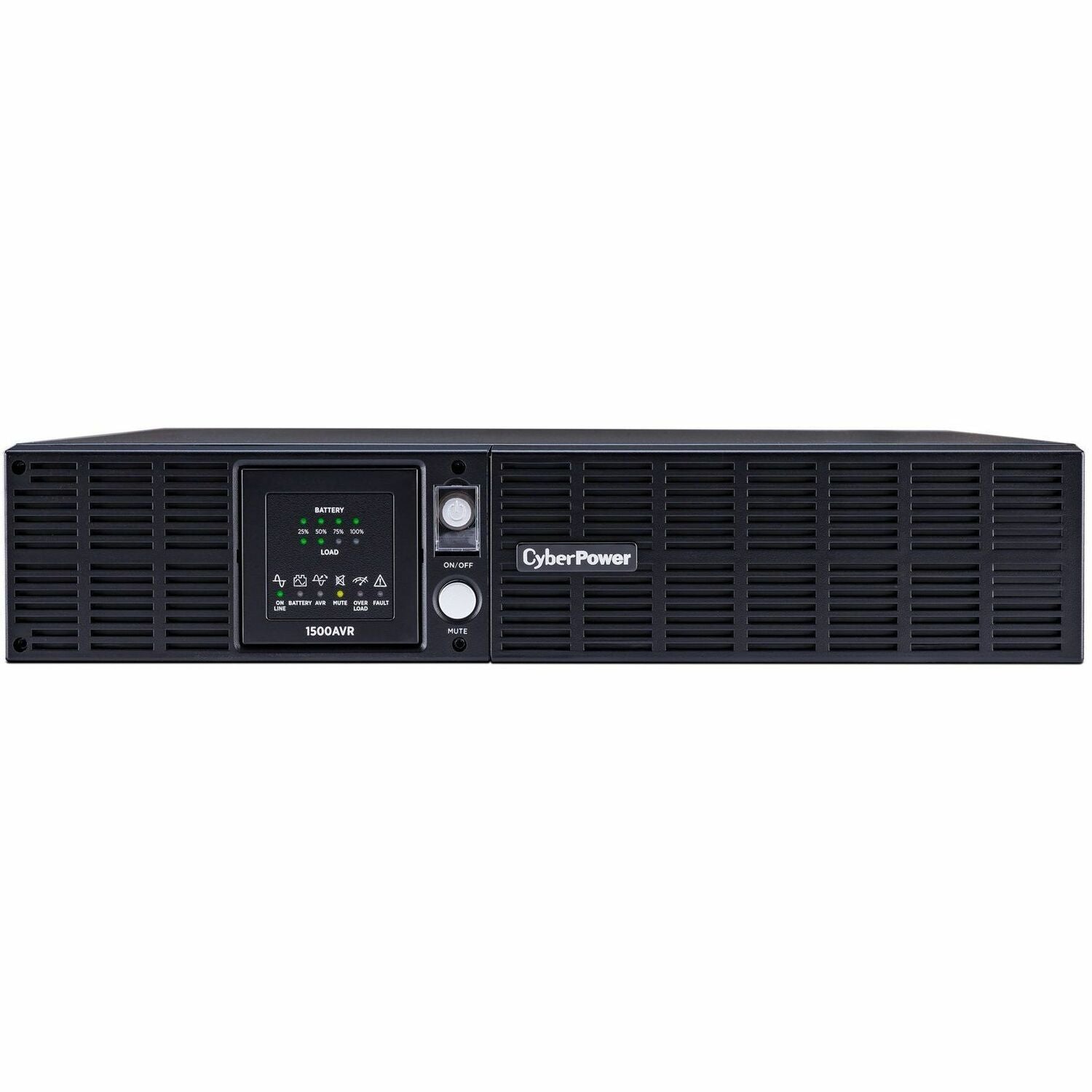

Status Indicators:- Load Level
- Battery Level
- Power On
- Online
- Using Battery
- Replace Battery
- AVR
- Mute
- Overload
- Fault
- Wiring Fault
Interfaces/Ports
Serial Port: YesNetwork (RJ-45): Yes
USB: Yes
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 12 V DCNumber of Batteries: 4
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 7 Minute
Backup/Run Time (Half Load): 18 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 104°F (40°C)Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Relative Humidity: 0% - 95%
Physical Characteristics

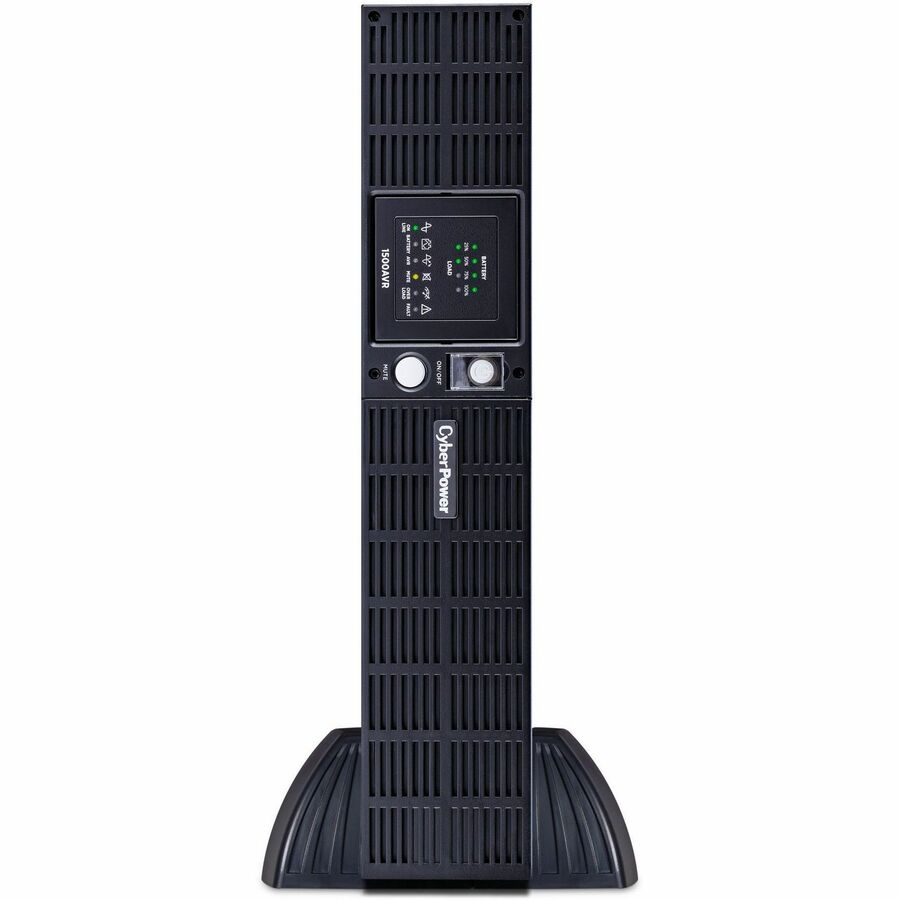

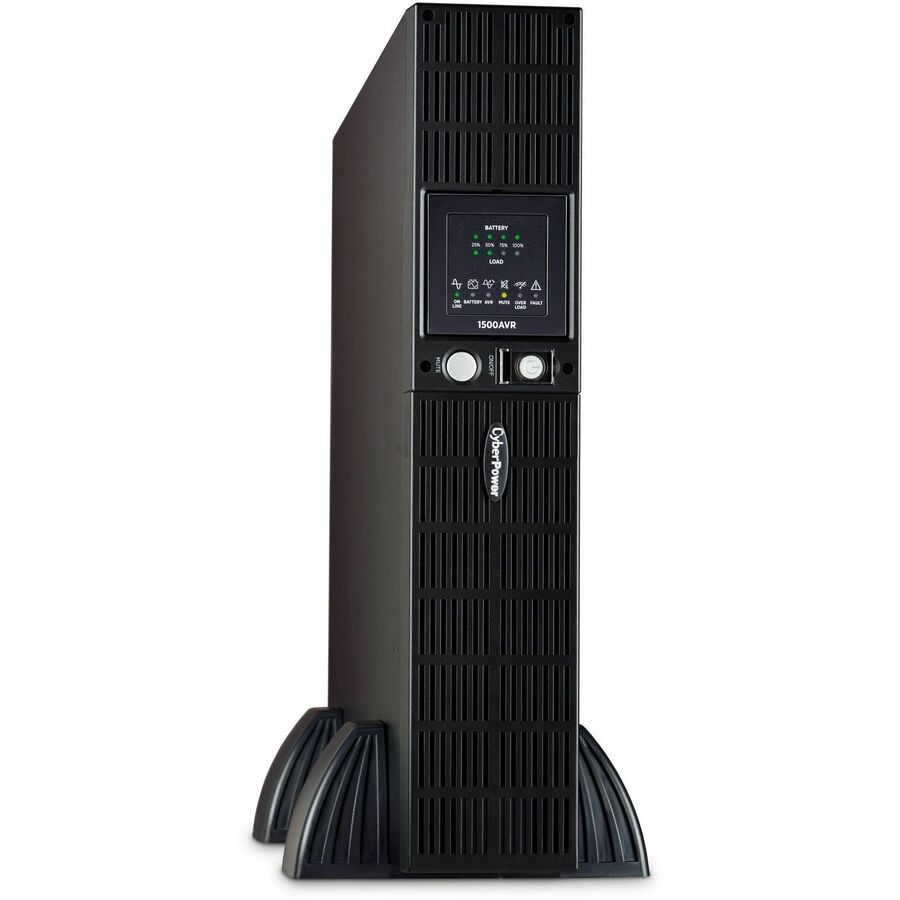

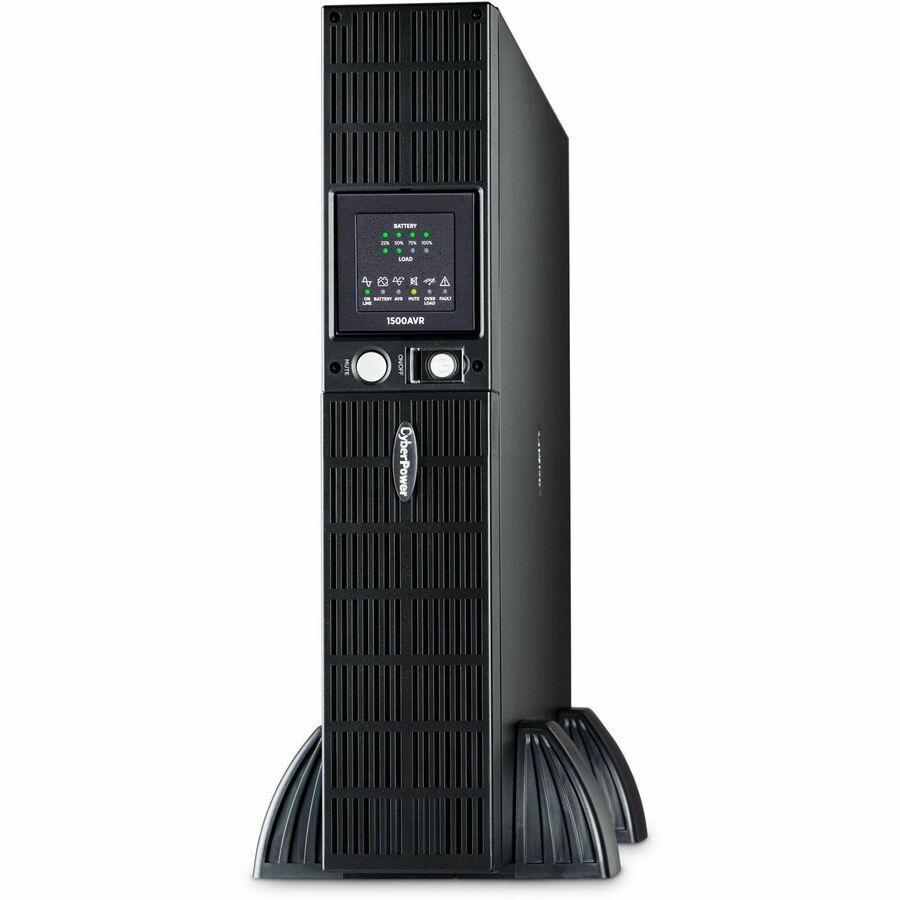

Product Color: BlackForm Factor: Rack/Tower

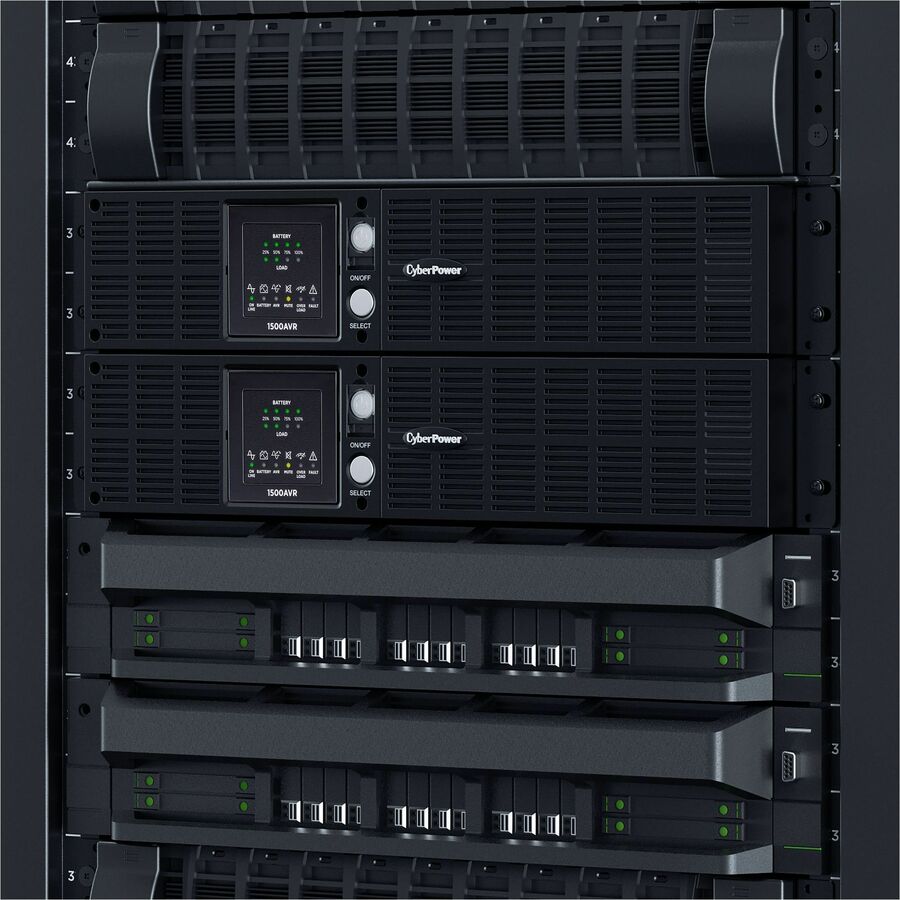

Rack Height: 2U

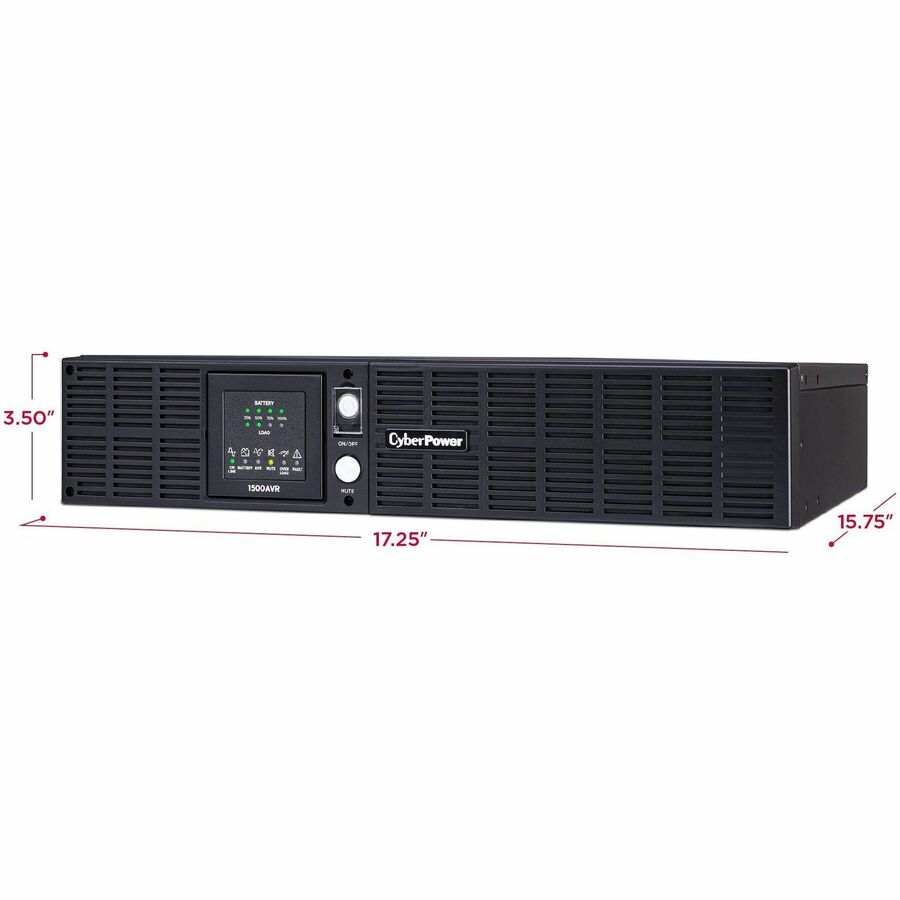

Height: 3.50" (88.90 mm)
Width: 17.25" (438.15 mm)
Depth: 15.75" (400.05 mm)
Weight (Approximate): 50.50 lb (22906.41 g)
Miscellaneous
Package Contents:- Smart App AVR CPS1500AVR 1500VA UPS
- Rack Mount Kit
- User Manual
- Power Management Software
- Warranty Card
- Serial Cable
- Serial-to-USB Adapter
Software Included: PowerPanel Business Edition
Energy Star: No
Country of Origin: China
Environmentally Friendly: Yes
Warranty
Limited Warranty: 3 YearAdditional Warranty Information:
- CyberPower stands behind its products by offering an industry leading 3-year warranty
- CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge
- Connected Equipment Guarantee of
- 300,000
